Description

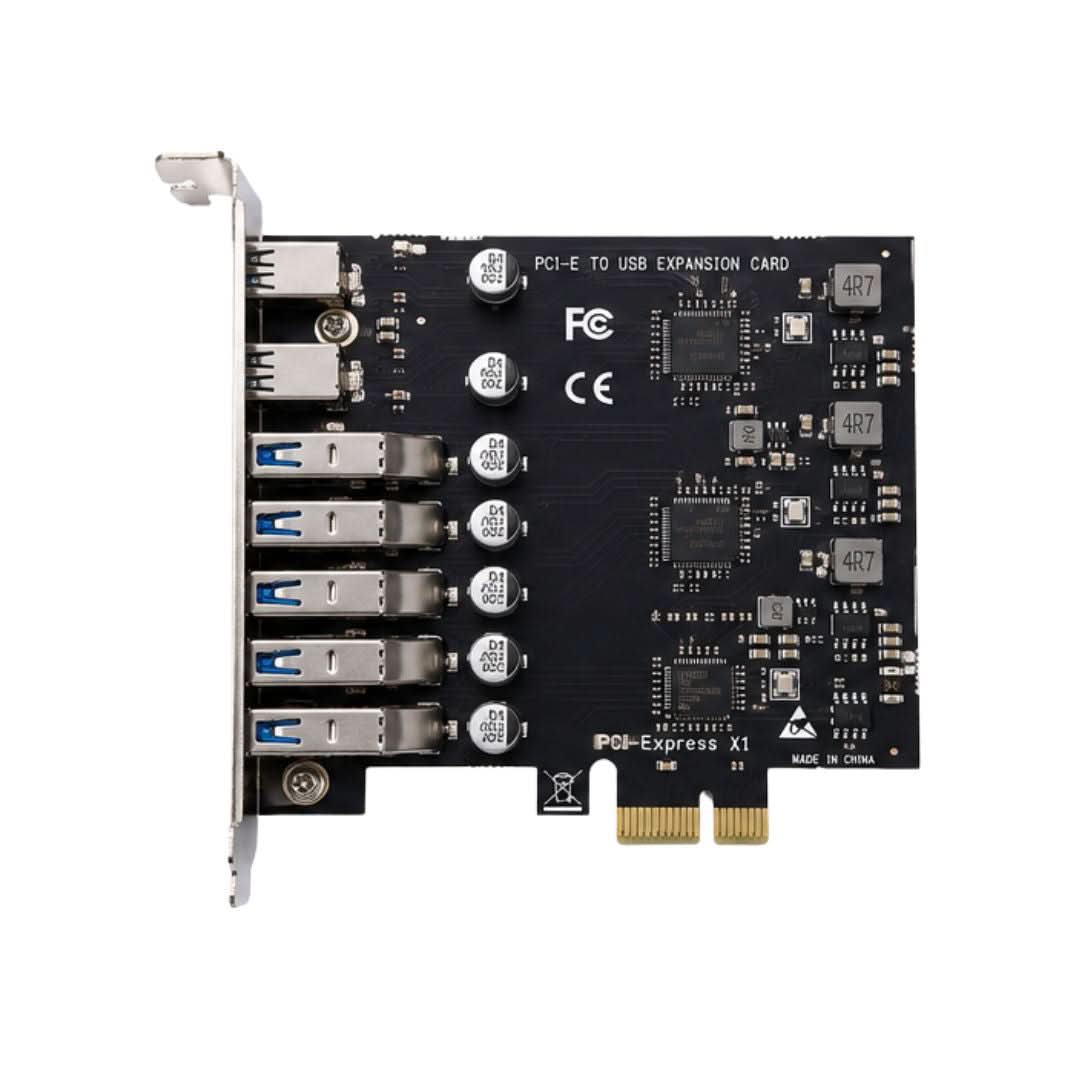

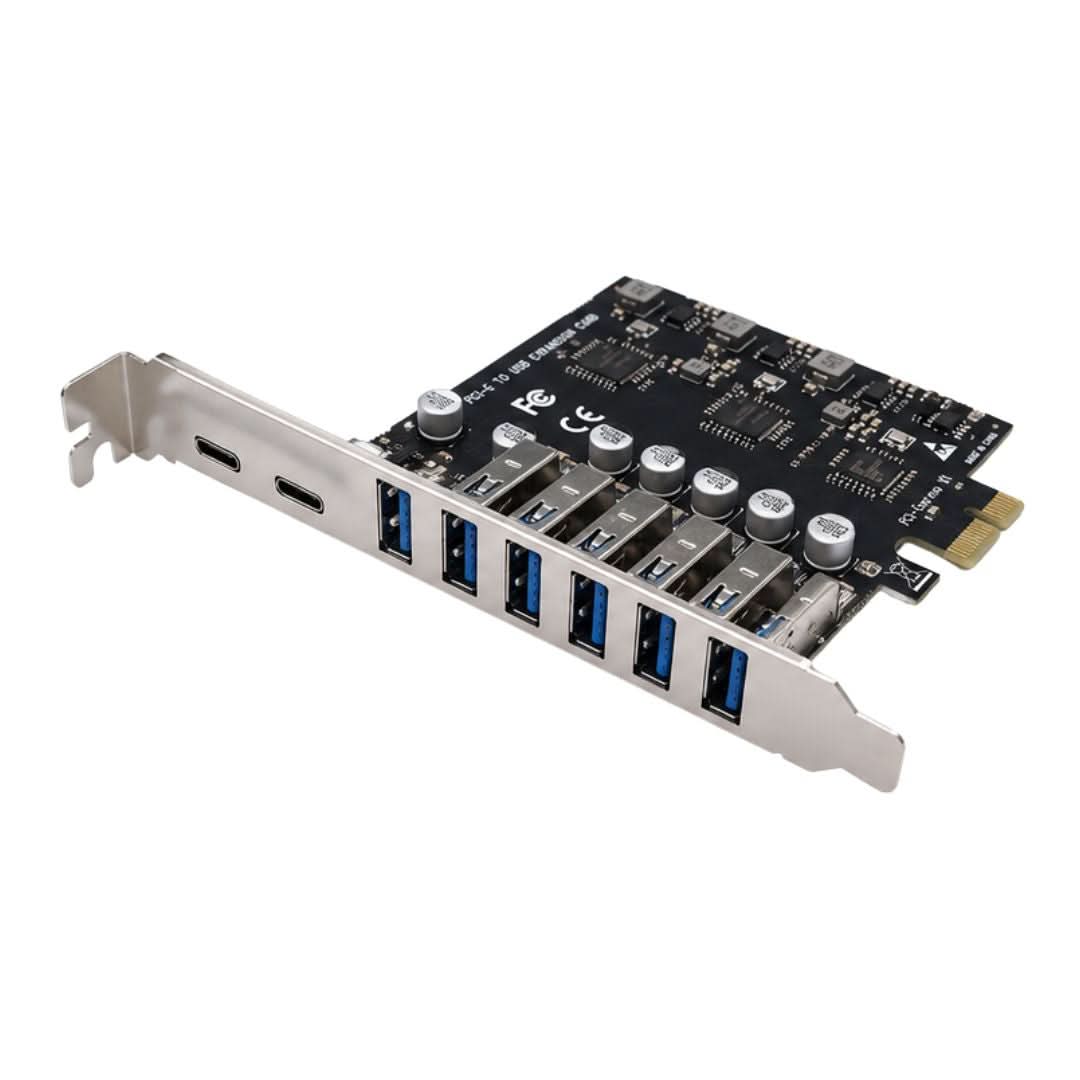

S-Tech PCIe 6-Port USB 3.0 + 2-Port USB Type-C Expansion Card
The S-TECH STC-UPD6U2C is a high-performance PCI Express expansion card designed to
add eight high-speed USB ports to a desktop computer or workstation. The card is powered by
2 × Renesas μPD720210 and 1 × Renesas μPD720201 USB 3.0 host controllers, providing
6 × USB 3.0 Type-A ports and 2 × USB Type-C ports.
The card supports USB 3.2 Gen1 data transfer rates of up to 5 Gbps and uses a PCI Express
Gen2 x1 host interface. It can be installed in PCI Express x1, x4, x8 or x16 slots, providing a
convenient solution for systems requiring a large number of additional USB ports.
PRODUCT FEATURES

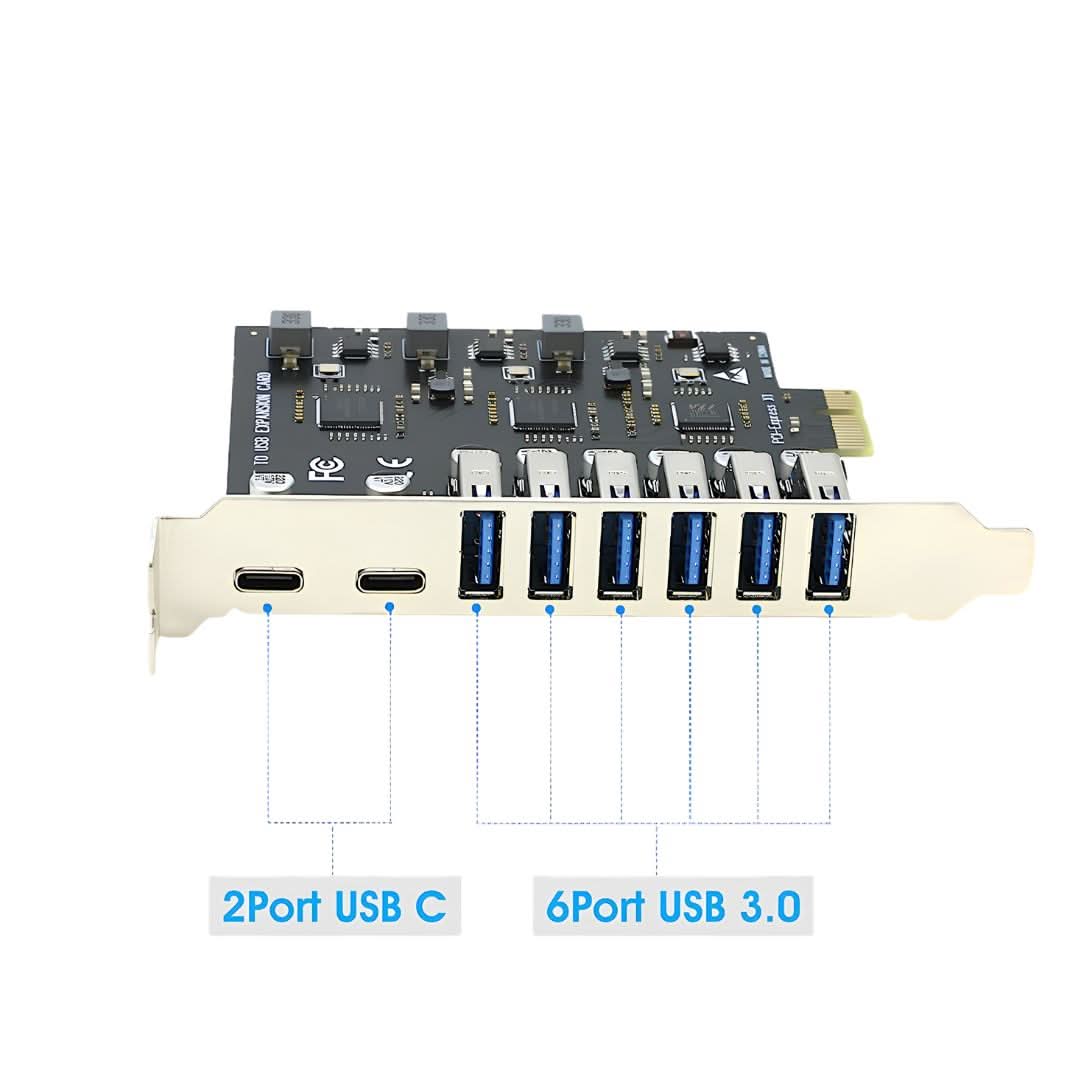

• Adds 6 × USB 3.0 Type-A and 2 × USB Type-C ports
• Powered by 2 × Renesas μPD720210 + 1 × Renesas μPD720201 USB 3.0 host
controllers
• Supports USB 3.2 Gen1 data transfer rates up to 5 Gbps
• PCI Express Gen2 x1 host interface

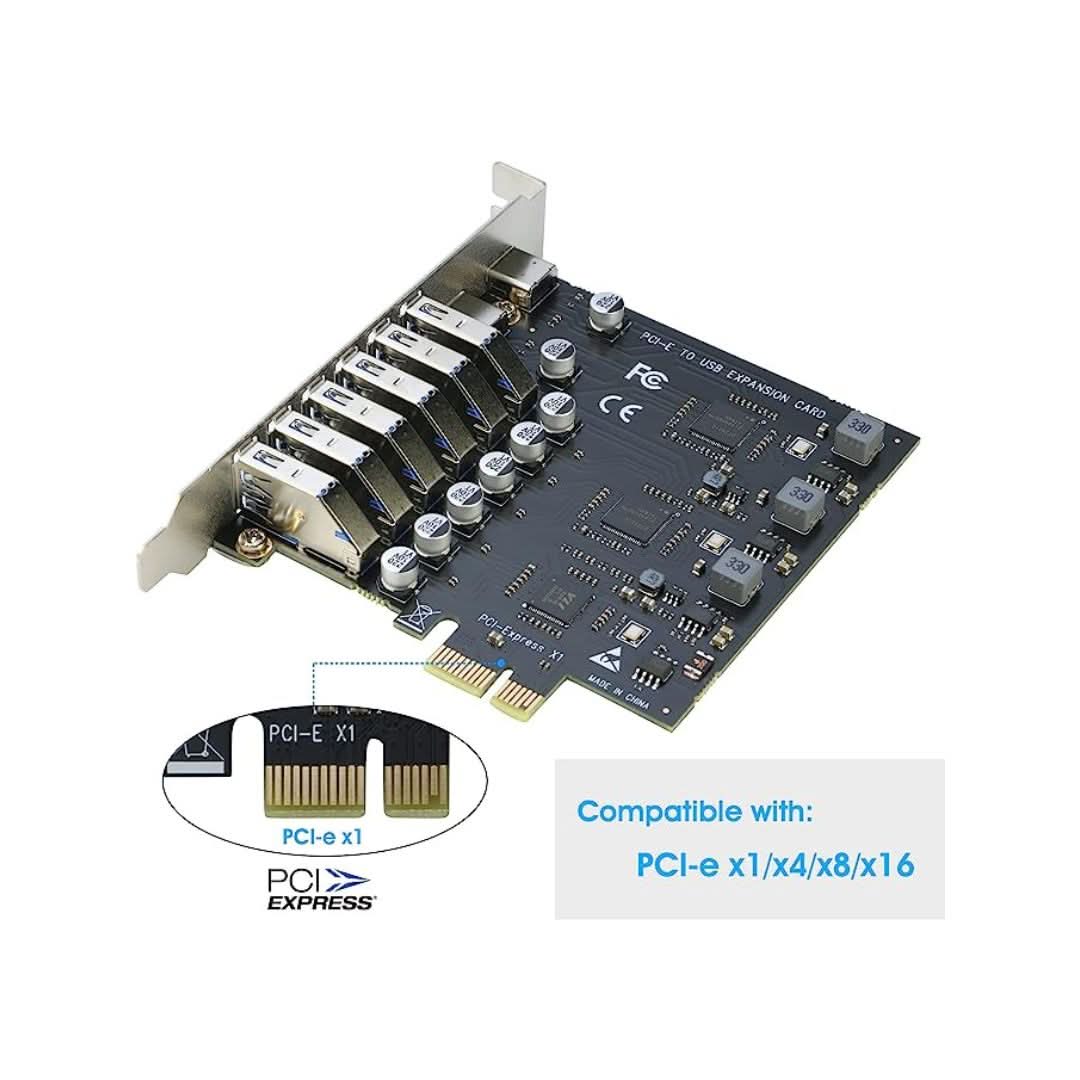

• Compatible with PCIe x1, x4, x8 and x16 slots
• Supports simultaneous connection of multiple USB devices
• Suitable for desktop PCs and workstations
• Standard full-height PCIe bracket
• Supports Windows and Linux operating systems
SPECIFICATION
| Product Type | PCI Express USB Expansion Card |
| Model | STC-UPD6U2C |
| Chipset / Controller | 2 × Renesas μPD720210 + 1 × Renesas μPD720201 |
| Total Ports | 8 |
| USB Type-A Ports | 6 × USB 3.0 |
| USB Type-C Ports | 2 × USB 3.0 / USB 3.2 Gen1 Type-C |
| USB Standard | USB 3.2 Gen1 |
| Maximum Data Rate | Up to 5 Gbps |
| Host Interface | PCI Express Gen2 x1 |
| Operating System | Windows 11 / 10 / 8.x Windows Server 2012 / 2012 R2 / 2016 / 2019 / 2022 Windows XP / Vista / 7 (Driver Installation Required) Windows Server 2003 / 2003 R2 / 2008 / 2008 R2 (Driver Linux (2.4.x & Later) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | 0°C to 80°C |
| Input Voltage | DC 12V |
| Input Current | 4A |
| Power Supply | PCI Express |
| Bracket | Standard Full-Height PCIe Bracket |
| Certifications | CE, FCC, RoHS |
| Warranty | 12 Months |
