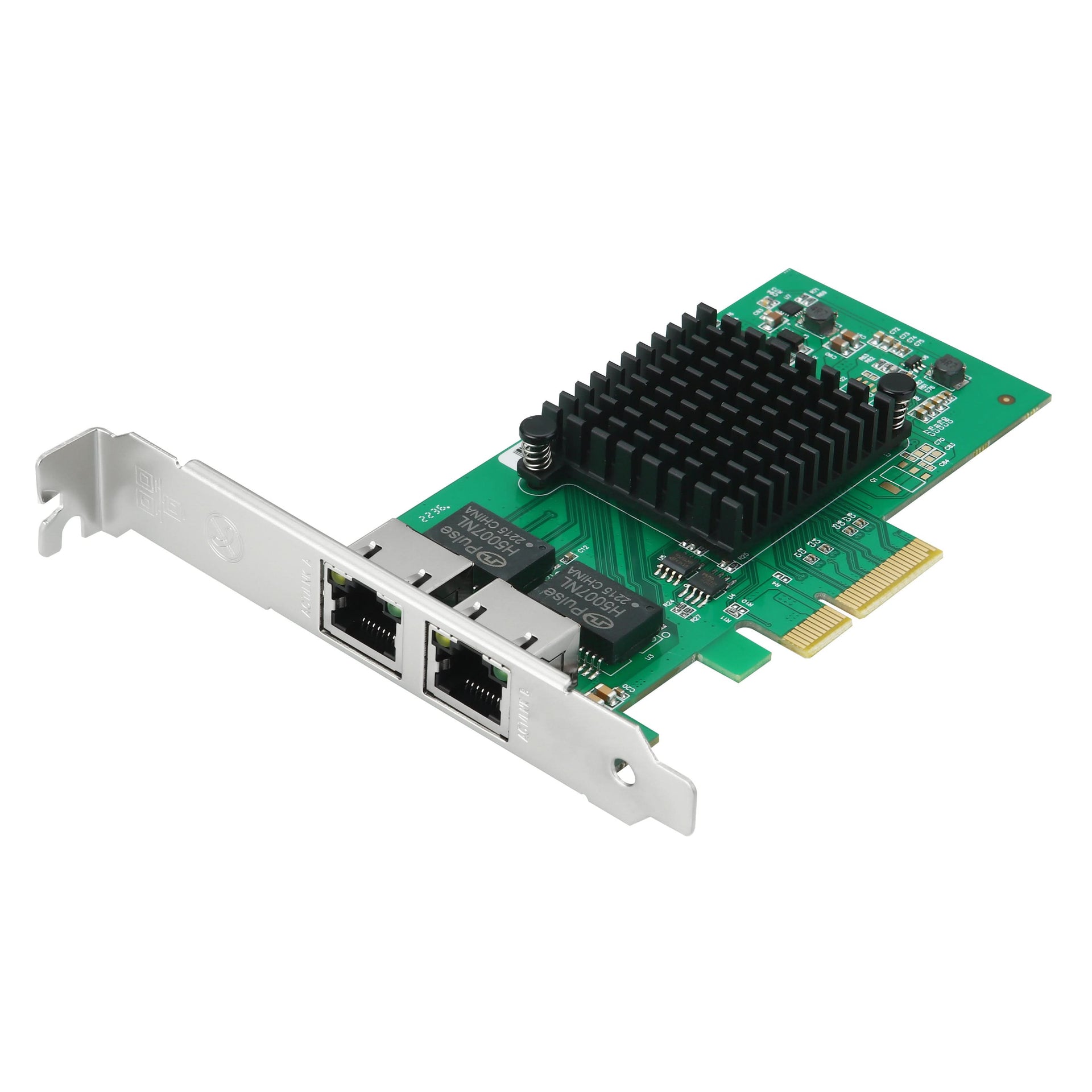

S-Tech PCIe Gigabit Ethernet Network Card – Dual Port RJ45 – Intel I350

S-Tech PCIe Gigabit Ethernet Network Card – Dual Port RJ45 – Intel I350

The S-TECH STC-I350-T2 is a high-performance dual-port Gigabit Ethernet PCI Express
network adapter based on the Intel® Ethernet Controller I350 Series. Designed for enterprise
servers, virtualization platforms, industrial computers, network appliances, storage systems,
and cloud computing environments, the adapter delivers reliable Gigabit Ethernet connectivity
with advanced networking features and excellent power efficiency.
Featuring two RJ45 copper ports and a PCI Express 2.1 x4 host interface, the adapter
supports 10Mbps, 100Mbps, and 1000Mbps Ethernet connectivity over standard twisted-pair
copper cabling. With support for Intel® Virtualization Technology for Connectivity (Intel®
VT-c), PCI-SIG SR-IOV, VMDq, Flexible Port Partitioning (FPP), Jumbo Frames, and
intelligent hardware offloads, the STC-I350-T2 provides outstanding network performance
while reducing CPU utilization for demanding enterprise applications.
Its compact design, broad operating system compatibility, and enterprise-class reliability make
it an ideal networking solution for virtualization hosts, servers, NAS systems, firewall
appliances, industrial PCs, and workstation applications.

PRODUCT FEATURES

• Dual-port Gigabit Ethernet adapter based on Intel® Ethernet Controller I350
• PCI Express 2.1 x4 host interface
• Supports 10Mbps / 100Mbps / 1000Mbps Ethernet data rates

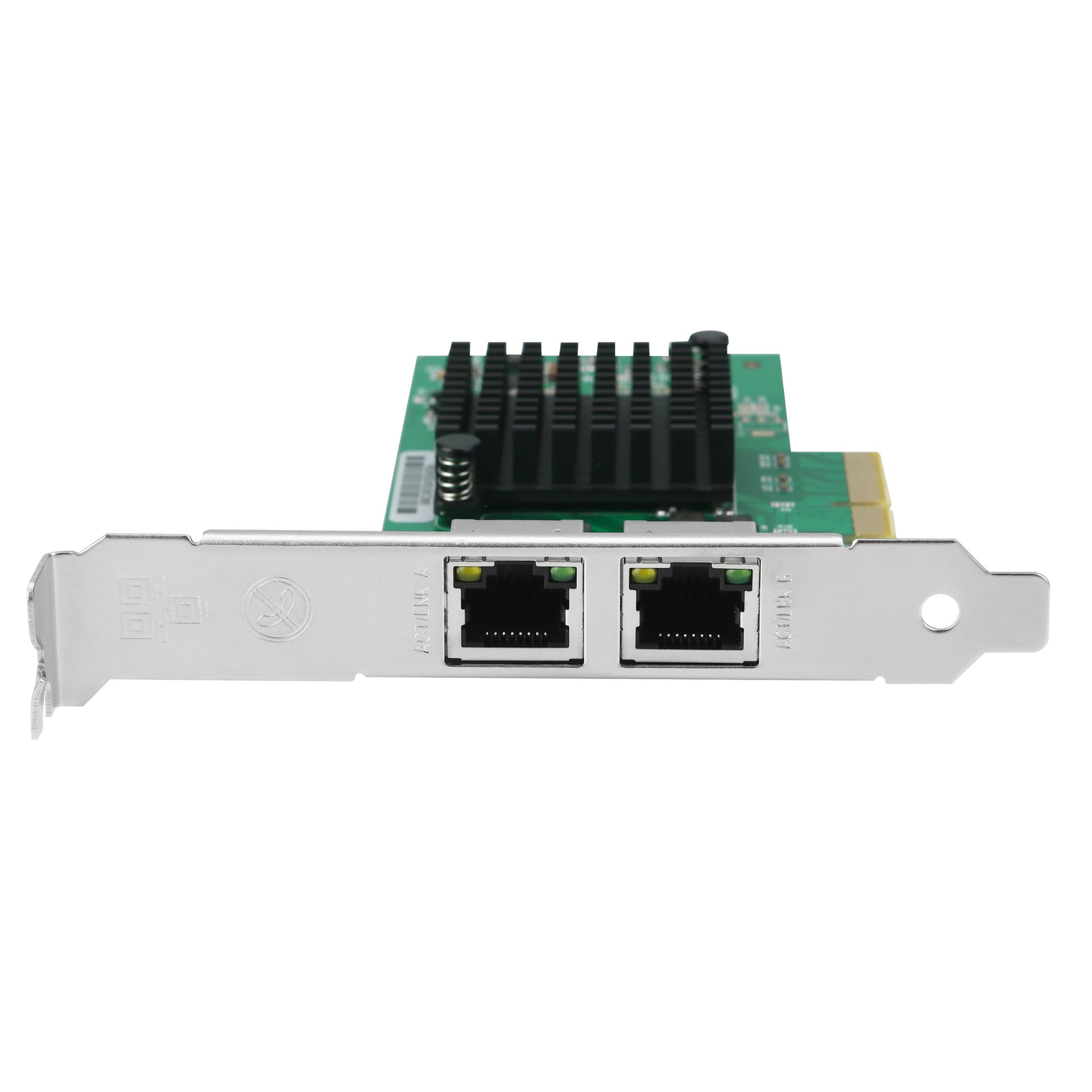

• Dual RJ45 copper ports
• Supports Intel® VT-c and PCI-SIG SR-IOV virtualization
• IEEE 802.1Q VLAN support
• Jumbo Frame support up to 9.5KB
• PXE Boot and Wake-on-LAN support

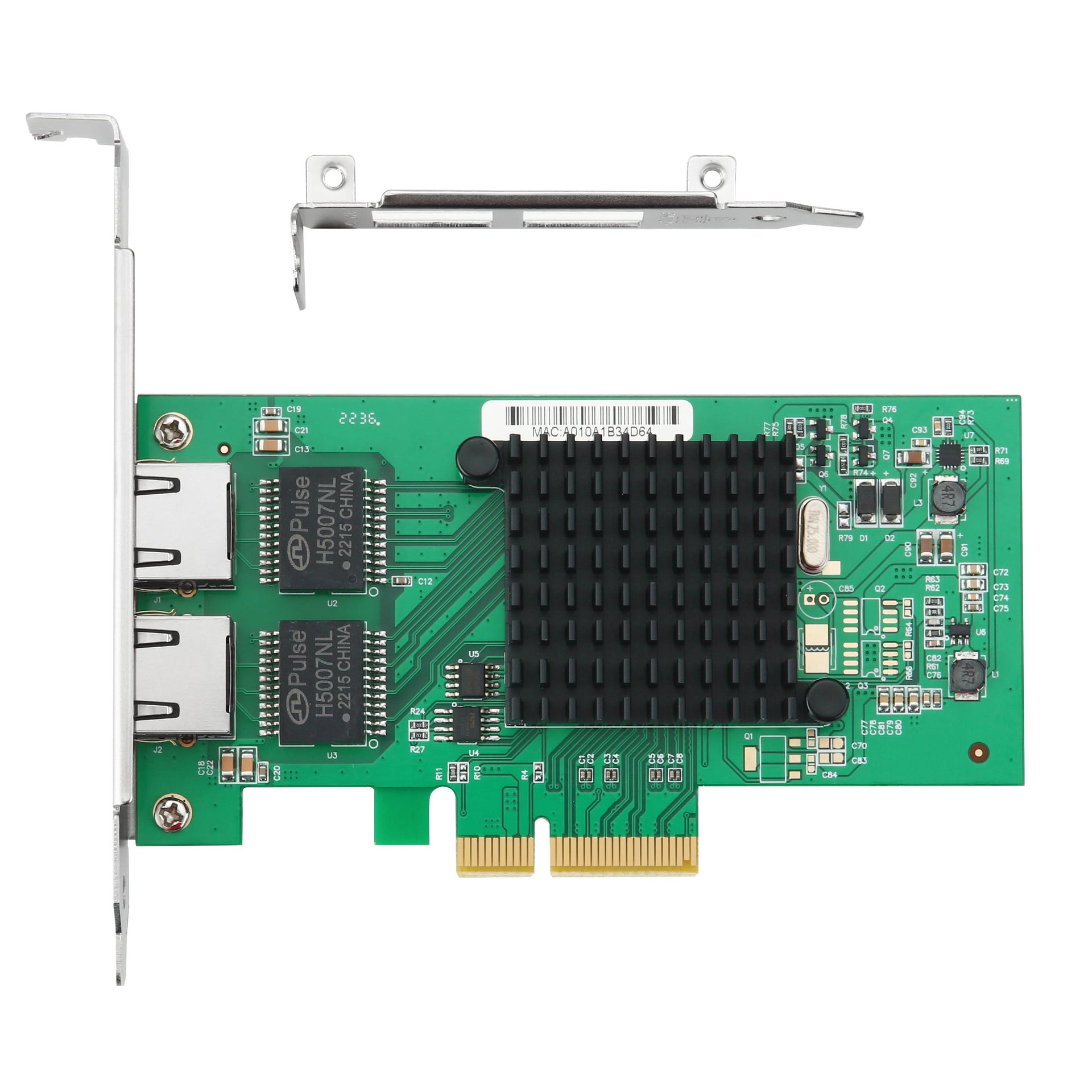

• Full-height bracket installed; Low-profile bracket included
• Ideal for enterprise servers, virtualization, cloud computing, firewall appliances, NAS
systems, and industrial computers

SPECIFICATION
