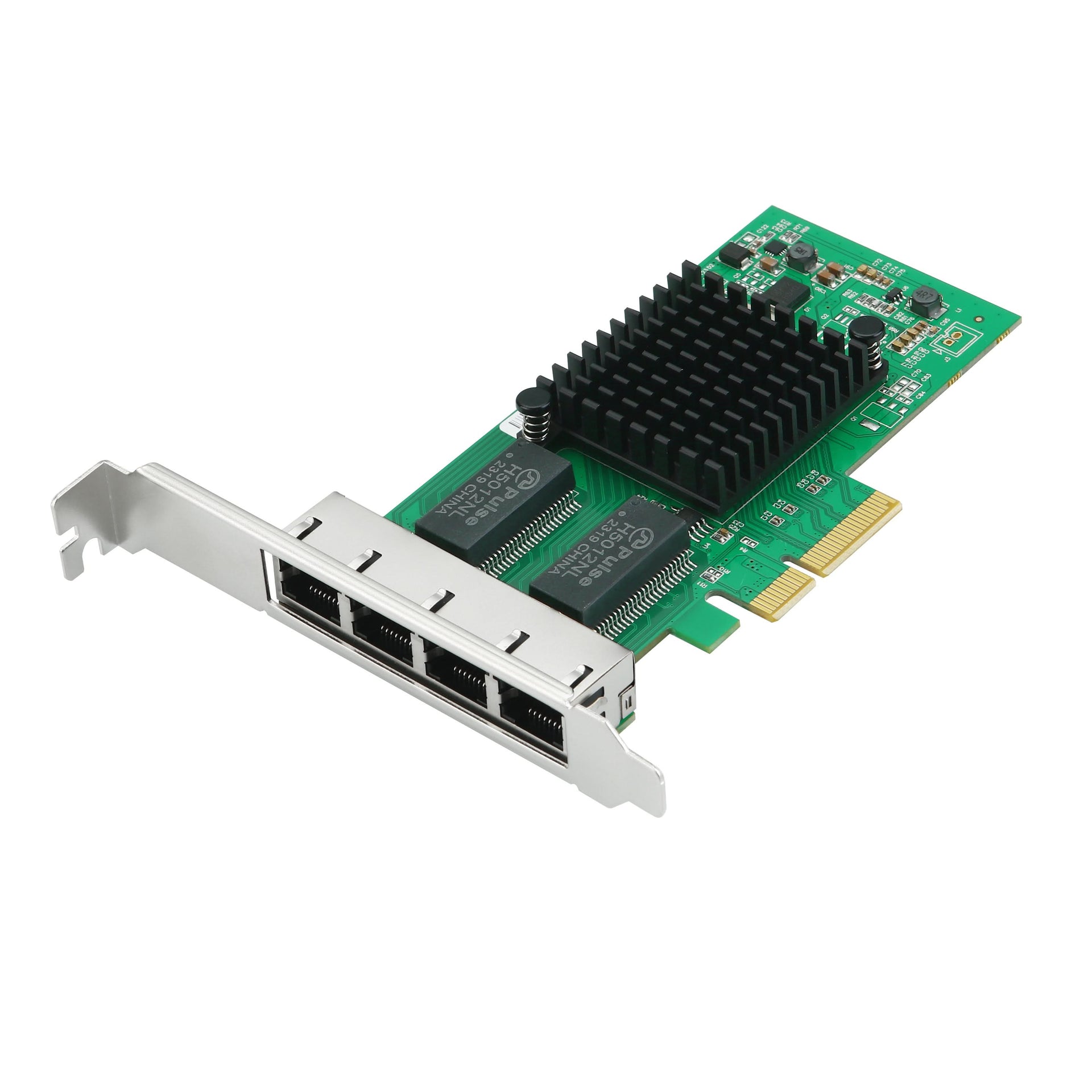

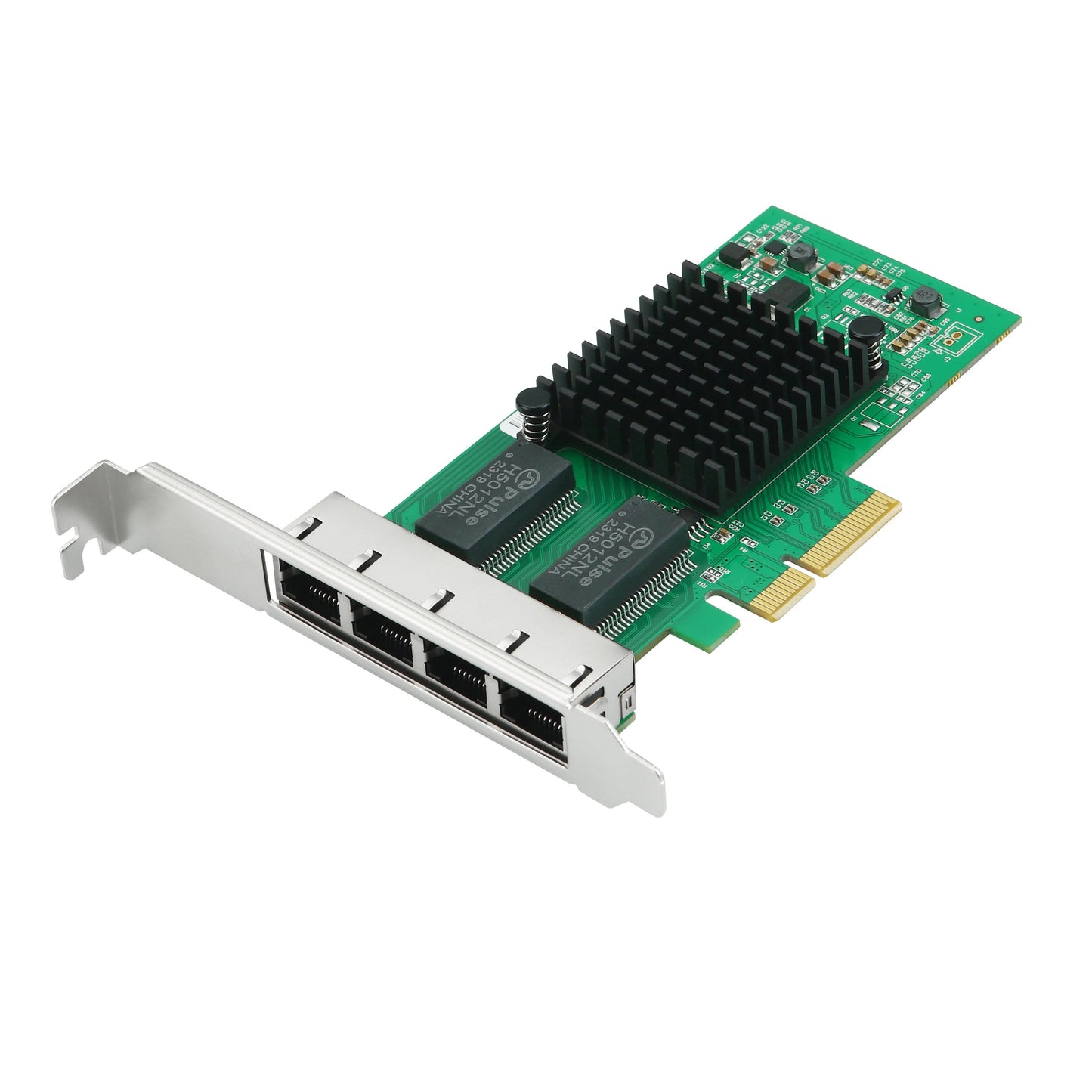

S-Tech PCIe Gigabit Ethernet Network Card – Quad Port RJ45 – Intel I350
The S-TECH STC-I350-T4 is a high-performance quad-port Gigabit Ethernet PCI Express
network adapter based on the Intel® Ethernet Controller I350. Designed for enterprise
servers, virtualization platforms, cloud computing, industrial computers, network appliances,
firewall systems, and storage networking, the adapter delivers reliable multi-port Gigabit
Ethernet connectivity with enterprise-class performance and low CPU utilization.
Featuring four RJ45 copper ports and a PCI Express 2.0 x4 host interface, the adapter
supports 10Mbps, 100Mbps, and 1000Mbps Ethernet connectivity over standard twisted-pair
copper cabling. With support for Intel® Virtualization Technology for Connectivity (Intel®
VT-c), PCI-SIG SR-IOV, VMDq, IEEE 1588 Precision Time Protocol, intelligent hardware
offloads, and Jumbo Frame support, the STC-I350-T4 provides exceptional network
performance for demanding enterprise and virtualization environments.
Its enterprise-grade design, broad operating system compatibility, and advanced networking
capabilities make it an ideal solution for virtualization hosts, NAS systems, firewall appliances,
cloud infrastructure, and industrial networking applications.
PRODUCT FEATURES
• Quad-port Gigabit Ethernet adapter based on Intel® Ethernet Controller I350-AM4
• PCI Express 2.0 x4 host interface
• Supports 10Mbps / 100Mbps / 1000Mbps Ethernet data rates

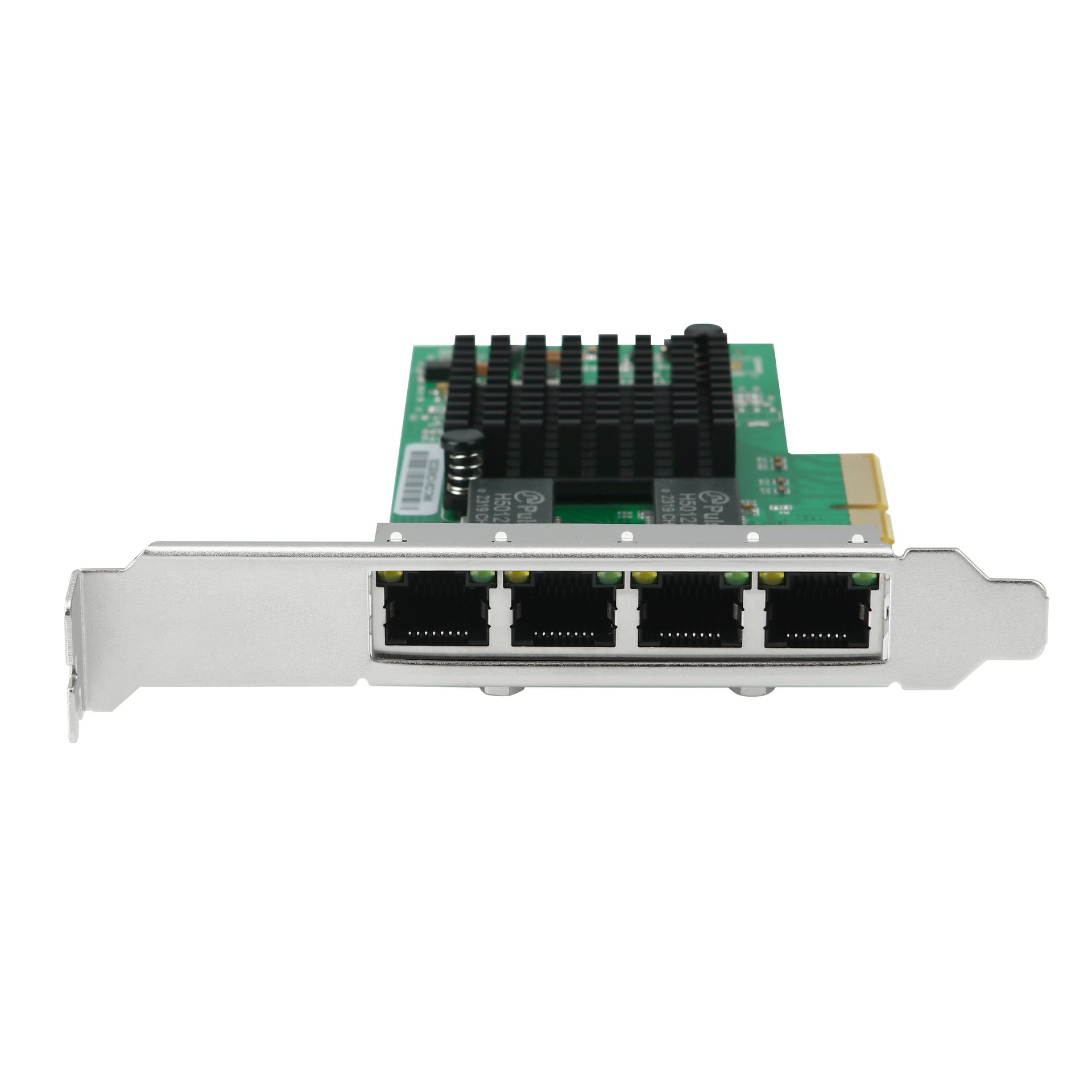

• Four RJ45 copper ports
• Supports Intel® VT-c and PCI-SIG SR-IOV virtualization
• IEEE 802.1Q VLAN support
• Jumbo Frame support up to 9.5KB
• PXE Boot and Wake-on-LAN support

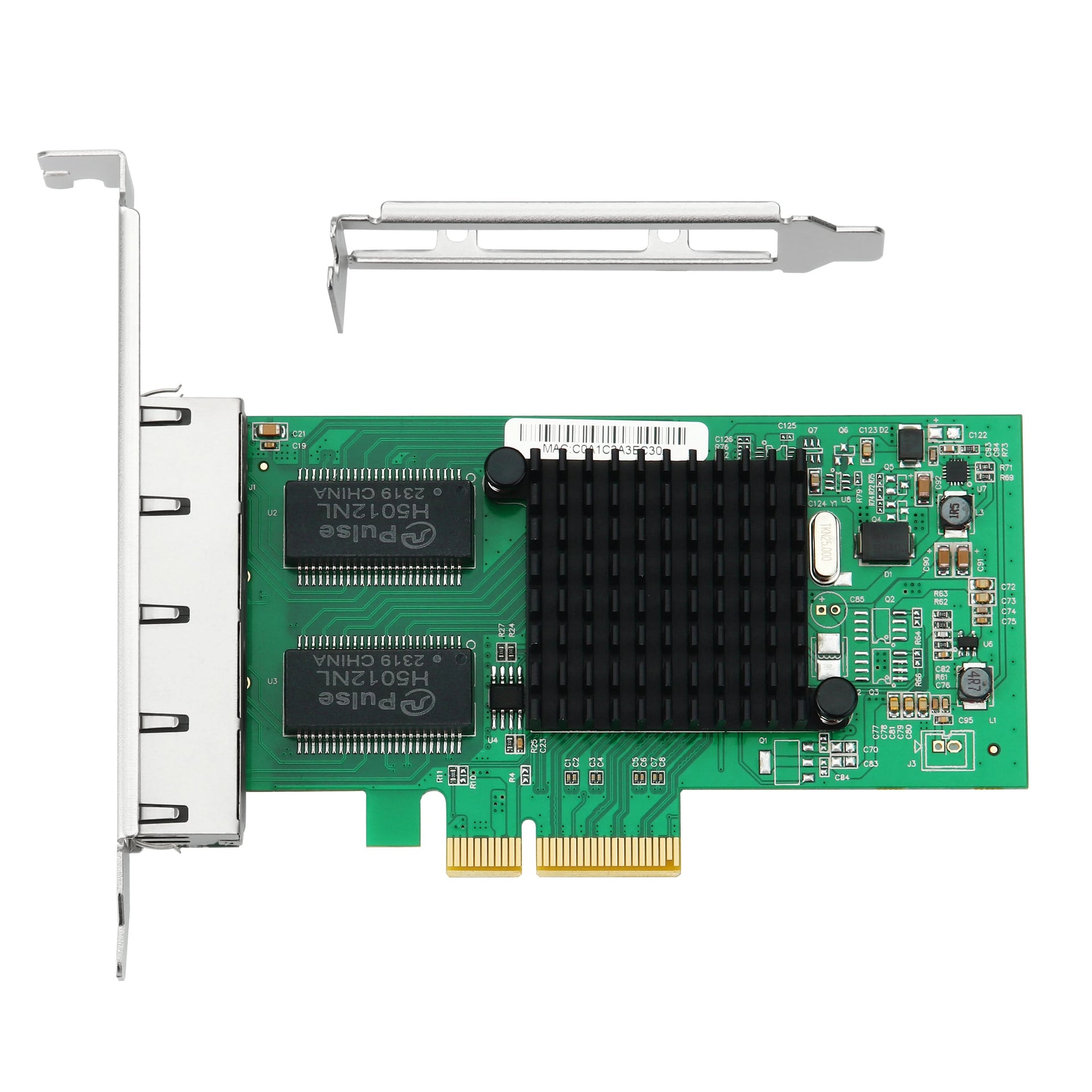

• Full-height bracket installed; Low-profile bracket included
• Ideal for enterprise servers, virtualization, cloud computing, firewall appliances, NAS
systems, and industrial computers
SPECIFICATION
| Essentials | |
| Product Name | STC-I350-T4 |
| Product Collection | Intel® Ethernet Controller I350 Series |
| Controller | Intel® Ethernet Controller I350-AM4 |
| Bus Type / Bus Width | PCI Express (PCIe) 2.0 x4 (5.0 GT/s) |
| Connections | 4 × RJ45 Copper |
| Data Rate Supported | 10Mbps / 100Mbps / 1000Mbps |
| Technical Specification | |
| Transmission Media | CAT5e / CAT6 UTP Cable |
| Maximum Cable Distance | Up to 100 meters |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Auto Negotiation | Supported |
| Auto MDI/MDI-X | Supported |
| Jumbo Frames | Up to 9.5KB |
| Virtualization | Intel® VT-c, PCI-SIG SR-IOV, VMDq |
| Traffic Management | On-chip QoS and Traffic Management |
| Precision Timing | IEEE 1588 PTP |
| Advanced Features | Intel® Data Direct I/O Technology, Intelligent Hardware Offloads |
| Checksum Offload | IPv4, IPv6, TCP, UDP |
| TCP Segmentation Offload (TSO) | Supported |
| Receive Side Scaling (RSS) | Supported |
| VLAN Support | IEEE 802.1Q VLAN Tagging |
| Manageability | PXE Boot, UEFI, Wake-on-LAN (WoL) |
| Interrupt Levels | MSI, MSI-X |
| LED Indicators | Link / Activity |
| System Requirement | |
| Operating System | Windows® 10 / 8.1 / 8 / 7 |
| Windows Server® 2008 R2 / 2012 / 2012 R2 / 2016 / 2019 | |
| RHEL 7.9 / 8.4 / 8.5, SLES 12 SP5, SLES 15 SP3 | |
| Ubuntu 18.04 LTS / 20.04 LTS | |
| FreeBSD 12.2 / 13 | |
| Environment & Certification | |
| Power Consumption | Max. 4 W |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | 90% Non-condensing |
| Bracket | Full Height Installed, Low Profile Included |
