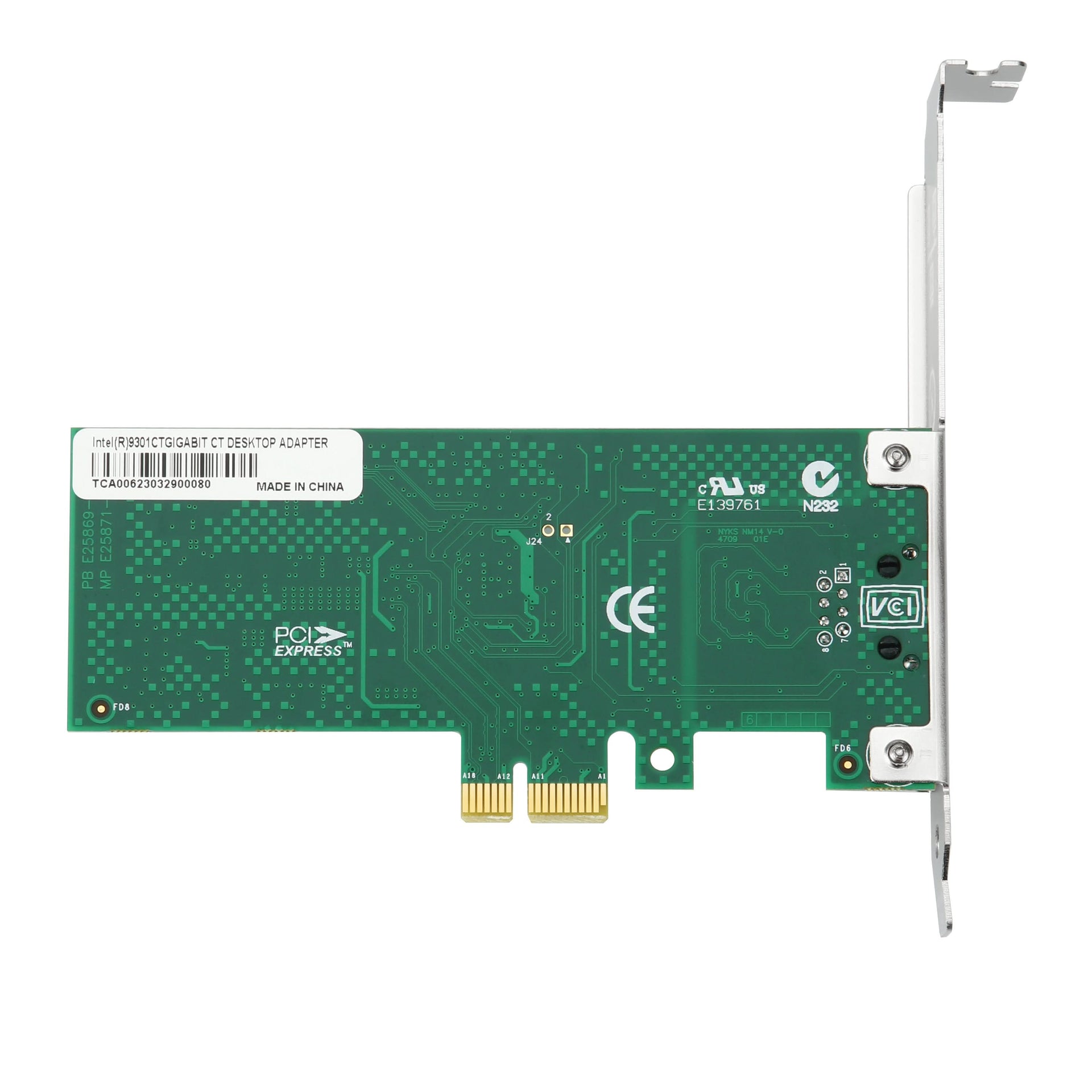

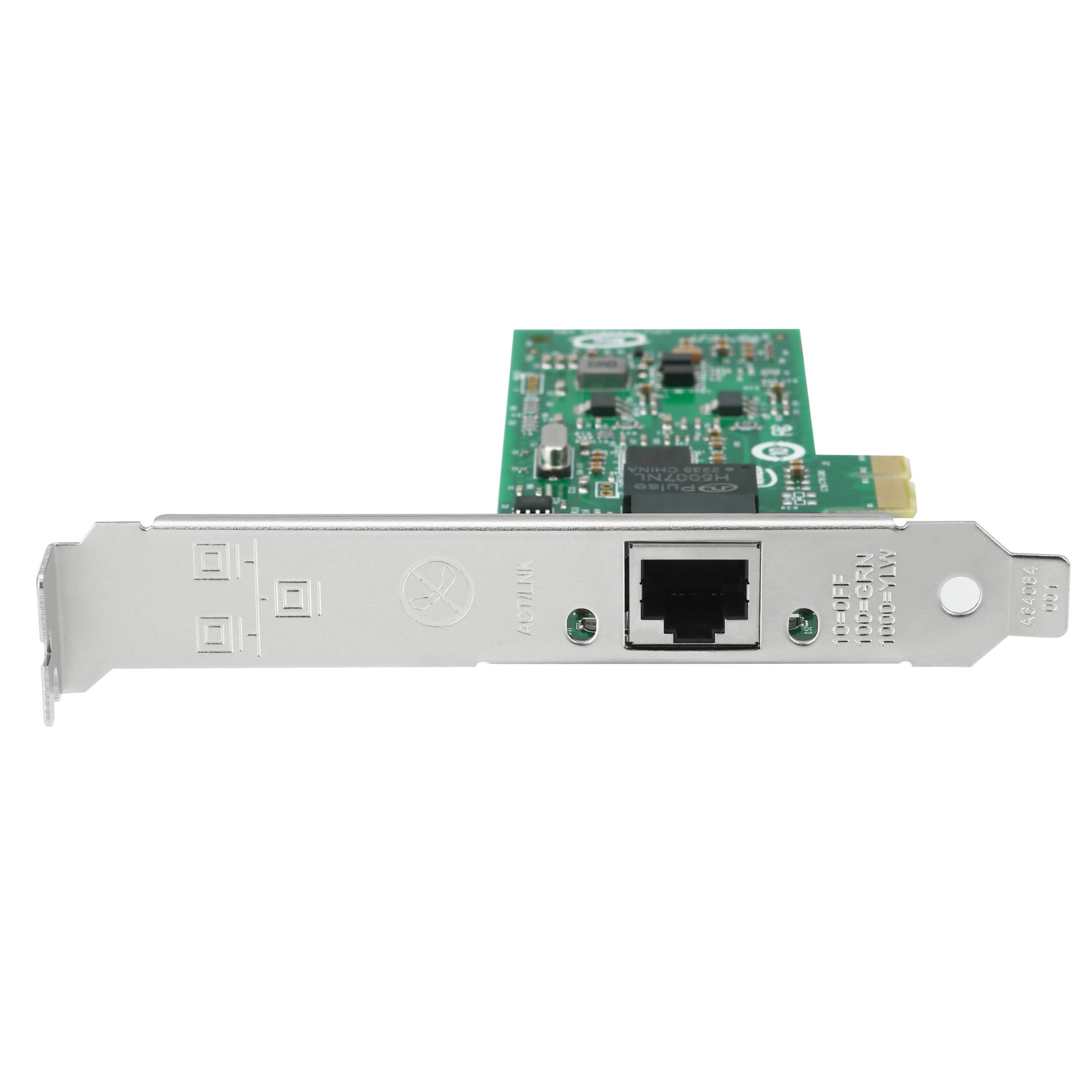

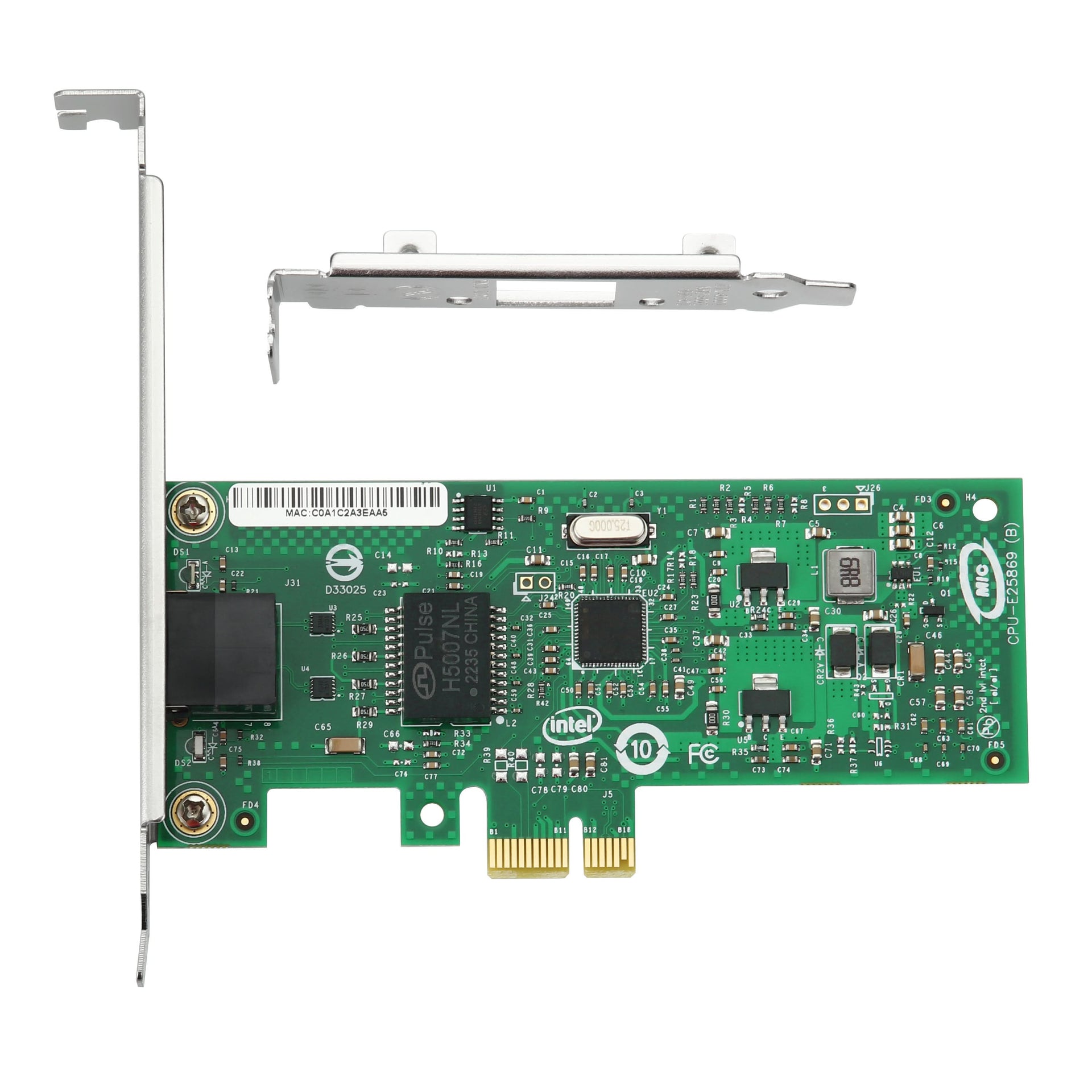

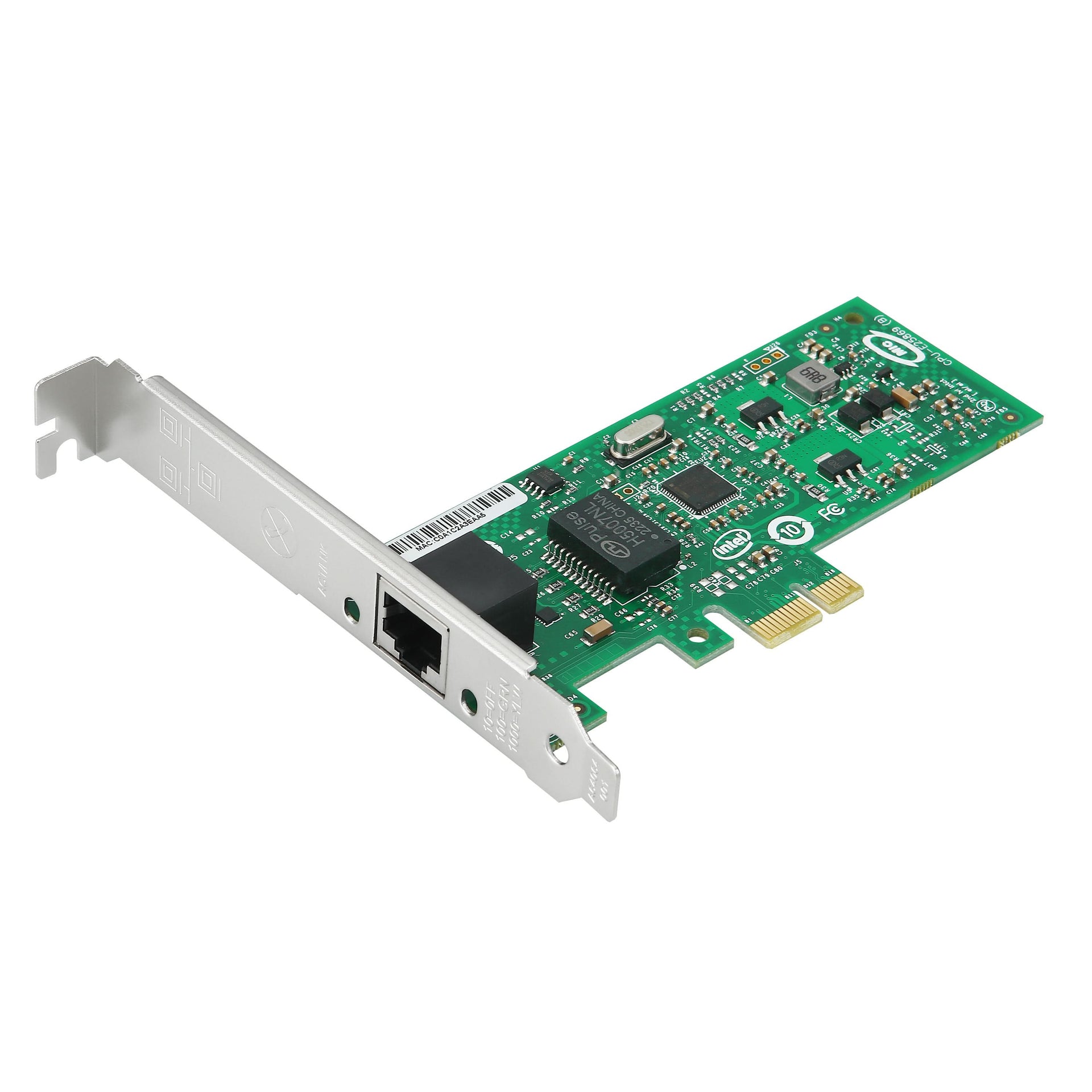

S-Tech PCIe Gigabit Ethernet Network Card – Single Port RJ45 – Intel 82574L

S-Tech PCIe Gigabit Ethernet Network Card – Single Port RJ45 – Intel 82574L

The S-TECH STC-82574-T1 is a high-performance single-port Gigabit Ethernet PCI Express
network adapter based on the Intel® 82574L Gigabit Ethernet Controller. Designed for
desktops, workstations, industrial computers, embedded systems, POS terminals, servers, and
network appliances, the adapter delivers reliable Gigabit Ethernet connectivity with low CPU
utilization and exceptional network performance.
Featuring a single RJ45 copper port and a PCI Express x1 host interface, the adapter supports
10Mbps, 100Mbps, and 1000Mbps Ethernet connectivity over standard twisted-pair copper
cabling. With advanced features such as TCP/IP checksum offload, VLAN tagging, Jumbo
Frame support, PXE Boot, Wake-on-LAN, and interrupt moderation, the STC-82574-T1
provides dependable networking performance for business, commercial, and industrial
applications.
Its compact design, broad operating system compatibility, and Intel® Gigabit Ethernet
technology make it an ideal networking solution for desktops, industrial automation, embedded
computing, surveillance systems, and entry-level servers.

PRODUCT FEATURES

• Single-port Gigabit Ethernet adapter based on Intel® 82574L Gigabit Ethernet
Controller
• PCI Express x1 host interface
• Supports 10Mbps / 100Mbps / 1000Mbps Ethernet data rates
• Standard RJ45 copper interface
• Supports CAT5e and CAT6 Ethernet cabling
• Auto Negotiation and Auto MDI/MDI-X support
• TCP, UDP and IP checksum offload
• TCP Segmentation Offload (TSO)
• Receive Side Scaling (RSS)
• IEEE 802.1Q VLAN tagging support
• Jumbo Frame support up to 9KB
• PXE Boot and Wake-on-LAN (WoL)
• MSI interrupt support
• Full-height bracket installed Low-profile bracket included
• Ideal for desktops, industrial PCs, POS systems, embedded systems, servers, and network appliances
