Description

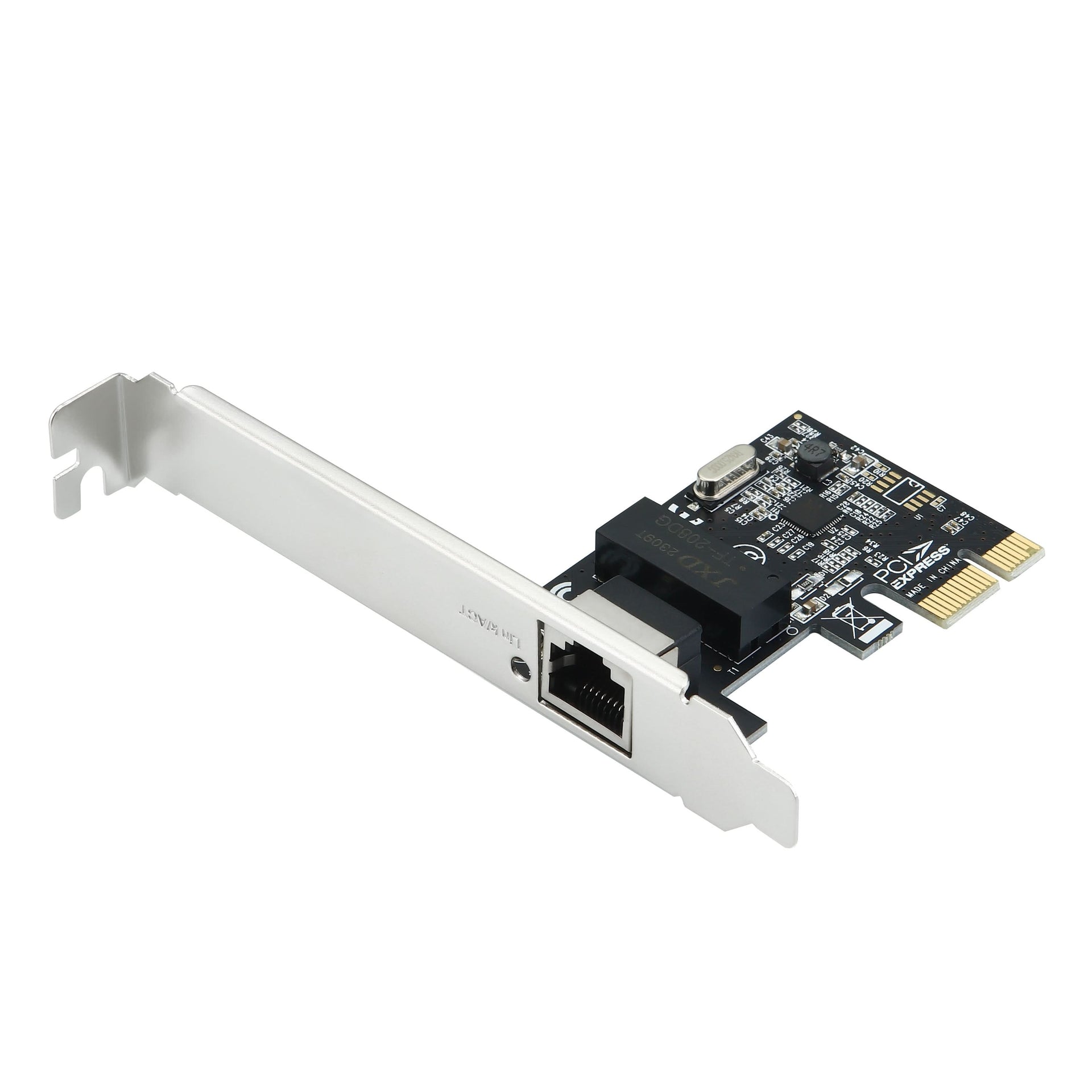

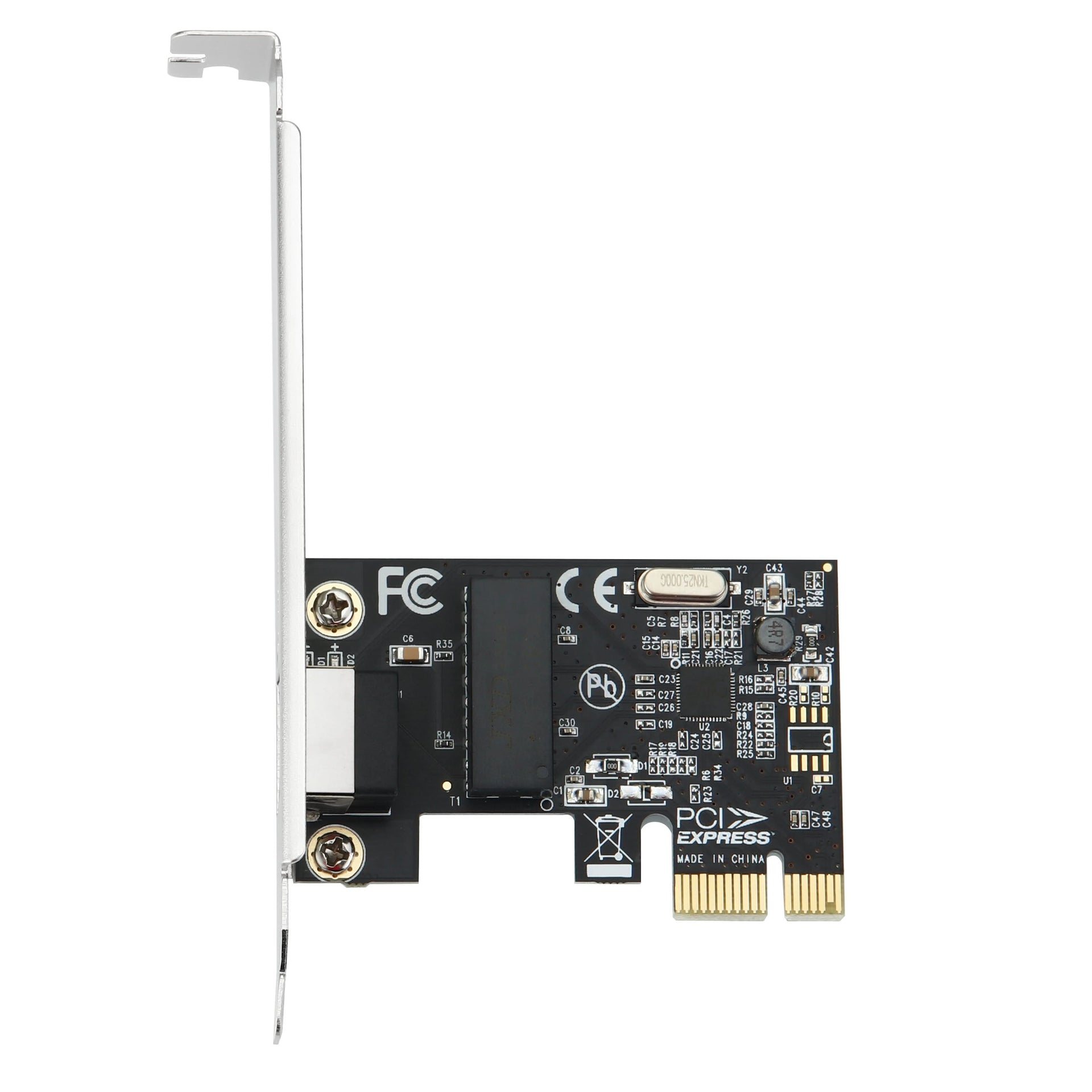

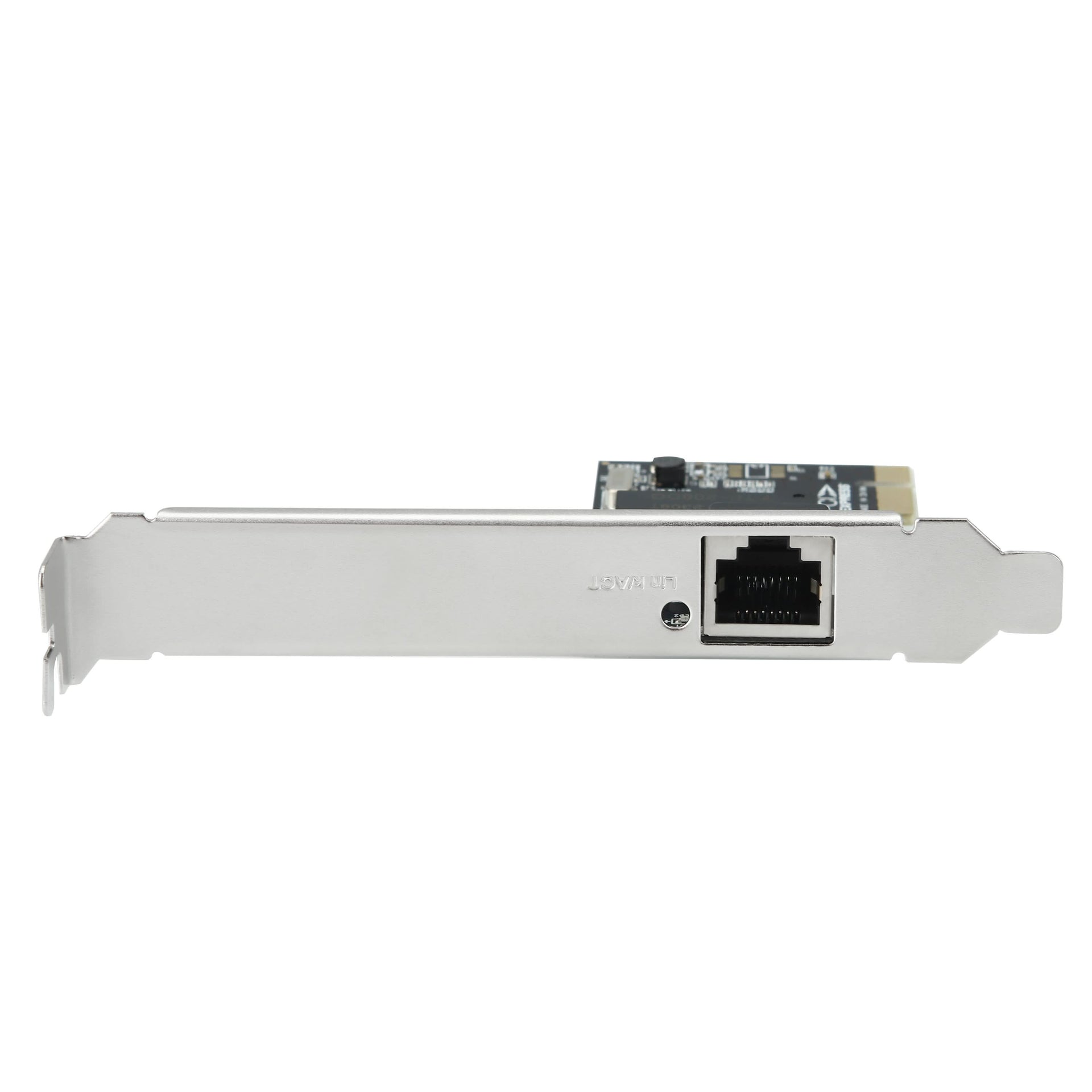

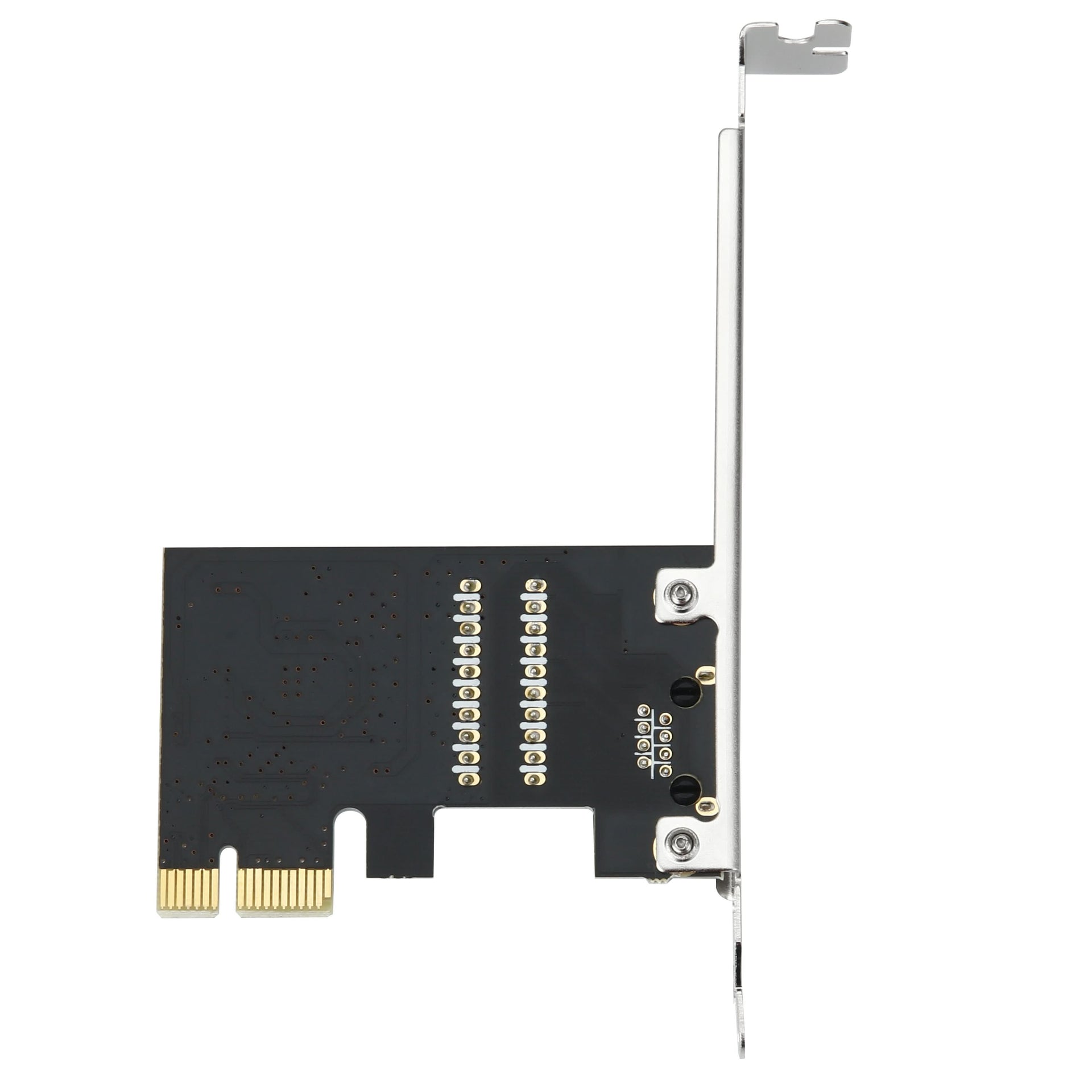

S-Tech PCIe Gigabit Ethernet Network Card – Single Port RJ45 – Realtek RTL8111E
The S-TECH STC-RTL1GL is a compact single-port Gigabit Ethernet network adapter based
on the Realtek® RTL8111E Gigabit Ethernet Controller. Designed for desktops, workstations,
servers, industrial computers and embedded systems, it provides reliable and cost-effective
network connectivity through a standard RJ45 interface.
The adapter supports 10/100/1000Mbps Ethernet connectivity and is designed for easy
integration into systems requiring a dedicated Gigabit Ethernet port. Its low-power features and
PCI Express interface make it suitable for a wide range of networking applications.
PRODUCT FEATURES
• Single-port Gigabit Ethernet adapter based on Realtek® RTL8111E
• PCI Express x1 interface
• Supports 10/100/1000Mbps Ethernet
• Integrated Gigabit Ethernet transceiver
• Supports Jumbo Frames up to 9KB
• Supports VLAN tagging and IEEE 802.3x Flow Control
• Supports RSS and hardware network offloading
• Energy Efficient Ethernet support
• Wake-on-LAN and remote wake-up support
• Full-height bracket installed; Low-profile bracket included
SPECIFICATION
| Product Name | STC-RTL1GL |
| Product Collection | Realtek® Gigabit Ethernet Network Adapter |
| Controller | Realtek® RTL8111E |
| Bus Type / Bus Width | PCI Express 1.1 x1 |
| PCIe Link Speed | 2.5 GT/s |
| Connections | 1 × RJ45 |
| Data Rate Supported | 10Mbps / 100Mbps / 1000Mbps |
| Interface | 10/100/1000BASE-T |
| Network Standards | IEEE 802.3 / 802.3u / 802.3ab |
| Cabling | CAT5 / CAT5e or higher |
| Maximum Cable Distance | Up to 100 m |
| Auto Negotiation | Supported |
| Auto MDI/MDI-X | Supported |
| Flow Control | IEEE 802.3x |
| VLAN | IEEE 802.1Q |
| Layer 2 Priority | IEEE 802.1p |
| Jumbo Frames | Up to 9KB |
| Receive Side Scaling (RSS) | Supported |
| Checksum Offload | IPv4 / IPv6 / TCP / UDP |
| Segmentation Offload | TCP Large Send Offload |
| Energy Efficient Ethernet | IEEE 802.3az |
| Wake-on-LAN | Supported |
| Power Management | PCIe Power Management / Link Down Power Saving |
| Interrupt Support | MSI / MSI-X |
| Boot Support | PXE* |
| LED Indicators | Link / Activity / Speed |
| Bracket | Full Height Installed, Low Profile Included |
| Operating System | Windows® 10 / 8.1 / 8 / 7 |
| Windows Server | Windows Server® 2008 R2 / 2012 / 2012 R2 / 2016 / 2019 |
| Linux | Linux distributions with supported Realtek® RTL8111/8168 driver |
| Operating Temperature | 0°C to 70°C* |
| Storage Temperature | -40°C to 85°C* |
| Storage Humidity | 10% to 90% Non-condensing* |
| Power Consumption | Low Power Design |
| Bracket | Full Height Installed, Low Profile Included |
| Certifications | CE, FCC, RoHS |
| Warranty | 1 Year |
