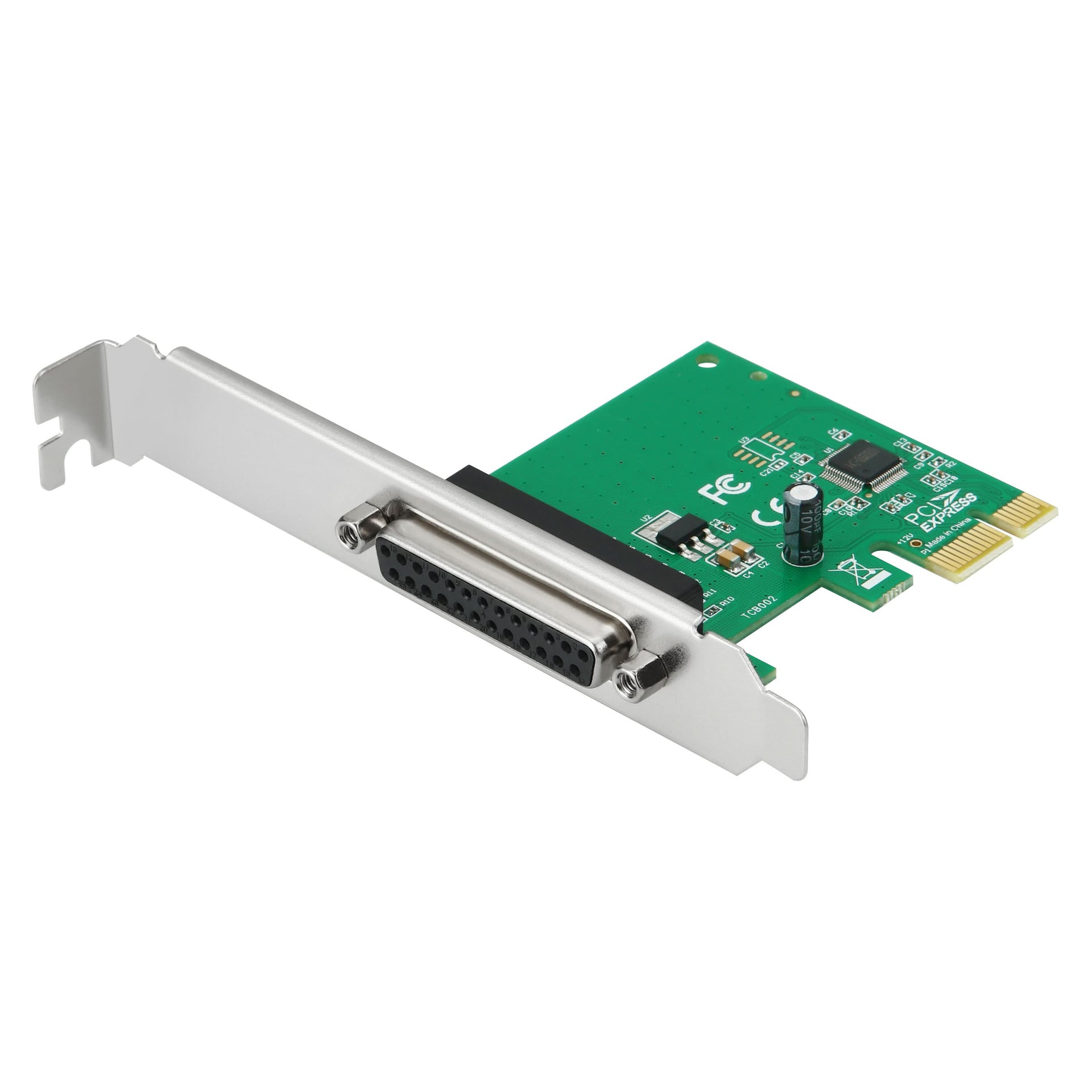

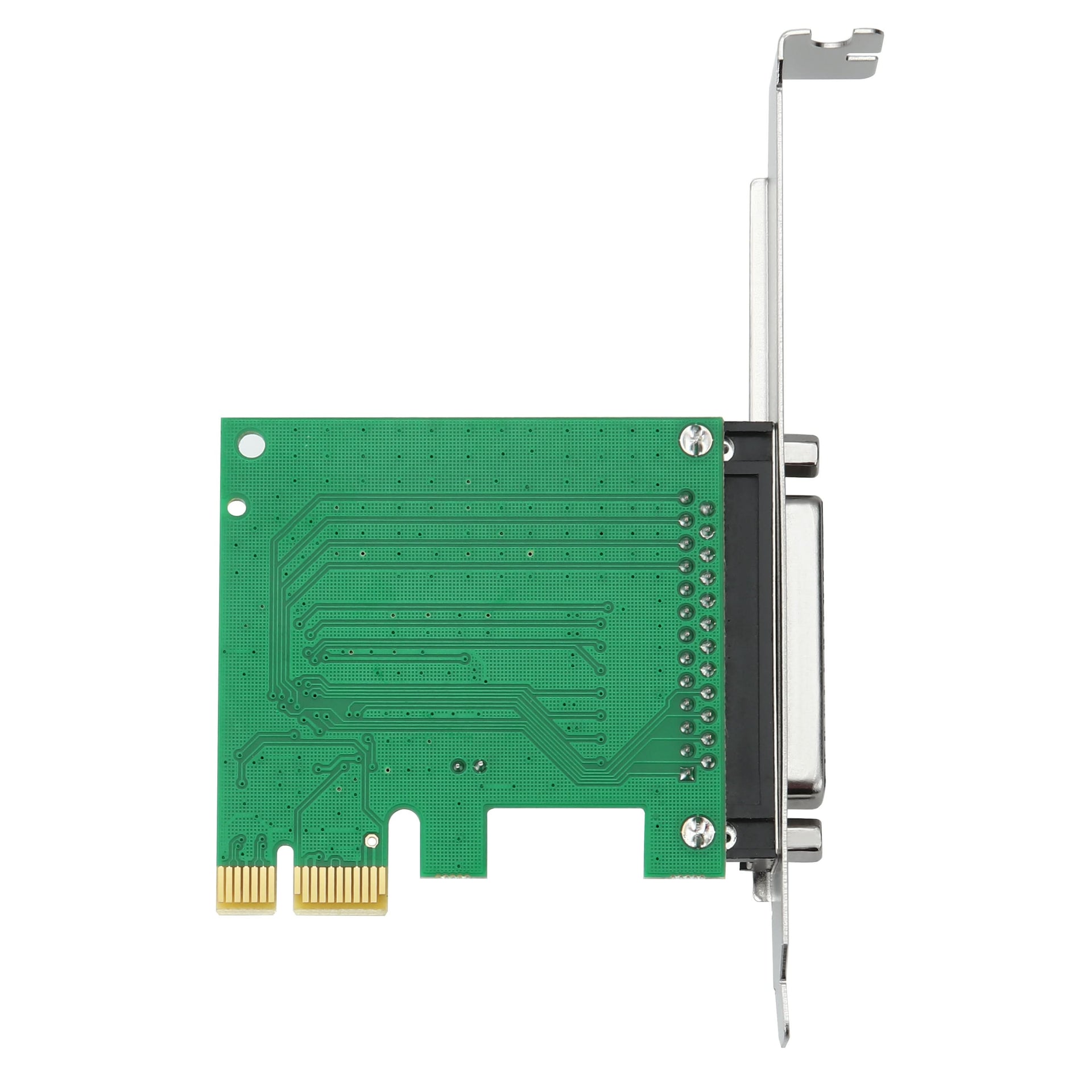

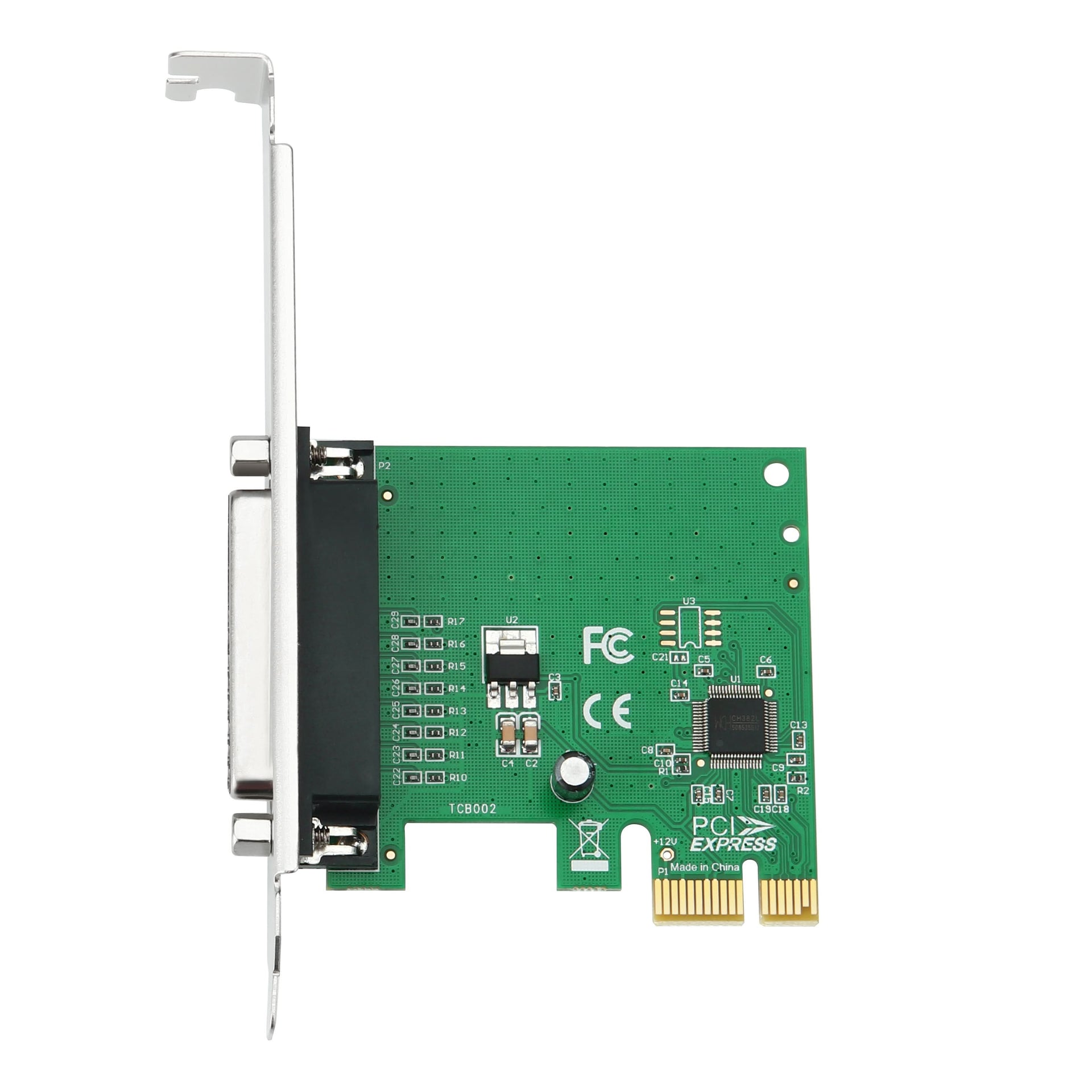

S-Tech PCIe Single Port Parallel LPT Card
The S-TECH STC-WCH1P is a single-port parallel interface expansion card based on the
WCH CH382L PCI Express controller. It provides a standard parallel port for connecting
legacy peripherals and industrial equipment to modern desktop computers, workstations, and
industrial PCs.
The adapter is suitable for applications requiring parallel/LPT connectivity, including legacy
printers, industrial controllers, test equipment, CNC systems, and other devices using a
standard parallel interface.
PRODUCT FEATURES
• Single-port parallel/LPT expansion card
• Based on WCH CH382L PCI Express controller

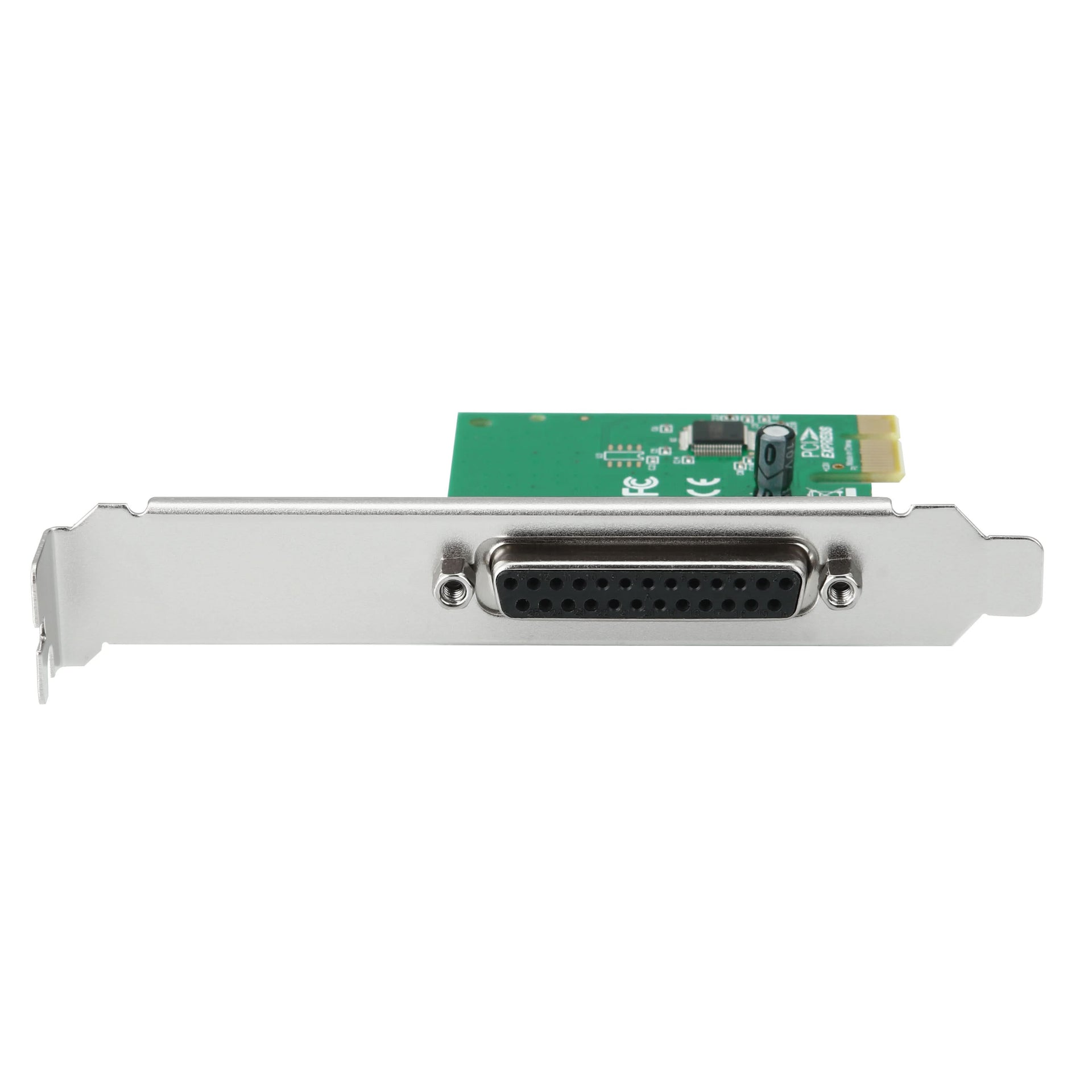

• Standard DB25 parallel connector
• Supports IEEE 1284-compatible parallel interface
• Supports ECP, EPP and standard parallel modes
• PCI Express x1 interface
• Plug-and-play operation
• Full-height bracket installed; Low-profile bracket included
Specifications:
| Product Name | STC-WCH1P |
| Product Collection | S-TECH PCI Express Parallel Adapter |
| Controller | WCH CH382L |
| Bus Type / Bus Width | PCI Express x1 |
| Connections | 1 × DB25 Female |
| Interface | Parallel / LPT |
| Parallel Standard | IEEE 1284 |
| Parallel Modes | SPP / EPP / ECP |
| Data Width | 8-bit |
| Data Transfer | Bi-directional |
| FIFO Buffer | Integrated |
| Plug and Play | Supported |
| Interrupt Support | MSI / MSI-X |
| I/O Address | Software Configurable |
| Connector | DB25 Female |
| Port Configuration | 1 × Parallel Port |
| Bracket | Full Height Installed, Low Profile Included |
| Operating System | Windows® 11 / 10 / 8.1 / 8 / 7 Windows Server® 2022 / 2019 / 2016 / 2012 / 2008 Supported Linux distributions with WCH CH382 driver |
| Operating Temperature | -40°C to 85°C* |
| Storage Temperature | -40°C to 85°C* |
| Power Supply | 3.3V |
| Power Consumption | Low Power Design |
| Bracket | Full Height Installed, Low Profile Included |
| Certifications | CE, FCC, RoHS |
| Warranty | 1 Year |
