Description

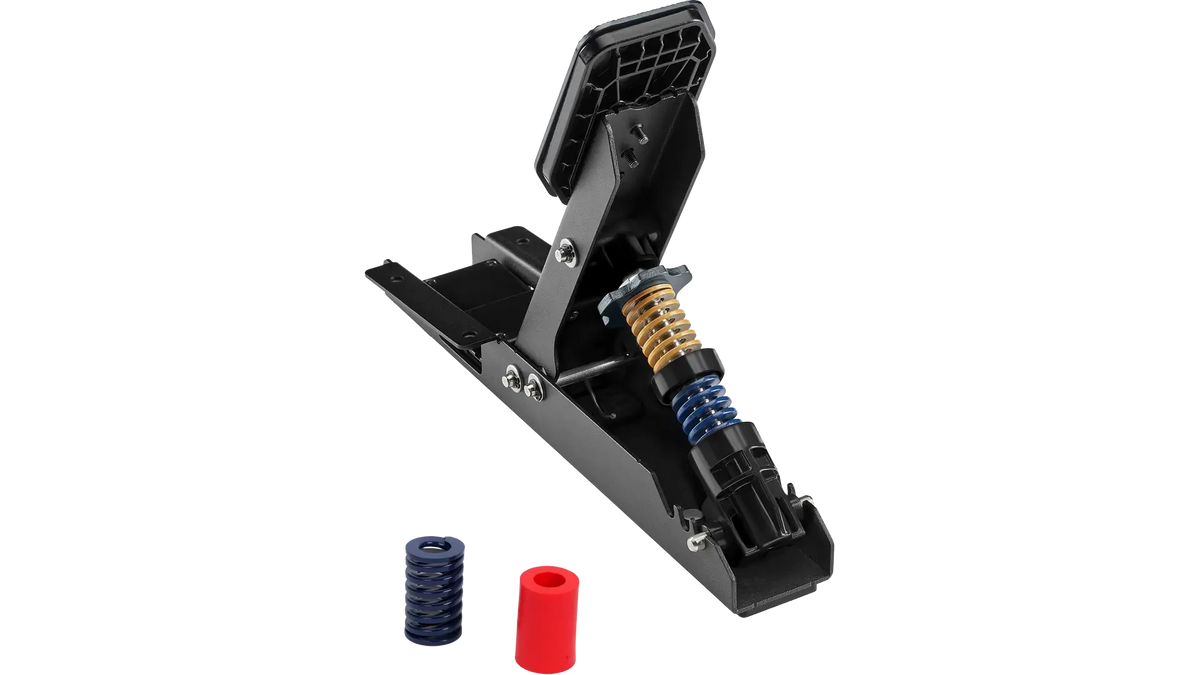

Thrustmaster Raceline LC Upgrade, Load Cell Brake Pedal Kit, 100kg Capacity, 24-bit Resolution, Adjustable Pressure, PC PS5 Xbox
The Thrustmaster Raceline LC Upgrade is a high-performance Load Cell brake pedal upgrade kit designed to transform compatible Raceline pedal sets into a more precise and realistic braking system. Its pressure sensor measures the force applied to the brake pedal rather than pedal travel, providing more consistent braking control and improved muscle memory for competitive sim racing.
With a 100kg load capacity and 24-bit resolution, the Raceline LC Upgrade delivers highly precise braking response. The brake pedal offers four pressure configurations from 25kg to 100kg, along with a preload dial for fine adjustments. The kit also includes metal components for a three-pedal configuration and can be customized through My Thrustmaster Panel or the T598 Race Dash.
Specifications
| Brand | Thrustmaster |
| Product Name | Raceline LC Upgrade |
| Product Type | Load Cell Brake Pedal Upgrade Kit |
| Load Cell Capacity | Up to 100kg / 220lb |
| Resolution | 24-bit |
| Pedal Travel Angle | 11° |
| Brake Force Adjustment | 25kg to 100kg |
| Pressure Configurations | 4 |
| Preload Adjustment | ±5kg / 11lb increments |
| Pedal Construction | 100% Metal |
| Brake Pedal | Load Cell Brake Pedal |
| Additional Components | Spring + Elastomer Buffer |
| Metal Pedal Plate | Included for 3-Pedal Configuration |
| Gas Pedal Head | Anthracite Gray Metal |
| Clutch Pedal Head | Anthracite Gray Metal |
| Software Adjustment | My Thrustmaster Panel |
| T598 Support | T598 Race Dash |
| PC Compatibility | Windows 10/11 |
| Console Compatibility | PS4, PS5, Xbox |
| Compatible Pedal Sets | Raceline Pedals LTE, Raceline Pedals III |
| PC Connection | USB |
| Width | 350mm |
| Depth | 360mm |
| Height | 210mm |
| Weight | 2.32kg |
| Product Level | Advanced |
