| Description | |
| Display Size (in.): | 22 |
| Viewable Area (in.): | 21.5 |
| Panel Type: | VA Technology |
| Resolution: | 1920 x 1080 |
| Resolution Type: | FHD (Full HD) |
| Static Contrast Ratio: | 3,000:1 (typ) |
| Dynamic Contrast Ratio: | 20M:1 |
| Light Source: | LED |
| Brightness: | 250 cd/m² (typ) |
| Colors: | 16.7M |
| Color Space Support: | 8 bit true |
| Aspect Ratio: | 16:09 |
| Response Time (Typical GTG): | 6.5ms |
| Response Time (GTG w/OD): | 6.5ms |
| Viewing Angles: | 178º horizontal, 178º vertical |
| Backlight Life (Hours): | 30000 Hrs (Min) |
| Curvature: | Flat |
| Refresh Rate (Hz): | 75 |
| Low Blue Light: | Software solution |
| Flicker-Free: | Yes |
| Color Gamut: | NTSC: 72% size (Typ) |
| sRGB: 104% size (Typ) | |
| Pixel Pitch: | 0.249 mm (H) x 0.241 mm (V) |
| Touch Screen: | IR, 10-point multi-touch |
| Surface Treatment: | Glossy, Hard Coating (7H) |
| Cover Glass Thickness: | 2mm |
| COMPATIBILITY | |
| PC Resolution (max): | 1920x1080 |
| Mac® Resolution (max): | 1920x1080 |
| PC Operating System: | Windows 10/11 certified; macOS tested |
| Mac® Resolution (min): | 1920x1080 |
| CONNECTOR | |
| VGA: | 1 |
| USB 2.0 Type A: | 2 |
| USB 2.0 Type B: | 1 |
| 3.5mm Audio In: | 1 |
| 3.5mm Audio Out: | 1 |
| HDMI 1.4: | 1 |
| DVI-D: | 1 |
| Power in: | 3-pin Socket (IEC C14 / CEE22) |
| AUDIO | |
| Internal Speakers: | 2Watts x2 |
| POWER | |
| Eco Mode (Conserve): | 13W |
| Eco Mode (optimized): | 16W |
| Consumption (typical): | 18.5W |
| Consumption (max): | 21.8W |
| Voltage: | AC 100-240V |
| Stand-by: | 0.5W |
| Power Supply: | Internal Power Supply |
| ADDITIONAL HARDWARE | |
| Kensington Lock Slot: | 1 |
| Cable Organization: | Yes |
| CONTROLS | |
| Physical Controls: | 1, 2, Up, Down, Power |
| On Screen Display: | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall |
| OPERATING CONDITIONS | |
| Temperature: | 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing): | 20% to 90% |
| WALL MOUNT | |
| VESA Compatible: | 100 x 100 mm |
| INPUT SIGNAL | |
| Frequency Horizontal: | RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz |
| Frequency Vertical: | RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz |
| VIDEO INPUT | |
| Digital Sync: | TMDS - DVI-D, TMDS - HDMI (v1.4) |
| Analog Sync: | Separate/Composite/SOG - RGB Analog |
| ERGONOMICS | |
| Tilt (Forward/Back): | 20º / 40º |
| WEIGHT (IMPERIAL) | |
| Net (lbs): | 9.3 |
| Net Without Stand (lbs): | 8 |
| Gross (lbs): | 12.6 |
| WEIGHT (METRIC) | |
| Net (kg): | 4.2 |
| Net Without Stand (kg): | 3.7 |
| Gross (kg): | 5.7 |
| DIMENSIONS (IMPERIAL) (WXHXD) | |
| Packaging (in.): | 22.8 x 15.9 x 6.4 |

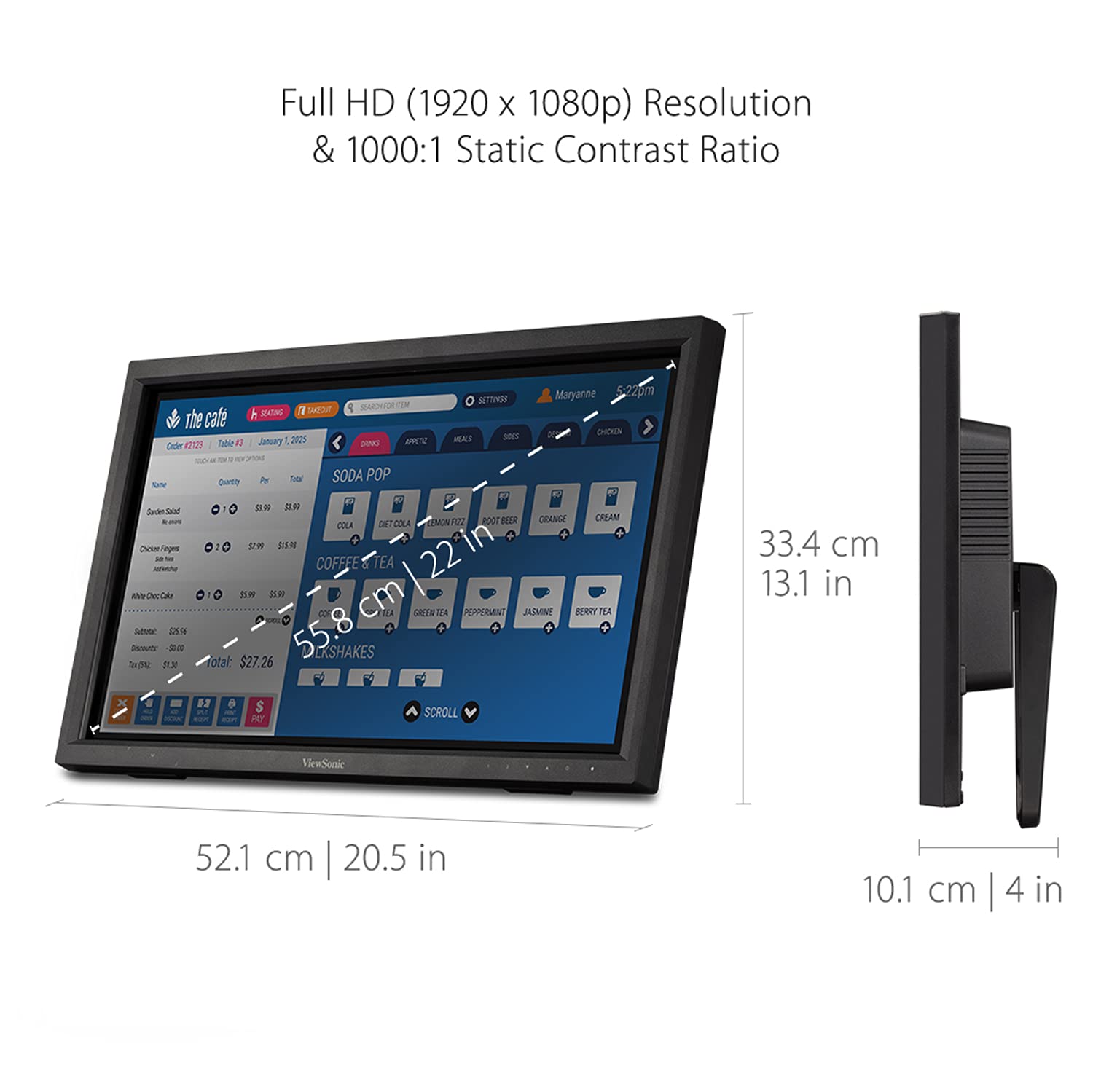

| Physical (in.): | 20.4 x 12.9 x 4 |
| Physical Without Stand (in.): | 20.4 x 12.1 x 2.4 |
| DIMENSIONS (METRIC) (WXHXD) | |
| Packaging (mm): | 580 x 405 x 162 |
| Physical (mm): | 519 x 329 x 101 |
| Physical Without Stand (mm): | 519 x 308 x 61 |
| GENERAL | |
| Regulations: | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, BIS |
| PACKAGE CONTENTS: | TD2223-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1 |
| Recycle/Disposal: | Please dispose of in accordance with local, state or federal laws. |
| Warranty: | *Warranty offered may differ from market to market |
| Power Management: | Energy Star standards, EPEAT |
