- Powered by the NVIDIA Blackwell architecture and DLSS 4 - 8-Pin PCIe power connector - SFF-Ready Graphics Card - Compact dual-fan form factor - IceStorm 2.0 Cooling - BladeLink Fans - FREEZE Fan Stop - Metal Backplate
Specifications
Category
Specification
GPU
NVIDIA GeForce RTX 5060 Ti
CUDA Cores
4608
Video Memory
8GB GDDR7
Memory Bus
128-bit
Engine Clock
2602 MHz
Memory Clock
28 Gbps
PCI Express
PCI Express 5.0 x8

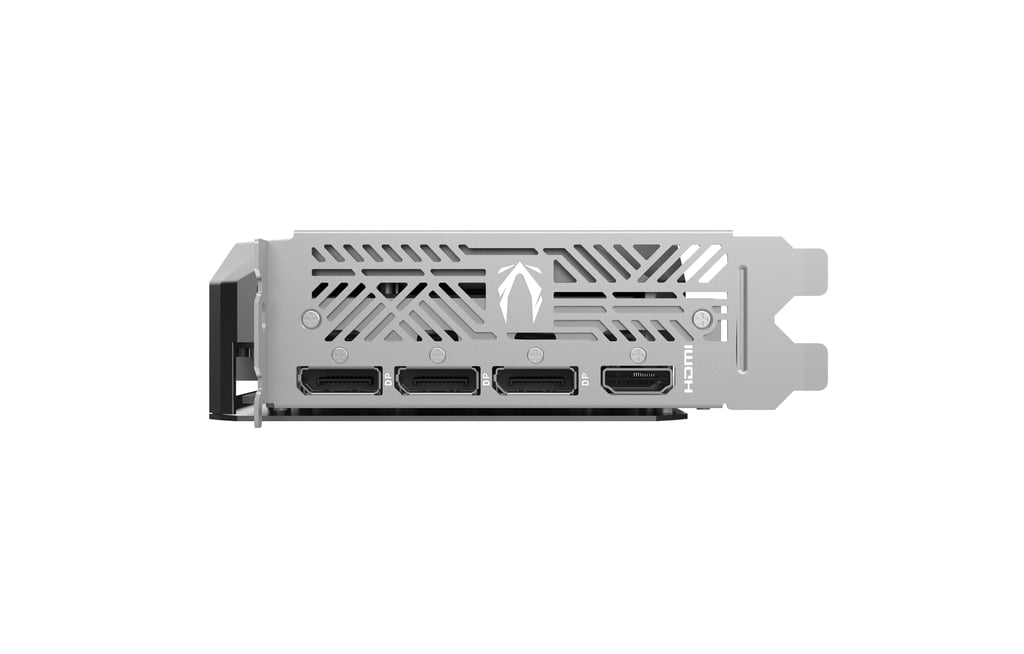

Display Outputs
3 × DisplayPort 2.1b (UHBR20)1 × HDMI® (2.1b)
DisplayPort Capabilities
Up to 4K 480Hz or 8K 165Hz (with DSC)
HDMI Capabilities
4K 120Hz HDR, 8K 60Hz HDR, VRR
HDCP Support
2.3
Multi Display Capability
Quad Display
Recommended Power Supply
600W
Power Consumption
180W
Power Input
1 × 8-pin connector
DirectX Support
Microsoft DirectX® 12 Ultimate
OpenGL Support
4.6
Cooling
IceStorm 2.0
Slot Size
2-slot
SLI Support
No
Supported OS
Windows 11 / Windows 10 64-bit (v1809 or later)
Card Dimensions
220.5 × 120.25 × 41.6 mm (8.7" × 4.7" × 1.6")
Accessories
User Manual
