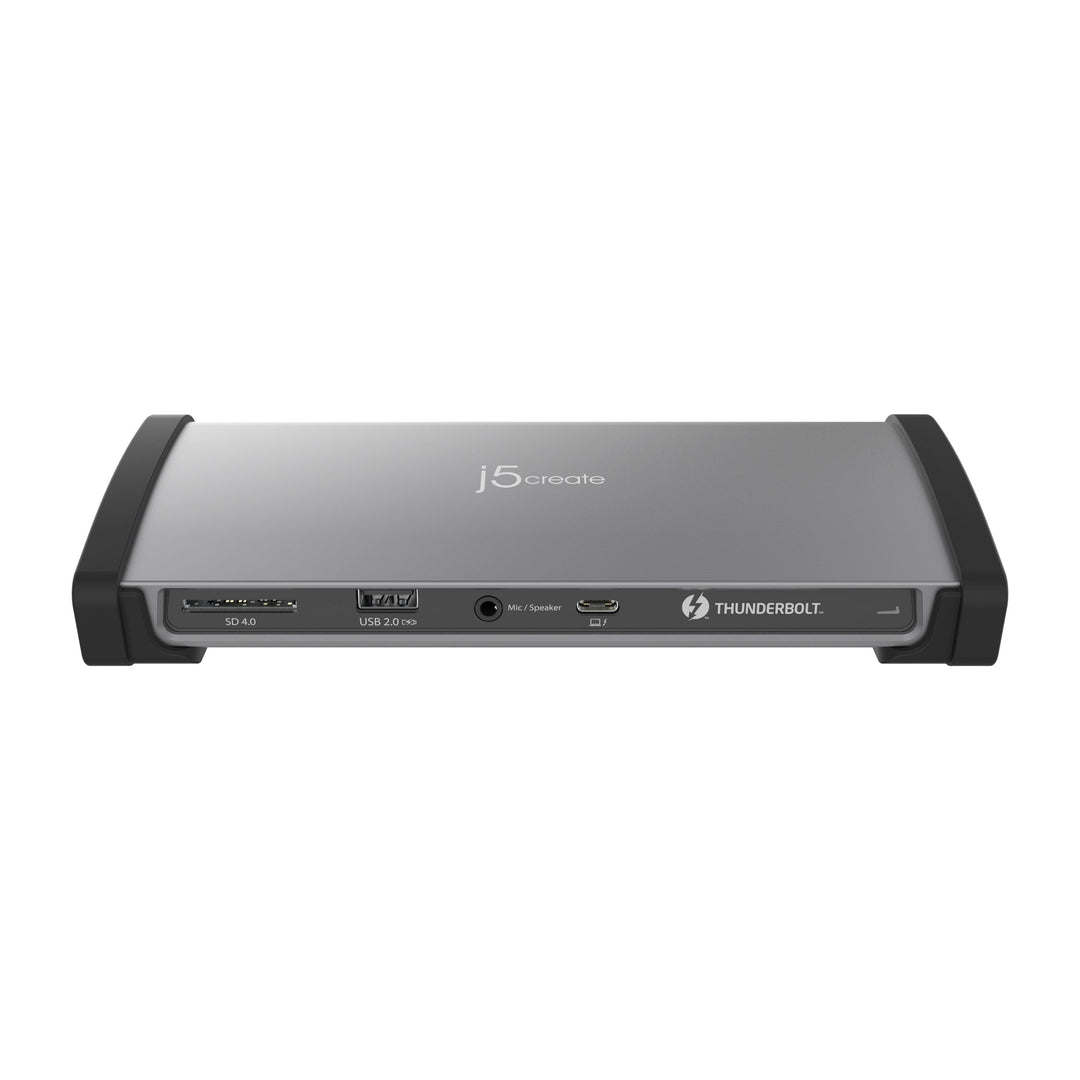

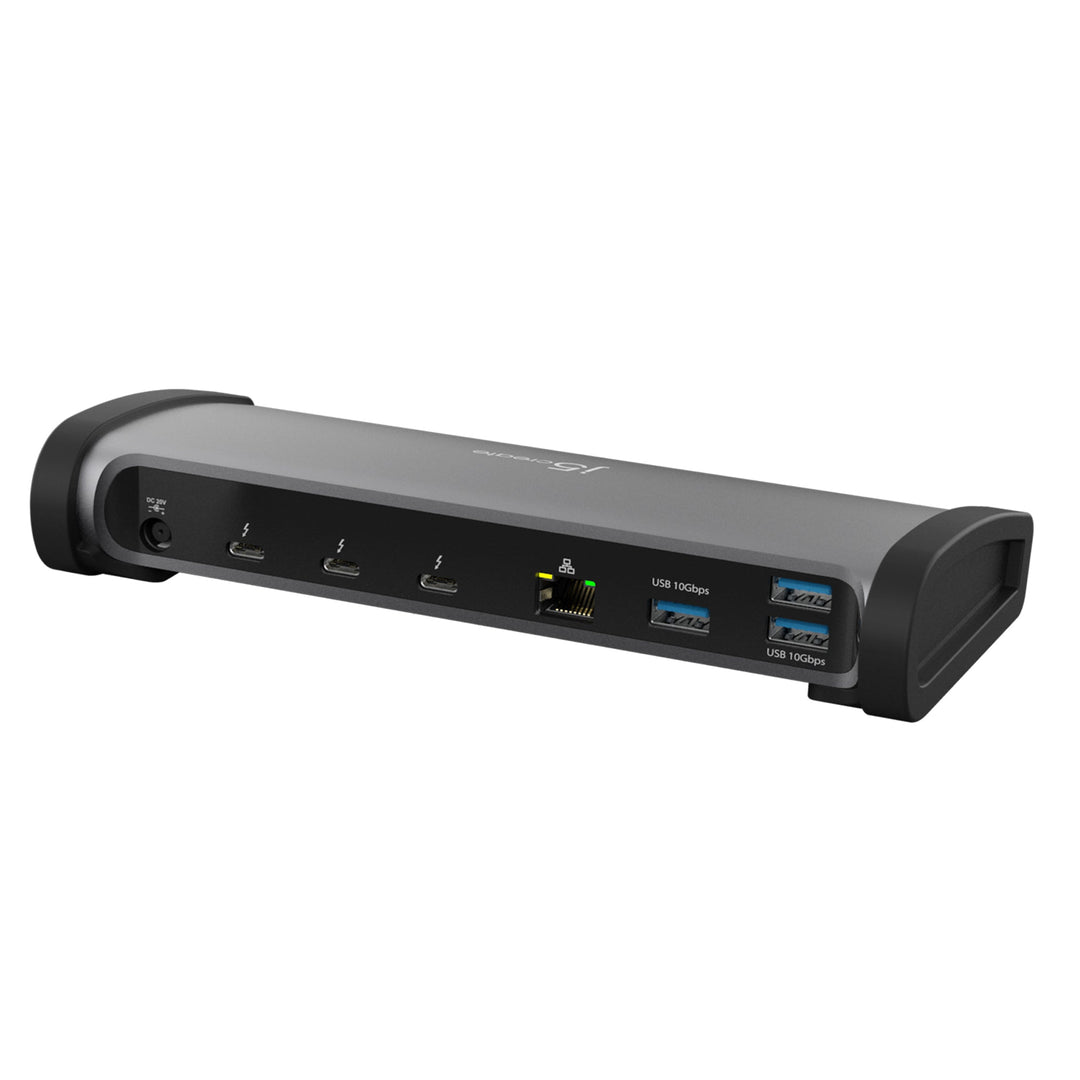

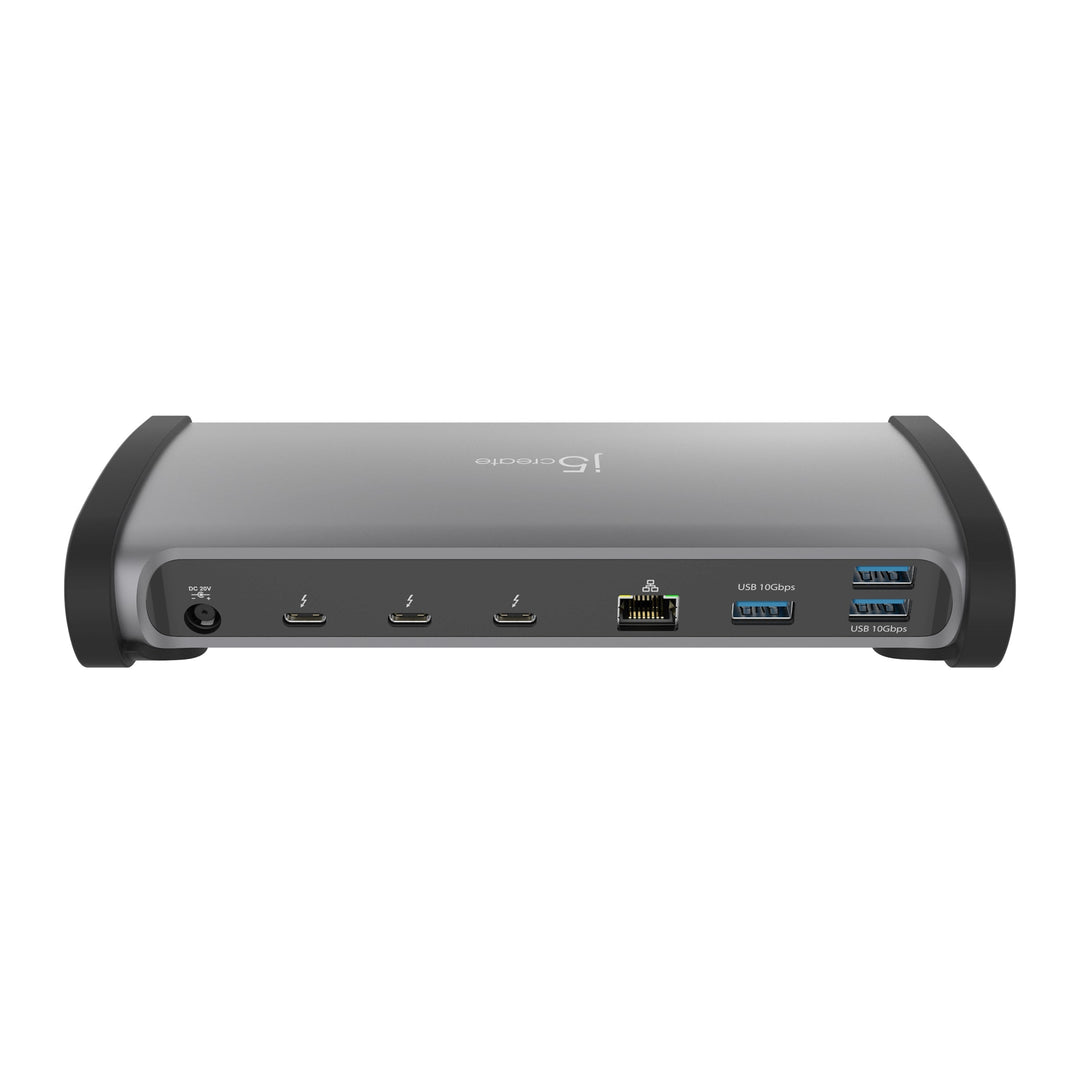

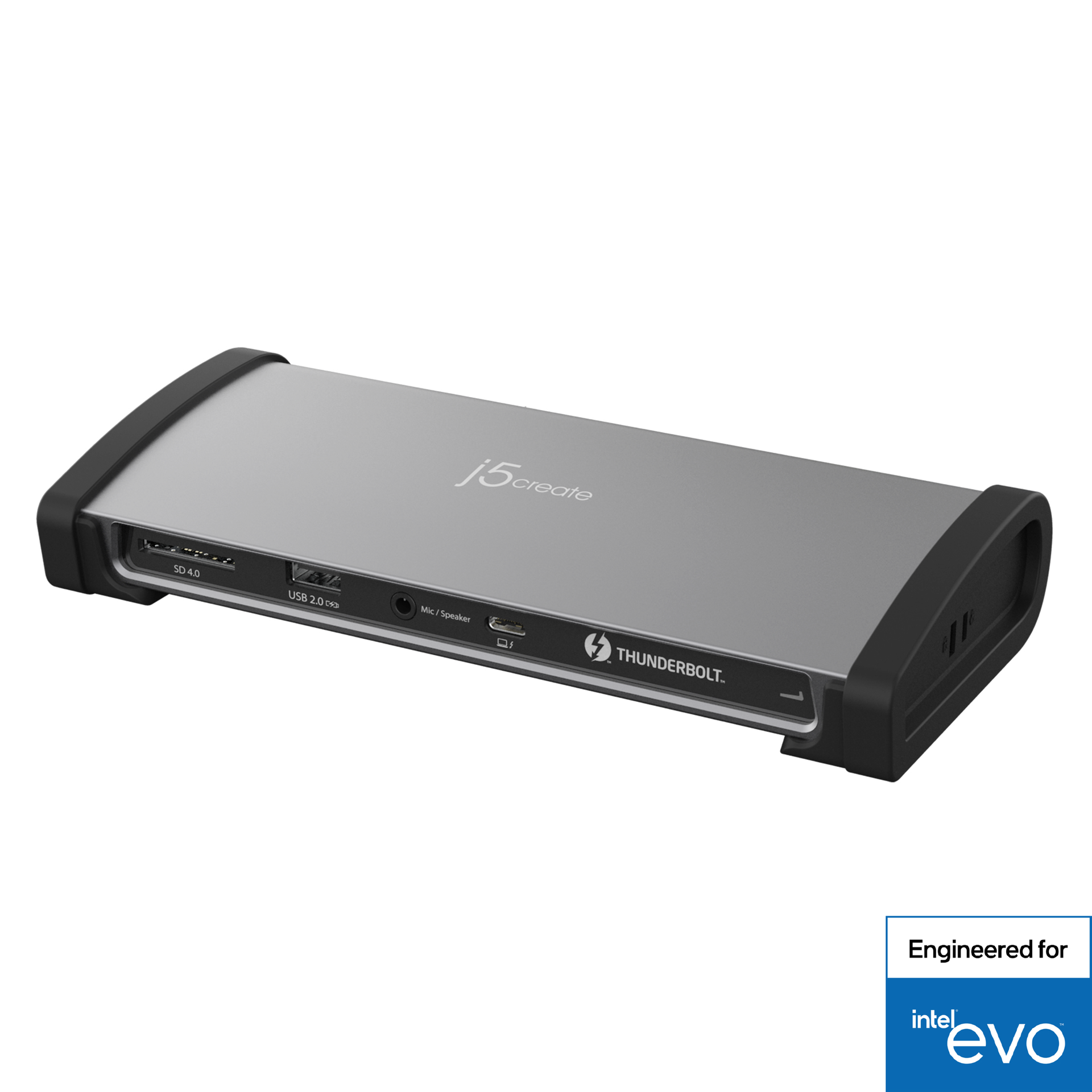

J5Create 8K Thunderbolt 4 Docking Station

Name: J5Create 8K Thunderbolt 4 Docking Station
Price: 46,190 INR
Availability: InStock

₹ 46,190

13 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Shipping: 24 - 48hrs

Availability: In Stock Unavailable

SKU: J5Create-059

Vendor: j5create

Model Number: JTD562

Guaranteed safe & Secure checkout

Description
Shipping & Return

About This Product

This Thunderbolt™ 4 Docking Station turns your Mac® or Windows® laptop into a full workstation with three Thunderbolt™ 4 outputs. Supports resolution up to dual display 4K or one display at 8K. Great for content creators, professionals, and enthusiast that require high resolution displays for the best visual experience.

With 96W Power Delivery, three USB™ 3.2 ports, and a USB-C® port, this docking station is perfect for your MacBook®, or Windows® laptop that support Thunderbolt™ 4 allowing you to add high-speed ports to your laptop. This Thunderbolt™ 4 docking station also has an RJ45 Gigabit Ethernet port, SD™ 4.0 memory card reader/writer, and combo audio jack for added flexibility.

All 11 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!

Features

• Providing the ultimate connectivity for Thunderbolt™ 4 laptops
• Intel® Thunderbolt™ 4 certified for reliability and compatibility
• Capable of ultra-high data transfer speeds
• Supports dual 4K@60Hz displays or one high-resolution 8K display with crystal clear image quality
• Supports Thunderbolt™ daisy chain feature to connect more Thunderbolt™ devices
• Perfectly made for MacBook Pro® (2021 and later) and Thunderbolt™4 laptops
• 3 x Thunderbolt™ 4 USB-C® 40Gbps
• Power adapter 135W AC adapter with up to 96W PD charge
• Backwards compatible with Thunderbolt™ 3

System Requirements

• Available Thunderbolt™ 4 port
• Compatibility
*Compatibility is not limited to just the devices listed above

*Please refer to the manufacturer of your computer for more information about your device

Hardware
Warranty	2 Year Limited
Host Connector	1 - Thunderbolt™ 4 Female
Video Output	3 - Thunderbolt™ 4 Female
Power Source	Self-powered
Network Interface	RJ45 (Gigabit Ethernet)
Audio Supported	Yes
Ports	• 1 - USB-C® Power Delivery 96W (Host) • 3 - Thunderbolt™ 4 USB-C® 40Gbps • 3 - USB™ 3.2 Type-A Gen 2 10Gbps • 1 - USB™ 2.0 Type-A with BC1.2 fast charging • 1 - SD™ 4.0 UHS-II 312 MB/s memory card reader/writer • 1 - 3.5 mm combo audio jack • 1 - RJ45 Gigabit Ethernet
Performance
Maximum Display Resolution	Thunderbolt™ Mode 2 - 4K @ 60 Hz 1 - 4K @ 120 Hz (Via DP™) 1 - 4K @ 144 Hz (with DSC) 1 - 8K @ 30 Hz 1 - 8K @ 60 Hz (with DSC) MFDP Mode (Base on HBR3 Host) 1 - 4K @ 60 Hz
Maximum Display Refresh Rate	60 Hz via Thunderbolt™ 4
Maximum Data Transfer Rate	40Gbps
Displays Supported	2
Compatible Networks	10/100/1000 Base-T, auto-negotiating
Audio Channel	3 -Thunderbolt™ 4 / 3.5 combo audio jack
Power
Power Delivery	96W
Power Consumption	1.2A
Input Current	2.5A
Input Voltage	110V-240V
Output Current	6.75A
Output Voltage	20V
Physical Specifications
Color	Black / Space Grey
Enclosure Type	Aluminum
Cable Length	2.3 ft. / 70 cm
Product Height	7.64 in./194 mm
Product Width	3.32 in./ 84.39 mm
Product Depth	1.21in./ 30.85 mm
Product Weight	14.5 oz /411g
Storage Temperature	14 to 149°F (-10 to 65°C)
Storage Humidity	< 85% non-condensing
Operating Temperature	32 to 118°F (0 to 48°C)
Operating Humidity	< 85% non-condensing

Special Notes

• An 8K-capable display is required for obtaining the 7680 x 4320 resolution
• If connected to a USB™ 3.2 host port or under, or if using a USB™ 3.2 host cable or under, performance or functionality may be limited

Package Contents

• 1 - JTD562 Thunderbolt™ 4 Docking Station
• 1 - 135W AC adapter with up to 96W PD charge
• 1 - Thunderbolt™ 4 to Thunderbolt™ 4 Cable (2.3 ft / 70 cm)
• 2 - USB-C® to 4K DisplayPort™ Cable (JCA141)
• 1 - Quick Installation Guide (QIG)
