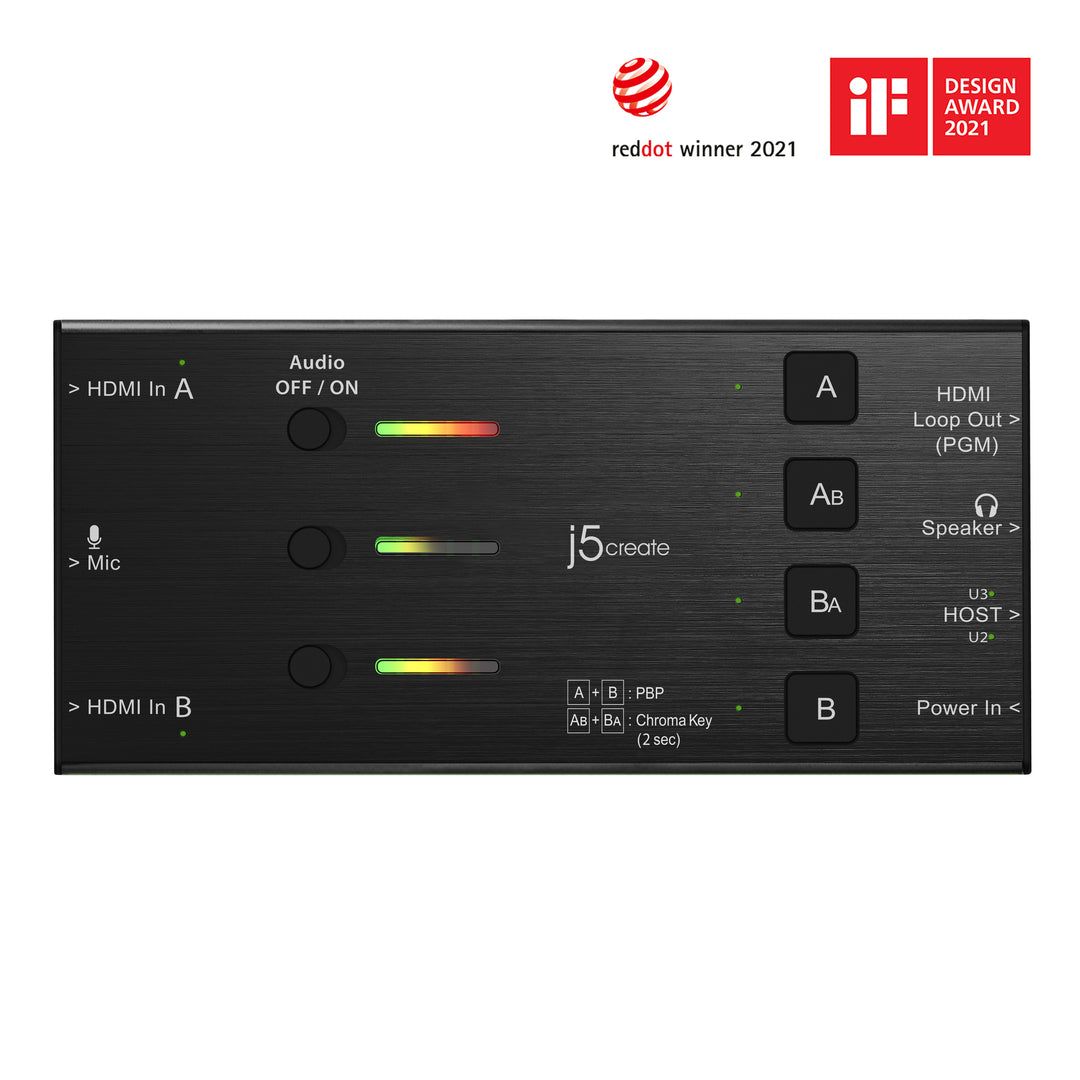

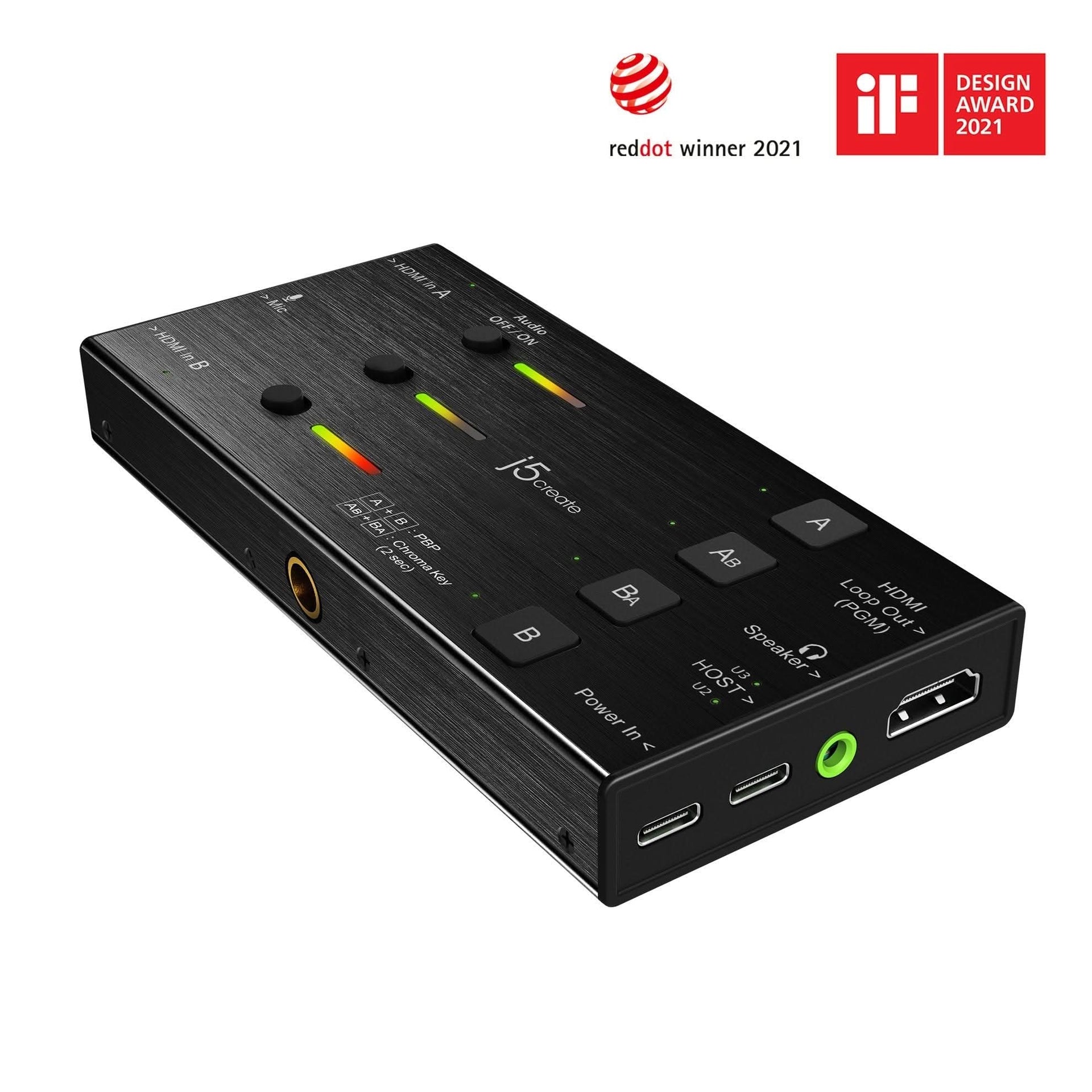

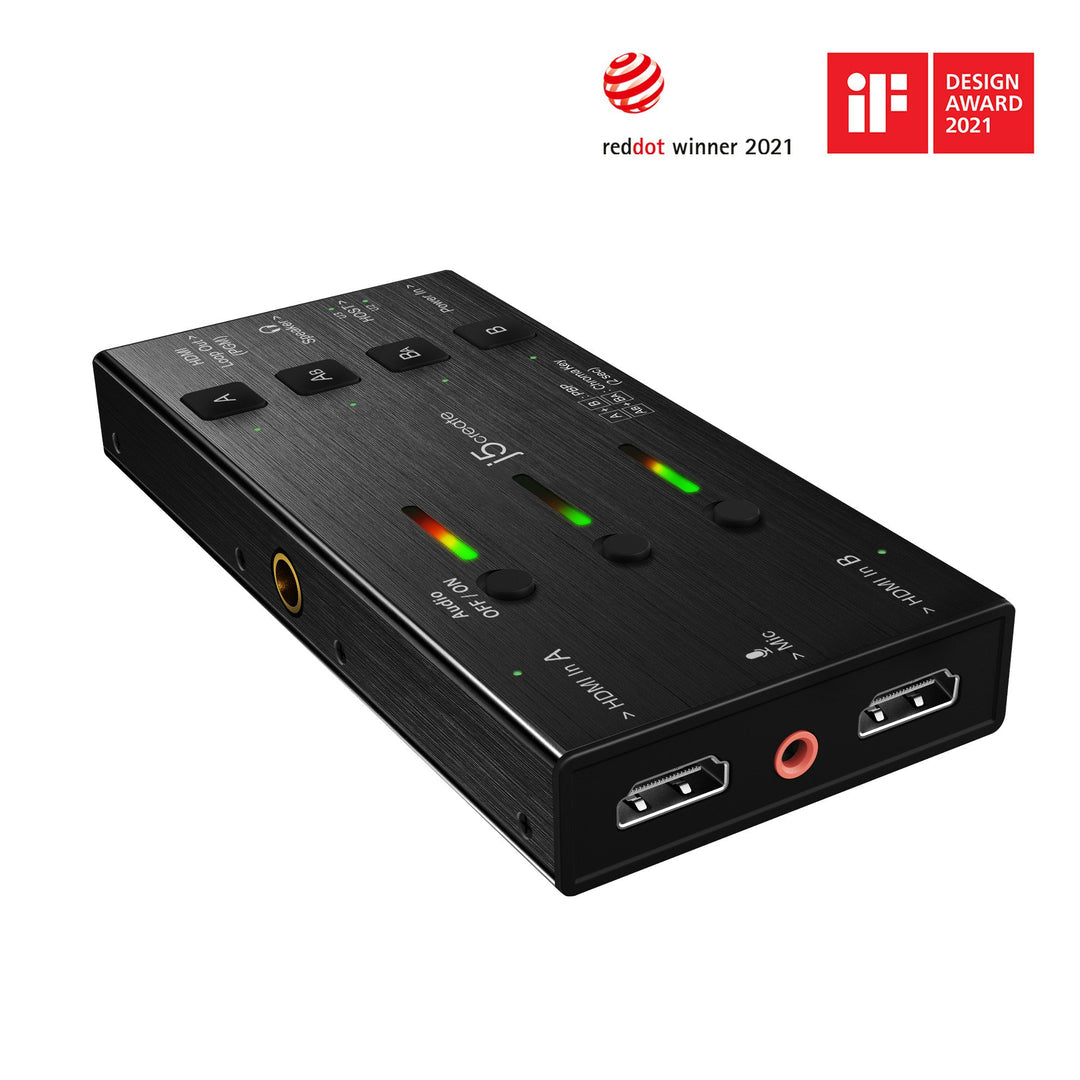

J5Create Dual HDMI Video Capture

Name: J5Create Dual HDMI Video Capture
Price: 21,990 INR
Availability: InStock

₹ 21,990

24 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Shipping: 24 - 48hrs

Availability: In Stock Unavailable

SKU: J5Create-068

Vendor: j5create

Model Number: JVA06

Guaranteed safe & Secure checkout

Description
Shipping & Return

About This Product

The JVA06 Dual HDMI™ Video Capture allows users to capture uncompressed 1080p video from two HDMI™ sources simultaneously and customize the content in real time. Whether you’re live streaming or recording, there are six screen mode configurations available, including PIP (Picture in Picture) and PBP (Picture by Picture) displays. You can quickly adjust the display settings and transitions with the built-in buttons on the device. The JVA06 also features a Chroma Key application allowing users to drop in a new background image.

With a flexible audio connection via HDMI™ or analog 3.5 mm port, you can record audio directly from your HDMI™ sources and microphone. It has a built-in audio mixer function allowing users to toggle between four different audio settings and three audio inputs (Mic In, HDMI™ A and HDMI™ B).

The JVA06 is perfect for content creators/producers who want to level up their content without spending a fortune and live streamers who want to simplify their setup without compromising the quality of their content. It features a USB-C® host connection with Power Delivery 3.0 and two cold shoe adapters to attach to your DSLR for the perfect combination of ease-of-use and mobility, giving you the ability to live stream without interruptions and charge your connected USB-C device at the same time.

Features

• Dual HDMI™ input for capturing 2 channels
• Full HD video and audio high performance record/playback through USB-C™ 3.1 Gen1
• Uncompressed 1080p @ 60 FPS capture via HDMI™ 1.3a
• Supports 1080p 60 HDMI™ loop out (PGM out)
• Six screen mode configurations with PIP (Picture in Picture) and PBP (Picture by Picture)
• Easily switch between different screen modes and adjust transition effects with the built-in buttons
• Directly activate Chroma Key features through the built-in controls
• Adjustable segmented window arrangements in PBP (Picture by Picture) mode
• Flexible audio connection via HDMI™ or add external audio with 3.5 mm mic-in and speaker out audio jack
• 3 individual audio mixer on/off switches supported
• 3 channel volume indicators
• Easy DSLR attachment with 2 cold shoe adapters (included)
• Supports USB-C™ Power Delivery 3.0
• UVC standard, plug & play
• LED activity indicator
• HDMI™ IN
• USB™ Link
• Volume Unit

System Requirements

Computer - Recommended software: OBS™

Windows® 7 and later (Driver installation is required on Windows® 7)
macOS® X 10.10 and later
Linux®
CPU: Intel® Core™ i5 Gen 4 (3 GHz & above)
CPU: Intel® Core™ i7 Gen 4 & above
RAM: 4 GB memory or higher (8 GB is recommended)

Phone - Recommended software: CameraFi™ Live

Available USB-C™ port that supports USB™ Power Delivery 2.0 or 3.0
Android™ 7.0 and higher
CPU: Core 2 GHz & above
RAM: 4 GB memory or higher

Hardware
Warranty	2-Year Limited
Host Connector	1 - USB-C™ Male
Video Input	2 - HDMI™ Female
Video Output	1 - HDMI™ Female
Audio Input	HDMI™ or 3.5 mm Mic in
Audio Output	HDMI™ or 3.5 mm Speaker out
Power Source	Bus-powered or self-powered (USB-C™ PD)

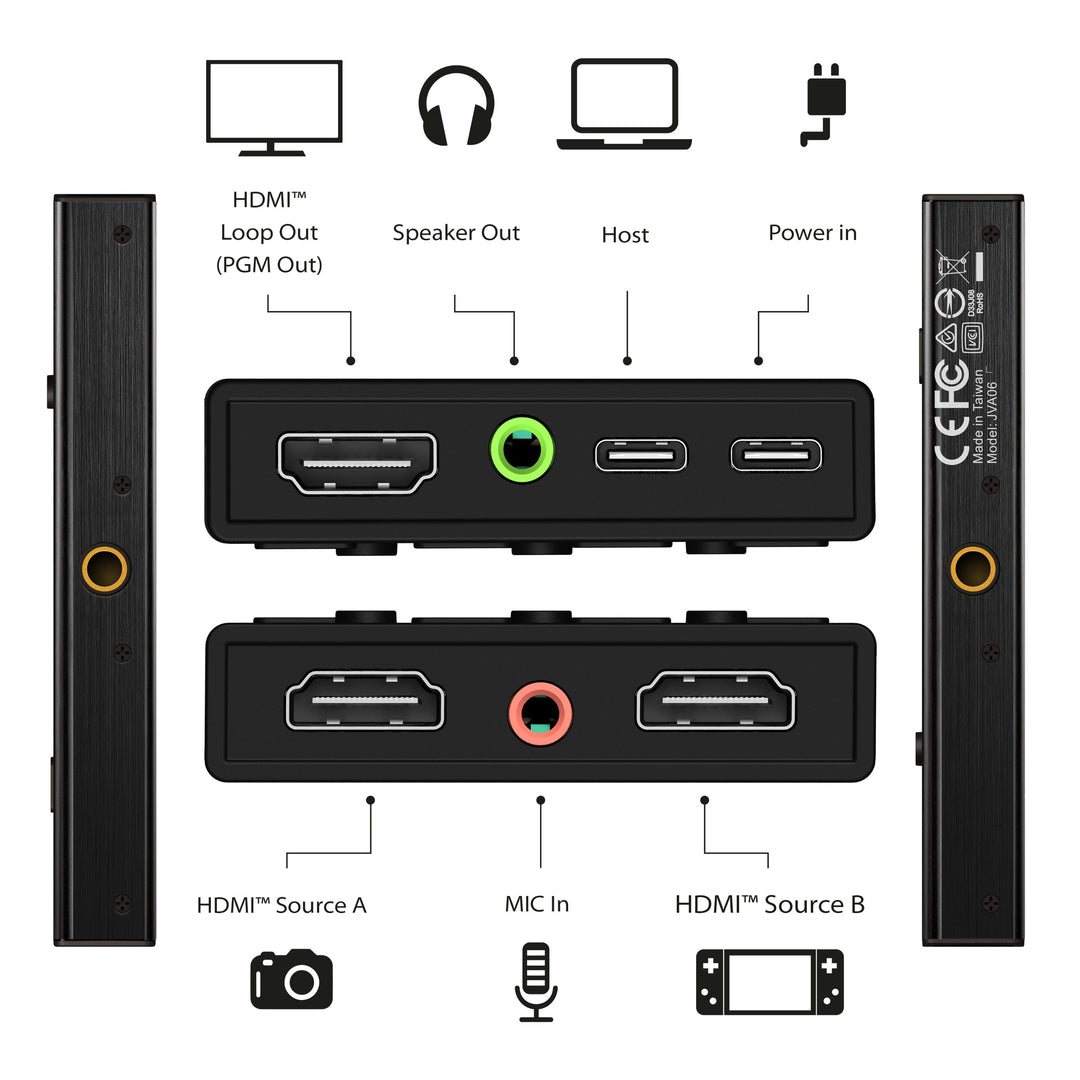

Ports	1 - USB-C™ 3.0 (host) 1 - USB-C™ 3.0 (power) 2 - HDMI™ input 1 - HDMI™ output 1 - Mic in 1 - Speaker out 2 - Cold shoes
Performance
Display Input Supported Resolutions	Progressive: 1920 x 1080p @ 24/25/30/50/60 1680 x 1050p @ 60 1600 x 1200p/900p @ 60 1440 x 900p @ 60 1400 x 1050p @ 60 1366 x 768p @ 60 1360 x 768p @ 60 1280 x 1024p/800p/720p @ 60 1024 x 768p @ 60 800 x 600p @ 60 720 x 576p/480p @ 60 640 x 480p @60 Interlace: 1920 x 1080i @ 50/60 720 x 576i @ 50 720 x 480i @ 60
Display Output Supported Resolutions	1920 x 1080p @ 60 1280 x 720p @ 60 720 x 576p @ 50 720 x 480p @ 60 640 x 480p @ 60
Maximum Display Refresh Rate	60 Hz
Audio Channel	2.1 via HDMI™
Audio Frequency	48 kHz
Mic	Stereo microphone supported 24-bit sigma-delta ADC
Headset	40 mW output power into 16Ω at 3.3V THD -75 dB at 20 mW
Compression	USB™ 2.0: MJPEG USB™ 3.0: YUV 4:2:2
Encode Format	USB™ 2.0: MJPEG USB™ 3.0: YUV 4:2:2
HDR Supported	No
Power
Power Delivery	Up to 60W via USB-C™
Power Consumption	≦ 1000A
Input Current	Up to 3A
Input Voltage	Up to 20V
Output Current	Up to 3A
Output Voltage	Up to 20V
Physical Specifications
Color	Black
Enclosure Type	Aluminum
Cable Length	USB-C™ to USB-C™: 23.6 inch (60 cm) USB-C™ to USB™ Type-A 23.6 inch (60 cm)
Product Height	0.7 inch (18.4 mm)
Product Width	5.3 inch (134.6 mm)
Product Depth	2.5 inch (63.7 mm)
Product Weight	6 oz (172g)
Storage Temperature	14 to 149°F (-10 to 65°C)
Storage Humidity	< 85% non-condensing
Operating Temperature	32 to 118°F (0 to 45°C)
Operating Humidity	< 85% non-condensing

Special Notes

The JVA06 can connect to a USB-C® port that does not support Power Delivery, but it will not pass power through the connected device.

Package Contents

• 1 - JVA06 Dual HDMI™ Video Capture
• 1 - Quick Installation Guide
• 1 - USB-C™ 2.0 to USB-C™ cable
• 1 - USB-C™ 3.0 to USB™ Type-A cable
• 1 - 39.4 in./100 cm HDMI™ cable
