Specifications

CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors. Go to GIGABYTE's website for the latest CPU support list. L3 cache varies with CPU.
Chipset	Intel® Z890 Express Chipset
Memory	Support up to DDR5 9466+MT/s (OC). 4 x DDR5 DIMM slots, Dual Channel. Max. Capacity 256 GB. Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM). Supports Intel® Extreme Memory Profile (XMP) memory module. The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to the Memory Support List on GIGABYTE's website for more information.
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz. Support for DisplayPort 2.1 version. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz. Support for DisplayPort 2.1 version. Graphics specifications may vary depending on CPU support.
Audio	Realtek® ALC1220 CODEC. The back panel line out jack supports DSD audio. High Definition Audio; 2/4/5.1/7.1-channel. You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out.
LAN	Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module	Intel® Wi-Fi 7 BE200NGW. 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands. BLUETOOTH 5.4. Support for 11be 320MHz wireless standard. Actual data rate may vary depending on environment and equipment. Wi-Fi 7 features require Windows 11 SV3 to function properly. There is no support driver for Windows 10. Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16). The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2).
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU). 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU). Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB). 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB). 4 x SATA 6Gb/s connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices. RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices.
USB	CPU: 1 x USB4® USB Type-C® port on the back panel. Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header). Chipset + 2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers).
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper
Back Panel Connectors	1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x USB4® USB Type-C® port (DisplayPort) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks Note: Actual DisplayPort support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC). Available applications in GCC may vary.

Shipping Policy

1. General Information

All orders are processed within 1-3 business days. Orders are not shipped or delivered on weekends or holidays. If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.

2. Shipping Rates & Delivery Estimates

Shipping charges for your order will be calculated and displayed at checkout. Delivery delays can occasionally occur.

Standard Shipping: Delivery typically takes *3–15 business days*, depending on the delivery location.

Delays may occur due to incorrect or incomplete addresses provided by the customer or circumstances beyond our control. Any additional charges or penalties arising from such issues will be borne by the customer.

3. Shipment Confirmation & Order Tracking

You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.

4. Damages

Vishal Peripherals is liable for any products damaged or lost during shipping. If you received your order damaged, please take the video of unboxing and share through mail at helpdesk@vishalperipherals.com.

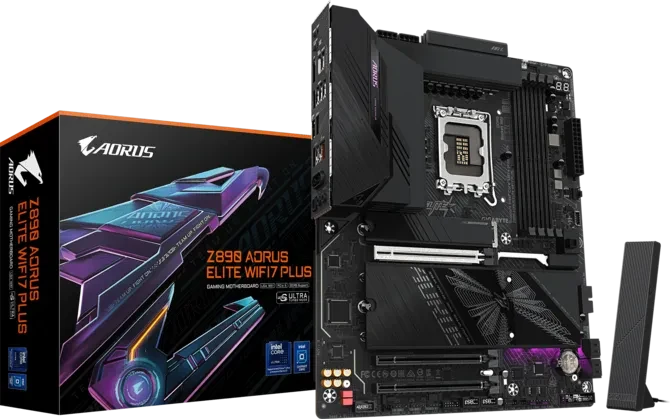

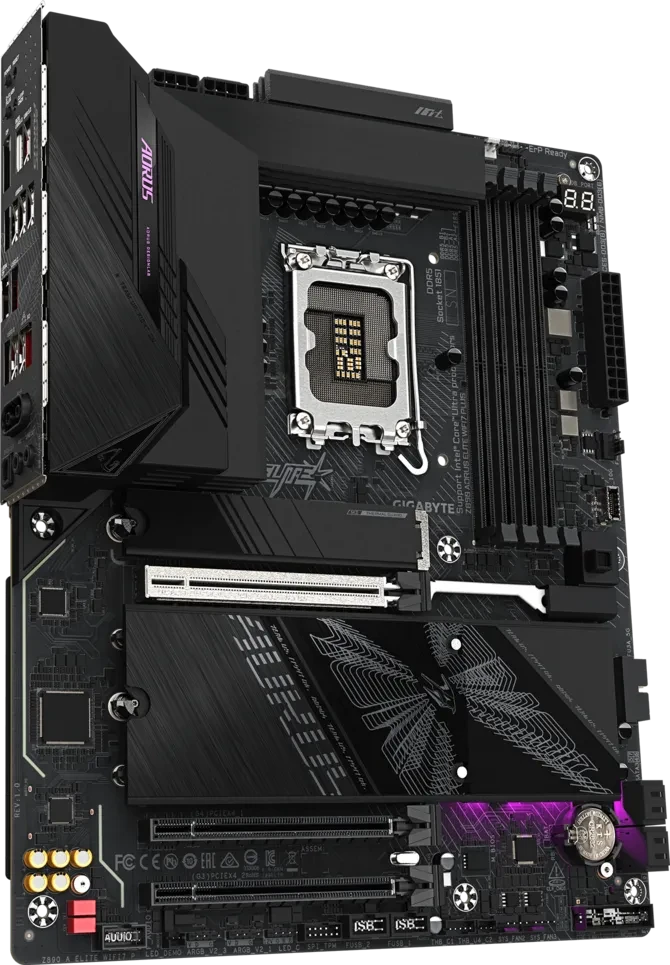

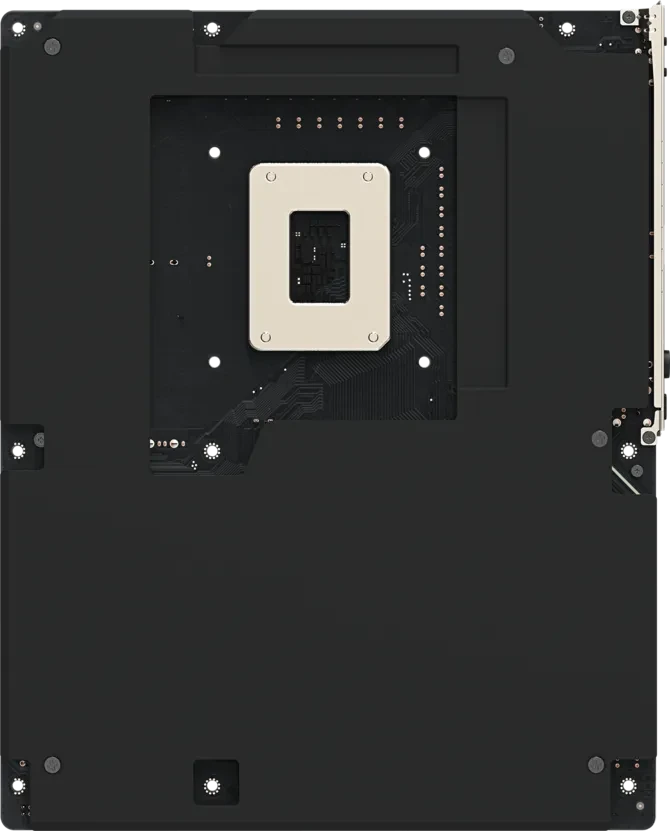

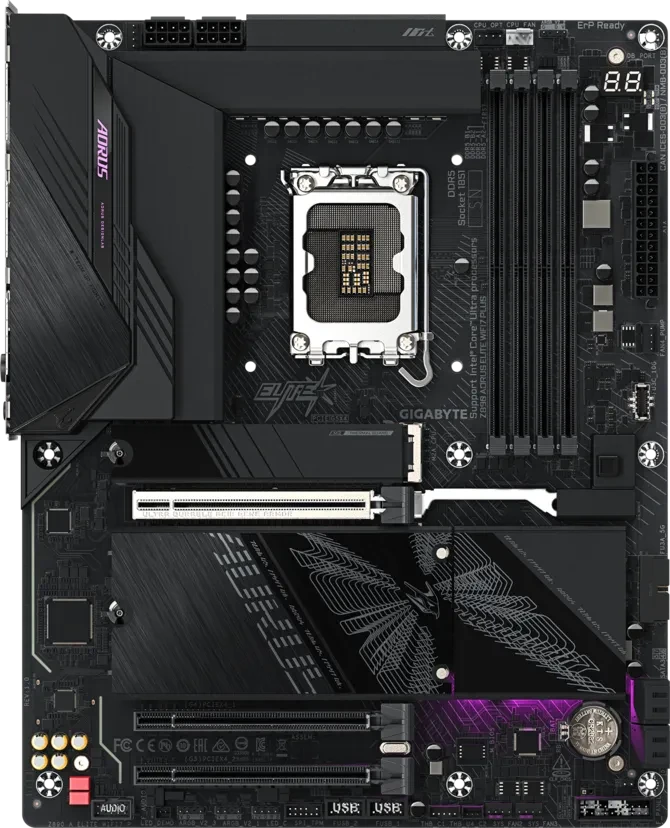

Gigabyte Z890 AORUS ELITE WIFI7 PLUS Motherboard.
