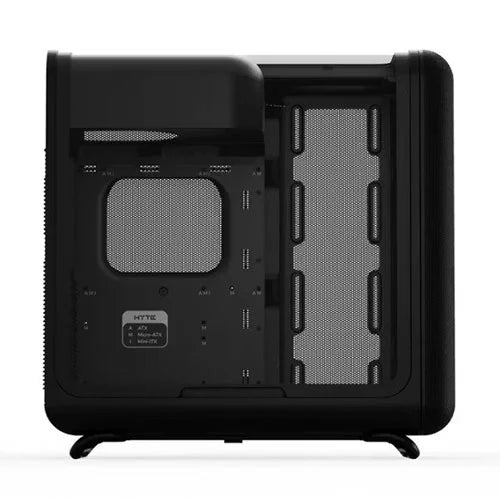

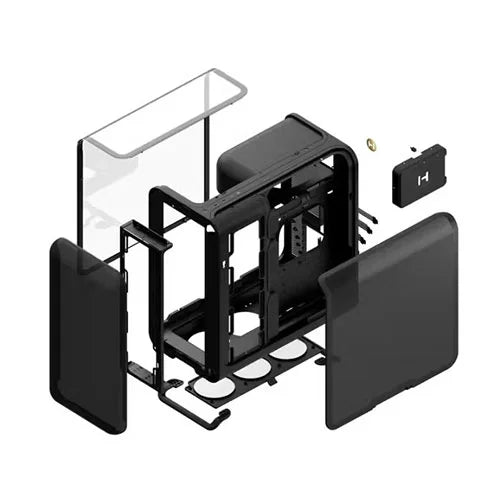

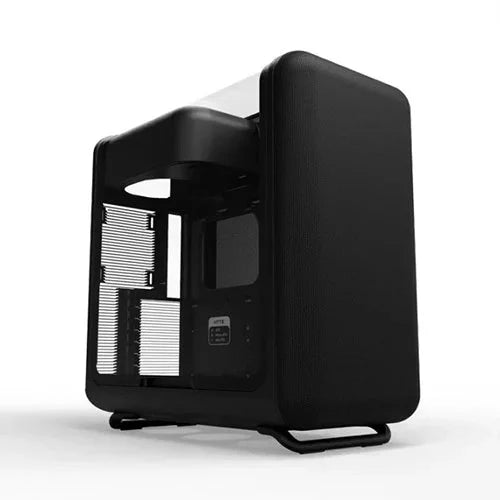

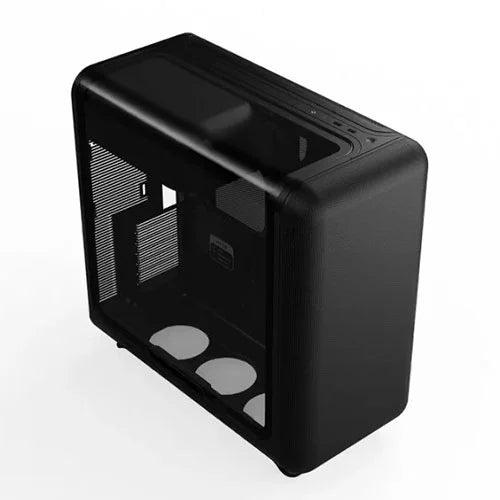

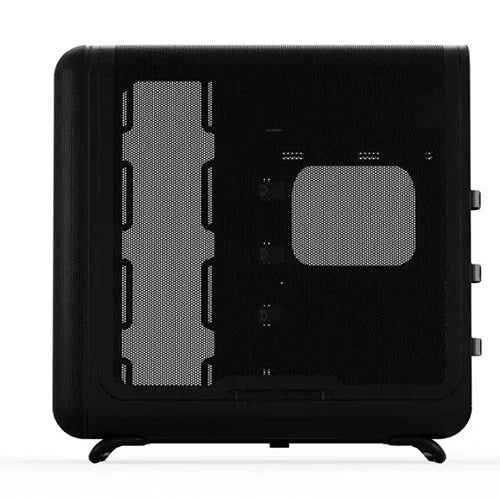

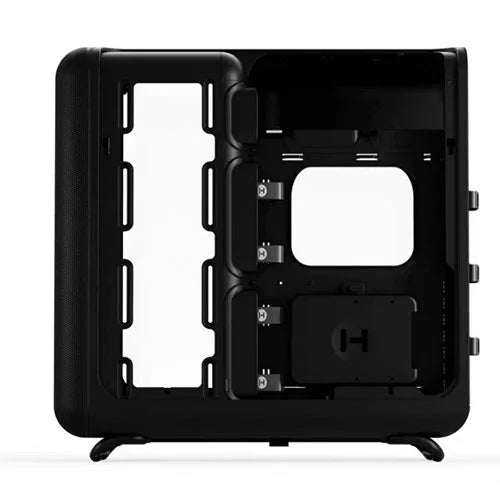

HYTE X50 PITCH BLACK CABINET

Features:

Patent-Pending Louvered Blade Ventilation

Reduces exhaust impedance by slicing through hot air while reinforcing chassis rigidity

4mm Thick Laminated Acoustic Glass

Significantly enhances passive noise damping by reducing transmission of sound with a Shatter-Proof(ish) bonding layer ensuring the glass doesn’t splinter into a million pieces

Cold-Floor Cooling

Keeps your graphics card comfortably cool with direct airflow from up to 3x 120mm extra thick fans

Structural PSU Canopy

Ideally placed for hassle-free cable management with meticulously placed tie-down points wish included velcro straps both inside and outside the chassis

Disciplined Multi-Dimensional Design

Seamlessly blends premium materials such as steel and tempered glass with exquisite craftsmanship, resulting in simple, soft, perfect forms across every curve inside the case

• Form Factor: ATX Mid-Tower
• Volume: 63L
• Case Dimensions: 485mm (H) x 510mm (L) x 255mm (W)
• Chassis Material(s): 1mm Thick Steel, ABS
• Window Material(s): 4mm Thick Laminated Acoustic Glass
• Grommet Material(s): Total Coverage Silicone
• Motherboard Support: E-ATX (up to 10.6”), ATX, MATX, ITX
• Power Supply: Up to 223mm
• GPU Support: Up to 430mm Length, 160mm Height
• Side Fan Support: 3x 120mm
• Front Fan Support: 3x 120mm / 140mm
• Bottom Fan Support: 3x 120mm up to 32mm Thick
• Rear Fan Support: 1x 120mm
• Side Radiator Support: Up to 360mm Long & 70mm Thick
• Front Radiator Support: Up to 360mm Long & 105mm Thick
• Rear Radiator Support: 120mm
• Max CPU Cooler Height: 170mm
• Storage Support: 2x 2.5” Drives, 1x 3.5” Drive
• Expansion Slots: 7 Horizontal (Full-Size)
• Front I/O (Audio): 3.5mm Combo Jack
• Front I/O (USB): 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1x1 Type A
• Front I/O (Power): Tactile Mechanical Power Switch with LED
• Dust Filters: Bottom, Magnetic
