About this item

20 cores (8 P-cores + 12 E-cores) and 28 threads. Integrated Intel UHD Graphics 770 included.
Performance hybrid architecture integrates two core microarchitectures, prioritizing and distributing workloads to optimize performance
Up to 5.4 GHz unlocked. 33MB Cache
Compatible with Intel 600-series (with potential BIOS update) and 700-series chipset-based motherboards
Turbo Boost Max Technology 3.0 Frequency, and PCIe 5.0 & 4.0 support. DDR4 and DDR5 Memory support. RM1 thermal solution included.

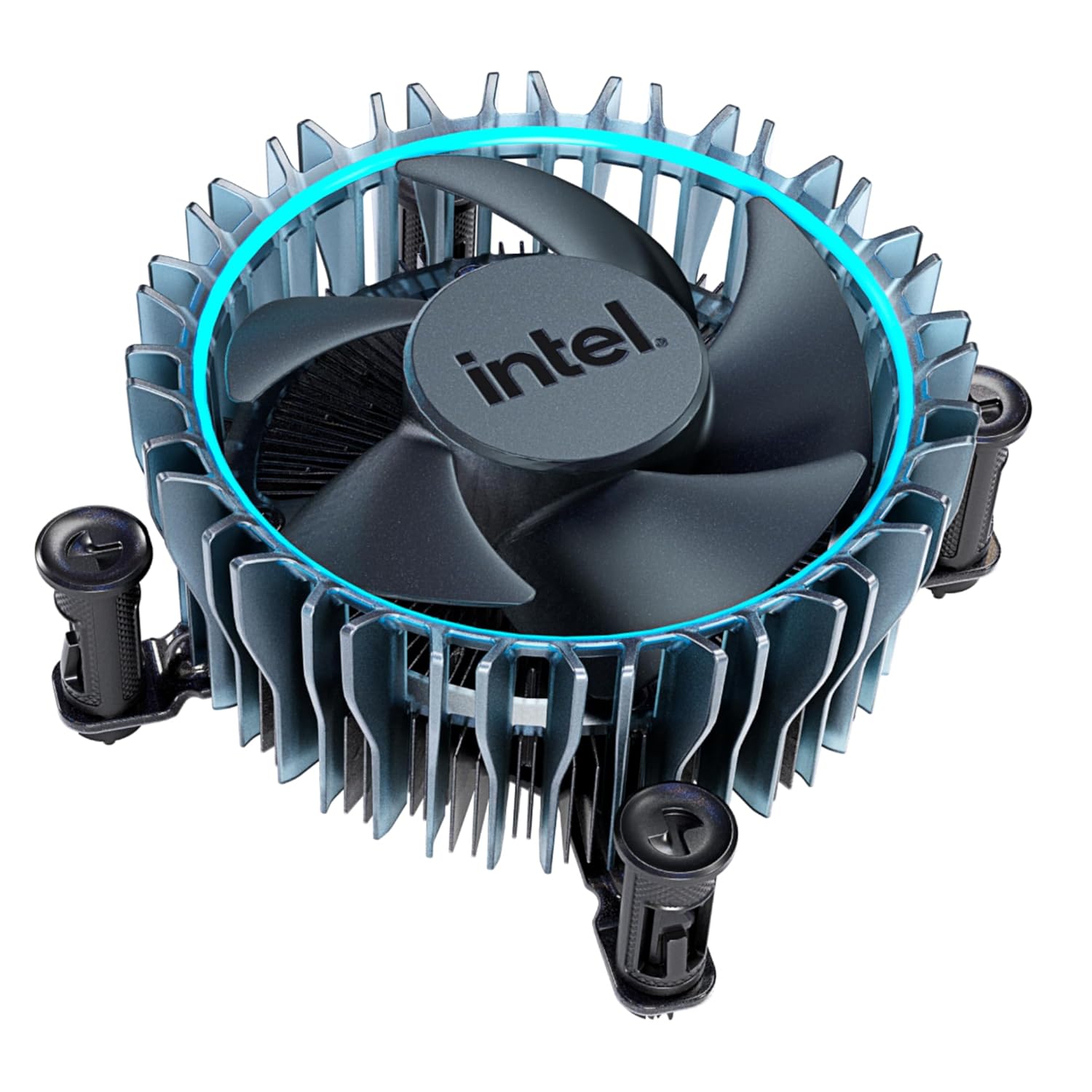

Includes Intel Laminar RM1 Cooler

Technical Details

Model	i7-14700
Product Collection	Intel® Core™ i7 Processors (14th gen)
Code Name	Products formerly Raptor Lake
Vertical Segment	Desktop
Lithography	Intel 7
Use Conditions	PC/Client/Tablet, Workstation
CPU Specifications
Total Cores	20
# of Performance-cores	8
# of Efficient-cores	12
Total Threads	28
Max Turbo Frequency	5.4 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡	5.4 GHz
Performance-core Max Turbo Frequency	5.3 GHz
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core Base Frequency	2.1 GHz
Efficient-core Base Frequency	1.5 GHz
Cache	33 MB Intel® Smart Cache
Total L2 Cache	28 MB
Processor Base Power	65 W
Maximum Turbo Power	219 W
Memory Specifications
Max Memory Size (dependent on memory type)	192 GB
Memory Types	Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels	2
Max Memory Bandwidth	89.6 GB/s
ECC Memory Supported ‡	Yes
GPU Specifications
GPU Name‡	Intel® UHD Graphics 770
Graphics Base Frequency	300 GHz
Graphics Max Dynamic Frequency	1.6 GHz
Graphics Output	eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units	32
Max Resolution (HDMI)‡	4096 x 2160 @ 60Hz
Max Resolution (DP)‡	7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡	5120 x 3200 @ 120Hz
DirectX* Support	12
OpenGL* Support	4.5
OpenCL* Support	3.0
Multi-Format Codec Engines	2
Intel® Quick Sync Video	Yes
Intel® Clear Video HD Technology	Yes
# of Displays Supported ‡	4
Device ID	0xA780
Expansion Options
Direct Media Interface (DMI) Revision	4.0
Max # of DMI Lanes	8
Scalability	1S Only
PCI Express Revision	5.0 and 4.0
PCI Express Configurations ‡	Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes	20
Package Specifications
Sockets Supported	FCLGA1700
Max CPU Configuration	1
Thermal Solution Specification	PCG 2020C
TJUNCTION	100°C
Package Size	45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator	3.0
Intel® Thread Director	Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Max Technology 3.0 ‡	Yes
Intel® Turbo Boost Technology ‡	2.0
Intel® Hyper-Threading Technology ‡	Yes
Intel® 64 ‡	Yes
Instruction Set	64-bit
Instruction Set Extensions	Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States	Yes
Enhanced Intel SpeedStep® Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® Volume Management Device (VMD)	Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡	Yes
Intel® Control-Flow Enforcement Technology	Yes
Intel® AES New Instructions	Yes
Secure Key	Yes
Intel® OS Guard	Yes
Execute Disable Bit ‡	Yes
Intel® Boot Guard	Yes
Mode-based Execute Control (MBEC)	Yes
Intel® Virtualization Technology (VT-x) ‡	Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡	Yes
Intel® VT-x with Extended Page Tables (EPT) ‡	Yes
Warranty	3 Years

Shipping Policy

1. General Information

All orders are processed within 1-3 business days. Orders are not shipped or delivered on weekends or holidays. If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.

2. Shipping Rates & Delivery Estimates

Shipping charges for your order will be calculated and displayed at checkout. Delivery delays can occasionally occur.

Standard Shipping: 3-5 business days

3. Shipment Confirmation & Order Tracking

You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.

4. Damages

Vishal Peripherals is liable for any products damaged or lost during shipping. If you received your order damaged, please take the video of unboxing and share through mail at support1@vishalperipherals.com.

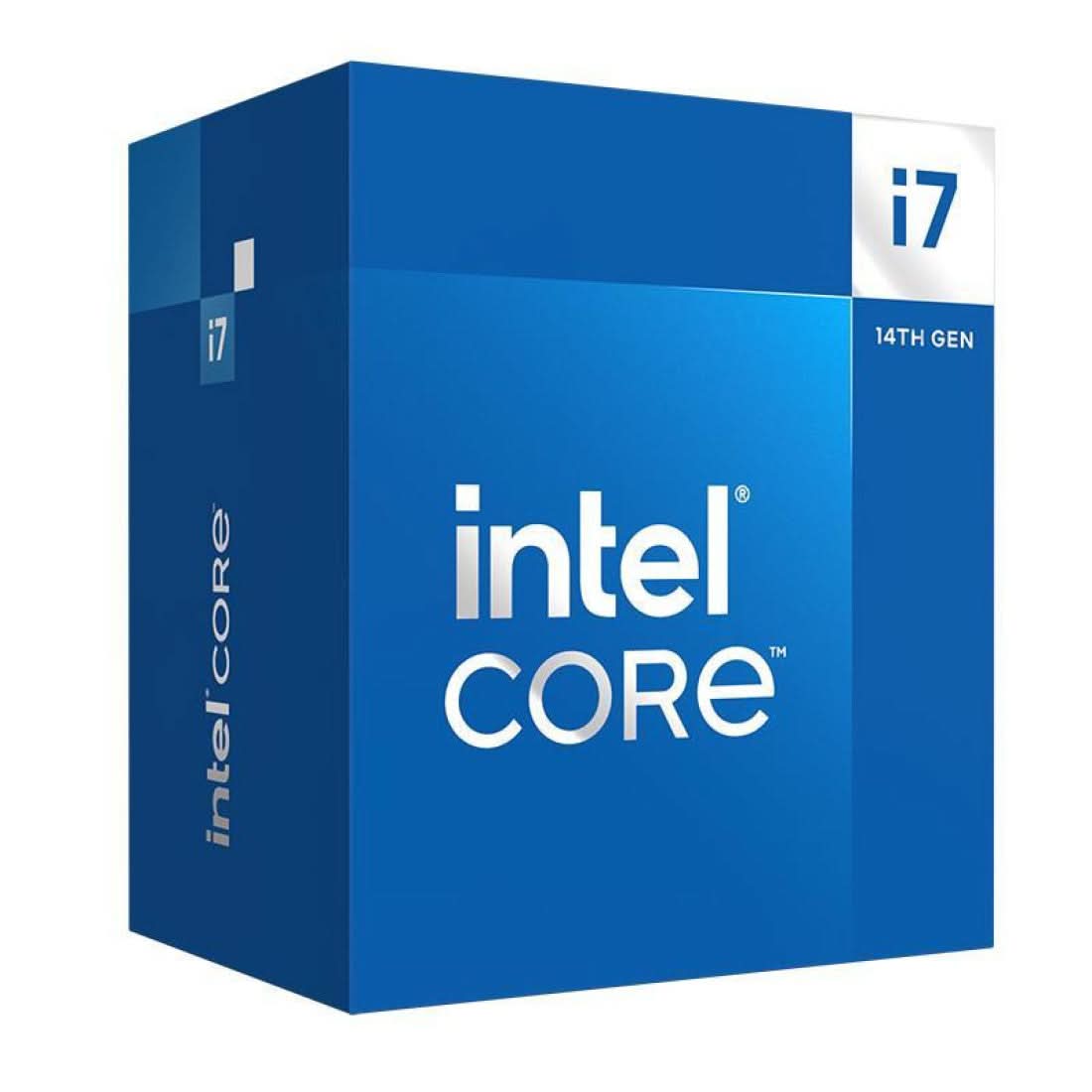

INTEL CORE I7-14700 14TH GEN 20 CORES UPTO 5.4 GHZ LGA1700 PROCESSOR
