Specifications

CHIPSET	INTEL Z790
CPU	Support IntelÃ CoreÃ´ 14th/ 13th/ 12th Gen Processors, IntelÃ PentiumÃ Gold and CeleronÃ Processors
CPU	LGA 1700
MEMORY	4x DDR5, Maximum Memory Capacity 192GB
	Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	Ã¯ 1DPC 1R Max speed up to 6600+ MHz
	Ã¯ 1DPC 2R Max speed up to 6400+ MHz
	Ã¯ 2DPC 1R Max speed up to 6000+ MHz
	Ã¯ 2DPC 2R Max speed up to 5600+ MHz
	Supports IntelÃXMP 3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS	1x HDMIÃ´
	Support HDMIÃ´ 1.4 with HDR, maximum resolution of 4K 30Hz*
	1x DisplayPort
	Support DP 1.4, maximum resolution of 4K 60Hz*
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	2x PCI-E x16 slot
	3x PCI-E x1 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
	PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE	2x M.2
	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	4x USB 3.2 Gen1 Type A (Rear)
	4x USB 3.2 Gen1 Type A (Front)
	1x USB 3.2 Gen2x2 Type C (Rear)
LAN	RealtekÃRTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH	IntelÃWi-Fi 6E
	The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax
	Supports BluetoothÃ5.3, FIPS, FISMA
	* Wi-Fi 6E 6GHz may depend on every countryÃs regulations and will be ready in Windows 11.
	** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO	RealtekÃALC897 Codec
	7.1-Channel High Definition Audio
	Supports S/PDIF output
INTERNAL IO	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	4x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x TBT connector (JTBT, supports RTD3)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	4x USB 3.2 Gen1 Type A ports

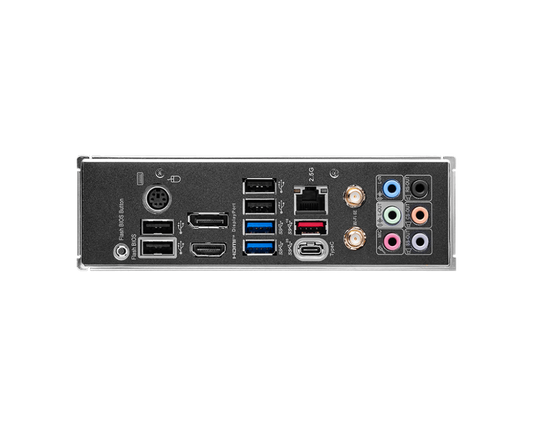

BACK PANEL PORTS	DisplayPort
	HDMIÃ´
	USB 2.0
	USB 3.2 Gen 2x2 20Gbps (Type-C)
	2.5G LAN
	Audio Connectors
	USB 3.2 Gen 1 5Gbps (Type-A)
	USB 3.2 Gen 1 5Gbps (Type-A)
	S/PDIF-OUT
OPERATING SYSTEM	Support for WindowsÃ11 64-bit, WindowsÃ10 64-bit
PCB INFO	ATX
PCB INFO	243.84mmx304.8mm

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice. Warranty: 3 years
