MSI B760M GAMING WIFI MOTHERBOARD

Name: MSI B760M GAMING WIFI MOTHERBOARD
Brand: MSI
Price: 11700.0 INR
Availability: OutOfStock

₹ 11,700 ₹ 31,999

Discount: ₹ 20,299 (64%)

15 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Dispatch: 24 - 48hrs

Availability: In Stock Unavailable

SKU: 1092402

Vendor: MSI

Model Number: B760M GAMING WIFI

Guaranteed safe & Secure checkout

Description
Shipping & Return

Specifications:

Model	B760M GAMING WIFI
Chipset	INTEL B760
CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
CPU	LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 128GB
	Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	1DPC 1R Max speed up to 8000+ MHz
	1DPC 2R Max speed up to 6400+ MHz
	Supports Intel XMP 3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI
	Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*
	1x DisplayPort
	Support DP 1.4, maximum resolution of 4K 60Hz*
	1x VGA
	Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot
	1x PCI-E x1 slot
	PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
	PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Audio	Realtek ALC897 Codec
	7.1-Channel High Definition Audio
	Supports S/PDIF output
Storage	2x M.2
	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G
	* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	4x USB 5Gbps Type A (Rear)
	2x USB 5Gbps Type A (Front)
LAN	Realtek RTL8125B 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH	Intel Wi-Fi 6E
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax
	Supports Bluetooth® 5.3, FIPS, FISMA
	* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
	** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Internal IO	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	2x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 5Gbps Type A ports
LED FEATURE	4x EZ Debug LED

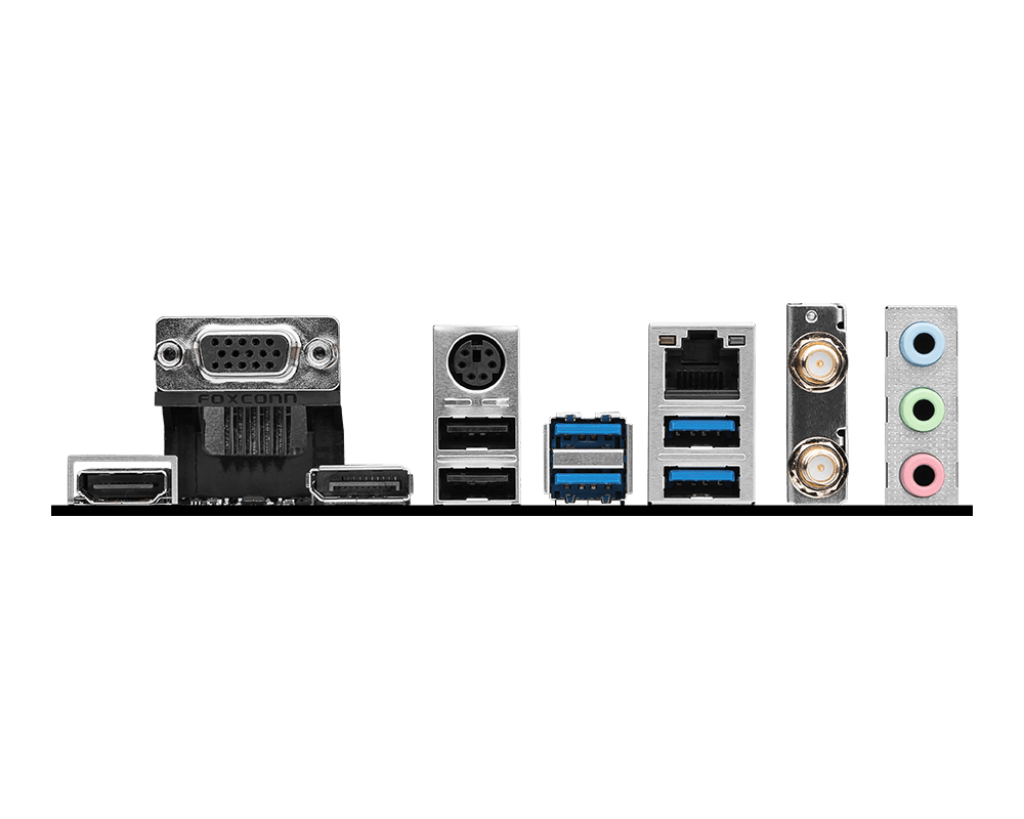

BACK PANEL PORTS	VGA
	Keyboard / Mouse
	2.5G LAN
	Wi-Fi / Bluetooth
	Audio Connectors
	HDMI™
	DisplayPort
	USB 2.0
	USB 3.2 Gen 1 5Gbps (Type-A)
OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Info	mATX
PCB Info	220mmx243.84mm
Warranty	3 Years
