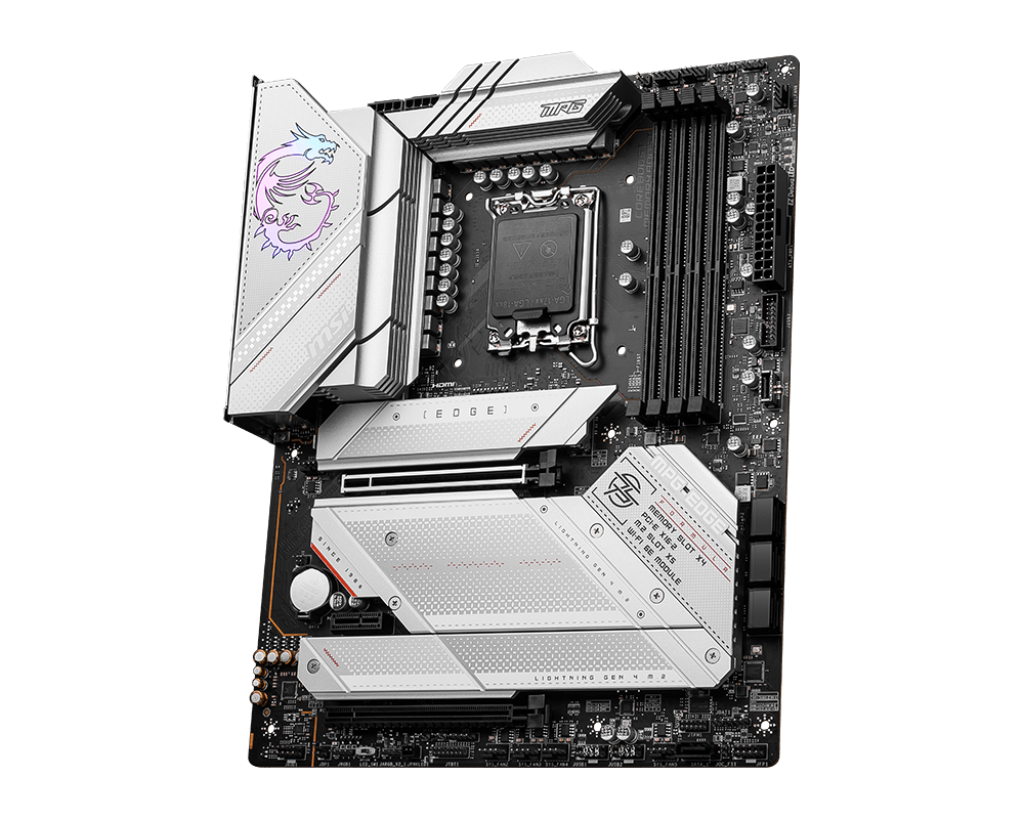

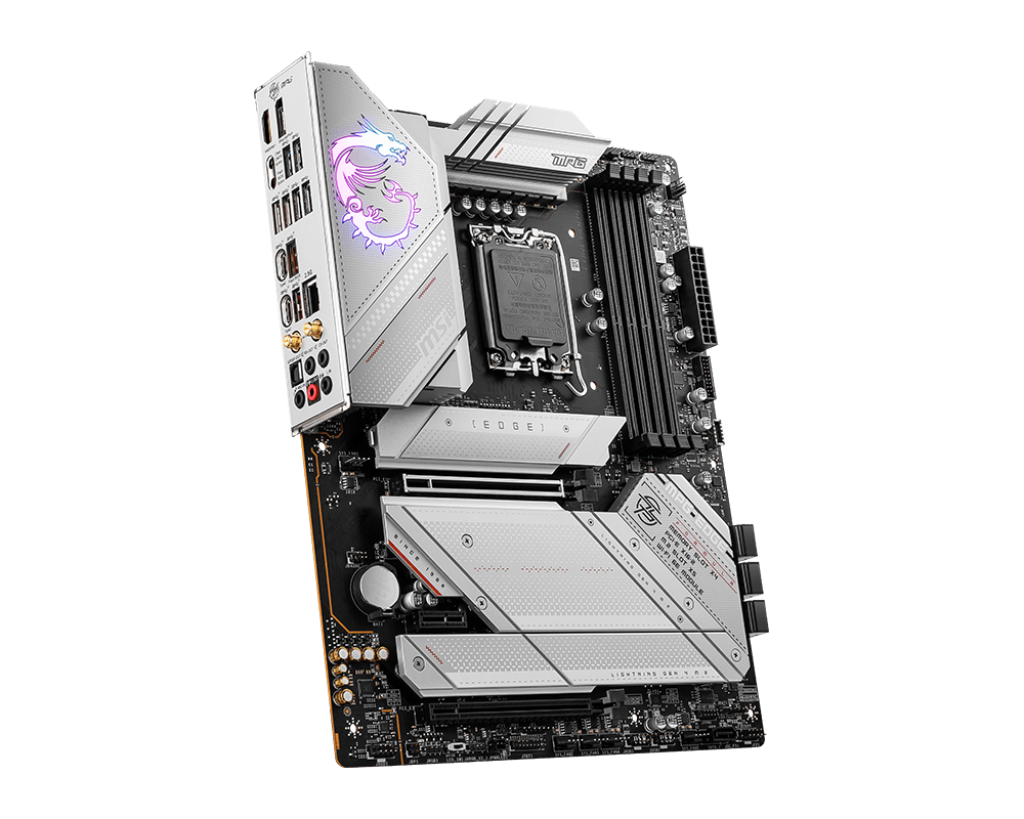

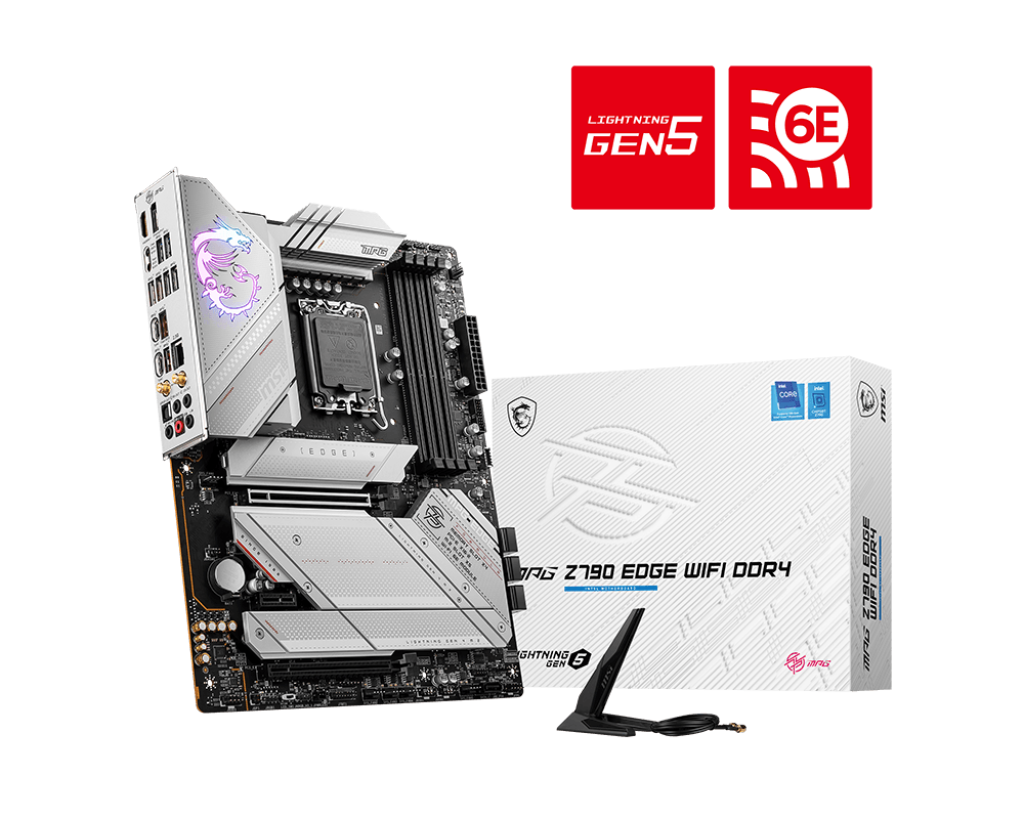

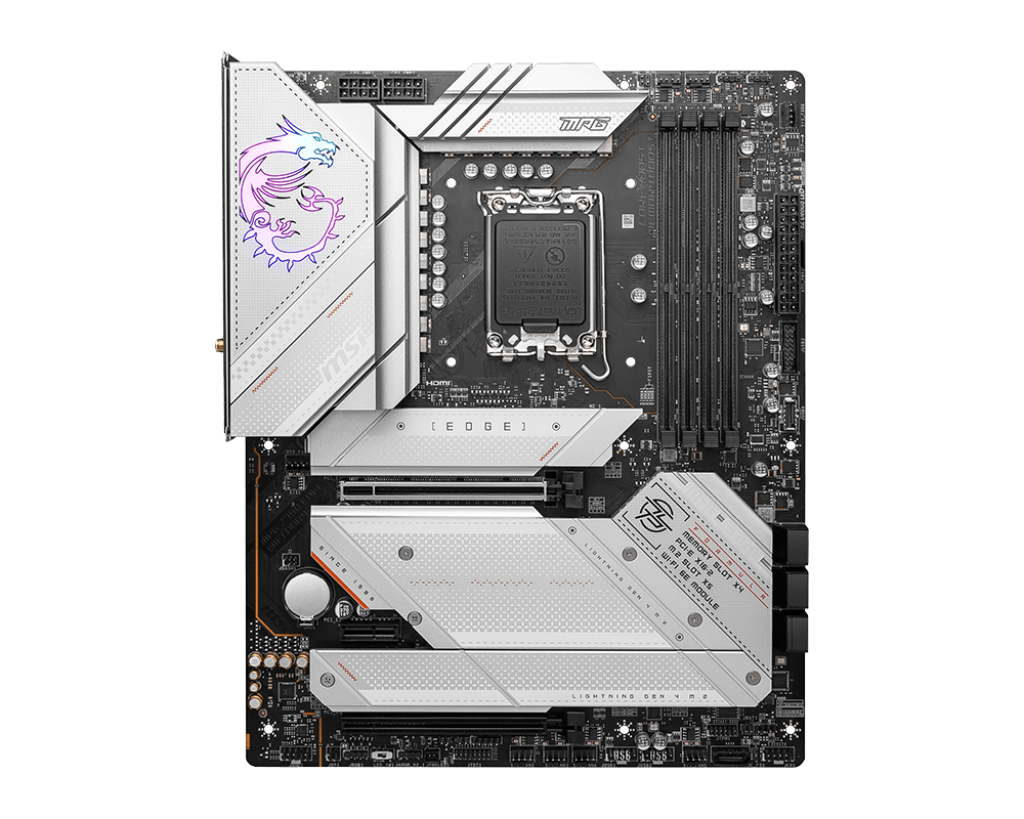

MSI MPG Z790 EDGE WIFI DDR4 INTEL LGA1700 MOTHERBOARD

Name: MSI MPG Z790 EDGE WIFI DDR4 INTEL LGA1700 MOTHERBOARD
Brand: MSI
Price: 34700.0 INR
Availability: OutOfStock

₹ 34,700 ₹ 62,599

Discount: ₹ 27,899 (45%)

15 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Dispatch: 24 - 48hrs

Availability: In Stock Unavailable

SKU: 1083171

Vendor: msi

Guaranteed safe & Secure checkout

Description
Shipping & Return

Chipset	INTEL Z790
CPU SUPPORT	Supports 12th/13th Gen IntelÆ Coreô Processors, PentiumÆ Gold and CeleronÆ Processors
CPU SUPPORT	LGA 1700
Memory	4x DDR4, Maximum Memory Capacity 128GB
	Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR)
	Max. overclocking frequency:
	ï 1DPC 1R Max speed up to 5333+ MHz
	ï 1DPC 2R Max speed up to 4800+ MHz
	ï 2DPC 1R Max speed up to 4400+ MHz
	ï 2DPC 2R Max speed up to 4000+ MHz
	Supports IntelÆ XMP3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMIô
	1x DisplayPort
	Support HDMIô 2.1, maximum resolution of 4K 60Hz
	Support DP 1.4, maximum resolution of 8K 60Hz
EXPANSION SLOT	2x PCI-E x16 slot
	1x PCI-E x1 slot
	PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage	5x M.2 slot
	M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
	M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
	M.2_5 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	7x SATA 6G port
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front)
	4x USB 3.2 Gen1 Type A (Rear)
	2x USB 3.2 Gen1 Type A (Front)
	4x USB 3.2 Gen2 Type A (Rear)
	1x USB 3.2 Gen2 Type C (Rear)
	1x USB 3.2 Gen2 Type C (Front)
	1x USB 3.2 Gen2x2 Type C (Rear)
LAN	IntelÆ 2.5Gbps LAN
WIRELESS / BLUETOOTH	IntelÆ Wi-Fi 6E
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz(160MHz) up to 2.4Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax
	Supports BluetoothÆ 5.3, FIPS, FISMA
Audio	RealtekÆ ALC4080 Codec
	7.1-Channel USB High Performance Audio
	Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	6x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x TBT connector (JTBT, supports RTD3)
	1x Tuning Controller connector(JDASH)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0
	2x USB 3.2 Gen1 Type A
	1x USB 3.2 Gen2 Type C
LED FEATURE	4x EZ Debug LED
LED FEATURE	1x EZ LED Control switch
BACK PANEL PORTS	Display Port
	USB 3.2 Gen 1 5 Gbps (Type-A)
	USB 3.2 Gen 2 10Gbps (Type-A)
	2.5G LAN
	Wi-Fi / Bluetooth
	Audio Connectors
	HDMIô
	Clear CMOS / Flash BIOS
	USB 3.2 Gen 2 10Gbps (Type-A)
	USB 3.2 Gen 2 10Gbps (Type-C)
	USB 3.2 Gen 2x2 20Gbps (Type-C)
	Optical S/PDIF Out
OPERATING SYSTEM	Support for WindowsÆ 11 64-bit, WindowsÆ 10 64-bit
PCB Dimension	ATX
PCB Dimension	243.84mmx304.8mm
Warranty	3 Years
