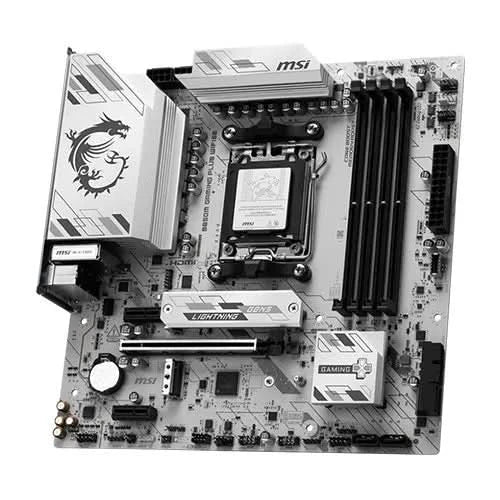

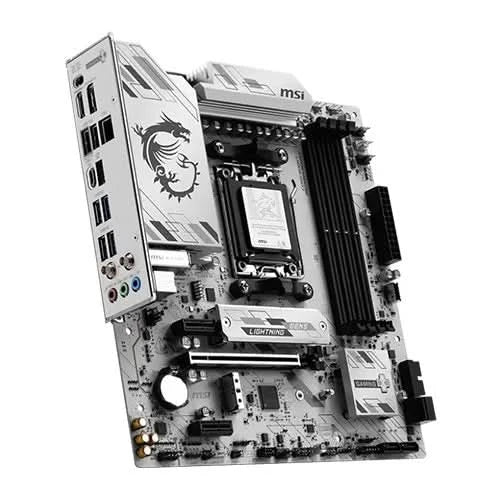

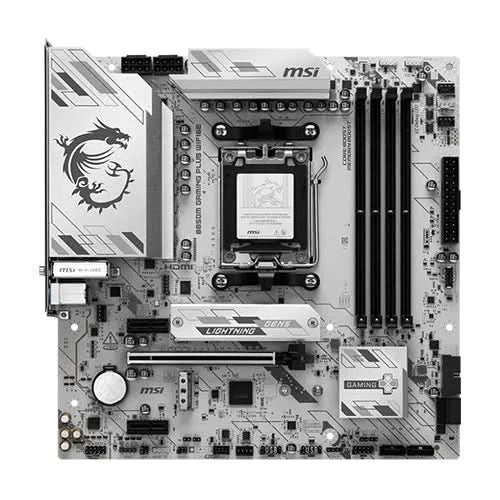

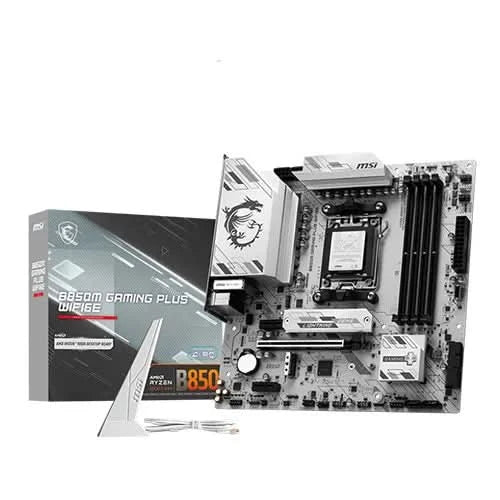

MSI B850M Gaming Plus WIFI6E M-ATX Motherboard

Features:

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: 10+2+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper PCB
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
• High-speed Connectivity: 2.5G LAN with Wi-Fi 6E Solution - The premium solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
• EZ DIY: EZ M.2 Clip II, EZ-Conn Design and EZ Antenna
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

  Motherboard
  Platform	AMD
  Socket	AM5
  Cpu Type	Ryzen 9000,Ryzen 8000,Ryzen 7000
  Chipset	B850
  Memory Speed	up to 8200+
  Max Memory Support	256 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
  Graphics Port	1x HDMI, 1x DisplayPort
  Expansion Slots	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 slot • Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
  Wireless Networking	WiFi 6E,Bluetooth 5.3

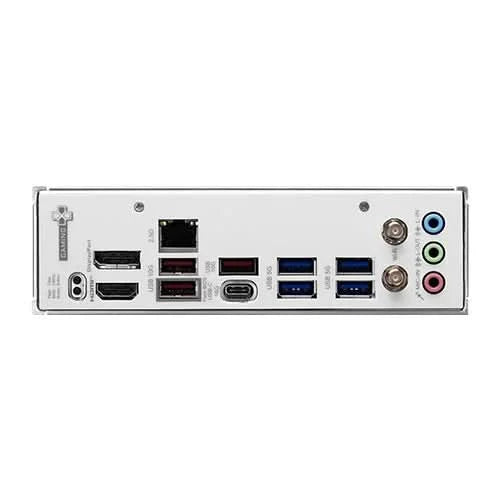

  Back Panel I/O Ports	Clear CMOS Button DisplayPort 1.4 2.5G LAN USB 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button HDMI USB 10Gbps (Type-A) USB 10Gbps (Type-C) USB 5Gbps (Type-A)
  Internal I/O Connector	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
  Form Factor	Micro-ATX
  Warranty	3 Years
  Note	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
