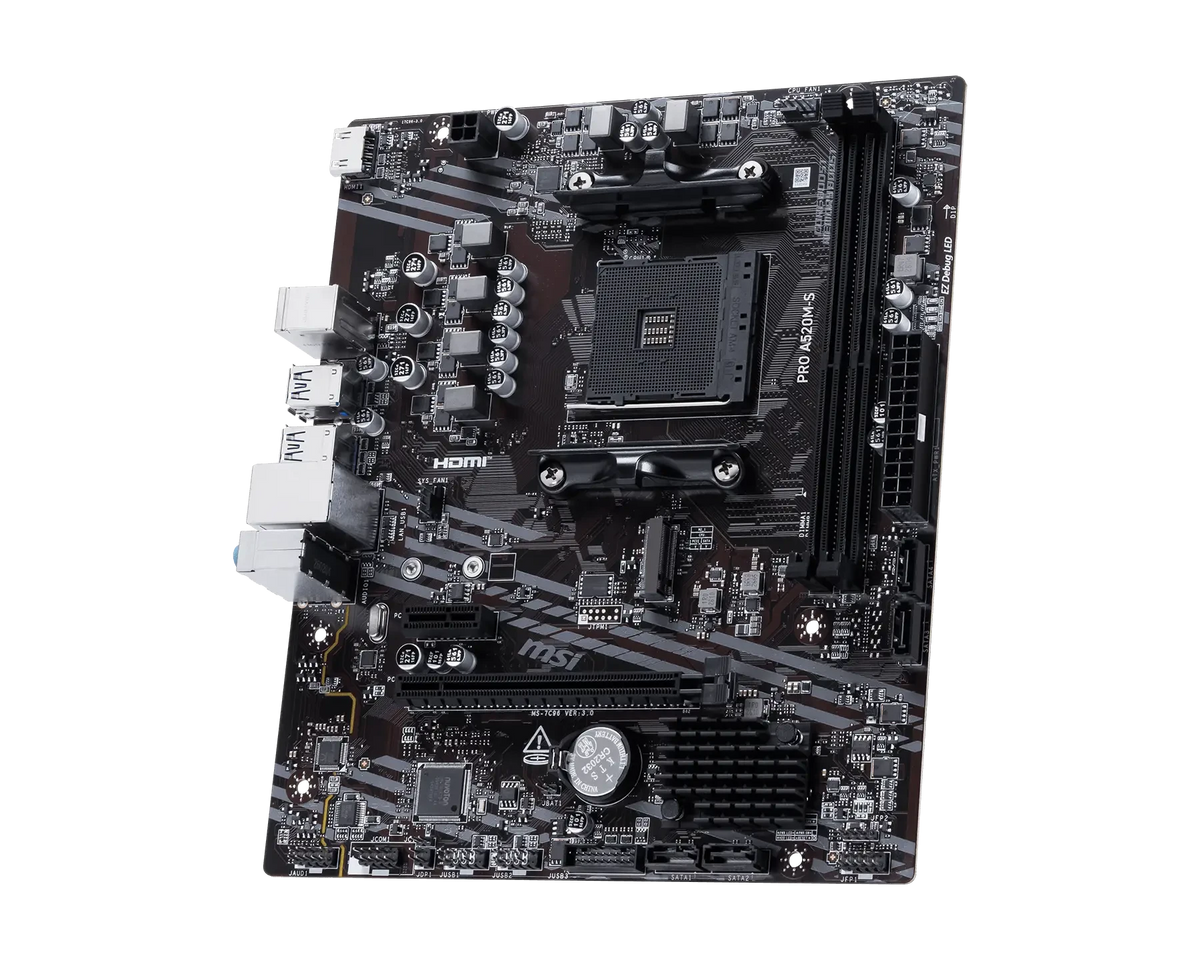

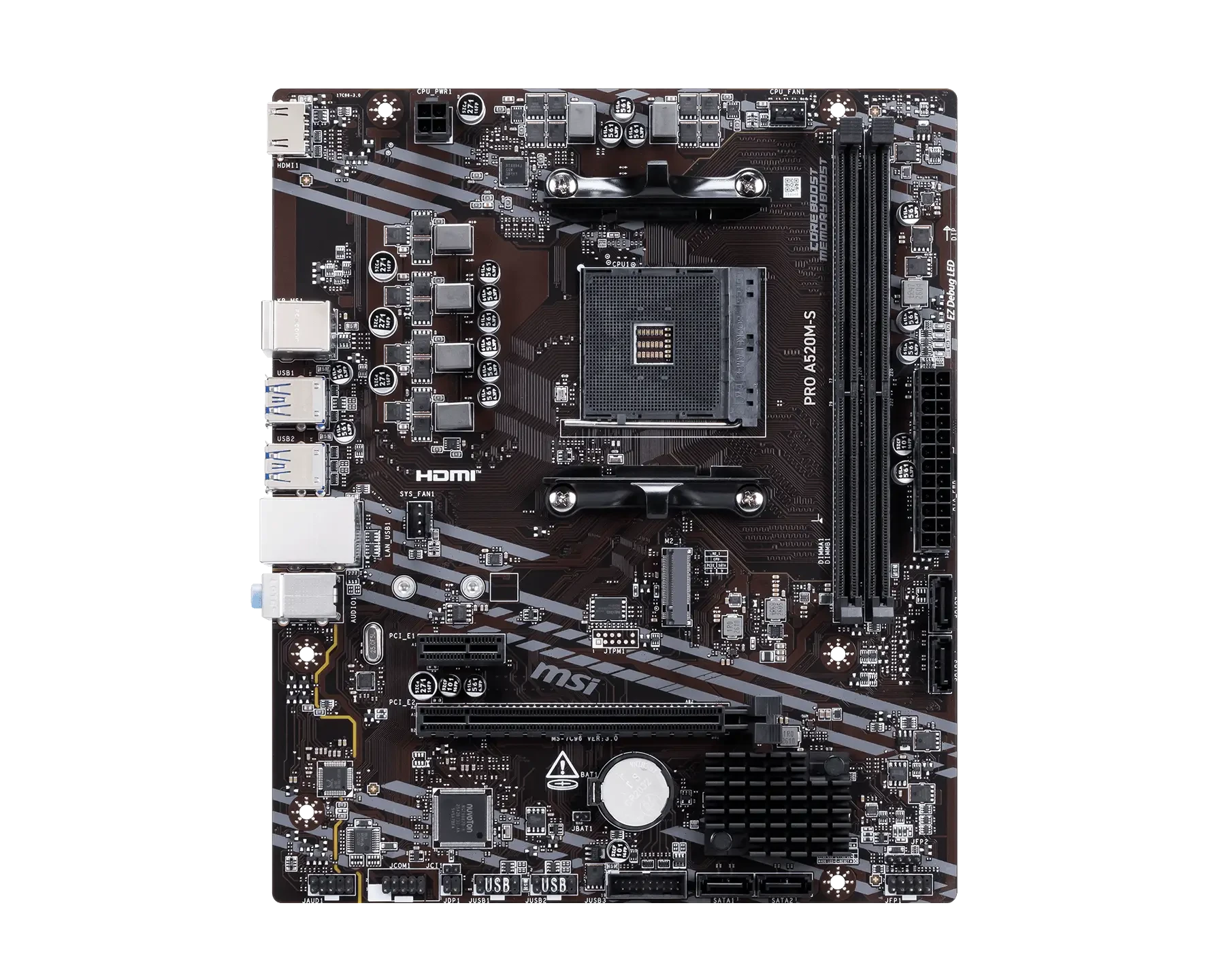

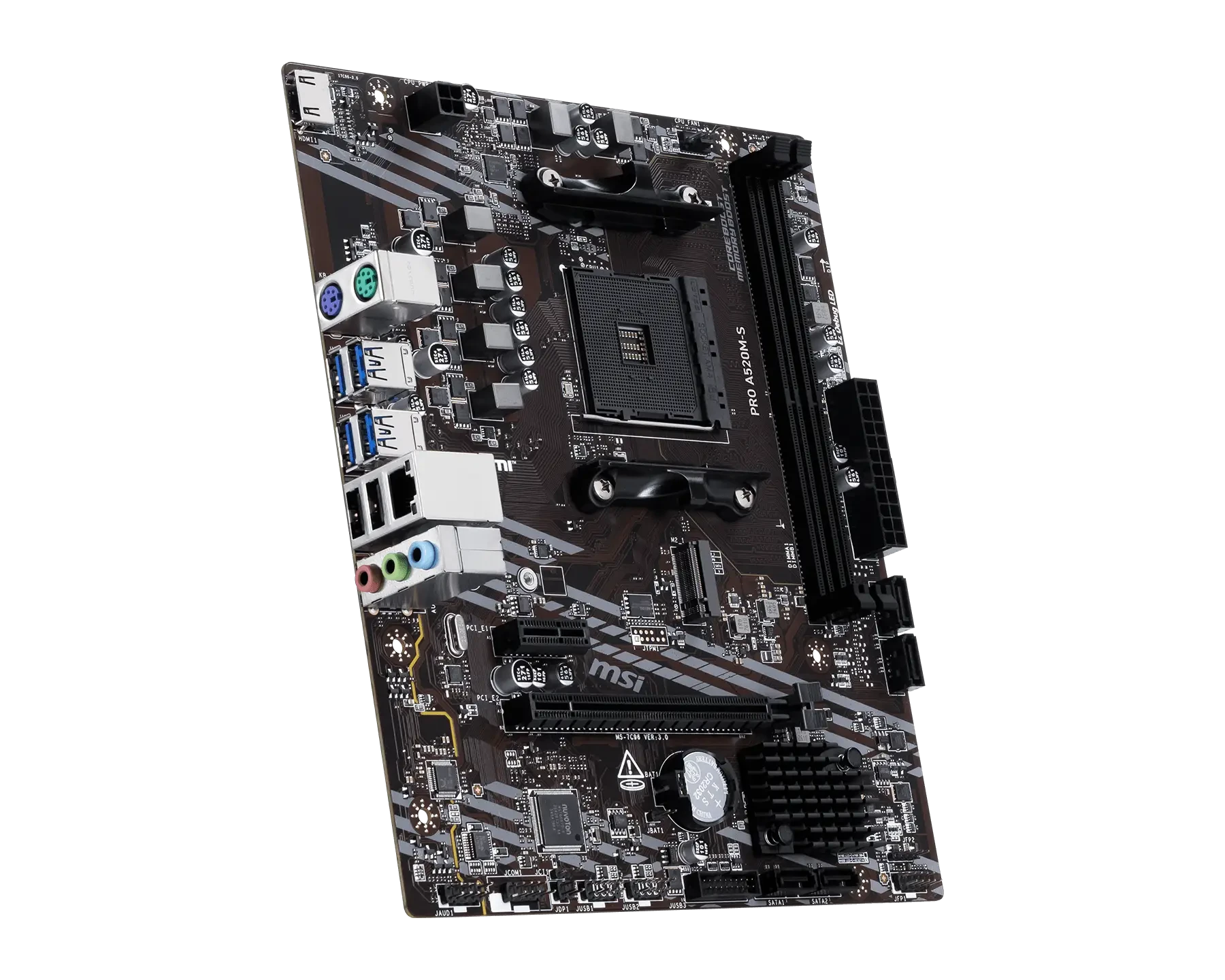

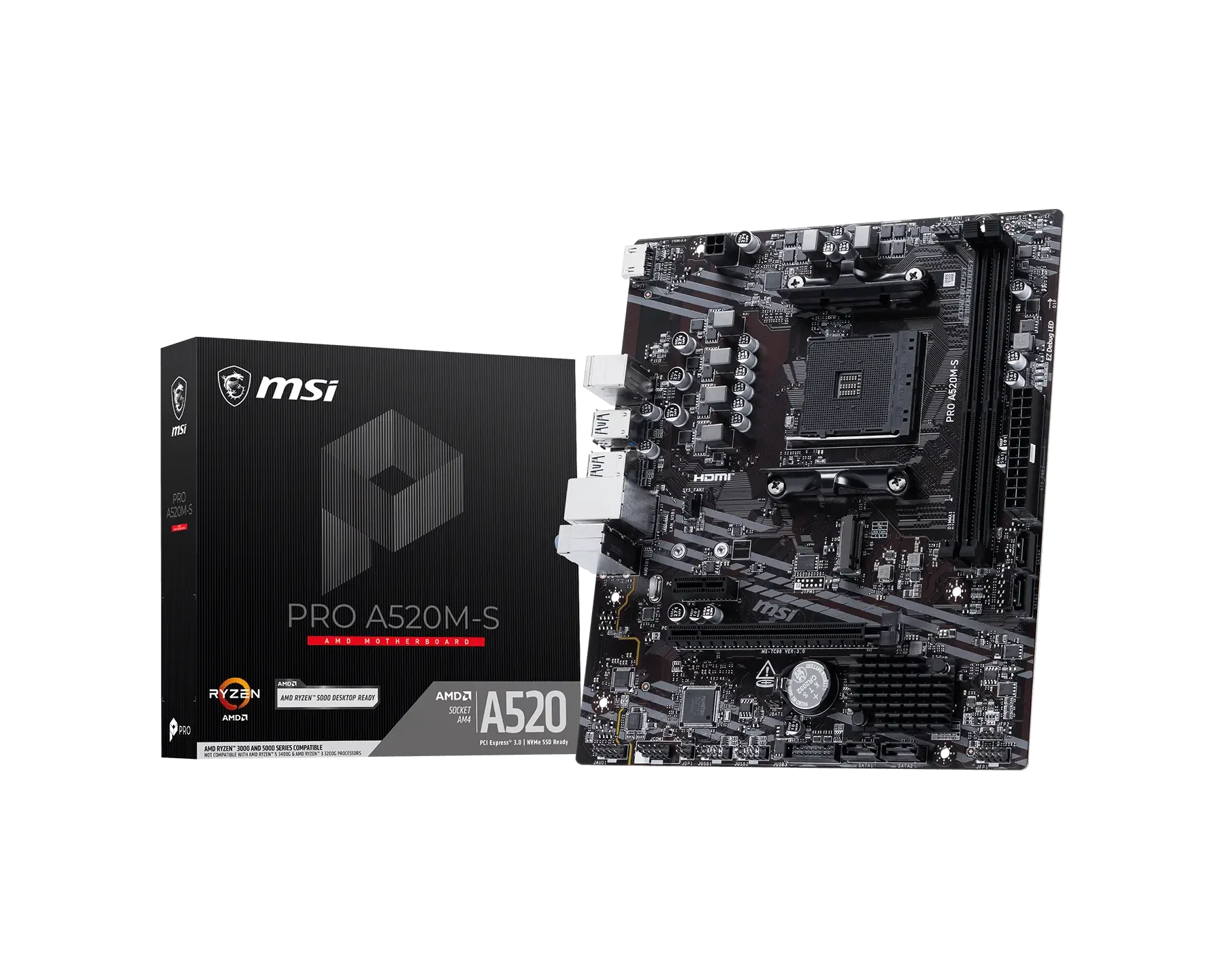

MSI PRO A520M-S AMD Micro-ATX, AM4 Socket, DDR4 Motherboard

The MSI PRO A520M-S Motherboard is designed for reliable everyday computing, office PCs and budget-friendly AMD desktop builds. Powered by the AMD A520 chipset and featuring an AM4 socket, it supports compatible AMD Ryzen 3000, 4000G and 5000 Series desktop processors, subject to CPU compatibility and BIOS version. With two DDR4 memory slots supporting up to 64GB, an M.2 storage slot, four SATA ports and a PCIe 3.0 x16 expansion slot, it provides essential connectivity for a versatile PC setup. Additional features include Gigabit LAN, HDMI output for compatible processors with integrated graphics, and 7.1-channel HD audio.

Key Features

• AMD A520 Chipset: Designed for compatible AMD Ryzen desktop processors.
• AM4 Socket: Supports selected Ryzen 3000, 3000G, 4000G and 5000 Series processors.
• DDR4 Memory: Two DIMM slots supporting up to 64GB of RAM.
• Memory Overclocking: Supports compatible DDR4 memory speeds up to 4400+ MT/s (OC), depending on the processor and memory configuration.
• PCIe 3.0 Expansion: One PCIe 3.0 x16 slot for a graphics card.
• M.2 Storage: One M.2 slot supporting PCIe 3.0 x4 and SATA mode.
• SATA Connectivity: Four SATA 6Gb/s ports.
• Gigabit Ethernet: Realtek RTL8111H 1Gb LAN.
• HDMI Output: Supports up to 4K at 30Hz with a compatible processor featuring integrated graphics.
• HD Audio: Realtek ALC897 codec with 7.1-channel audio support.
• Micro-ATX Design: Suitable for compatible compact desktop cases.
• EZ Debug LED: Helps identify common system startup issues.

Specifications
