Unique Feature | ASRock USB 3.2 Gen2 |
| | - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) |
| | - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) |
| | ASRock Super Alloy |
| | - XXL Aluminum Alloy Heatsink |
| | - Premium 50A Power Choke |
| | - Sapphire Black PCB |
| | - High Density Glass Fabric PCB |
| | - 2oz Copper PCB |
| | ASRock Steel Slot Gen4 |
| | ASRock Full Coverage M.2 Heatsink |
| | ASRock Hyper M.2 (PCIe Gen4x4) |
| | ASRock POST Status Checker (PSC) |
| | ASRock Full Spike Protection (for all USB, Audio, LAN Ports) |
| | ASRock Live Update & APP Shop |
CPU | - Supports AMD AM4 Socket Ryzenô 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* |
| | - Digi Power design |
| | - 8 Power Phase design |
Chipset | - AMD B550 |
Memory | - Dual Channel DDR4 Memory Technology |
| | - 4 x DDR4 DIMM Slots |
| | - AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* |
| | - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* |
| | - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* |
| | - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* |
| | - AMD Ryzen series APUs (Picasso) support DDR4 3400+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* |
BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| | - Supports "Plug and Play" |
| | - ACPI 5.1 compliance wake up events |
| | - Supports jumperfree |
| | - SMBIOS 2.3 support |
| | - CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment |
Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* |
| | - DirectX 12, Pixel Shader 5.0 |
| | - Shared memory default 2GB. Max Shared memory supports up to 16GB.** |
| | - Dual graphics output: support HDMI and D-Sub ports by independent display controllers |
| | - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz |
| | - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |
| | - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) |
| | - Supports HDR (High Dynamic Range) with HDMI 2.1 |
| | - Supports HDCP 2.3 with HDMI 2.1 Port*** |
| | - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port |
| | - Supports MicrosoftÆ PlayReady |
Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) |
| | - Premium Blu-ray Audio support |
| | - Supports Surge Protection |
| | - PCB Isolate Shielding |
| | - Individual PCB Layers for R/L Audio Channel |
| | - Nahimic Audio |
LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| | - Realtek RTL8111H |
| | - Supports Wake-On-LAN |
| | - Supports Lightning/ESD Protection |
| | - Supports Energy Efficient Ethernet 802.3az |
| | - Supports PXE |
Slots | AMD Ryzen series CPUs (Vermeer and Matisse) |
| | - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)* |
| | AMD Ryzen series APUs (Cezanne and Renoir) |
| | - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)* |
| | AMD Ryzen series APUs (Picasso) |
| | - 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)* |
| | |
| | - 2 x PCI Express 3.0 x1 Slots |
| | - Supports AMD Quad CrossFireXô and CrossFireXô |
| | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* |
| | - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)** |
| | - 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** |
Connector | - 1 x COM Port Header |
| | - 1 x SPI TPM Header |
| | - 1 x Power LED and Speaker Header |
| | - 2 x RGB LED Headers* |
| | - 2 x Addressable LED Headers** |
| | - 1 x CPU Fan Connector (4-pin)*** |
| | - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
| | - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
| | - 1 x 24 pin ATX Power Connector |
| | - 1 x 8 pin 12V Power Connector |
| | - 1 x 4 pin 12V Power Connector |
| | - 1 x Front Panel Audio Connector |
| | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
| | - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| | CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. |

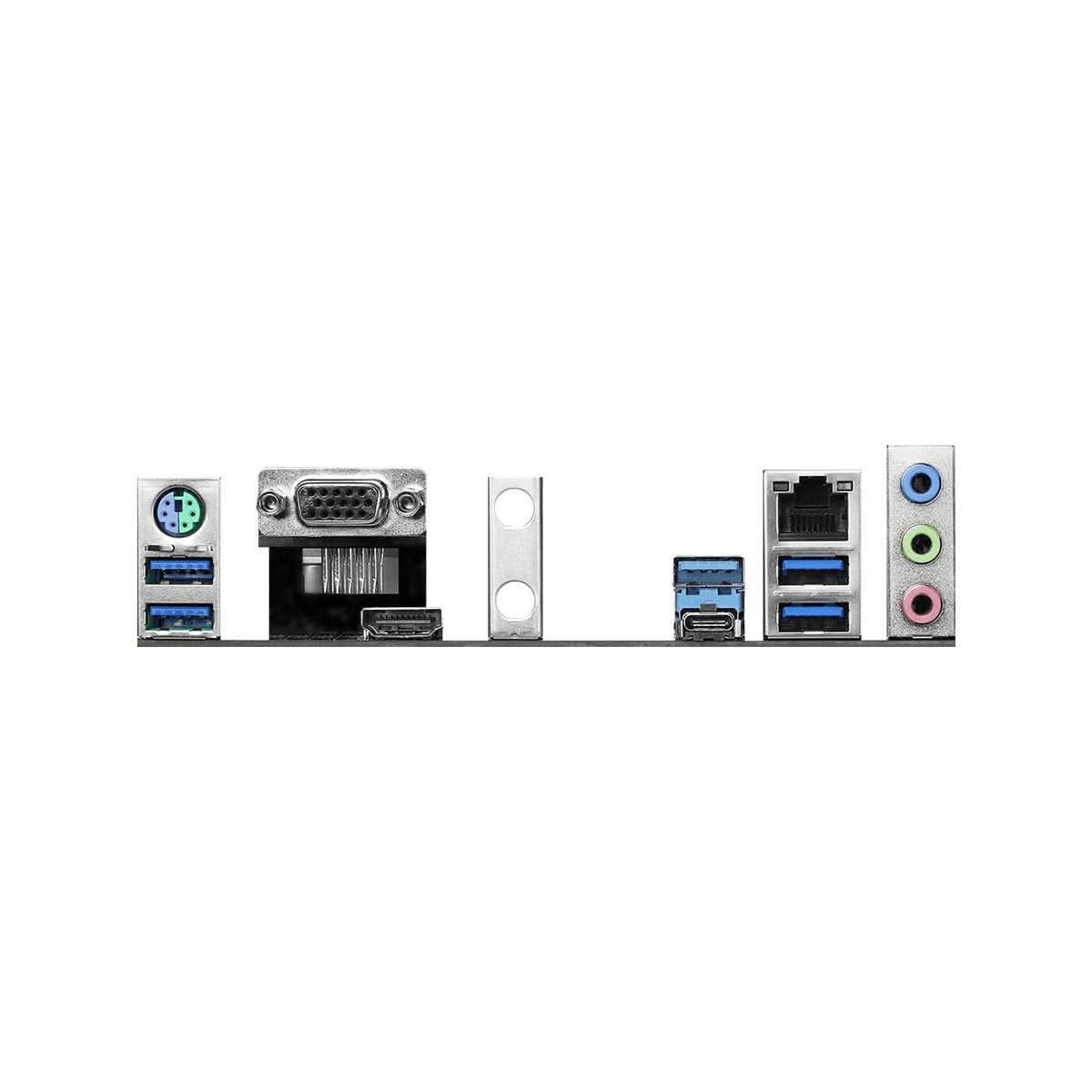

Rear Panel I/O | - Antenna Bracket |
| | - 1 x PS/2 Mouse/Keyboard Port |
| | - 1 x D-Sub Port |
| | - 1 x HDMI Port |
| | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) |
| | - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) |
| | - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| | - HD Audio Jacks: Line in / Front Speaker / Microphone |
Software and UEFI | |
Software | - ASRock Motherboard Utility (A-Tuning) |
| | - ASRock Polychrome SYNC |
| | - ASRock XFast LAN |
| UEFI | - ASRock Full HD UEFI |
| | - ASRock Instant Flash |
Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
Accessories | - Quick Installation Guide, Support CD, I/O Shield |
| | - 2 x SATA Data Cables |
| | - 3 x Screws for M.2 Sockets |
| | - 1 x Standoff for M.2 Socket |
Hardware Monitor | - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
| | - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
| | - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans |
| | - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans |
| | - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP |
Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| | - Solid Capacitor design |
| | - 2oz Copper PCB |
OS | - MicrosoftÆ WindowsÆ 10 64-bit / 11 64-bit |
Certifications | - FCC, CE |
| | - ErP/EuP ready (ErP/EuP ready power supply is required) |
