Description
Shipping & Return

About this item

Supports AMD Ryzen Threadripper PRO 9000/7000 WX-Series Processors
18+3+3 Power Phase Design, 110A SPS Design for VCore
8 x DDR5 DIMMs
Supports Eight Channel ECC Registered memory, up to 7600+ (OC)
7 PCIe 5.0 x16
Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio
4 SATA3,
1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4),
2 MCIO Connector (PCIe Gen5x4/ 4 SATA3),
1 SlimSAS SFF-8654 Connector (PCIe Gen4x4)
1 SlimSAS SFF-8654 Connector (PCIe Gen4x4/ 4 SATA3)
2 USB4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
4 USB 3.2 Gen2 Type-A(Rear)
4 USB 3.2 Gen1 (2 Rear, 2 Front)
4 USB 2.0 (4 Front)
Intel X710 dual 10G LAN, 1 Dedicated IPMI LAN

Technical Details

CPU	– Supports AMD Ryzen Threadripper PRO 9000/7000 WX-Series Processors – Supports AMD Socket sTR5 – Supports ASRock Hyper BCLK Engine
Chipset	AMD WRX90
Memory	Eight Channel DDR5 Memory Technology – 8 x DDR5 DIMM Slots* – Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC) – Max. capacity of system memory: 2TB
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Aspeed AST2600 BMC Controller – 1 x DisplayPort 1.1a with max. resolution up to 1920×1200 @ 60Hz*
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Nahimic Audio
LAN	2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Intel® X710-AT2) – Support PXE 1 x Dedicated IPMI (Realtek RTL8211F)
Slots	CPU: – 7 x PCIe 5.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8)*- 15μ Gold Contact in VGA PCIe Slots
Storage	CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode* – 2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s) – 1 x SlimSAS SFF-8654 Connector (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4) – 4 x SATA3 6.0 Gb/s Connectors
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
USB	CPU: – 2 x USB4 Type-C (Rear) – 4 x USB 3.2 Gen2 Type-A (Rear) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Front) – 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) – 4 x USB 2.0 (Front)
Connector	2 x Thermistor Cable Headers – 1 x Front VGA Header – 1 x COM Port Header – 1 x Power LED and Speaker Header – 1 x Intelligent Platform Management Bus Header – 1 x PSU SMBus Header – 1 x BMC SMBus Header – 1 x Auxiliary Panel Header – 2 x Addressable LED Headers* – 1 x CPU Fan Connector (4-pin) – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 1 x 3 pin ATX Power Connector* – 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)** – 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)** – 2 x 6 pin Graphics 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)***** – 1 x Right Angle Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) – 2 x SGPIO Headers – 1 x CPU HP-SMBus Connector – 1 x Non Maskable Interrupt Button Header – 1 x Dr. Debug with LED – 1 x Power Button with LED – 1 x Reset Button with LED – 1 x Clear CMOS Button

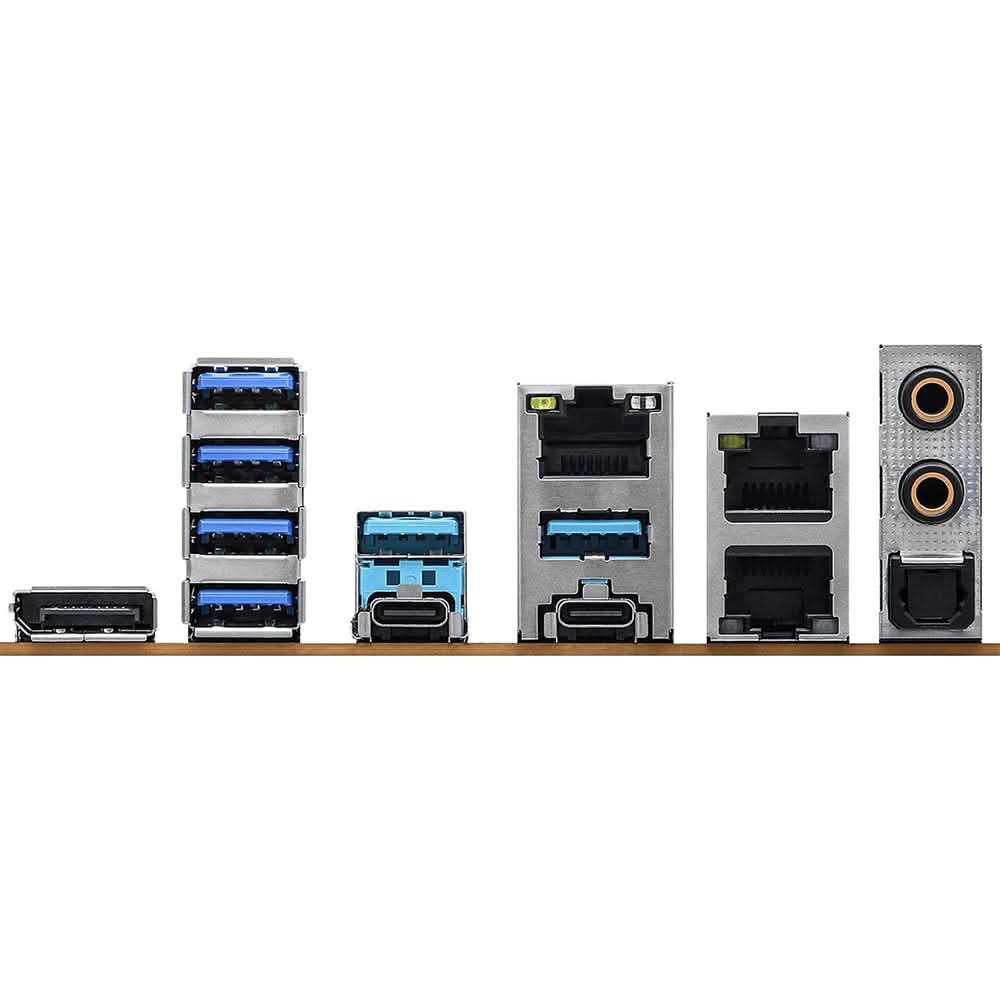

Rear Panel I/O	1 x DisplayPort 1.1a – 1 x Optical SPDIF Out Port – 2 x USB4 Type-C Ports (40 Gb/s)* – 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) – 2 x USB 3.2 Gen1 Type-A Ports – 2 x RJ-45 LAN Ports – 1 x RJ45 Dedicated IPMI LAN Port – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack)
Software & UEFI	Software – ASRock Polychrome SYNC* UEFI – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash
Accessories	1 x User Manual – 1 x I/O Shield – 4 x SATA Data Cables – 2 x Thermistor Cables – 1 x Multi PSU Adaptor Cable – 2 x Screws for M.2 Sockets – 2 x Standoffs for M.2 Sockets
Form Factor	EEB Form Factor: 12.0-in x 13.0-in, 30.5 cm x 33.0cm – 14 Layer PCB – 2oz Copper PCB
OS	Microsoft Windows 11 64-bit
Warranty	3 Years

Shipping Policy

1. General Information

All orders are processed within 1-3 business days. Orders are not shipped or delivered on weekends or holidays. If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.

2. Shipping Rates & Delivery Estimates

Shipping charges for your order will be calculated and displayed at checkout. Delivery delays can occasionally occur.

Standard Shipping: 3-5 business days

3. Shipment Confirmation & Order Tracking

You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.

4. Damages

Vishal Peripherals is liable for any products damaged or lost during shipping. If you received your order damaged, please take the video of unboxing and share through mail at support1@vishalperipherals.com.

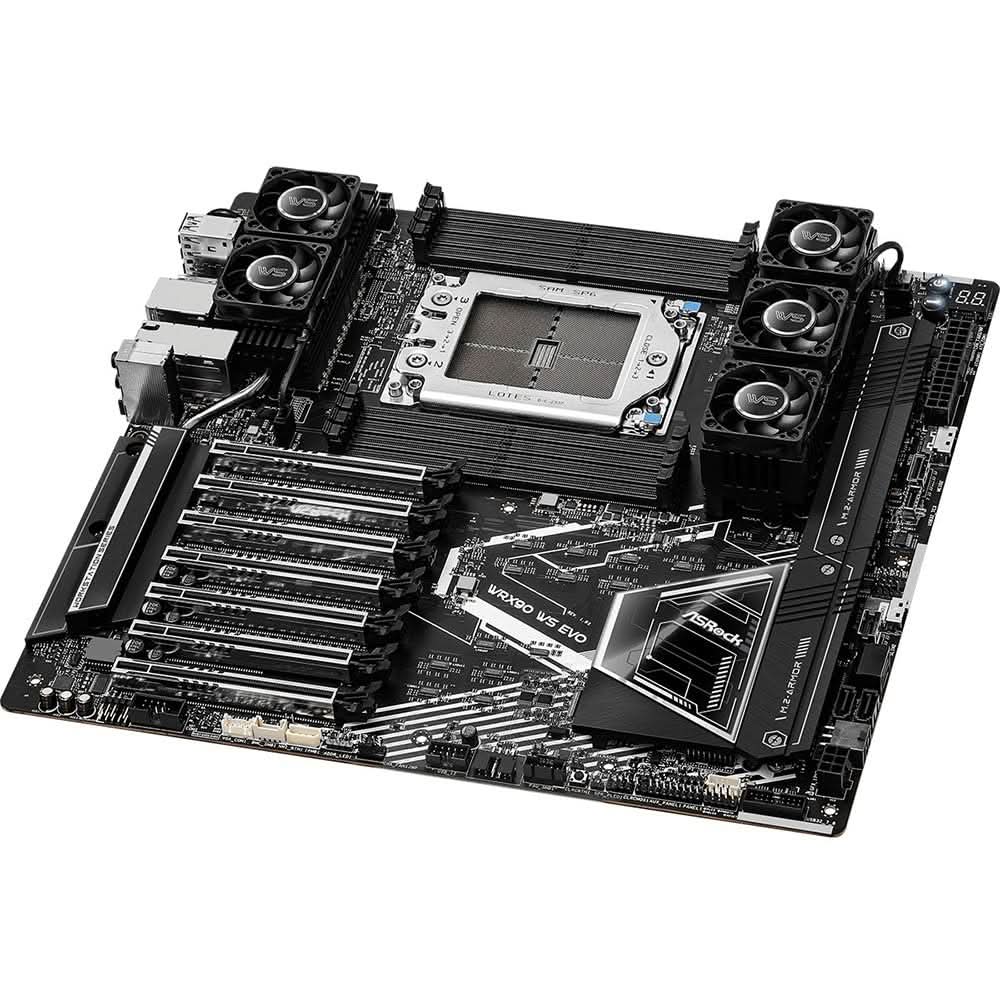

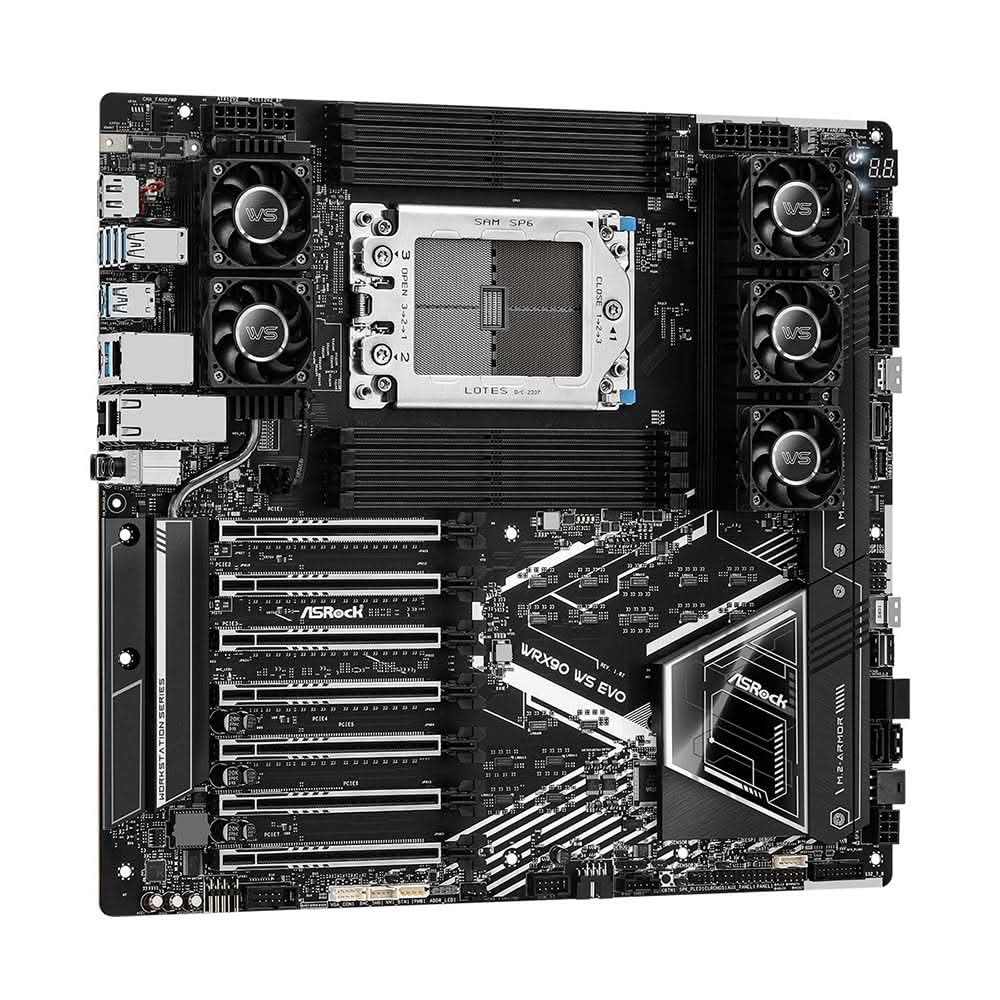

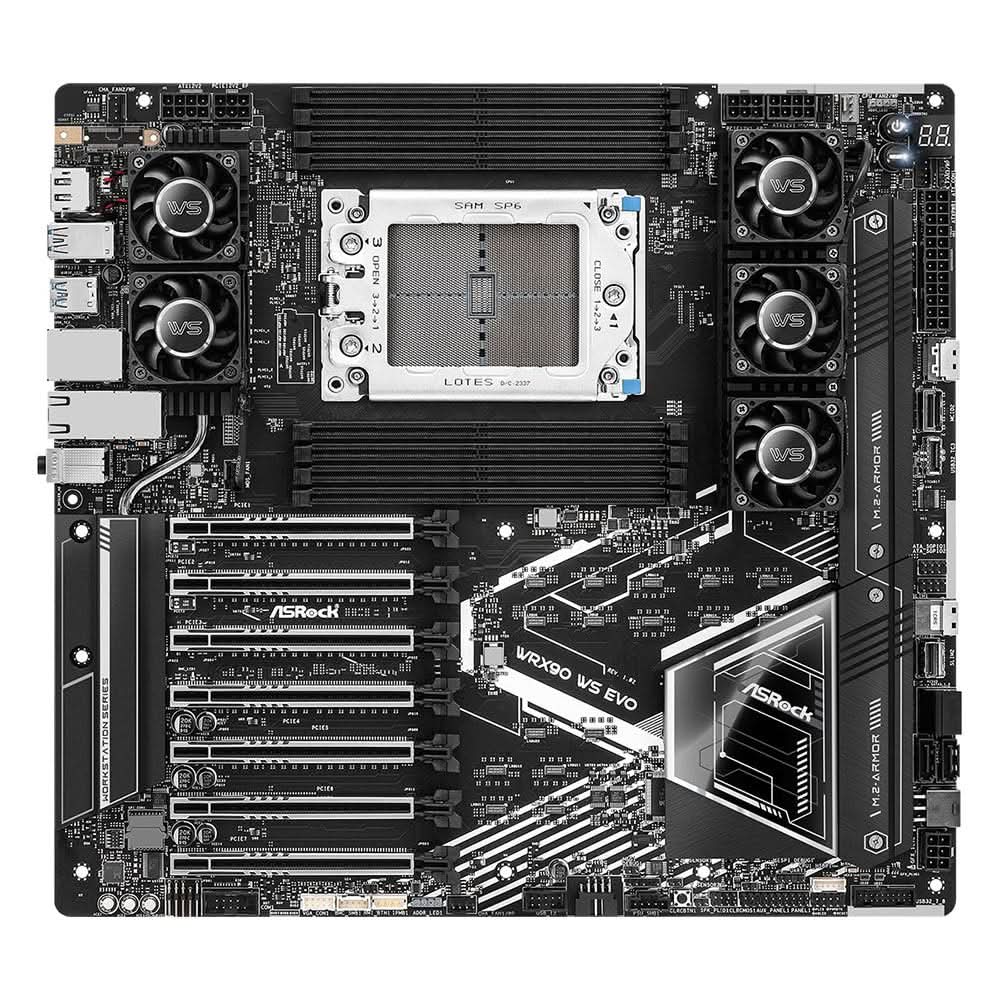

ASROCK WRX90 WS EVO MOTHERBOARD
