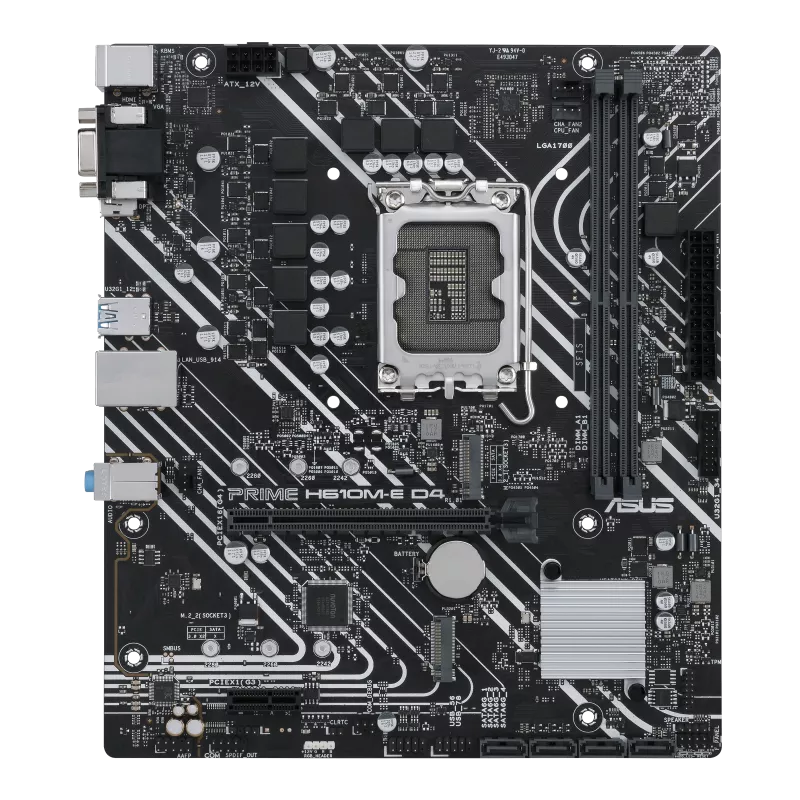

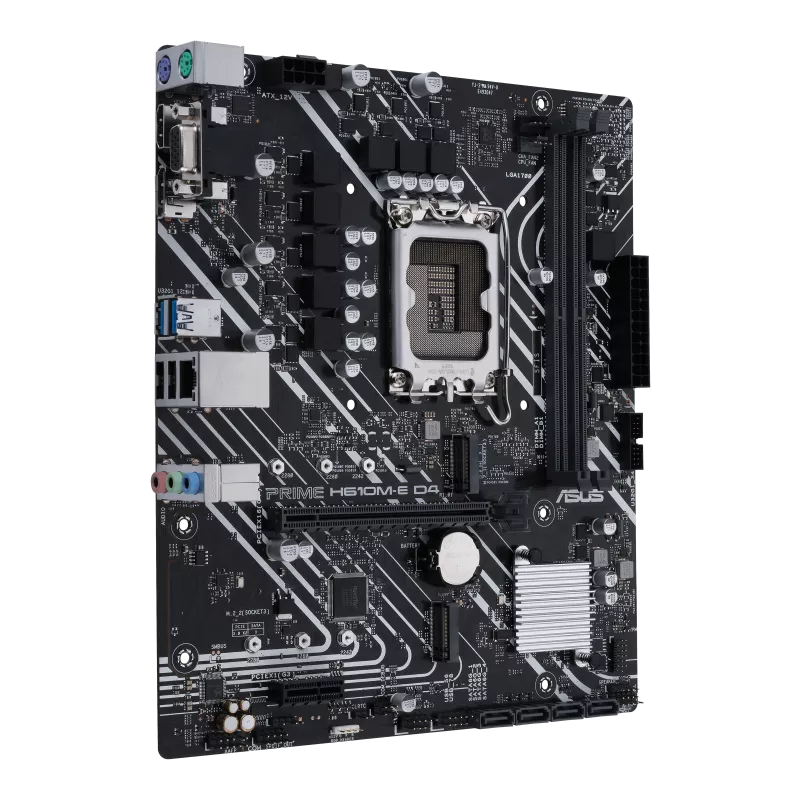

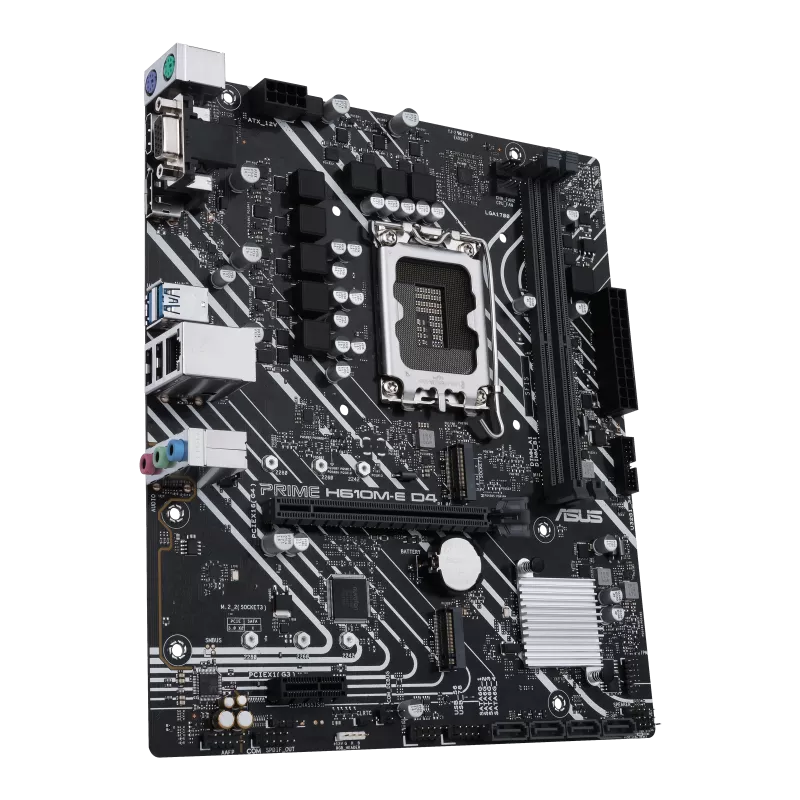

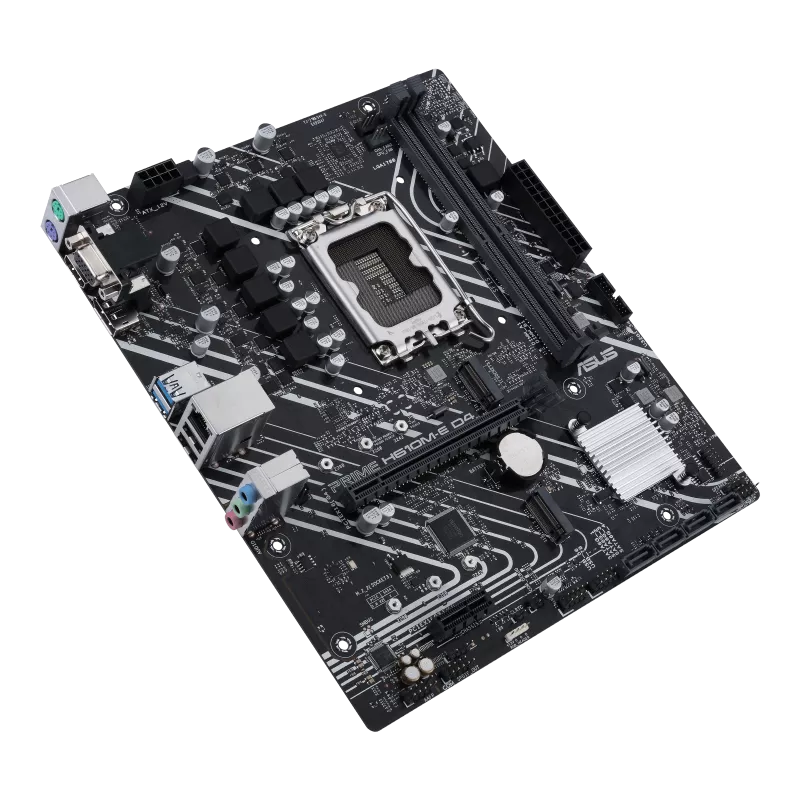

ASUS PRIME H610M-E INTEL LGA1700 MOTHERBOARD

Name: ASUS PRIME H610M-E INTEL LGA1700 MOTHERBOARD
Brand: Asus
Price: 6100.0 INR
Availability: InStock

₹ 6,100 ₹ 10,500

Discount: ₹ 4,400 (42%)

16 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Dispatch: 24 - 48hrs

Availability: In Stock Unavailable

SKU: 106732

Vendor: asus

Model Number: PRIME-H610M-E-D4

Guaranteed safe & Secure checkout

Description
Shipping & Return

Specifications

CPU	Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors*
	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
	* Refer to www.asus.com for CPU support list.
	** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel H610 Chipset
Memory	2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports Intel Extreme Memory Profile (XMP)
	* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics	1 x DisplayPort**
	1 x D-Sub port
	1 x HDMI port***
	* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel 12th Gen Processors
	1 x PCIe 4.0 x16 slot
	Intel H610 Chipset
	1 x PCIe 3.0 x1 slot
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
	Intel H610 Chipset
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
	4 x SATA 6Gb/s ports
Ethernet	1 x Realtek 1Gb Ethernet
USB	Rear USB (Total 4 ports)
	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	Front USB (Total 6 ports)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*
	Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	Supports up to 24-Bit/192 kHz playback
Audio Features	Audio Shielding
	Premium Audio capacitors
	Dedicated Audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

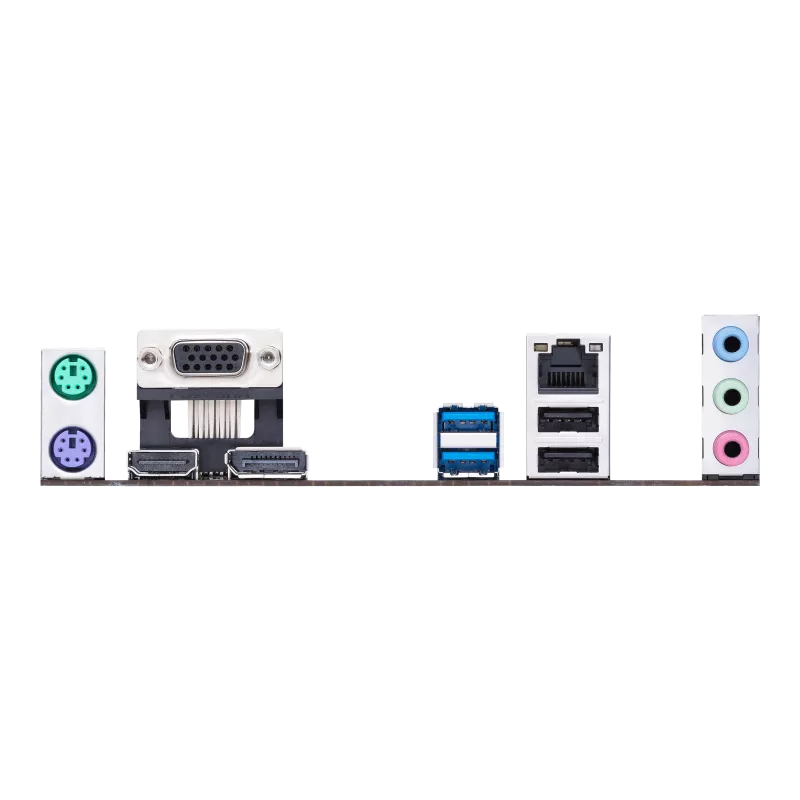

Back Panel I/O Ports	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x D-Sub port
	1 x HDMI port
	1 x Realtek 1Gb Ethernet port
	3 x Audio jacks
	1 x PS/2 Keyboard (purple) port
	1 x PS/2 Mouse (green) port
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	2 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	Storage related
	2 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
USB	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous	1 x RGB header
	1 x Clear CMOS header
	1 x Front Panel Audio header (AAFP)
	1 x COM Port header
	1 x S/PDIF Out header
	1 x Speaker header
	1 x SPI TPM header (14-1pin)
	1 x 10-1 pin System Panel header
Special Features	ASUS 5X PROTECTION III
	DIGI+ VRM
	LAN Guard
	Overvoltage Protection
	Safe Slot Core
	Stainless-Steel Back I/O
ASUS Q-Design	Q-DIMM
	Q-Slot
ASUS Thermal Solution	Aluminum heatsink design
ASUS Lighting Control	RGB header
Software Features	ASUS Exclusive Software
	Armoury Crate
	AI Suite 3
	Performance And Power Saving Utility
	TurboV EVO
	EPU
	DIGI+ VRM
	Fan Xpert 2+
	ASUS CPU-Z
	Norton Anti-virus software (Free Trial version)
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	ASUS Crash Free BIOS 3
	ASUS EZ Flash 3
	ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

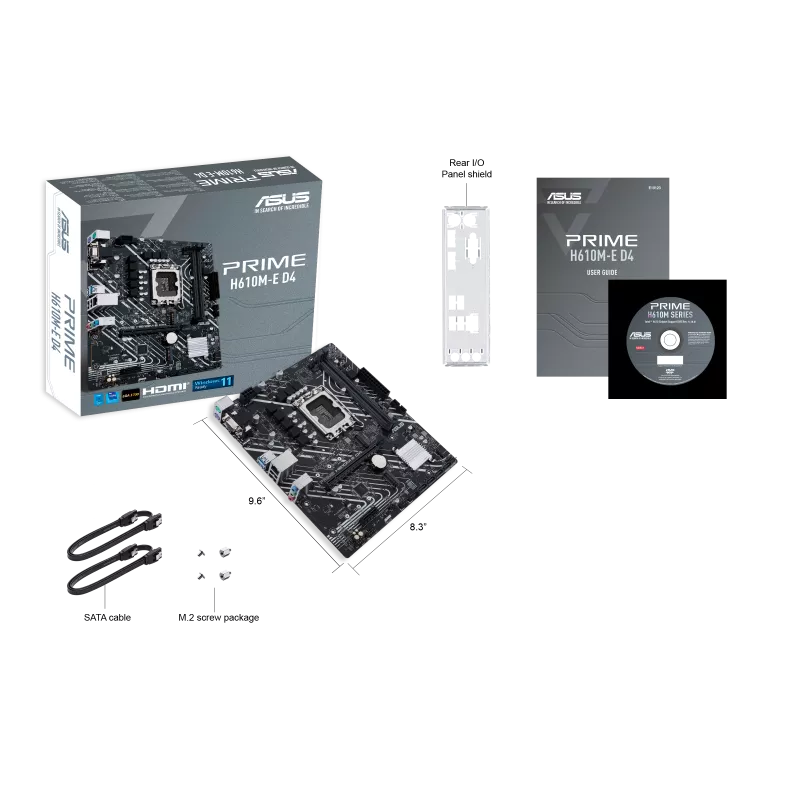

Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous

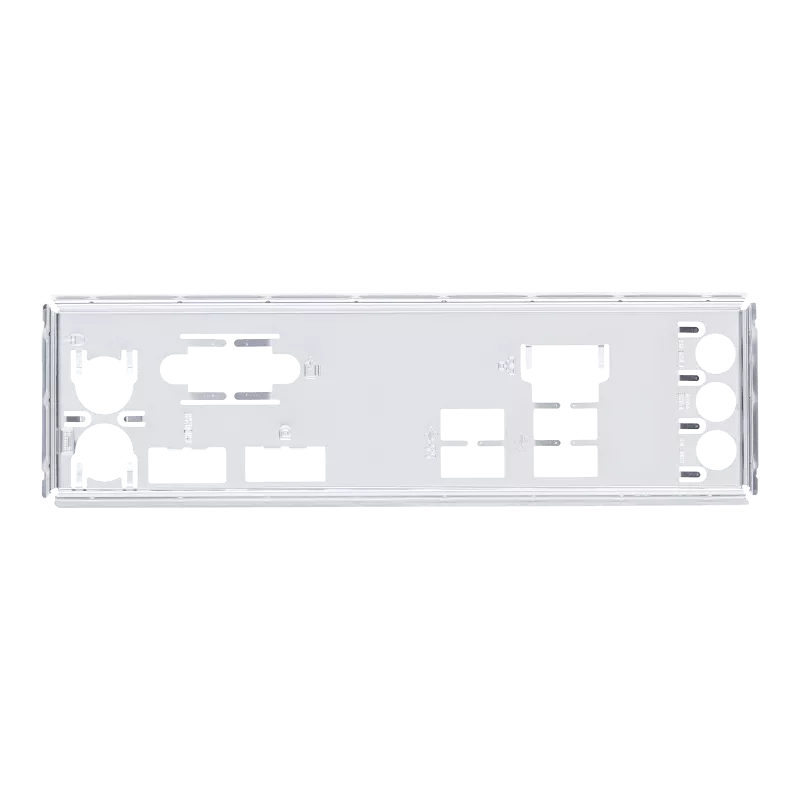

	1 x I/O Shield
	1 x M.2 SSD screw package
	Installation Media
	1 x Support DVD
	Documentation
	1 x User guide
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	mATX Form Factor
	9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
Product (mm)_ LWH dimension	24421139
Color Box (mm)_ LWH dimension	27026351.5
Motherboard only weight	0.5 kg
Full package weight	0.89 kg
