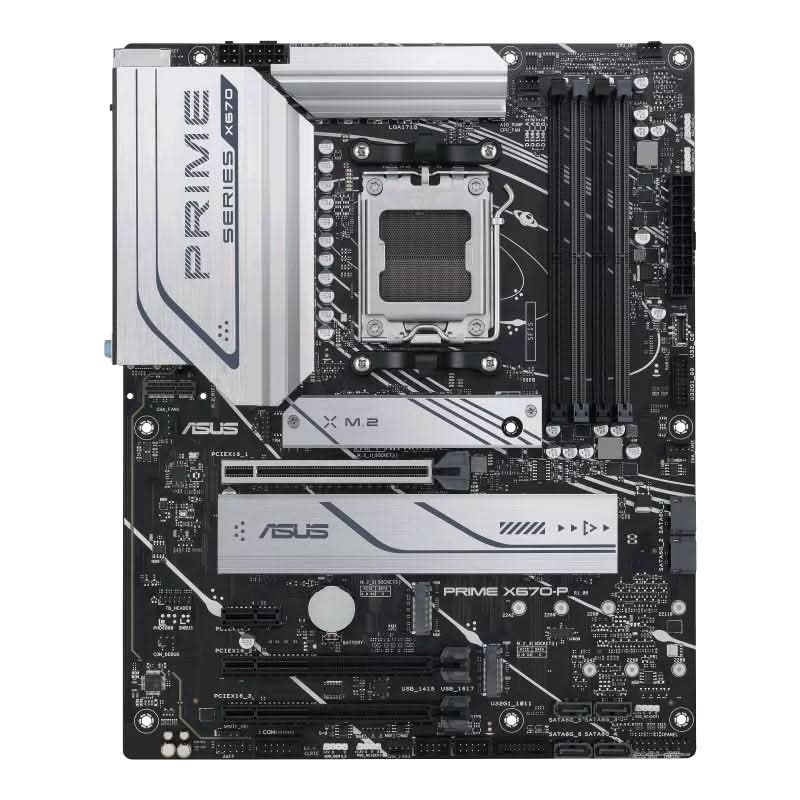

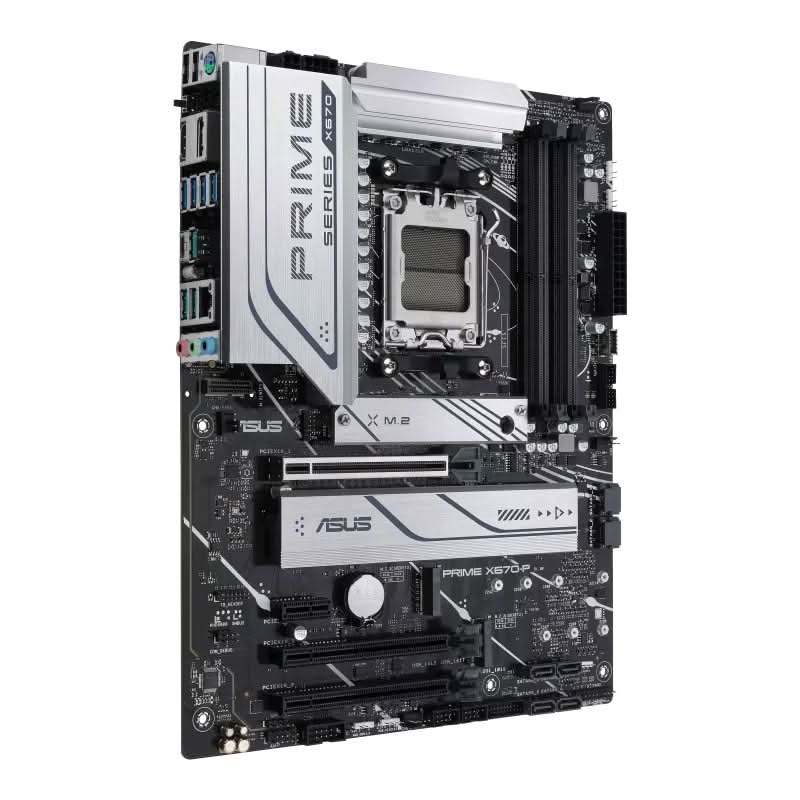

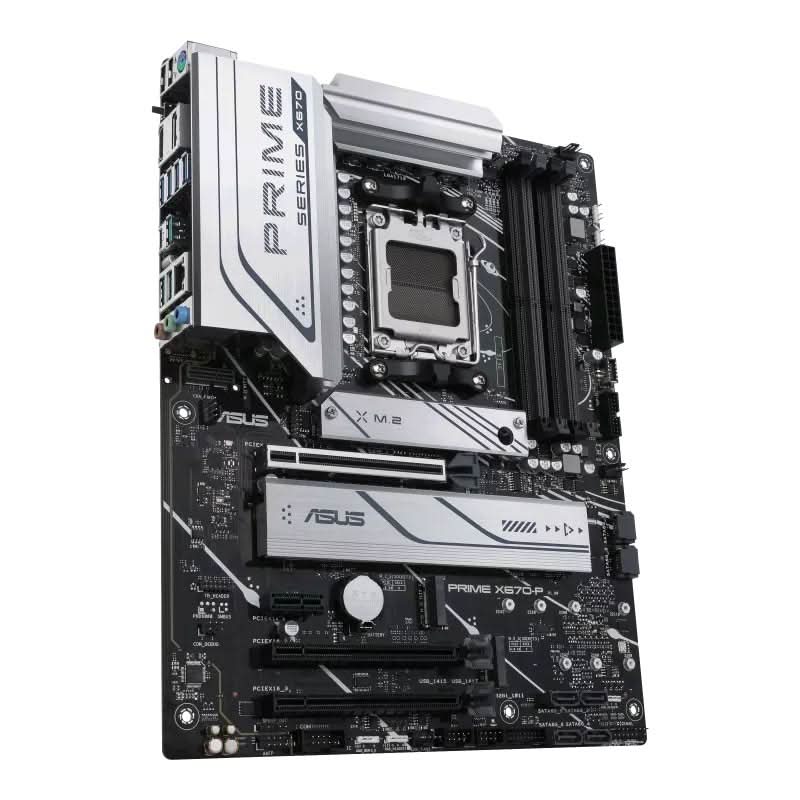

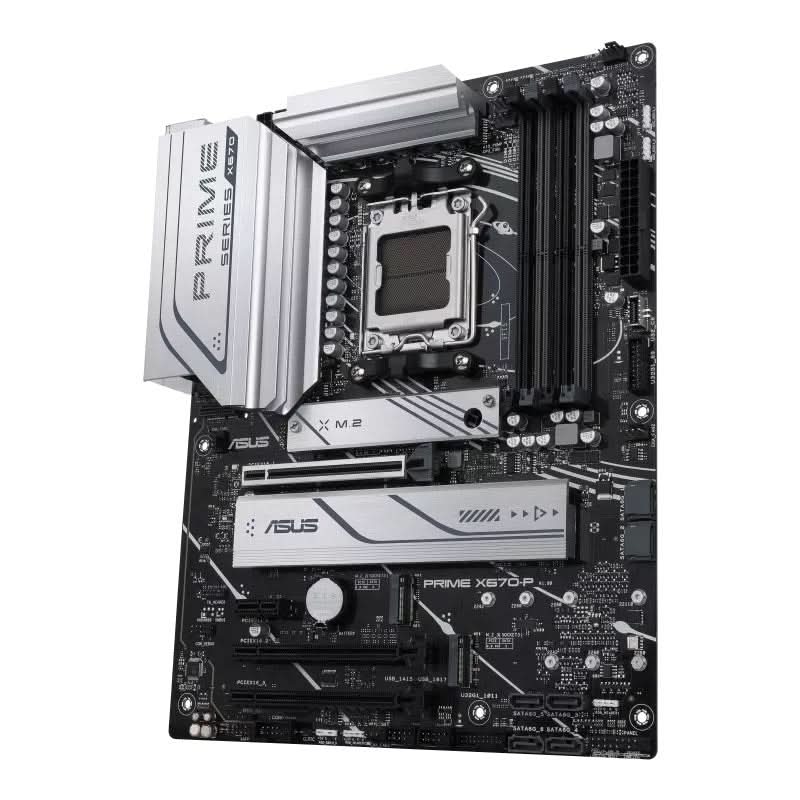

ASUS PRIME X670 P-CSM AMD AM5 MOTHERBOARD

Name: ASUS PRIME X670 P-CSM AMD AM5 MOTHERBOARD
Brand: Asus
SKU: 1083586
Price: 25100.0 INR
Availability: InStock

Rs. 25,100.00 Rs. 31,000.00

Discount: Rs. 5,900.00 (20%)

20 people are viewing this right now

Hurry Up! Only 8 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: Dec 26 - Dec 30

Availability: In Stock Unavailable

SKU: 1083586

Vendor: Asus

Guaranteed safe & Secure checkout

Description
Shipping & Return

CPU	AMD Socket AM5 for AMD Ryzenô 7000 Series Desktop Processors*
	* Refer to www.asus.com for CPU support list.
	AMD X670 Chipset
Chipset	4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Chipset	Dual Channel Memory Architecture
Memory	Supports AMD Extended Profiles for Overclocking (EXPOô)
	OptiMem II
	* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
	* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
	1 x DisplayPort**
	1 x HDMIÆ port***
	* Graphics specifications may vary between CPU types.
Graphics	** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
	*** Supports 4K@60Hz as specified in HDMIÆ 2.1.
	AMD Ryzenô 7000 Series Desktop Processors
	1 x PCIe 4.0 x16 slot (supports x16 mode)
	AMD X670 Chipset
	2 x PCIe 4.0 x16 slots (support x4 mode)
Expansion Slots	1 x PCIe 3.0 x1 slot**
	* Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.
	** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
	Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
	AMD Ryzenô 7000 Series Desktop Processors
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	AMD X670 Chipset
Storage	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	6 x SATA 6Gb/s ports**
	* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
	** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
	1 x Realtek 2.5Gb Ethernet
	V-M.2 slot only (Key E, PCIe)*
	* Wi-Fi module is sold separately.
	Rear USB (Total 10 ports)
	1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)
	3 x USB 3.2 Gen 2 ports (3 x Type-A)
Ethernet	4 x USB 3.2 Gen 1 ports (4 x Type-A)
Ethernet	2 x USB 2.0 ports (2 x Type-A)
Wireless & Bluetooth	Front USB (Total 9 ports)
	1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ)
	2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
USB	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Realtek 7.1 Surround Sound High Definition Audio CODEC*
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- Supports up to 24-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Premium audio capacitors
	- Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

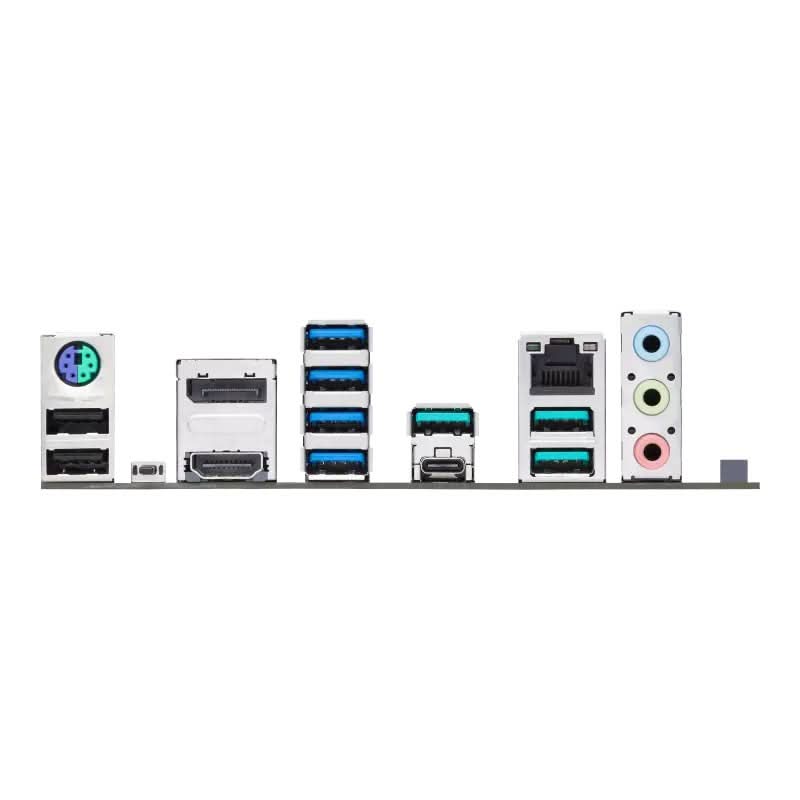

	1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)
Audio	3 x USB 3.2 Gen 2 ports (3 x Type-A)
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMIÆ port
	1 x V-M.2 slot (Key E)
	1 x Realtek 2.5Gb Ethernet port
	3 x Audio jacks
	1 x BIOS FlashBackô button
Back Panel I/O Ports	1 x PS/2 Keyboard/Mouse combo port
	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	Storage related
	3 x M.2 slots (Key M)
Internal I/O Connectors	6 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ)
	2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	2 x Aura RGB headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x S/PDIF Out header
	1 x SPI TPM header (14-1pin)
	1 x 20-5 pin System Panel header
	1 x Thunderboltô (USB4Æ) header
	ASUS 5X PROTECTION III
	- DIGI+ VRM (- Digital power design with DrMOS)
	- ESD Guards
	- LANGuard
	- Overvoltage Protection
	- Safeslot Core+
	- Stainless-Steel Back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- Q-DIMM
	- Q-LED Core
	- Q-Slot
Special Features	ASUS Thermal Solution
	- M.2 heatsink
	- VRM heatsink design
	ASUS EZ DIY
	- BIOS FlashBackô button
	- BIOS FlashBackô LED
	- ProCool
	Aura Sync
	- Aura RGB headers
	- Addressable Gen 2 headers
	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4 with AI Cooling II
	- Power Saving
	AI Suite 3
	- TurboV EVO
	- DIGI+ VRM
	- PC Cleaner
	ASUS CPU-Z
	IT Management software supported
	- ASUS Control Center Express(ACCE)
Software Features	Norton Anti-virus software (Free Trial version)
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	256 Mb Flash ROM, UEFI AMI BIOS
	WOL by PME, PXE
	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x I/O Shield
	1 x Rubber Package for M.2
	2 x Screw Packages for M.2 SSD
	Documentation
	1 x ACC Express Activation Key Card
	1 x User guide
	WindowsÆ 11, WindowsÆ 10 64-bit
	ATX Form Factor
	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x I/O Shield
	1 x Rubber Package for M.2
	2 x Screw Packages for M.2 SSD
	Documentation
	1 x ACC Express Activation Key Card
	1 x User guide
Operating System	WindowsÆ 11, WindowsÆ 10 64-bit
Form Factor	ATX Form Factor
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
