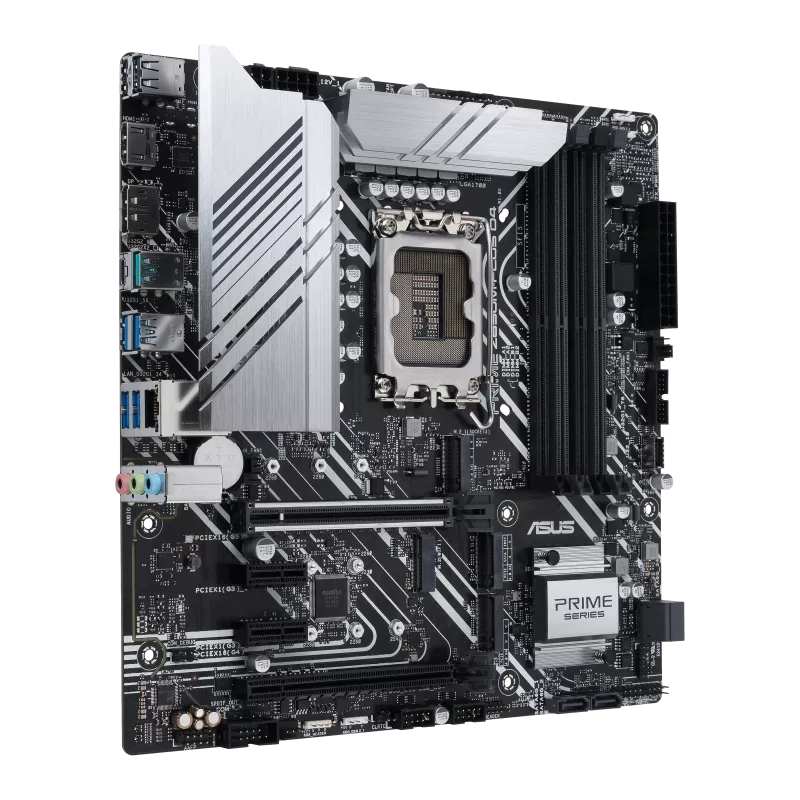

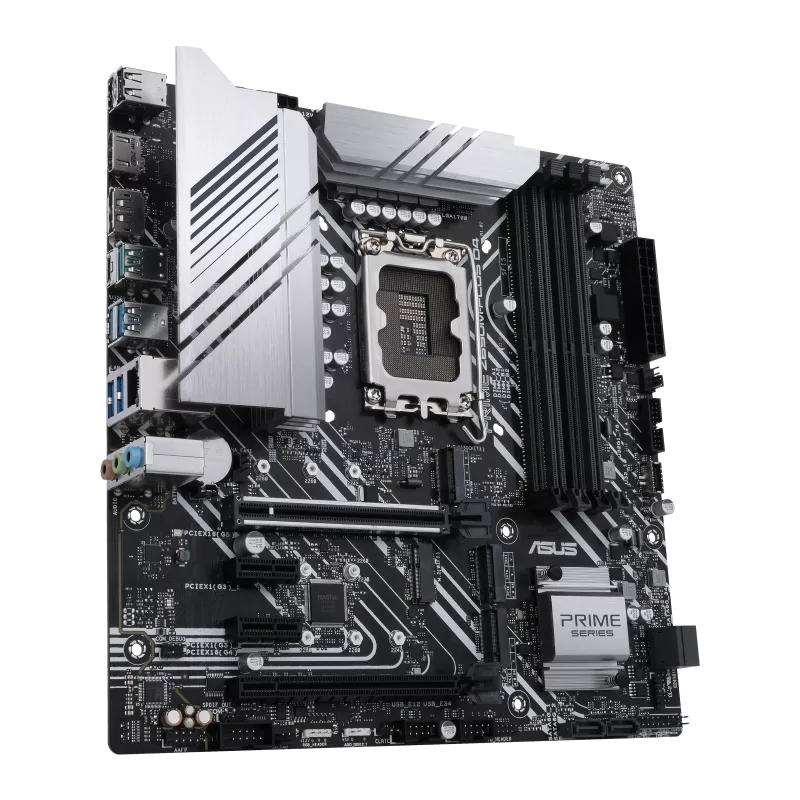

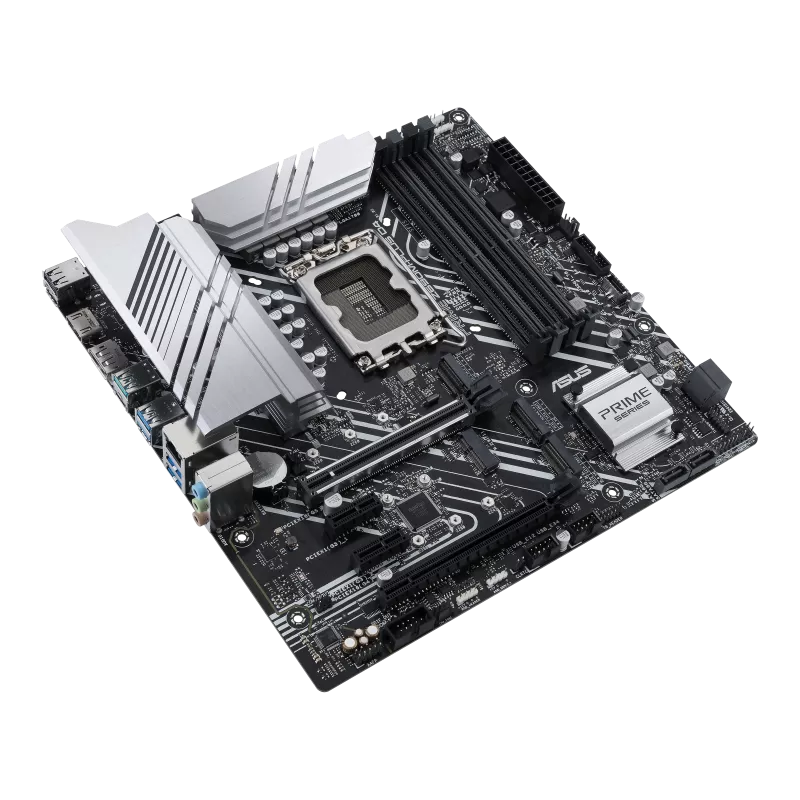

ASUS PRIME Z690M PLUS DDR4 INTEL LGA1700 MOTHERBOARD

Name: ASUS PRIME Z690M PLUS DDR4 INTEL LGA1700 MOTHERBOARD
Brand: Asus
Price: 19485.0 INR
Availability: OutOfStock

₹ 19,485 ₹ 25,900

Discount: ₹ 6,415 (25%)

16 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Dispatch: 24 - 48hrs

Availability: In Stock Unavailable

SKU: 106736

Vendor: asus

Model Number: PRIME-Z690M-PLUS-D4

Guaranteed safe & Secure checkout

Description
Shipping & Return

Specifications

PRIME Z690M-PLUS D4
CPU	IntelÃ Socket LGA1700 for 12th Gen IntelÃ CoreÃ´, PentiumÃ Gold and CeleronÃ Processors*
	Supports IntelÃ Turbo Boost Technology 2.0 and IntelÃ Turbo Boost Max Technology 3.0**
	* Refer to www.asus.com for CPU support list.
	** IntelÃ Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	IntelÃ Z690 Chipset
Memory	4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MT/s Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports IntelÃ Extreme Memory Profile (XMP)
	OptiMem II
	*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics	1 x DisplayPort**
	1 x HDMIÃ port***
	*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	**Support 4K@60Hz as specified in DisplayPort 1.4.
	***Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	IntelÃ 12th Gen Processors*
	1 x PCIe 5.0/4.0/3.0 x16 slot
	IntelÃ Z690 Chipset**
	1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
	2 x PCIe 3.0 x1 slots
	* Please check PCIe bifurcation table in support site.
	** Supports IntelÃ Optane Memory H Series on PCH-attached PCIe slot
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
	IntelÃ 12th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280
	- IntelÃ 12th Gen processors support PCIe 4.0 x4 mode.
	IntelÃ Z690 Chipset**
	M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
	4 x SATA 6Gb/s ports
	* IntelÃ Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
	** IntelÃ Rapid Storage Technology supports IntelÃ Optane Memory H Series on PCH attached M.2 slots.
Ethernet	1 x IntelÃ 1Gb Ethernet
Wireless & Bluetooth	M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.
USB	Rear USB (Total 8 ports)
	1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÃ)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 3.2 Gen 1 connector (supports USB Type-CÃ)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports*
	* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Premium audio capacitors
	- Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

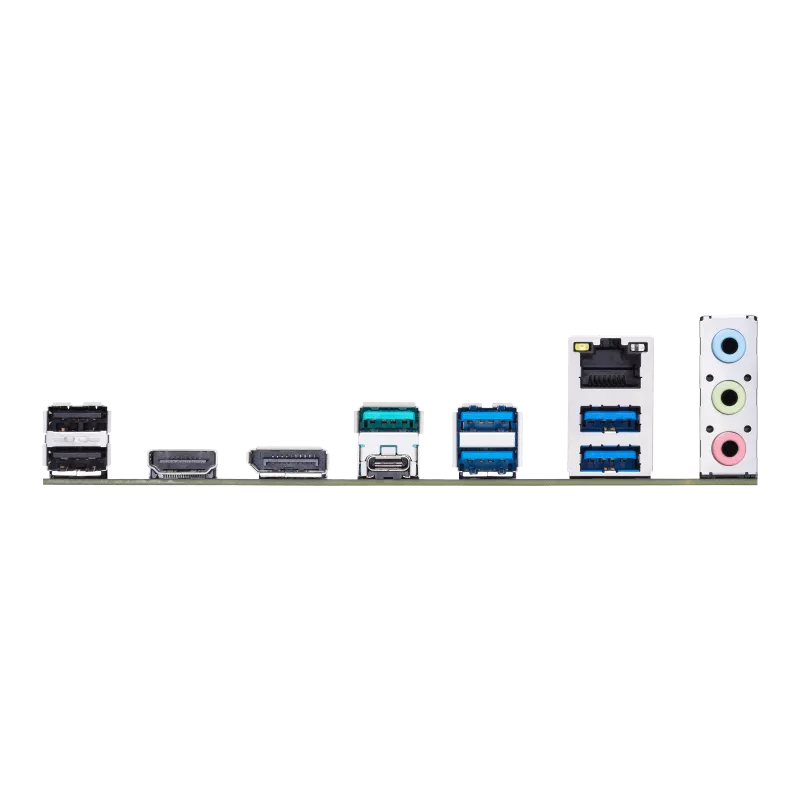

Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÃ)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMIÃ port
	1 x IntelÃ 1Gb Ethernet port
	3 x Audio jacks
Internal I/O Connectors	Fan and cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	Storage related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 1 connector (supports USB Type-CÃ)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x AURA RGB header
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x M.2 slot (Key E)
	1 x S/PDIF Out header
	1 x SPI TPM header (14-1pin)
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x ThunderboltÃ´ header
Special Features	ASUS 5X PROTECTION III
	- DIGI+ VRM (- Digital power design with DrMOS)
	- LANGuard
	- Overvoltage Protection
	- SafeSlot
	- Stainless-Steel Back I/O
	ASUS Q-Design
	- Q-DIMM
	- Q-Slot
	ASUS Thermal Solution
	- VRM heatsink design
	ASUS EZ DIY
	- ProCool
	AURA Sync
	- AURA RGB header
	- Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	- AURA Sync
	- Fan Xpert 4
	AI Suite 3
	-Performance And Power Saving Utility
	TurboV EVO
	EPU
	DIGI+ VRM
	ASUS CPU-Z
	Norton Anti-virus software (Free Trial version)
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

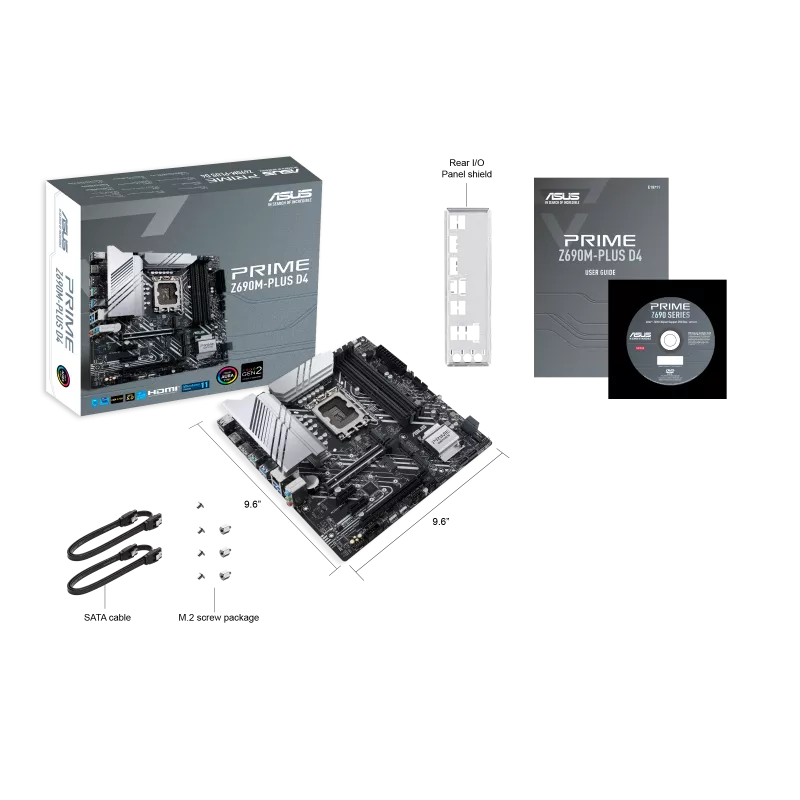

Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous

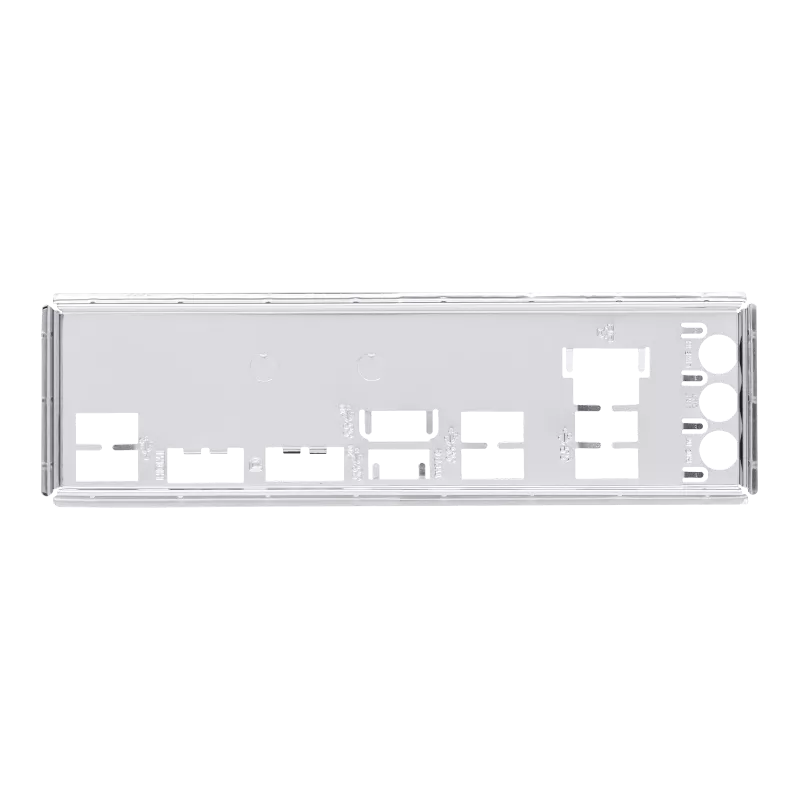

	1 x I/O Shield
	2 x M.2 SSD screw packages
	Installation Media
	1 x Support DVD
	Documentation
	1 x User guide
Operating System	WindowsÃ 11 64-bit, WindowsÃ 10 64-bit
Form Factor	mATX Form Factor
Form Factor	9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Dimension
Product (mm)_ LWH	244mm244mm40mm
Color Box (mm)_ LWH	275mm266.5mm67.5mm
Weight
Motherboard only	0.8251 Kg
Full package	0.9736 Kg

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
