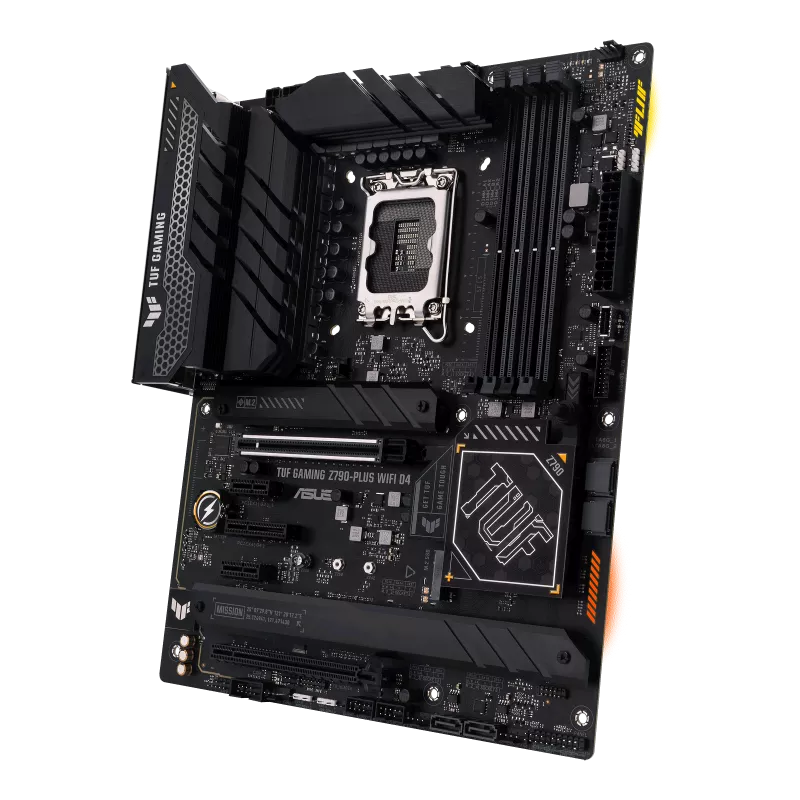

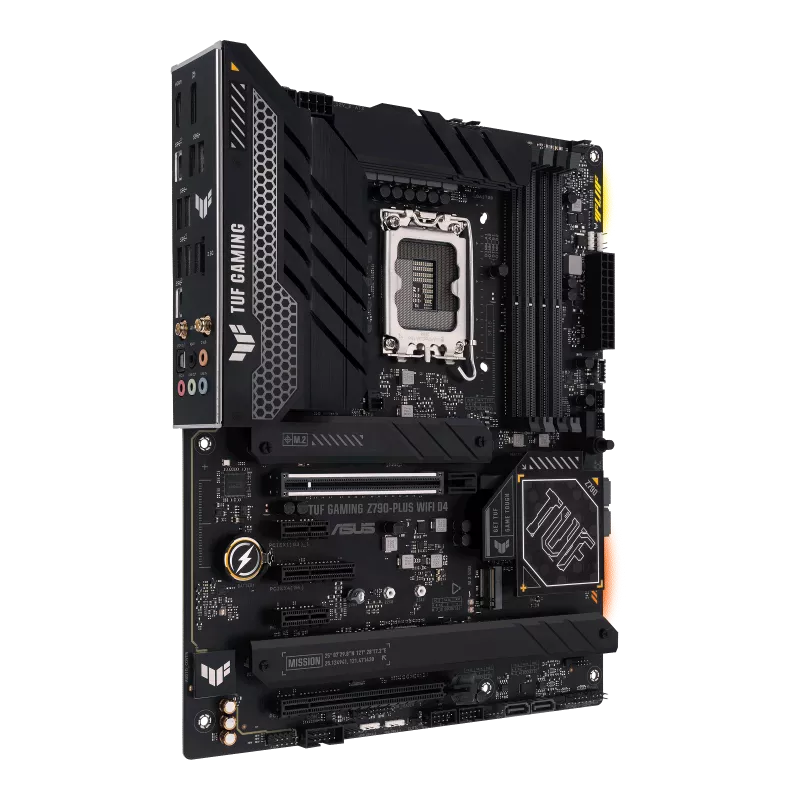

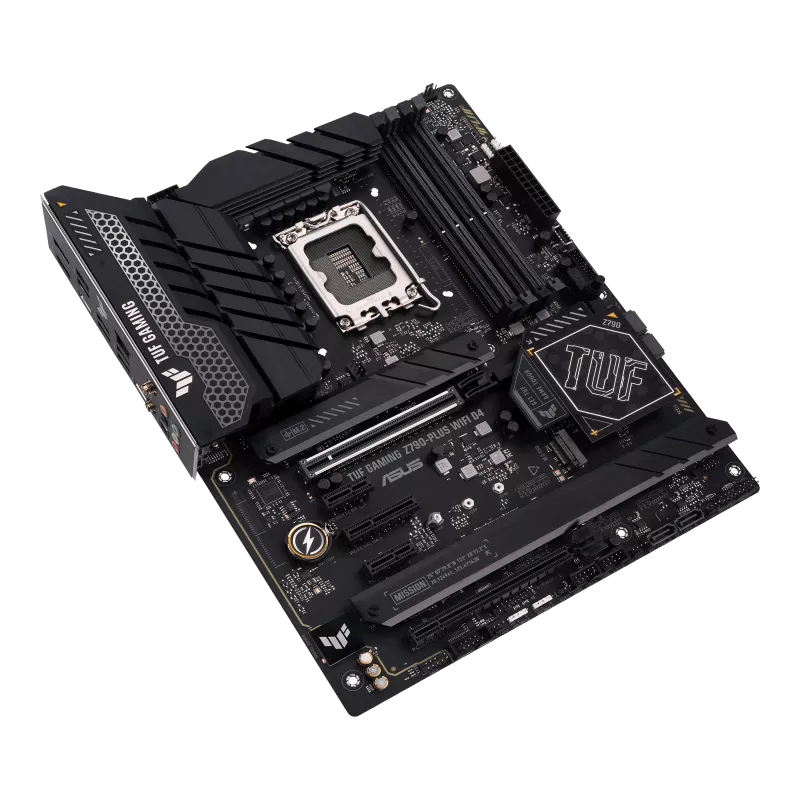

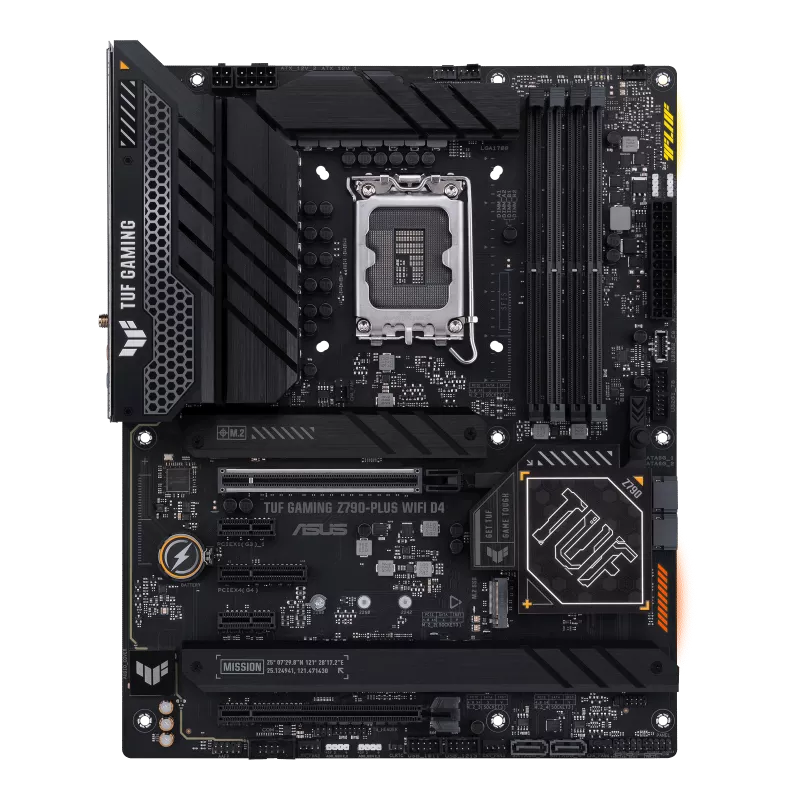

ASUS TUF GAMING Z790 PLUS WIFI DDR4 INTEL LGA1700 MOTHERBOARD

Name: ASUS TUF GAMING Z790 PLUS WIFI DDR4 INTEL LGA1700 MOTHERBOARD
Price: 28,000 INR
Availability: InStock

₹ 28,000 ₹ 38,999

Discount: ₹ 10,999 (29%)

21 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Shipping: Apr 19 - Apr 23

Availability: In Stock Unavailable

SKU: 1083180

Vendor: Asus

Model Number: TUF GAMING Z790-PLUS WIFI D4

Guaranteed safe & Secure checkout

Description
Shipping & Return

CPU	IntelÆ Socket LGA1700 for 13th Gen IntelÆ Coreô Processors & 12th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors
CPU	Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0
Chipset	IntelÆ Z790 Chipset
Memory	4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)
	/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
	Dual Channel Memory Architecture
	Supports IntelÆ Extreme Memory Profile (XMP)
	OptiMem II
Graphics	1 x DisplayPort
Graphics	1 x HDMIÆ port
Expansion Slots	IntelÆ 13th & 12th Gen Processors
	1 x PCIe 5.0 x16 slot
	IntelÆ Z790 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	1 x PCIe 4.0 x4 slot
	2 x PCIe 3.0 x1 slots
Storage	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
	IntelÆ 13th & 12th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280/22110
	- IntelÆ 13th & 12th Gen processors support PCIe 4.0 x4 mode
	IntelÆ Z790 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
	4 x SATA 6Gb/s ports
Ethernet	1 x IntelÆ 2.5Gb Ethernet
Ethernet	TUF LANGuard
Wireless & Bluetooth	Wi-Fi 6
	2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
	Supports 2.4/5GHz frequency band
	BluetoothÆ v5.2
USB	Rear USB (Total 8 ports)
	1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)
	3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-CÆ)
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 3.2 Gen 2 connector (supports USB Type-CÆ)
	1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
	- Impedance sense for front and rear headphone outputs
	- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
	- Supports up to 32-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Rear optical S/PDIF out port
	- Premium audio capacitors
	- Dedicated audio PCB layers
	- Audio Cover

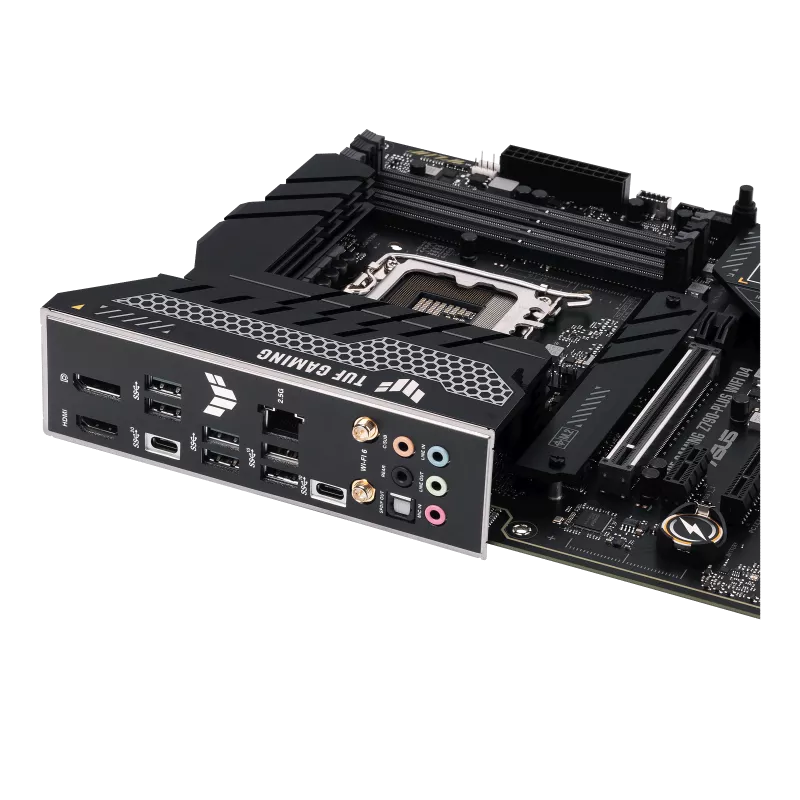

Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)
	3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-CÆ)
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	1 x DisplayPort
	1 x HDMIÆ port
	1 x Wi-Fi Module
	1 x IntelÆ 2.5Gb Ethernet port
	5 x Audio jacks
	1 x Optical S/PDIF out port
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	4 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	Storage related
	4 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 2 connector (supports USB Type-CÆ)
	1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Aura RGB header
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thunderboltô (USB4Æ) header
Special Features	ASUS TUF PROTECTION
	- DIGI+ VRM (- Digital power design with DrMOS)
	- ESD Guards
	- TUF LANGuard
	- Overvoltage Protection
	- Safeslot
	- Stainless-Steel Back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- PCIe Slot Q-Release
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink
	- VRM heatsink design
	ASUS EZ DIY
	- CPU Socket lever protector
	- ProCool
	- Pre-mounted I/O shield
	- SafeDIMM
	AURA Sync
	- Aura RGB header
	- Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4 (with AI Cooling II)
	- Two-Way AI Noise Cancelation
	- Power Saving
	AI Suite 3
	- TurboV EVO
	- DIGI+ VRM
	- PC Cleaner
	TUF GAMING CPU-Z
	DTS Audio Processing
	MyAsus
	Norton 360 for Gamers
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS Wi-Fi moving antenna
	1 x TUF GAMING sticker
	2 x M.2 Rubber Packages
	1 x Screw package for M.2 SSD
	Documentation
	1 x TUF Certification card
	1 x User guide
Operating System	WindowsÆ 11, WindowsÆ 10 64-bit
Form Factor	ATX Form Factor
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Product (mm)_ LWH	305mm244mm49mm
Color Box (mm)_ LWH	34027570mm
Motherboard only	1.3274 kg
Full package	2.1377 kg
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
