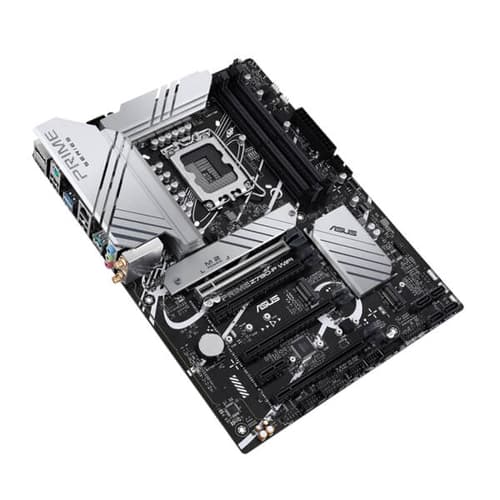

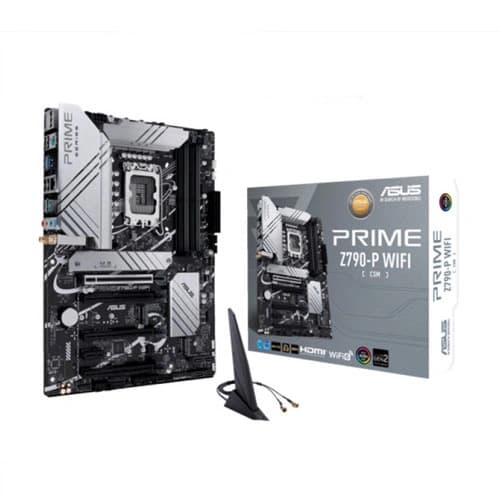

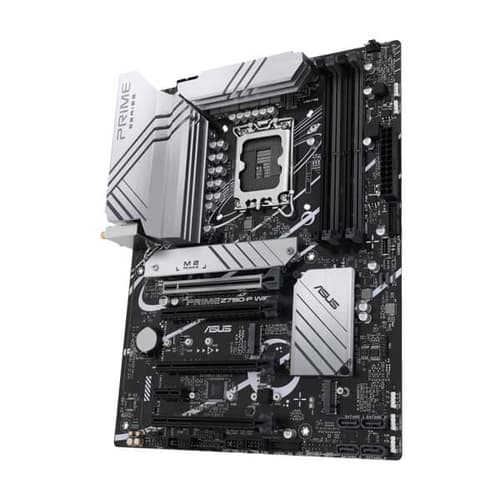

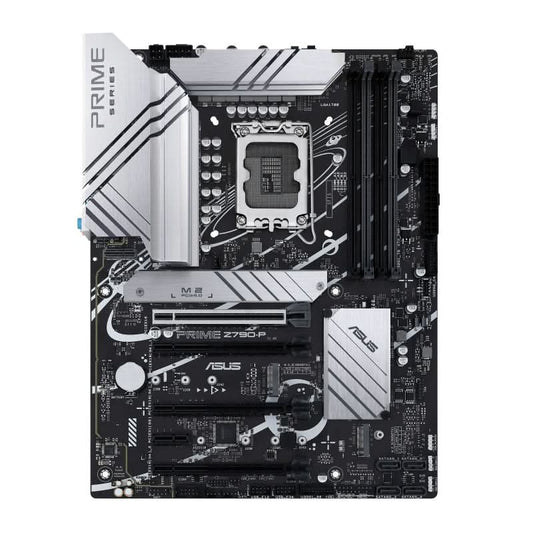

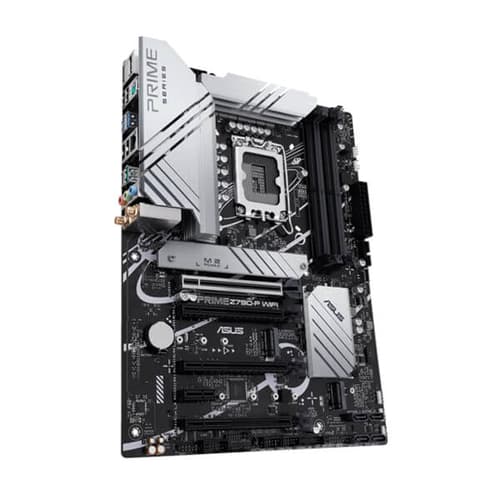

ASUS Z790-P PRIME CSM WIFI DDR5 INTEL LGA1700 MOTHERBOARD

Name: ASUS Z790-P PRIME CSM WIFI DDR5 INTEL LGA1700 MOTHERBOARD
Price: 22,750 INR
Availability: InStock

₹ 22,750 ₹ 32,400

Discount: ₹ 9,650 (30%)

24 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Shipping: Apr 19 - Apr 23

Availability: In Stock Unavailable

SKU: 1084317

Vendor: Asus

Model Number: PRIME-Z790-P-WIFI-CSM-DDR5

Guaranteed safe & Secure checkout

Description
Shipping & Return

Model	PRIME Z790-P WIFI-CSM
CPU	IntelÆ Socket LGA1700 for 13th Gen IntelÆ Coreô Processors & 12th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors*
	Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0**
	* Refer to www.asus.com for CPU support list.
	** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	IntelÆ Z790 Chipset
Memory	4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports IntelÆ Extreme Memory Profile (XMP)
	OptiMem II
	* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
	* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort**
	1 x HDMIÆ port***
	*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	IntelÆ 13th & 12th Gen Processors*
	1 x PCIe 5.0 x16 slot
	IntelÆ Z790 Chipset
	3 x PCIe 4.0 x16 slots (support x4 mode)
	1 x PCIe 3.0 x1 slot
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
	IntelÆ 13th & 12th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	IntelÆ Z790 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
	4 x SATA 6Gb/s ports
	* IntelÆ Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth	Wi-Fi 6
	2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
	Supports 2.4/5GHz frequency band
	BluetoothÆ v5.2
USB	Rear USB (Total 8 ports)
	1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	Front USB (Total 9 ports)
	1 x USB 3.2 Gen 2 connector (supports USB Type-CÆ)
	2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
	* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- Supports up to 24-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Premium audio capacitors
	- Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

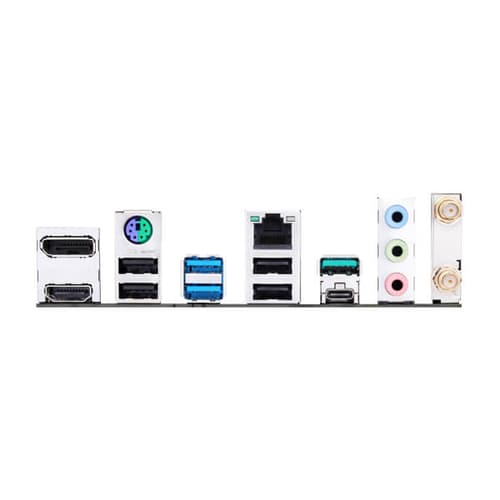

Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	1 x DisplayPort
	1 x HDMIÆ port
	1 x Wi-Fi Module
	1 x Realtek 2.5Gb Ethernet port
	3 x Audio jacks
	1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	Storage related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 2 connector (supports USB Type-CÆ)
	2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	2 x Aura RGB headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x S/PDIF Out header
	1 x SPI TPM header (14-1pin)
	1 x 20-5pin System Panel header
	1 x Thunderboltô (USB4Æ) Header
Special Features	ASUS 5X PROTECTION III
	- DIGI+ VRM (- Digital power design with DrMOS)
	- LANGuard
	- Overvoltage Protection
	- SafeSlot Core+
	- Stainless-Steel Back I/O
	ASUS Q-Design
	- Q-DIMM
	- Q-Slot
	- Q-LED Core
	ASUS Thermal Solution
	- Flexible M.2 heatsink
	- VRM heatsink design
	ASUS EZ DIY
	- ProCool
	Aura Sync
	- Aura RGB headers
	- Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	- Aura Sync
	- Fan Xpert 4 (with AI Cooling II)
	- Power Saving
	AI Suite 3
	-TurboV EVO
	-PC Cleaner
	-DIGI+ VRM
	ASUS CPU-Z
	MyASUS
	Norton 360 Deluxe (60 Days Free Trial)
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

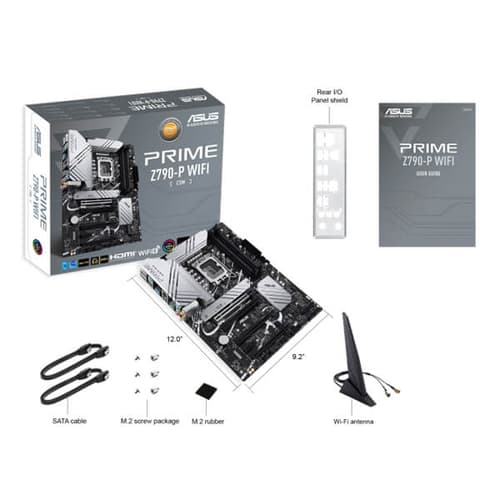

Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS Wi-Fi moving antennas
	1 x I/O Shield
	1 x M.2 Rubber Package
	2 x Screw packages for M.2 SSD
	Documentation
	1 x ACC Express Activation Key Card
	1 x User guide
Operating System	WindowsÆ 11, WindowsÆ 10 64-bit
Form Factor	ATX Form Factor
Form Factor	12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
