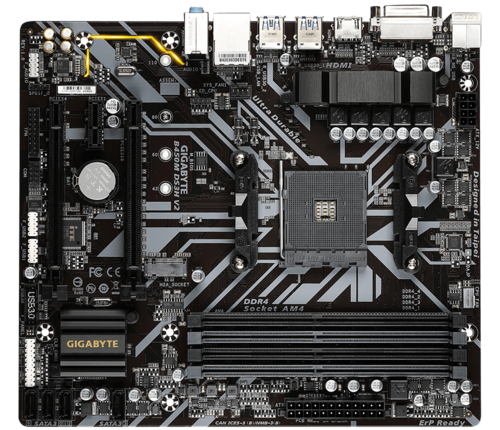

Specifications

CPU	AM4 Socket: Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Chipset	AMD B450
Memory	4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
	Dual channel memory architecture
	Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	Onboard Graphics
Integrated Graphics Processor:	1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
	* The DVI-D port does not support D-Sub connection by adapter.
	2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)
	* Support for HDMI 2.0 version and HDCP 2.2.(Note)
	Maximum shared memory of 16 GB
Audio	RealtekÃALC887 codec
	High Definition Audio
	2/4/5.1/7.1-channel
	* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
	Support for S/PDIF Out
LAN	RealtekÃGbE LAN chip (10/100/1000 Mbit)
	Expansion Slots
	1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
	1 x PCI Express x16 slot, running at x4 (PCIEX4)
	1. 1 x PCI Express x1 slot
	(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
	(Note) Actual support may vary by CPU.
	Multi-Graphics Technology
	Support for AMD Quad-GPU CrossFireÃ´ and 2-Way AMD CrossFireÃ´ technologies
	Storage Interface
	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
	* Actual support may vary by CPU.
	* Supports only M.2 SATA SSDs when using an AMD AthlonÃ´-series/ 7th Gen. A-series or AthlonÃ´ X4 APU.
	4 x SATA 6Gb/s connectors
	Support for RAID 0, RAID 1, and RAID 10
Chipset:	1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
	2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
CPU:	1. 4 x USB 3.1 Gen 1 ports on the back panel
	Internal I/O Connectors
	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x system fan header
	1 x M.2 Socket 3 connector
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x CPU cooler LED strip/RGB LED strip header
	1 x USB 3.1 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
	1 x serial port header
	1 x Clear CMOS jumper
	Back Panel Connectors
	1 x PS/2 keyboard/mouse port
	1 x DVI-D port
	1 x HDMI port
	4 x USB 3.1 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
	I/O Controller
	iTEÃI/O Controller Chip
	H/W Monitoring
	Voltage detection
	Temperature detection
	Fan speed detection
	Overheating warning
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
	BIOS
	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	3D OSD
	AutoGreen
	Cloud Station
	EasyTune
	Fast Boot
	Game Boost
	ON/OFF Charge
	RGB Fusion
	Smart Backup
	Smart Keyboard
	Smart TimeLock
	Smart HUD
	Smart Survey
	System Information Viewer
	USB Blocker
	V-Tuner
	Support for Q-Flash
	Support for Xpress Install
	Bundle Software
	NortonÃInternet Security (OEM version)
	cFosSpeed
	Operating System
	Support for Windows 10 64-bit
	Support for Windows 7 64-bit
	* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
	* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
	Form Factor
	Micro ATX Form Factor; 24.4cm x 21.5cm
