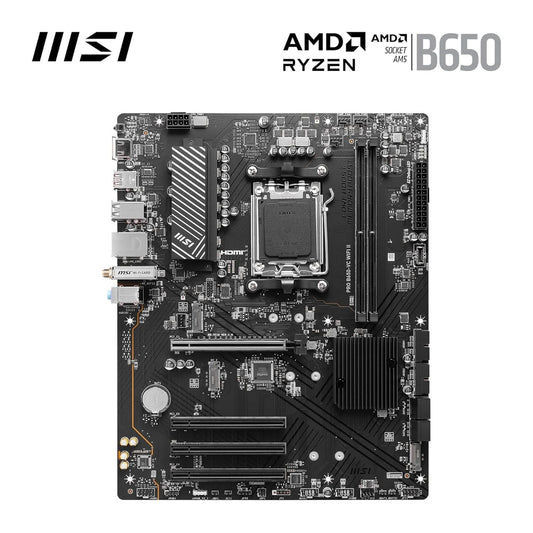

Specifications

CHIPSET	AMD B650
CPU	Supports AMD Ryzen 7000 Series Desktop Processors
CPU	Socket AM5
MEMORY	4x DDR5, Maximum Memory Capacity 192GB
	Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	Ã¯ 1DPC 1R Max speed up to 7200+ MHz
	Ã¯ 1DPC 2R Max speed up to 6000+ MHz
	Ã¯ 2DPC 1R Max speed up to 6000+ MHz
	Ã¯ 2DPC 2R Max speed up to 5400+ MHz
	Supports Dual-Channel mode
	Supports non-ECC, un-buffered memory
	Supports AMD EXPO
ONBOARD GRAPHICS	1x HDMIÃ´
	Support HDMITM2.1, maximum resolution of 4K 60Hz*
	1x DisplayPort
	Supports DP1.4, maximum resolution of 4K 60Hz*
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	2x PCI-E x16 slot
	1x PCI-E x1 slot
	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
MULTI-GPU	AMD MULTI-GPU Support
STORAGE	2x M.2
	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
	M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	4x SATA 6G
RAID	Supports RAID 0 and RAID 1 for SATA storage devices*
RAID	Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front)
	4x USB 3.2 Gen1 Type A (Rear)
	2x USB 3.2 Gen1 Type A (Front)
	3x USB 3.2 Gen2 Type A (Rear)
	1x USB 3.2 Gen2 Type C (Front)
	1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek 8125BG 2.5G LAN
WIRELESS LAN & BLUETOOTH	AMD Wi-Fi 6E
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX
	Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
	Supports 802.11 a/ b/ g/ n/ ac/ ax
	Supports BluetoothÃ5.3**
	* Wi-Fi 6E 6GHz may depend on every countryÃs regulations and will be ready in Windows 11.
	** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO	RealtekÃALC897 Codec
AUDIO	7.1-Channel High Definition Audio
INTERNAL IO	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	4x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x Tuning Controller connector(JDASH)
	2x Addressable V2 RGB LED connector (JARGB_V2)
	2x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 3.2 Gen1 Type A ports
	1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	DisplayPort
	2.5G LAN
	USB 3.2 Gen 2 10Gbps (Type-A)
	USB 3.2 Gen 1 5Gbps (Type-A)
	Wi-Fi / Bluetooth
	Audio connectors
	Flash BIOS Button
	HDMIÃ´
	USB 3.2 Gen 2 10Gbps (Type-A)
	USB 3.2 Gen 2x2 20Gbps (Type-C)
OPERATING SYSTEM	Support for Windows 11 64-bit, WindowsÃ10 64-bit
PCB INFO	ATX
PCB INFO	243.84mmx304.8mm

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice. Warranty: 3 years
