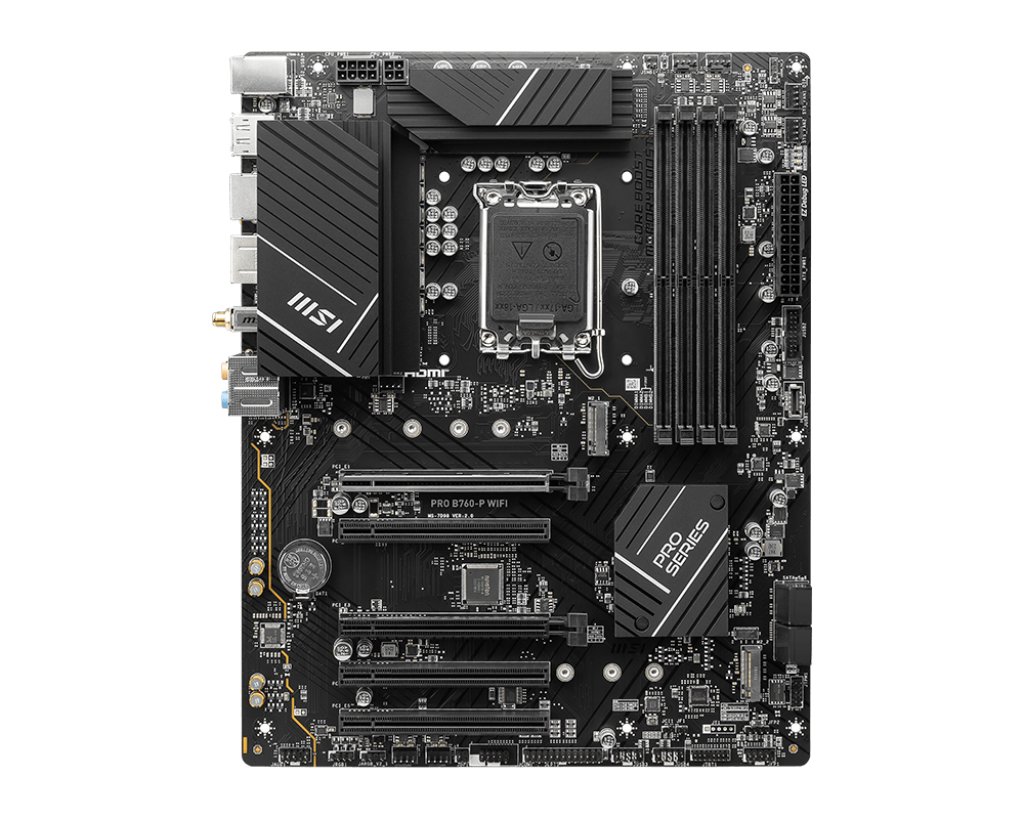

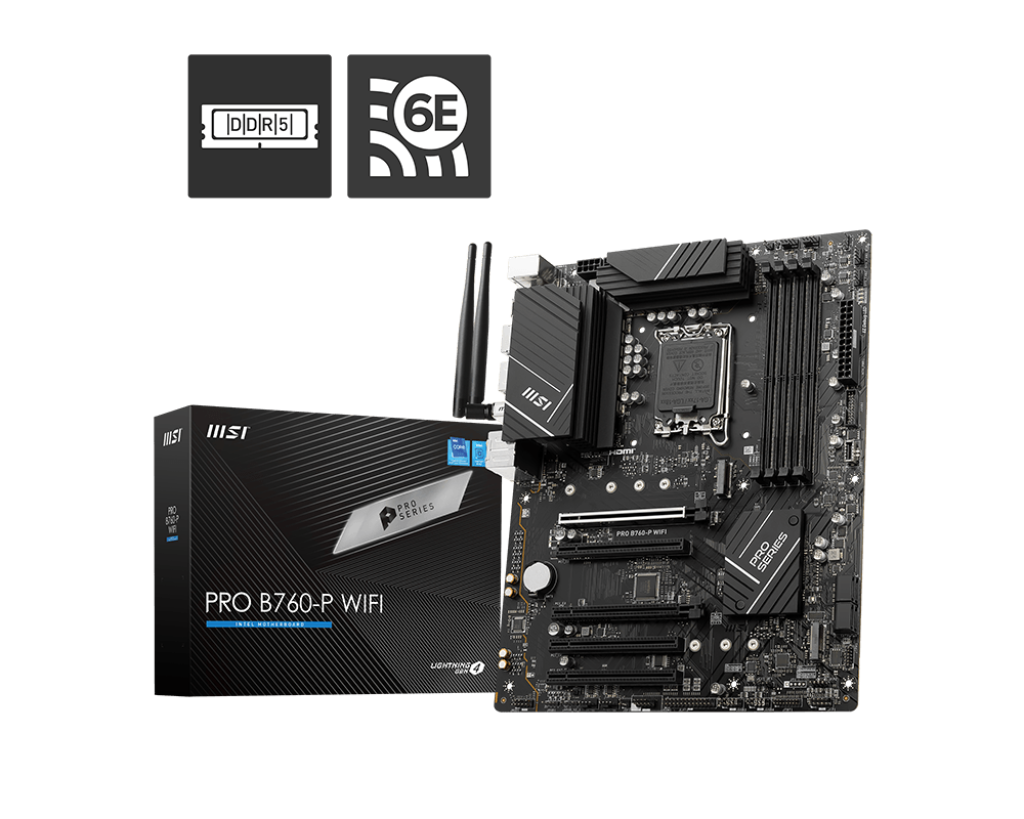

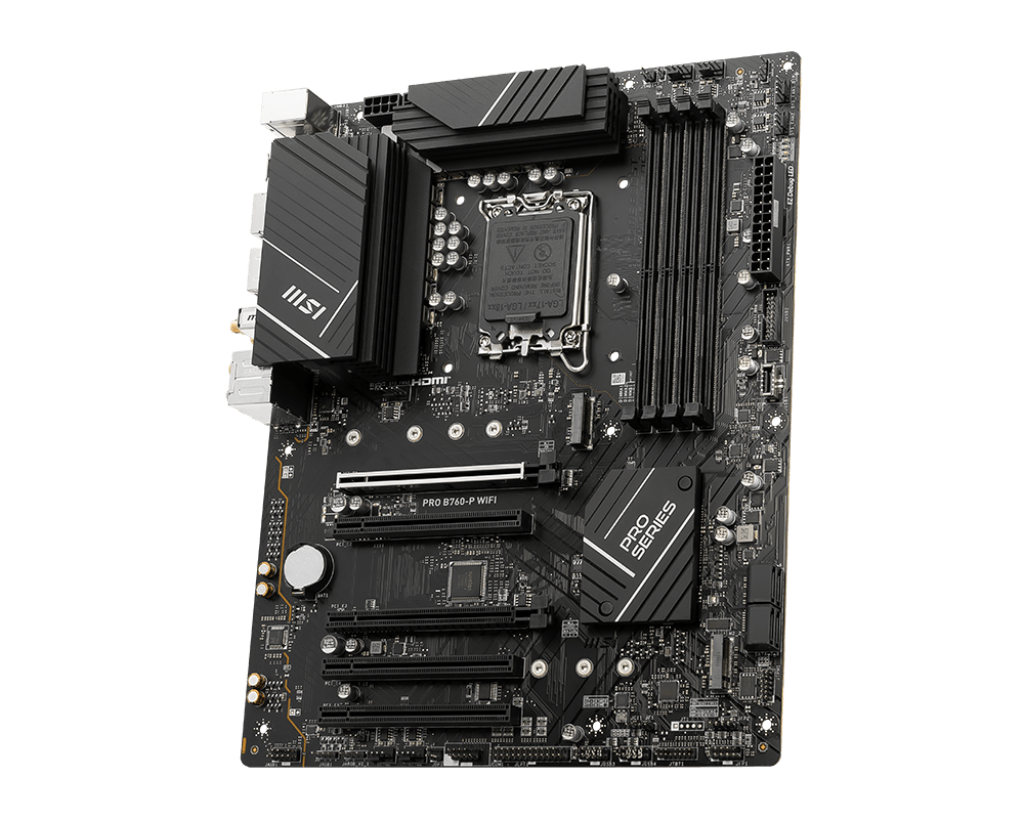

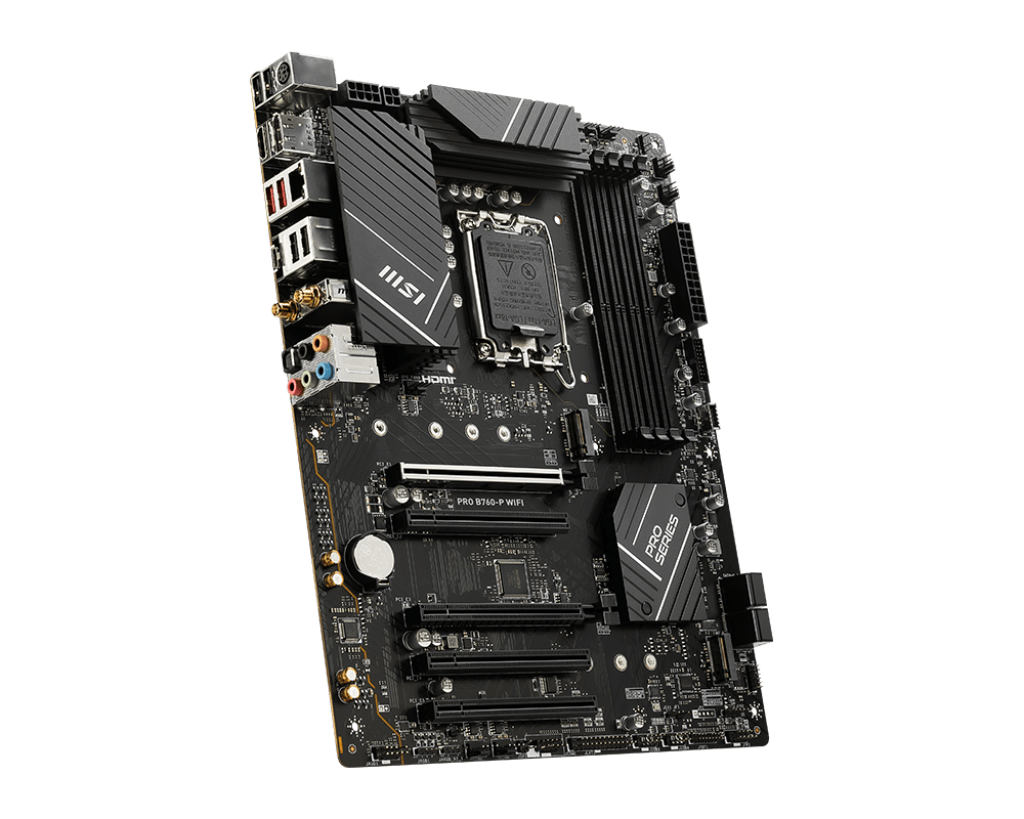

MSI B760-P PRO WIFI DDR5 INTEL LGA1700 MOTHERBOARD

Name: MSI B760-P PRO WIFI DDR5 INTEL LGA1700 MOTHERBOARD
Brand: MSI
Price: 18676.0 INR
Availability: OutOfStock

₹ 18,676 ₹ 24,000

Discount: ₹ 5,324 (23%)

21 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Dispatch: 24 - 48hrs

Availability: In Stock Unavailable

SKU: 1084750

Vendor: msi

Model Number: PRO B760-P WIFI

Guaranteed safe & Secure checkout

Description
Shipping & Return

Chipset	INTEL B760
CPU SUPPORT	Supports 12th/13th Gen IntelÆ Coreô Processors, PentiumÆ Gold and CeleronÆ Processors
CPU SUPPORT	LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 192GB
	Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	ï 1DPC 1R Max speed up to 6800+ MHz
	ï 1DPC 2R Max speed up to 6400+ MHz
	ï 2DPC 1R Max speed up to 6000+ MHz
	ï 2DPC 2R Max speed up to 5600+ MHz
	Supports IntelÆ XMP 3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMIô
	Support HDMIô 2.1 with HDR, maximum resolution of 4K 60Hz*
	1x DisplayPort
	Support DP 1.4, maximum resolution of 4K 60Hz
EXPANSION SLOT	5x PCI-E x16 slot
	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
	PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	2x M.2
	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	2x USB 3.2 Gen1 Type A (Front)
	1x USB 3.2 Gen1 Type C (Front)
	2x USB 3.2 Gen2 Type A (Rear)
	1x USB 3.2 Gen2 Type C (Rear)
LAN	RealtekÆ RTL8125BG 2.5G LAN
WIRELESS / BLUETOOTH	IntelÆ Wi-Fi 6E
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax
	Supports BluetoothÆ 5.3, FIPS, FISMA
Audio	RealtekÆ ALC897 Codec
	7.1-Channel High Definition Audio
	Supports S/PDIF output
Internal I/O	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	5x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Printer Port (JLPT)
	1x Com Port (JCOM)
	1x TBT connector (JTBT, supports RTD3)
	2x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 3.2 Gen1 Type A ports
	1x USB 3.2 Gen1 Type C ports
LED FEATURE	4x EZ Debug LED

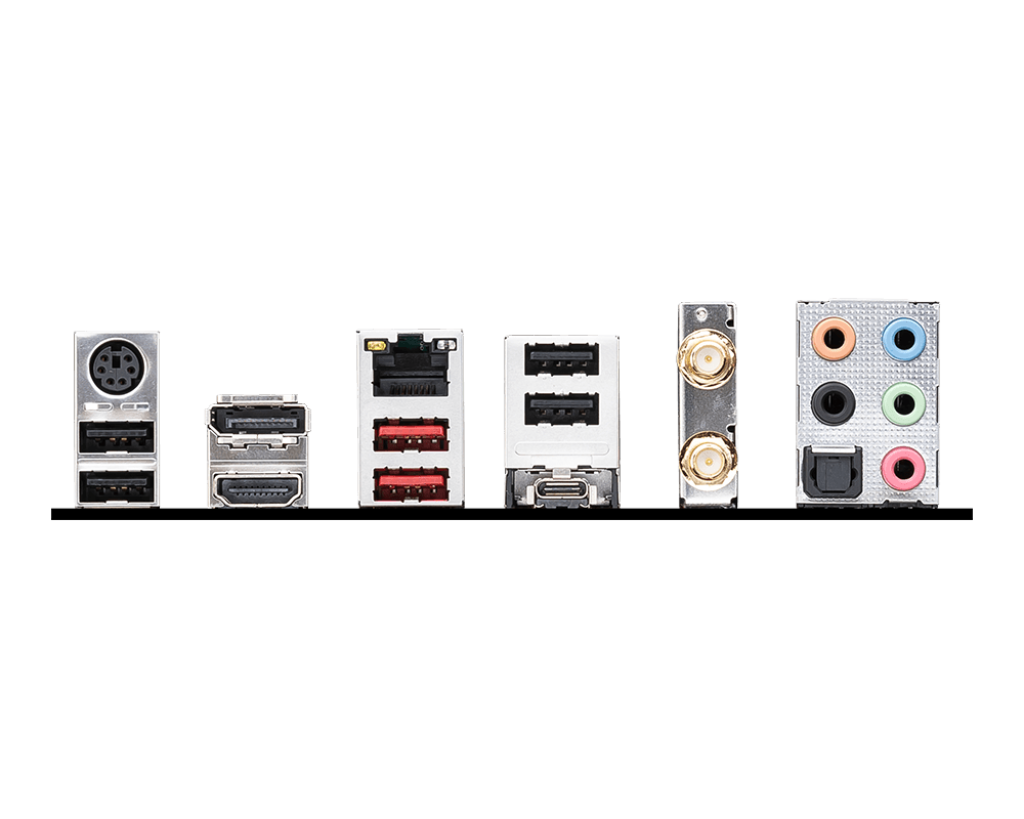

BACK PANEL PORTS
	Keyboard / Mouse
	DisplayPort
	2.5G LAN
	USB 2.0
	Wi-Fi / Bluetooth
	Audio Connectors
	USB 2.0
	HDMIô
	USB 3.2 Gen 2 10Gbps (Type-A)
	USB 3.2 Gen 2 10Gbps (Type-C)
	S/PDIF-OUT
OPERATING SYSTEM	Support for WindowsÆ 11 64-bit, WindowsÆ 10 64-bit
PCB Dimension	ATX
PCB Dimension	243.84mmx304.8mm
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice. Warranty: 3 years
