Description

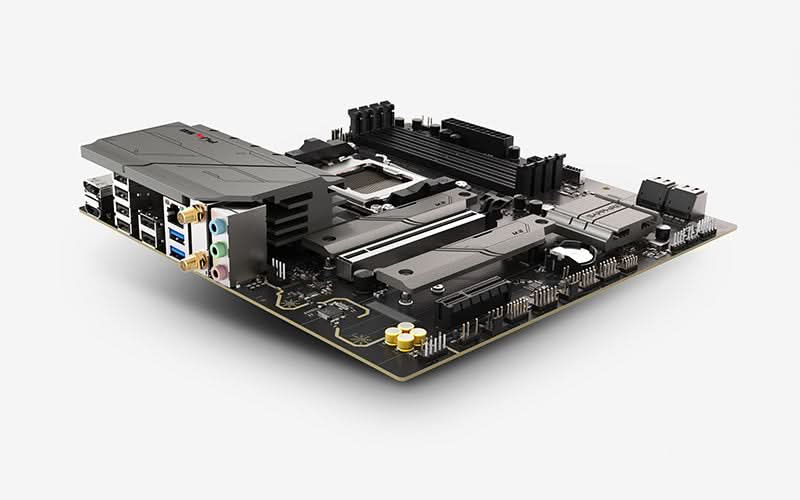

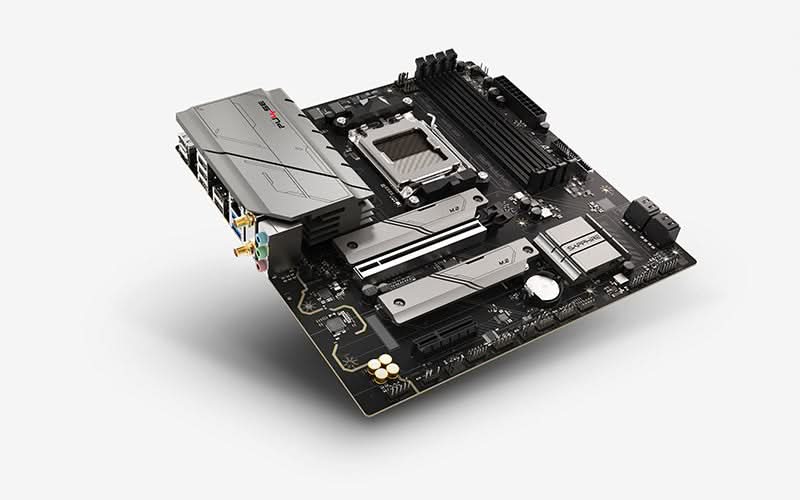

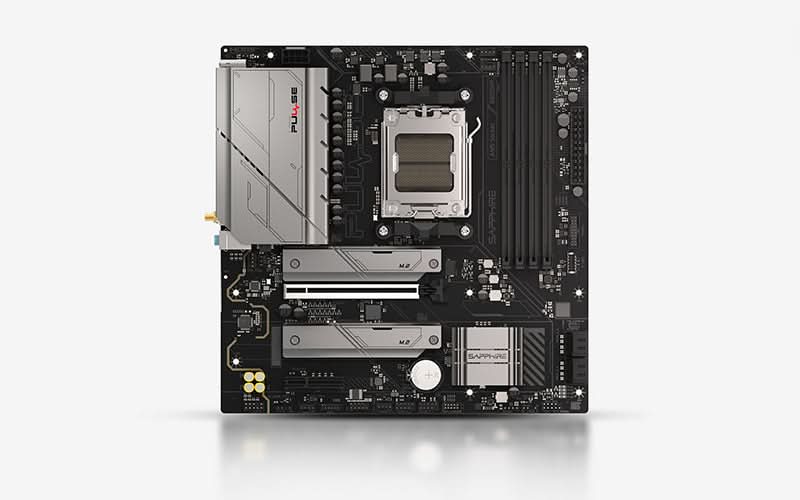

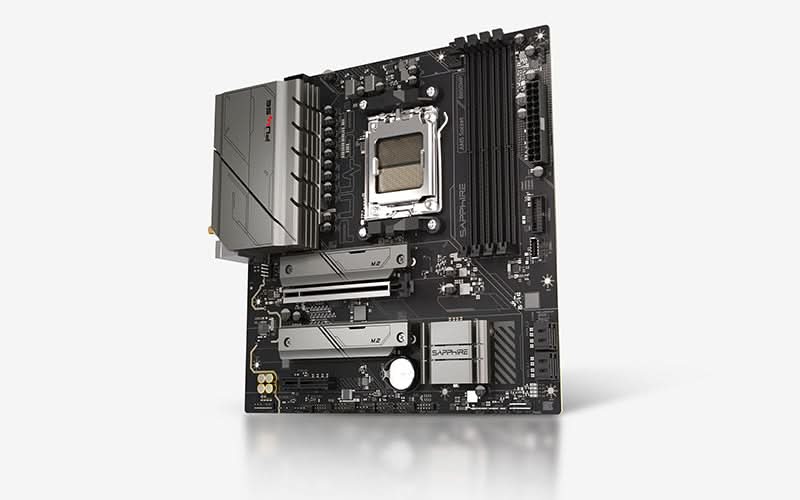

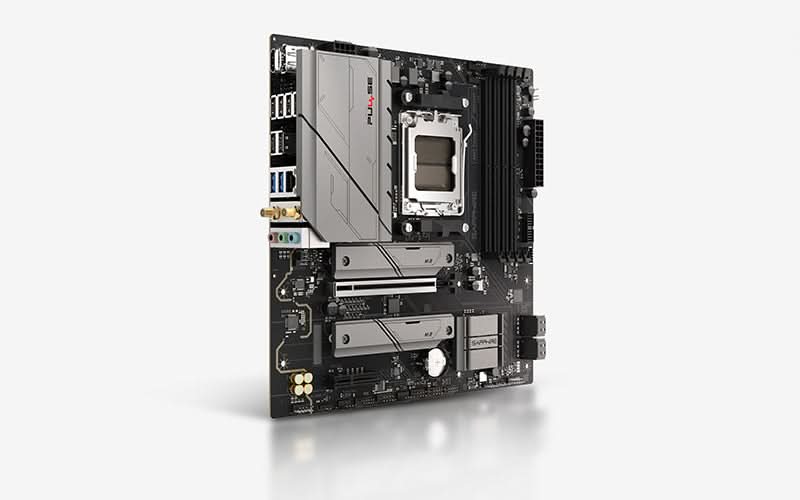

PULSE B850M WIFI
- AMD AM5 CPU SUPPORT
- SAPPHIRE CORE BIOS
- 7+2+1 Phase CPU Power, 60A Per Phase,
- Robust VRM, M.2 and PCH Cooling
- Dual Channel, 7600 MHz Memory OC
- PCI Express 4.0 x16
- PCIe 5.0 M.2 Support
Specifications:
| Chipset | AMD® B850 |
| CPU Support | Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Memory Support | 4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 7600 MHz(OC) |
| PCI-E Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 4.0 x4 |
| Display Connector | DisplayPort x1, HDMI x1 |
| Audio | Realtek® ALC897 HD Audio, 5.1 Channel |
| Network | Realtek® RTL8125BG 2.5 Gigabit Ethernet M.2 WiFi 6 Module, Support 802.11 a/b/g/n/ac/ax, 2.4 GHz/ 5 GHz band, Bluetooth 5.3 Support |
| Front USB Headers | 1x USB 3.2 Gen1 (1 x Type-C), 1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A) |
| Rear Ports | 1× HDMI™, 1× DisplayPort, 6× USB 2.0, 2× USB 3.2 Gen1 Type-A 1× RJ45 LAN, 2× Wi Fi Antennas, 3× Audio Jacks |
| Storage | 1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA |
| Dimensions | Micro-ATX, 244x244mm |
| Debug LED | DRAM: Yellow, CPU: Red, GPU: White, Boot: Green |
