Description
Features:
Line interactive UPS | |
Auto restart while AC is recovering | |
Double Boost | |
Automatic Voltage Regulation (AVR) | |
Wide Input Range | |

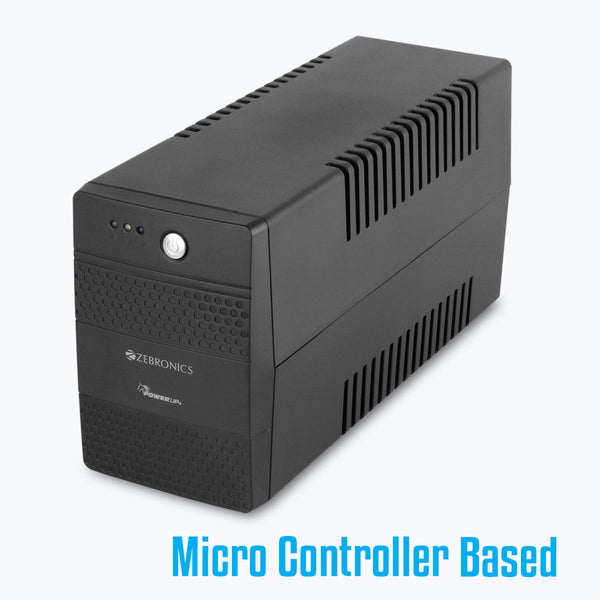

Microcontroller Based | |
Generator Compatible | |
No load Auto Shutdown at battery mode |
Specifications:
| |||
(VA/W) | 600VA/360W | ||
| |||
Nominal voltage | 220-240 VAC | ||
Voltage range | 140-300 VAC | ||
Frequency | 50/60 Hz | ||
Plug type | 3 Pin plug | ||
Input Protection | Internal Fuse | ||
| |||
Voltage range (AC mode) | 230VAC ± 10 % | ||
Voltage range (Batt. mode) | 230VAC ± 10 % | ||
Frequency range (Batt. mode) | 50/60Hz ±1% | ||
Transfer time | 4-8ms | ||
Waveform | Simulated Sine Wave | ||
No. of output sockets | 3 | ||

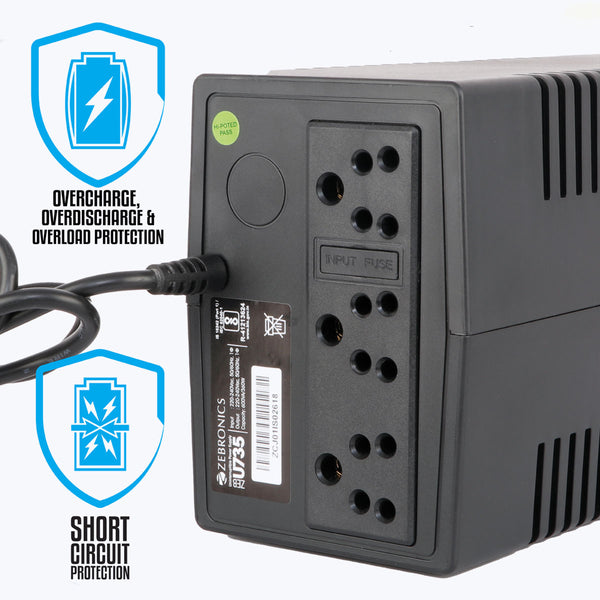

Protections | Overload, Short Circuit, Over Discharge & Over Charge | ||
| |||
Battery type | 12V 7Ah x 1 nos | ||
Charging current | 1A | ||
Recharge time | 6-8h to charge 90% (after complete discharge) | ||
| |||
No. of LEDs | 3 LED | ||
AC mode | Green LED Glows | ||
Battery mode | Orange LED blinks | ||
Fault mode | Red LED Glow | ||
| |||
Battery mode | Beeping every 10 Seconds | ||
Low battery | Beeping every 1 Second | ||
Overload | Beeping every 0.5 second | ||
Fault | Continuous beeping | ||
| |||
Product dimension (W x D x H) | 101 x 280 x 142 mm | ||
Net. weight | 3.82 kg | ||
Package dimension (WxDxH | 326 x 142 x 213 mm | ||
| |||
Operational temperature | 0-40⁰C | ||
Noise level | < 45dB | ||
Country of Origin | People's Republic of China |
