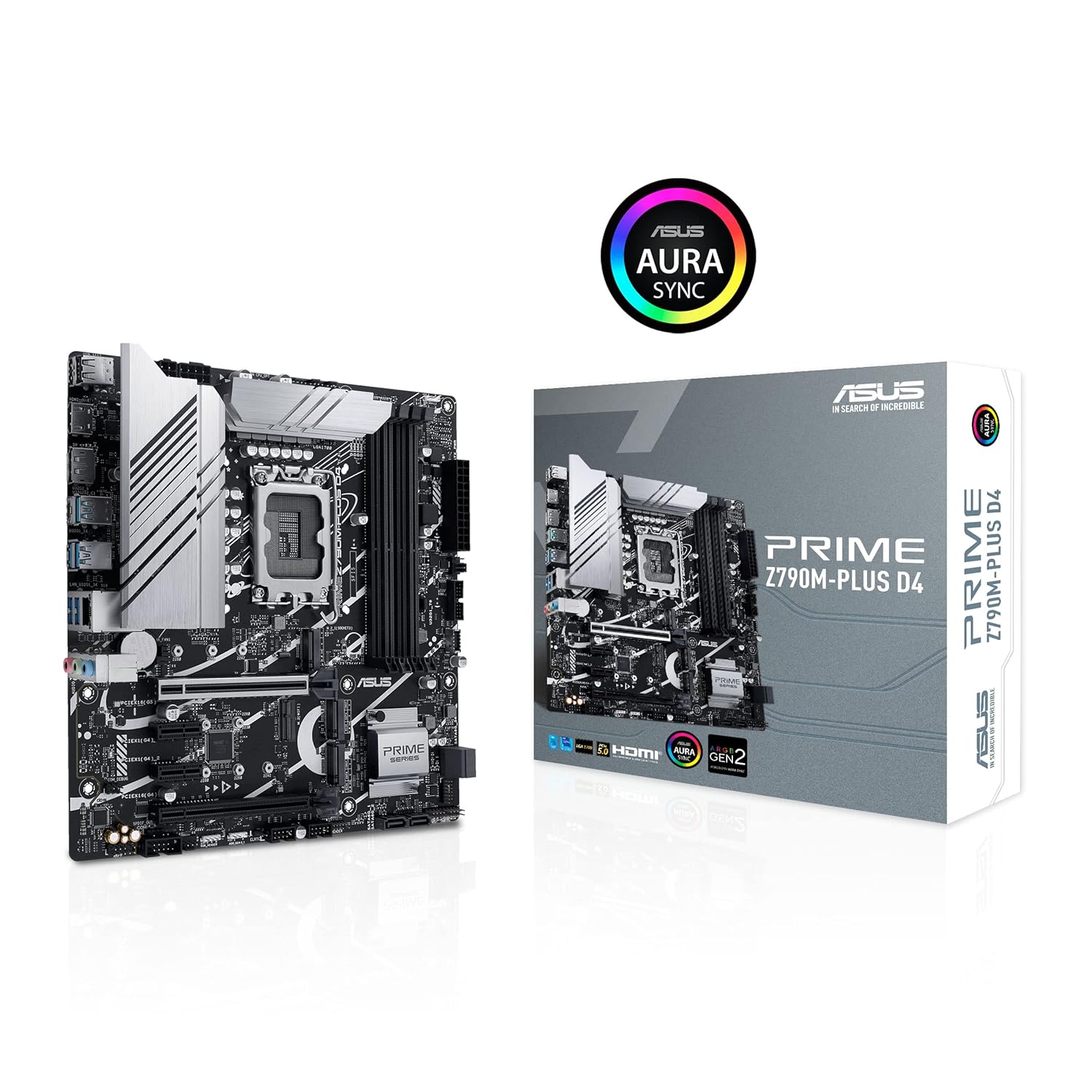

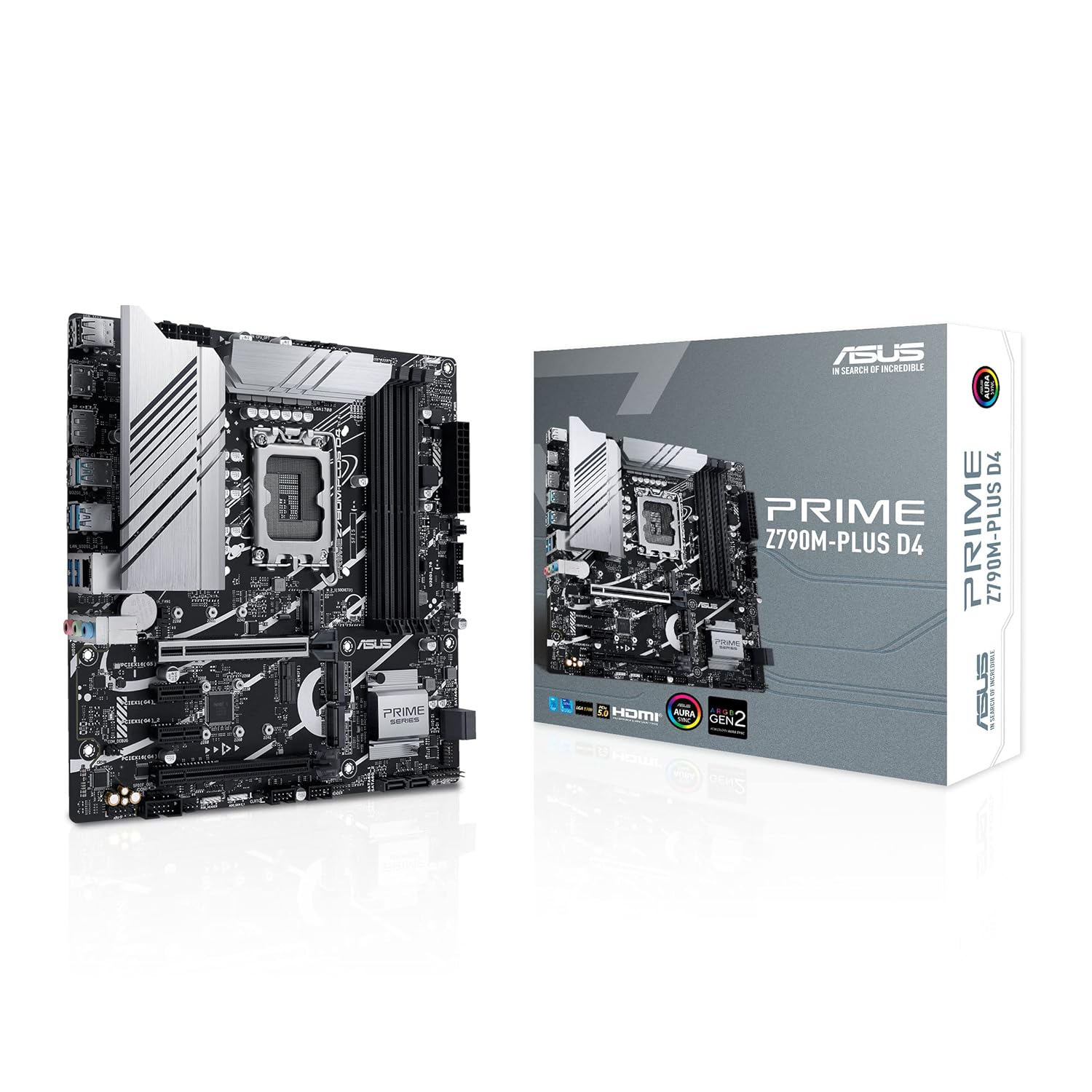

ASUS PRIME Z790M PLUS CSM DDR4 INTEL LGA1700 MOTHERBOARD

Name: ASUS PRIME Z790M PLUS CSM DDR4 INTEL LGA1700 MOTHERBOARD
Brand: Asus
SKU: 1083181
Price: 20000.0 INR
Availability: InStock

Rs. 20,000.00 Rs. 31,500.00

Discount: Rs. 11,500.00 (37%)

10 people are viewing this right now

Hurry Up! Only 4 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: Dec 26 - Dec 30

Availability: In Stock Unavailable

SKU: 1083181

Vendor: Asus

Guaranteed safe & Secure checkout

Description
Shipping & Return

CPU	IntelÆ Socket LGA1700 for 13th, 12th Gen IntelÆ Coreô, Pentium Gold and Celeron Processors
	Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0**
	* Refer to www.asus.com for CPU support list.
	** IntelÆ Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Z790

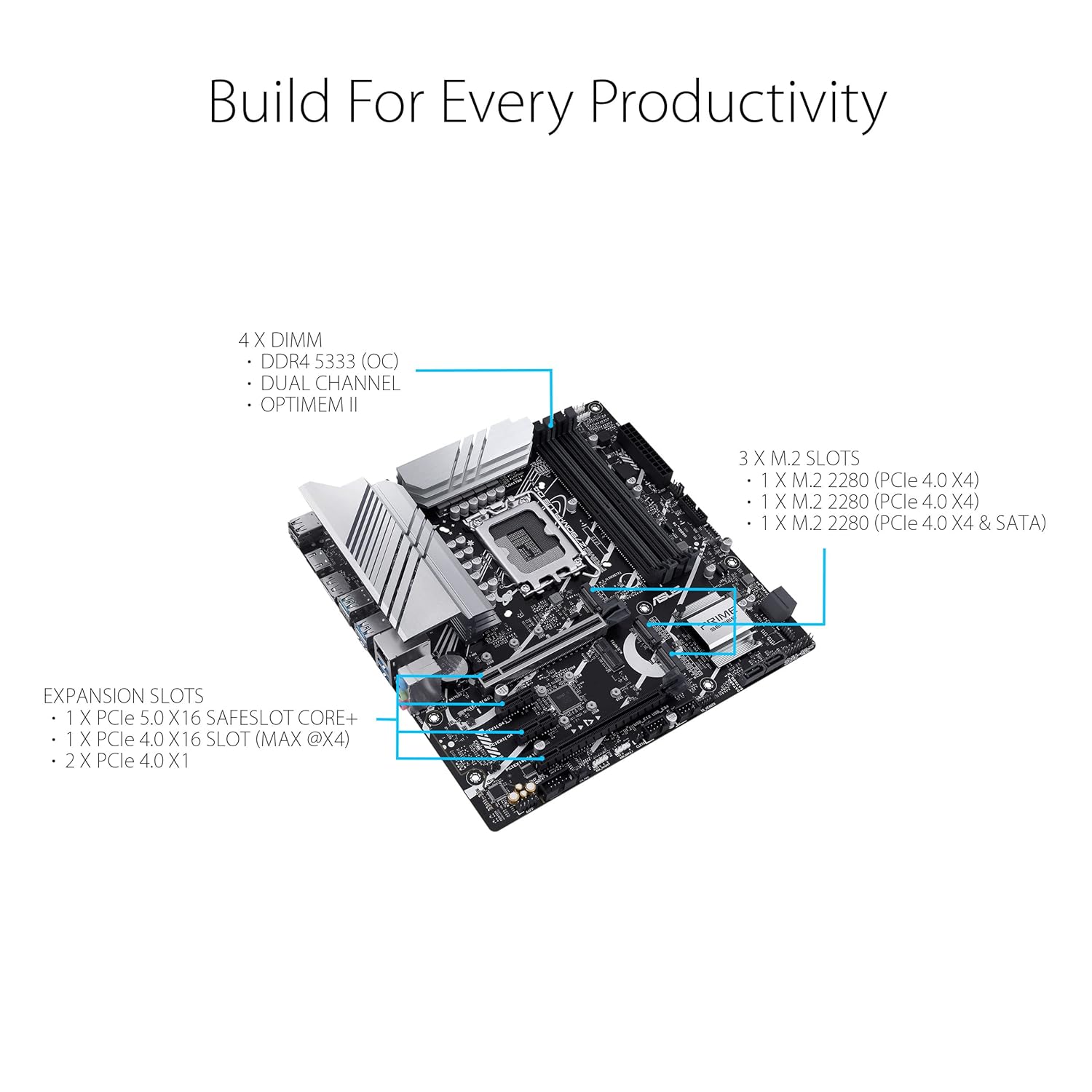

Memory	4 x DIMM, Max. 128GB, DDR4
	5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports IntelÆ Extreme Memory Profile (XMP)
	OptiMem II
	*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics	1 x DisplayPort**
	1 x HDMIÆ port***
	*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	**Support 4K@60Hz as specified in DisplayPort 1.4.
	***Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	IntelÆ 13th Gen and 12th Gen Processors*
	1 x PCIe 5.0 x16 slot
	IntelÆ Z790 Chipset**
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	2 x PCIe 4.0 x1 slots
	* Please check PCIe bifurcation table in support site.
	** Supports IntelÆ Optane Memory H Series on PCH-attached PCIe slot
Storage	Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
	Intel 13th & 12th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280
	IntelÆ Z790 Chipset**
	M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
	4 x SATA 6Gb/s ports
	* IntelÆ Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
Ethernet	1 x IntelÆ 1Gb Ethernet
Ethernet	ASUS LANGuard
Wireless & Bluetooth	M.2 slot only (Key E, CNVi & PCIe)
Wireless & Bluetooth	*Wi-Fi module is sold separately.
USB	Rear USB:Total 8 ports
	1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	Front USB:Total 7 ports
	1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports*
	* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High
	Definition Audio CODEC*
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- Supports up to 24-Bit/192 kHz playback

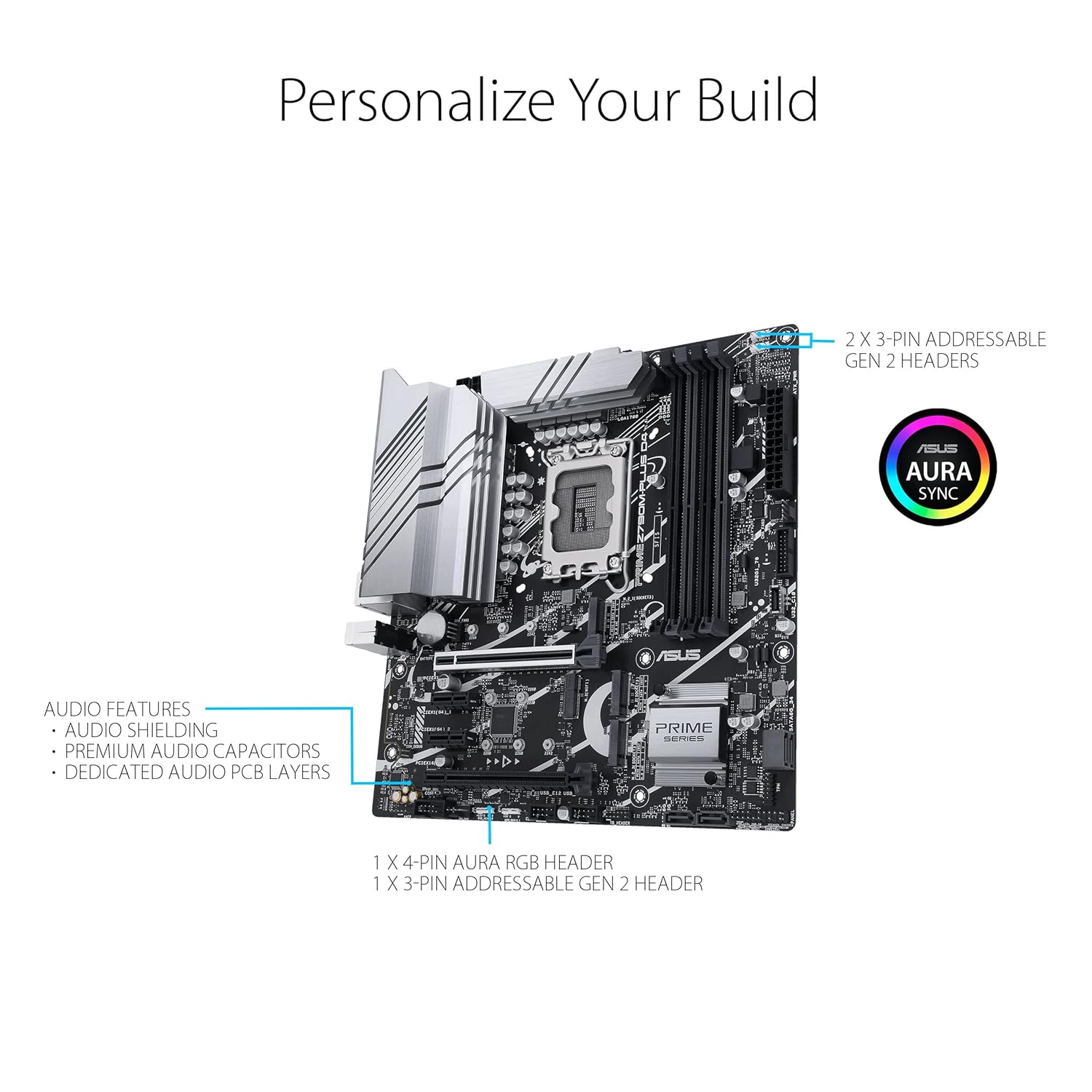

	Audio Features
	Audio Shielding
	Premium audio capacitors
	Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

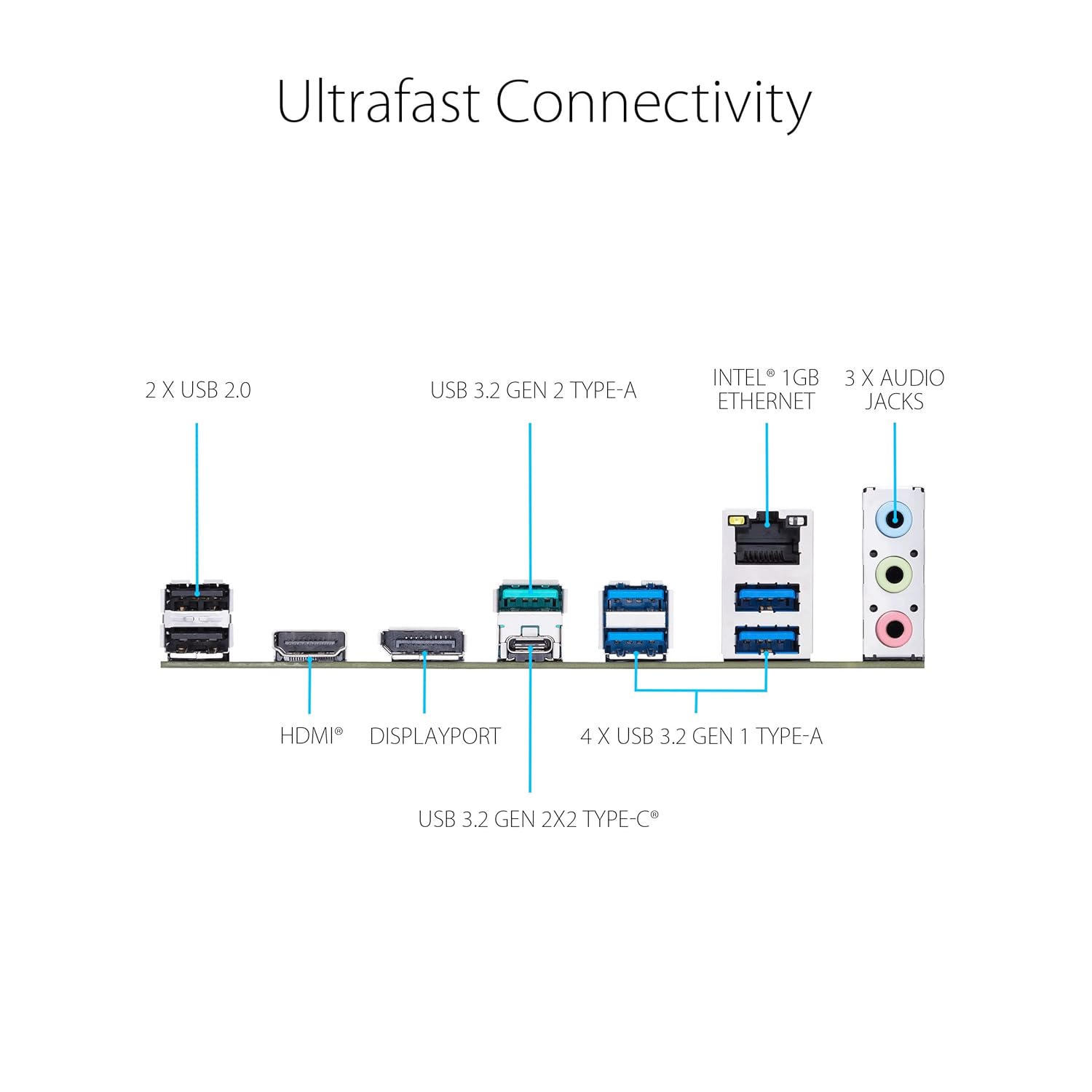

Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMIÆ port
	1 x IntelÆ 1Gb Ethernet port
	3 x Audio jacks
Intrernal I/O Connectors	Fan and cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	Storage related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 1 connector (supports USB Type-CÆ)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x AURA RGB header
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x M.2 slot (Key E)
	1 x S/PDIF Out header
	1 x SPI TPM header (14-1pin)
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thunderboltô header

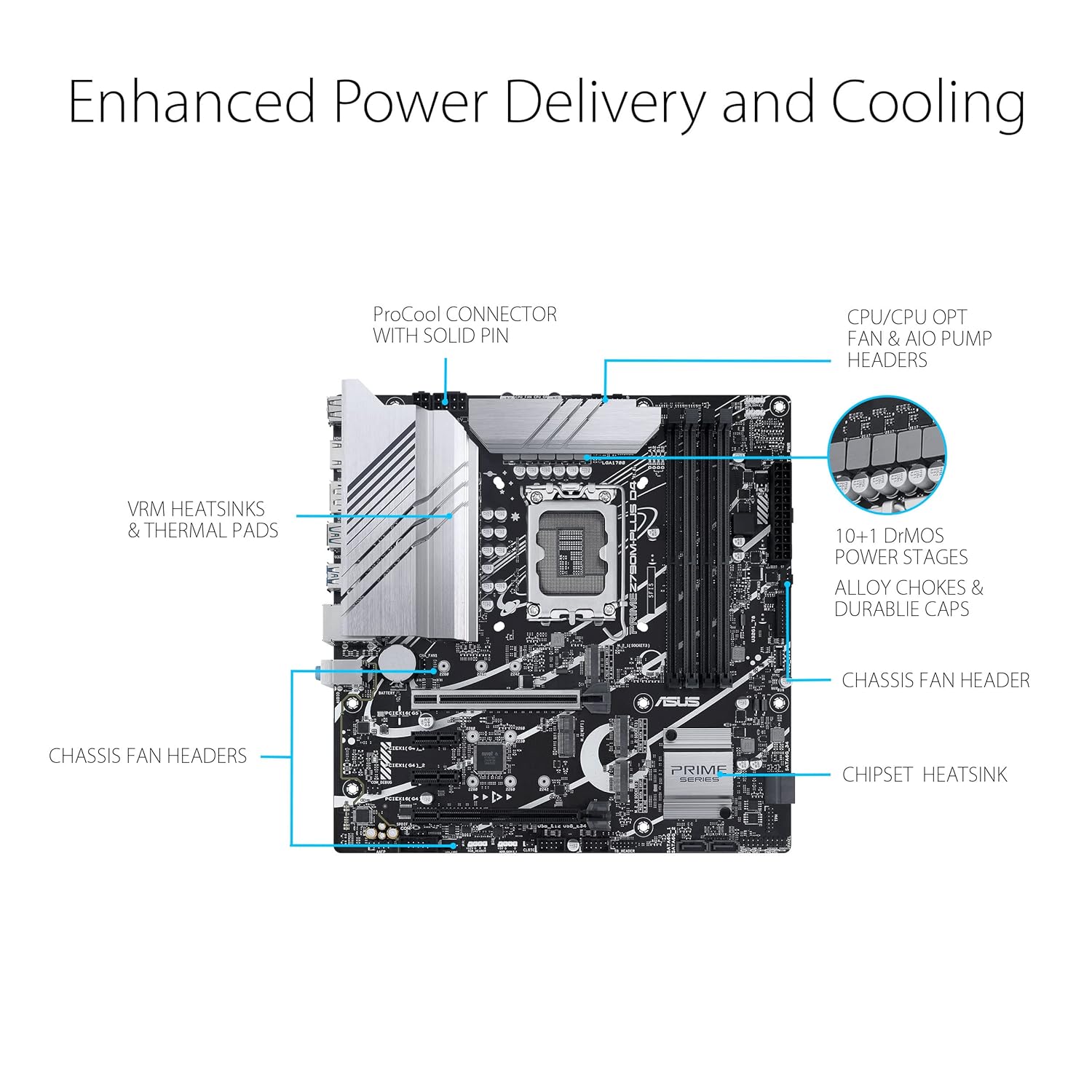

Special Features	ASUS 5X PROTECTION III
	DIGI+ VRM (- Digital power design with DrMOS)
	LANGuard
	Overvoltage Protection
	SafeSlot
	Stainless-Steel Back I/O
	ASUS Q-Design
	Q-DIMM
	Q-LED Core
	Q-Slot
	ASUS Thermal Solution
	VRM heatsink design
	ASUS EZ DIY
	ProCool
	AURA Sync
	AURA RGB header
	Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	- AURA Sync
	- Fan Xpert 4
	Power Saving
	AI Suite 3
	TurboV EVO
	EPU
	DIGI+ VRM
	PC Cleaner
	ASUS CPU-Z
	Norton Anti-virus software (Free Trial version)
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI
BIOS	BIOS
Manageability	WOL by PME, PXE

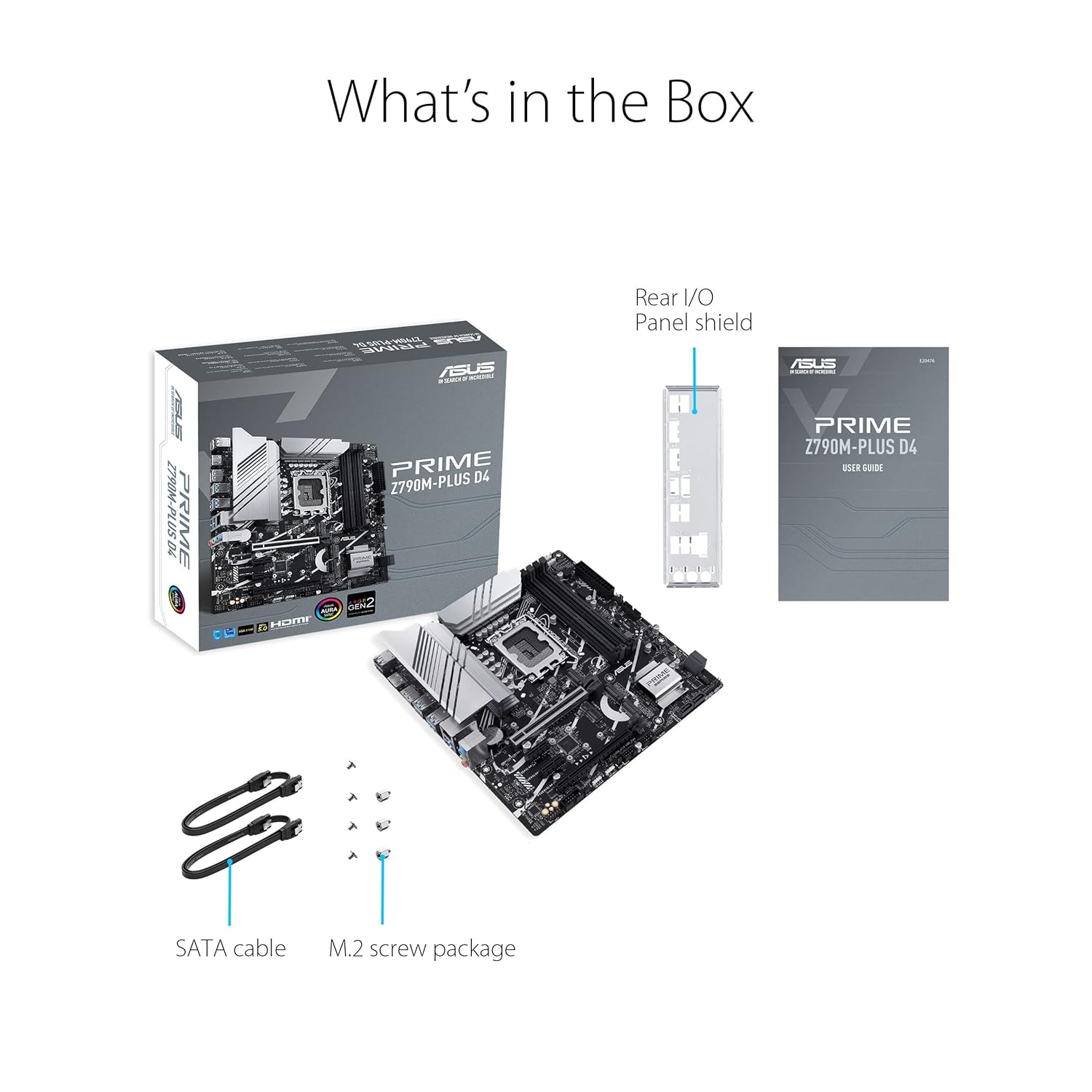

Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x I/O Shield
	2 x M.2 SSD screw packages
	Documentation
	1 x User guide
	1 x ACC Express Activation Key Card
Operating System	WindowsÆ 11 64-bit, WindowsÆ 10 64-bit
Form Factor	microATX
Form Factor	24.4cm x 24.4cm
Waranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
