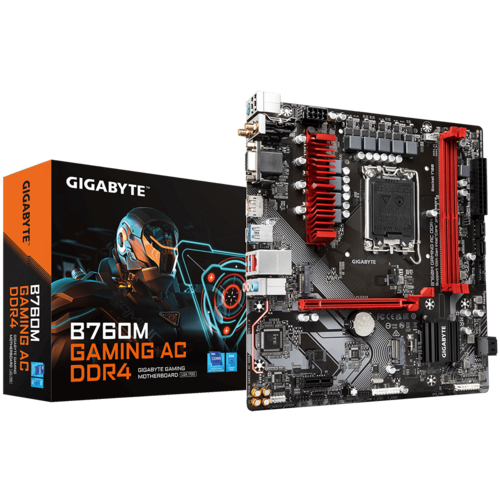

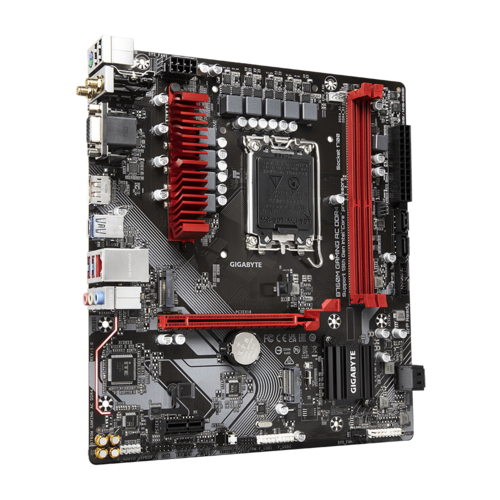

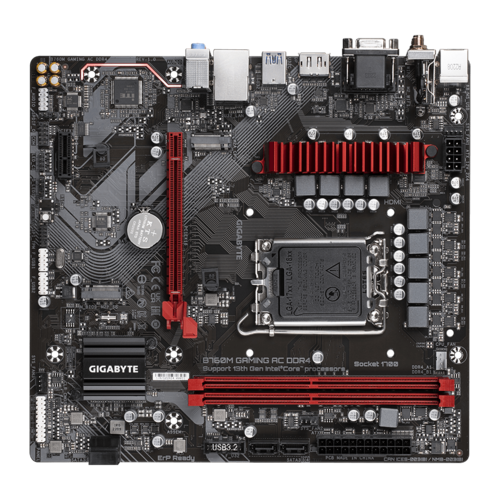

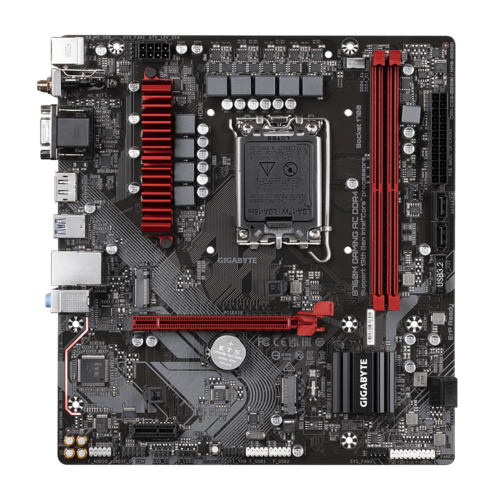

GIGABYTE GA-B760M GAMING AC DDR4 INTEL LGA1700 MOTHERBOARD

Name: GIGABYTE GA-B760M GAMING AC DDR4 INTEL LGA1700 MOTHERBOARD
Brand: Gigabyte
Price: 11874.0 INR
Availability: OutOfStock

₹ 11,874 ₹ 19,000

Discount: ₹ 7,126 (38%)

12 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Dispatch: 24 - 48hrs

Availability: In Stock Unavailable

SKU: 1084085

Vendor: gigabyte

Model Number: B760M GAMING AC DDR4

Guaranteed safe & Secure checkout

Description
Shipping & Return

Specifications

CPU	LGA1700 socket: Support for the 13th and 12th Generation IntelÃ CoreÃ´, PentiumÃ Gold and CeleronÃ Processors
	L3 cache varies with CPU
	(Please refer "CPU Support List" for more information.)
Chipset	IntelÃ B760 Express Chipset
Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-IntelÃ HD Graphics support:
	1 x D-Sub port, supporting a maximum resolution of1920x1200@60Hz
	1 x HDMI port, supporting a maximum resolution of4096x2160@60Hz
	* Support for HDMI 2.0 version and HDCP 2.3.
	1 x DisplayPort, supporting a maximum resolution of4096x2304@60Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	(Graphics specifications may vary depending on CPU support.)
	Support for up to 3 displays at the same time
Audio	RealtekÃ Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out
LAN	RealtekÃ 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	AzureWave Wi-Fi AW-CB304NF (RealtekÃ RTL8821CE)
	WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
	BLUETOOTH 4.2
	Support for 11ac wireless standard and up to 433 Gbps data rate
	(Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU:
	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
	Chipset:
	1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	CPU:
	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset:
	1 x USB Type-CÃ port on the back panel, with USB 3.2 Gen 1 support
	5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
	2 x USB 2.0/1.1 ports on the back panel
	Chipset+USB 2.0 Hubs:
	4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	3 x system fan headers
	1 x addressable LED strip headers
	1 x RGB LED strip headers
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x serial port header
	1 x Q-Flash Plus button
	1 x reset jumper
	1 x Clear CMOS jumper

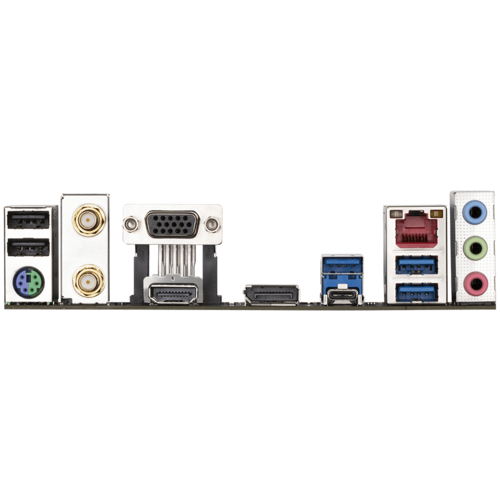

Back Panel Connectors	2 x USB 2.0/1.1 ports
	1 x PS/2 keyboard/mouse port
	2 x SMA antenna connectors (1T1R)
	1 x D-Sub port
	1 x HDMI port
	1 x DisplayPort
	3 x USB 3.2 Gen 1 ports
	1 x USB Type-CÃ port, with USB 3.2 Gen 1 support
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTEÃ I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
Bundled Software	NortonÃ Internet Security (OEM version)
Bundled Software	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
