SKU: 1094886

Vendor: gigabyte

Model Number: B860M-DS3H-WIFI6E

Guaranteed safe & Secure checkout

Checking availability...

Location Restricted This product is only available for orders within Hyderabad.

Description
Shipping & Return

About the item

Intel Core Ultra Ready: LGA1851 socket for Intel Core Ultra processors with support for advanced multi-core performance High-Speed DDR5 Memory: Supports up to 256GB DDR5 (9066 MT/s OC) with Extreme Memory Profile (XMP)Integrated Wi-Fi 6E: Intel Wi-Fi 6E AX211 for faster, more reliable wireless connections, supporting 2.4/5/6 GHz bands Triple Display Support: HDMI 2.1 and DisplayPort 2.1 with support for up to 3 monitors simultaneously PCIe 5.0 & 4.0: 1 x PCIe 5.0 x16 for graphics or NVMe SSD + 3 x PCIe 4.0 slots

Technical Details

Platform	INTEL
Socket	LGA1851
CPU Type	Core Ultra
Chipset	B860
Memory Speed	up to 9066
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.)
Graphics Port	1 x HDMI,2 x DisplayPort
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)
Wireless Networking	WiFi 6E,Bluetooth 5.3

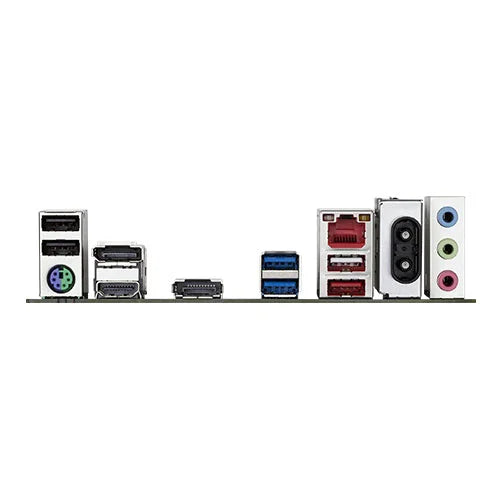

Back Panel I/O Ports	1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
Internal I/O Connector	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Form Factor	Micro-ATX
Warranty	3 Years

Shipping Policy

1. General Information

All orders are processed within 1-3 business days. Orders are not shipped or delivered on weekends or holidays. If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.

2. Shipping Rates & Delivery Estimates

Shipping charges for your order will be calculated and displayed at checkout. Delivery delays can occasionally occur.

Standard Shipping: 3-5 business days

3. Shipment Confirmation & Order Tracking

You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.

4. Damages

Vishal Peripherals is liable for any products damaged or lost during shipping. If you received your order damaged, please take the video of unboxing and share through mail at support1@vishalperipherals.com.

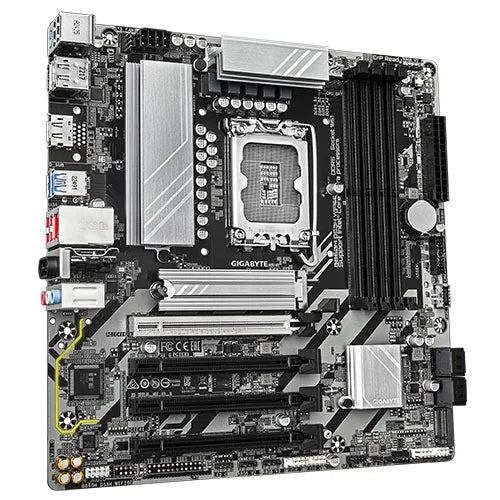

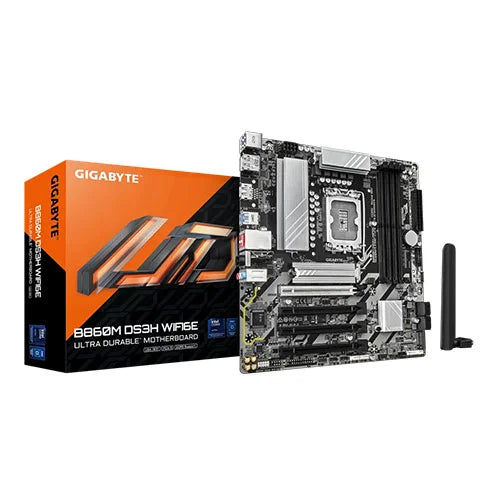

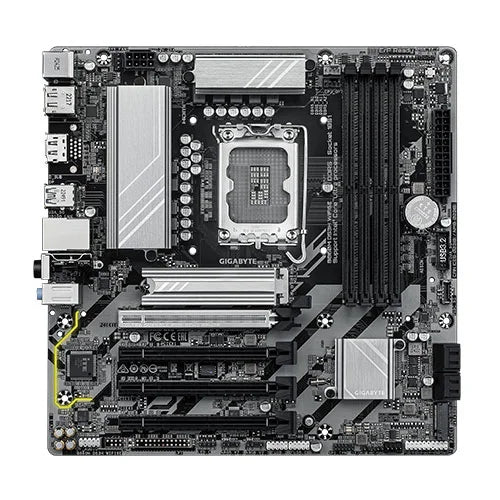

GIGABYTE B860M DS3H WIFI6E MICRO-ATX MOTHERBOARD
