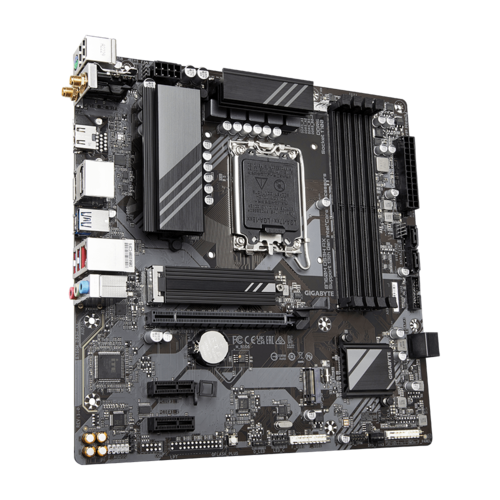

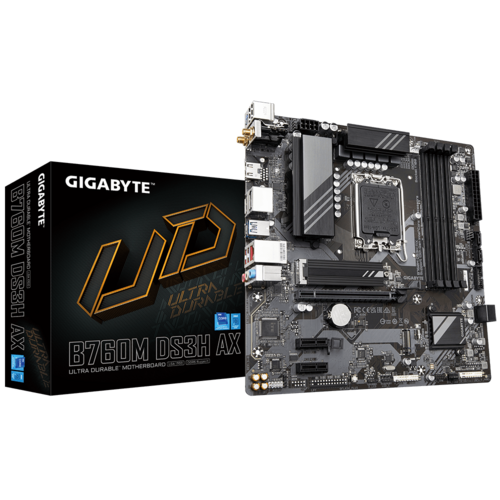

GIGABYTE GA-B760M-DS3H AX DDR5 INTEL LGA1700 MOTHERBOARD

Name: GIGABYTE GA-B760M-DS3H AX DDR5 INTEL LGA1700 MOTHERBOARD
Brand: Gigabyte
SKU: 1084648
Price: 14600.0 INR
Availability: InStock

₹ 14,600 ₹ 20,129

Discount: ₹ 5,529 (28%)

11 people are viewing this right now

Hurry Up! Only 11 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: Dec 31 - Jan 04

Availability: In Stock Unavailable

SKU: 1084648

Vendor: Gigabyte

Guaranteed safe & Secure checkout

Description
Shipping & Return

CPU	1. LGA1700 socket: Support for the 13th and 12th Generation IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors
	2. L3 cache varies with CPU
	(Please refer "CPU Support List" for more information.)
Chipset	1. IntelÆ B760 Express Chipset
Memory	1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
	2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
	3. Dual channel memory architecture
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-IntelÆ HD Graphics support:
	1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.0 version and HDCP 2.3.
	2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 1.2 version.
	(Graphics specifications may vary depending on CPU support.)
	Support for up to triple-display at the same time
Audio	1. RealtekÆ Audio CODEC
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	4. Support for S/PDIF Out
LAN	1. RealtekÆ 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0)
	1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	2. BLUETOOTH 5.2
	3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
	IntelÆ Wi-Fi 6E AX210 (For PCB rev. 1.1)
	1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	2. BLUETOOTH 5.3
	3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	IntelÆ Wi-Fi 6E AX211 (For PCB rev. 1.2)
	1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	2. BLUETOOTH 5.3
	3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	RealtekÆ Wi-Fi 6E RTL8852CE (For PCB rev. 1.3)
	1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	2. BLUETOOTH 5.3
	3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	(Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU:
	1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
	Chipset:
	1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface	CPU:
	1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	2. 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset:
	1. 1 x USB Type-CÆ port on the back panel, with USB 3.2 Gen 2 support
	2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
	3. 2 x USB 2.0/1.1 ports on the back panel
	Chipset+2 USB 2.0 Hubs:
	1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 1 x CPU fan header
	4. 3 x system fan headers
	5. 1 x addressable LED strip header
	6. 1 x RGB LED strip header
	7. 2 x M.2 Socket 3 connectors
	8. 4 x SATA 6Gb/s connectors
	9. 1 x front panel header
	10. 1 x front panel audio header
	11. 1 x USB 3.2 Gen 1 header
	12. 2 x USB 2.0/1.1 headers
	13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	14. 1 x S/PDIF Out header
	15. 1 x Q-Flash Plus button
	16. 1 x reset jumper
	17. 1 x Clear CMOS jumper

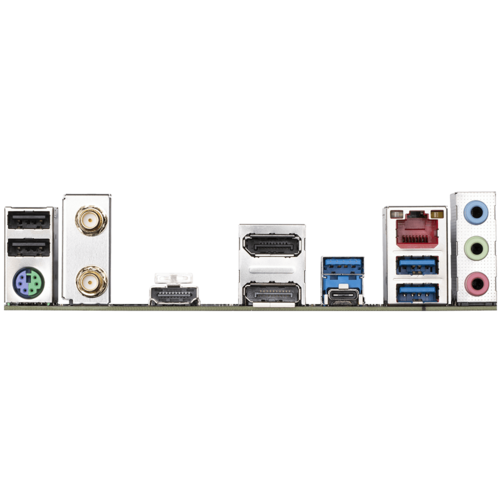

Back Panel Connectors	1. 2 x USB 2.0/1.1 ports
	2. 1 x PS/2 keyboard/mouse port
	3. 2 x SMA antenna connectors (2T2R)
	4. 1 x HDMI port
	5. 2 x DisplayPorts
	6. 3 x USB 3.2 Gen 1 ports
	7. 1 x USB Type-CÆ port, with USB 3.2 Gen 2 support
	8. 1 x RJ-45 port
	9. 3 x audio jacks
I/O Controller	1. iTEÆ I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Water cooling flow rate detection
	5. Fan fail warning
	6. Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1. 1 x 128 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	2. Support for Q-Flash
	3. Support for Q-Flash Plus
Bundled Software	1. NortonÆ Internet Security (OEM version)
Bundled Software	2. LAN bandwidth management software
Operating System	1. Support for Windows 11 64-bit
Operating System	2. Support for Windows 10 64-bit
Form Factor	1. Micro ATX Form Factor; 24.4cm x 24.4cm

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
