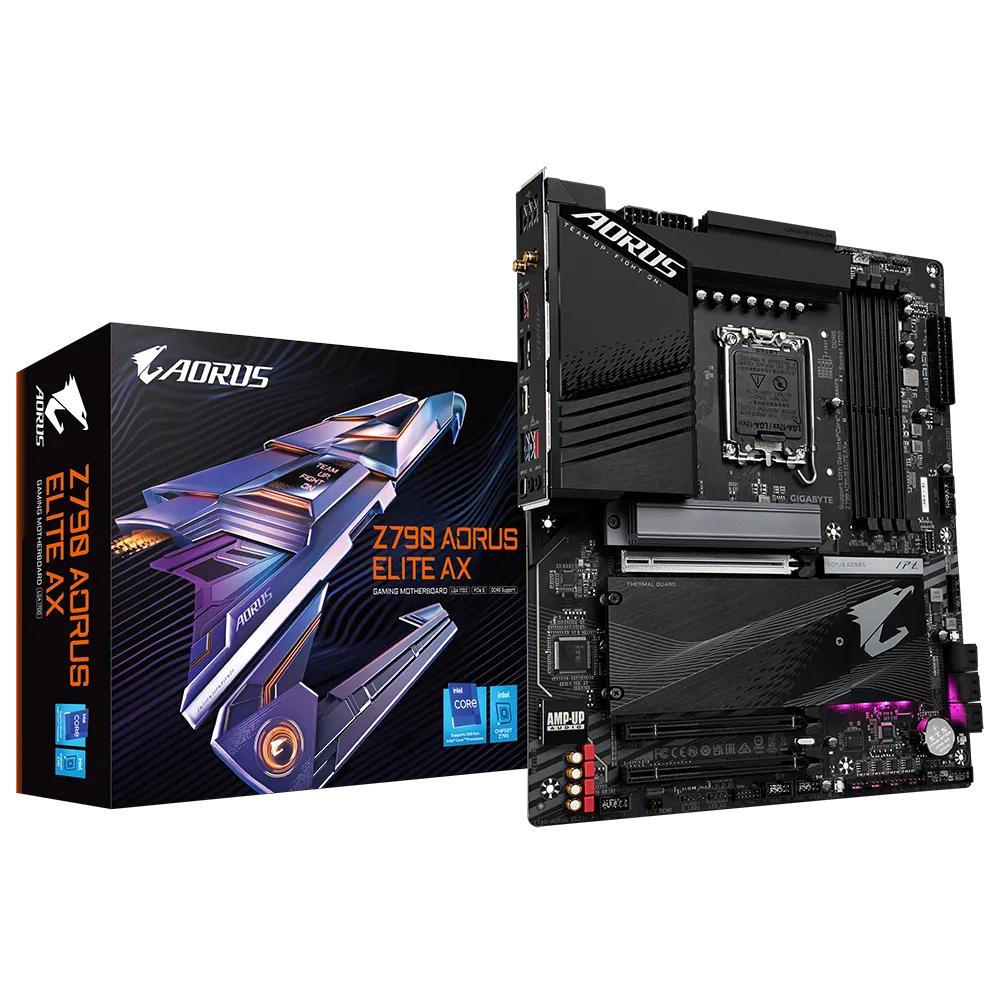

GIGABYTE GA-Z790 AORUS ELITE AX DDR5 INTEL LGA1700 MOTHERBOARD

Name: GIGABYTE GA-Z790 AORUS ELITE AX DDR5 INTEL LGA1700 MOTHERBOARD
Brand: Gigabyte
Price: 29976.0 INR
Availability: OutOfStock

₹ 29,976 ₹ 51,000

Discount: ₹ 21,024 (42%)

20 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Dispatch: 24 - 48hrs

Availability: In Stock Unavailable

SKU: 1084628

Vendor: gigabyte

Model Number: Z790 AORUS ELITE AX

Guaranteed safe & Secure checkout

Description
Shipping & Return

Specifications

CPU	1. LGA1700 socket: Support for the 13th and 12th Generation IntelÃCoreÃ´, PentiumÃGold and CeleronÃProcessors
	2. L3 cache varies with CPU
	(Please refer "CPU Support List" for more information.)
Chipset	1. IntelÃZ790 Express Chipset
Memory	1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
	2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
	3. Dual channel memory architecture
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-IntelÃHD Graphics support:
	1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.0 version and HDCP 2.3.
	2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
	* Support for DisplayPort 1.2 version and HDCP 2.3
	(Graphics specifications may vary depending on CPU support.)
Audio	1. RealtekÃAudio CODEC
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	4. Support for S/PDIF Out
LAN	1. RealtekÃ2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	IntelÃWi-Fi 6E AX211
	1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	2. BLUETOOTH 5.3
	3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	* Actual data rate may vary depending on environment and equipment.
Expansion Slots	CPU:
	1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
	2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface	CPU:
	1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
	2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
	3. 6 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
	* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB	Chipset:
	1. 1 x USB Type-CÃport on the back panel, with USB 3.2 Gen 2x2 support
	2. 1 x USB Type-CÃport with USB 3.2 Gen 2 support, available through the internal USB header
	3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
	Chipset+2 USB 2.0 Hubs:
	1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 2 x 8-pin ATX 12V power connectors
	3. 1 x CPU fan header
	4. 1 x water cooling CPU fan header
	5. 3 x system fan headers
	6. 1 x system fan/water cooling pump header
	7. 2 x addressable LED strip headers
	8. 2 x RGB LED strip headers
	9. 4 x M.2 Socket 3 connectors
	10. 6 x SATA 6Gb/s connectors
	11. 1 x front panel header
	12. 1 x front panel audio header
	13. 1 x USB Type-CÃheader, with USB 3.2 Gen 2 support
	14. 1 x USB 3.2 Gen 1 header
	15. 2 x USB 2.0/1.1 headers
	16. 2 x ThunderboltÃ´ add-in card connectors
	17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	18. 1 x reset button
	19. 1 x Q-Flash Plus button
	20. 1 x Clear CMOS button
	21. 1 x reset jumper
	22. 1 x Clear CMOS jumper
Back Panel Connectors	1. 1 x USB Type-CÃport, with USB 3.2 Gen 2x2 support
	2. 2 x USB 3.2 Gen 2 Type-A ports (red)
	3. 3 x USB 3.2 Gen 1 ports
	4. 4 x USB 2.0/1.1 ports
	5. 2 x SMA antenna connectors (2T2R)
	6. 1 x HDMI 2.0 port
	7. 1 x DisplayPort
	8. 1 x RJ-45 port
	9. 1 x optical S/PDIF Out connector
	10. 2 x audio jacks
I/O Controller	1. iTEÃI/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Water cooling flow rate detection
	5. Fan fail warning
	6. Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1. 1 x 256 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	2. Support for Q-Flash
	3. Support for Q-Flash Plus
	4. Support for Smart Backup
Bundled Software	1. NortonÃInternet Security (OEM version)
Bundled Software	2. LAN bandwidth management software
Operating System	1. Support for Windows 11 64-bit
Operating System	2. Support for Windows 10 64-bit
Form Factor	1. ATX Form Factor; 30.5cm x 24.4cm

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
