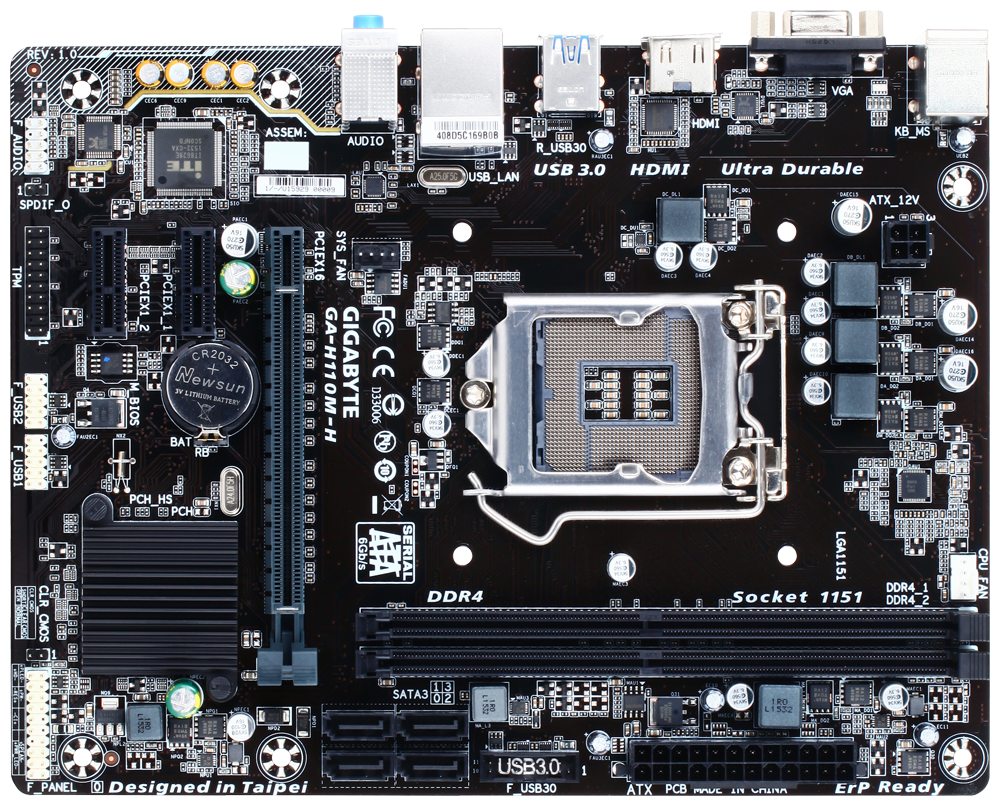

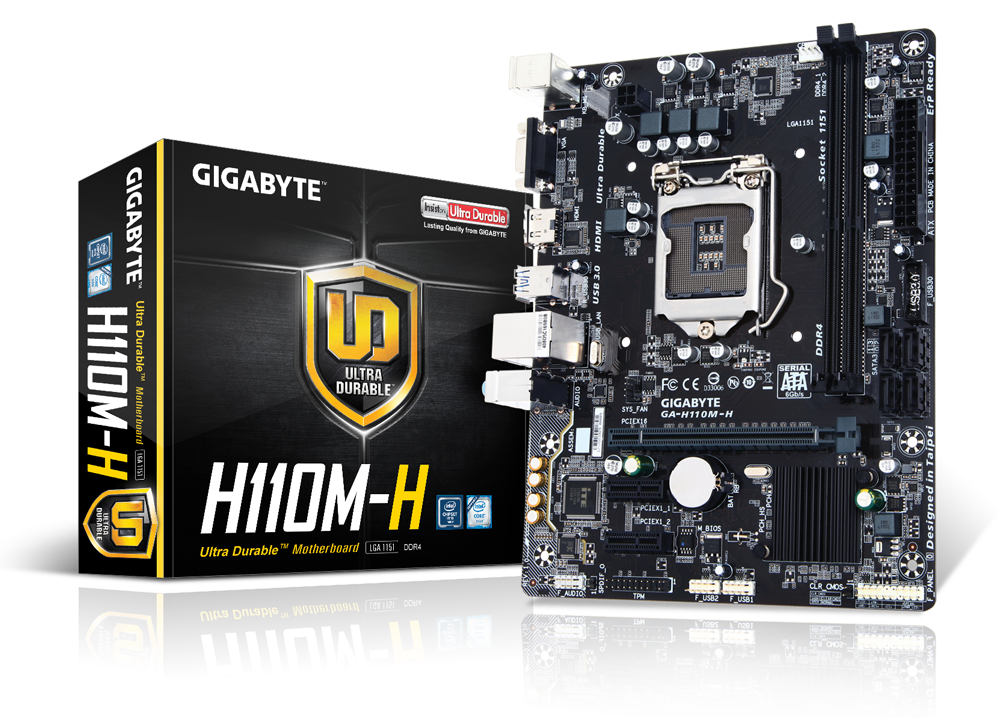

GIGABYTE GA-H110M-H INTEL LGA1151 MOTHERBOARD

Name: GIGABYTE GA-H110M-H INTEL LGA1151 MOTHERBOARD
Brand: Gigabyte
SKU: 101303
Price: 6345.0 INR
Availability: InStock

₹ 6,345 ₹ 9,000

Discount: ₹ 2,655 (30%)

23 people are viewing this right now

Hurry Up! Only 96 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: Dec 30 - Jan 03

Availability: In Stock Unavailable

SKU: 101303

Vendor: Gigabyte

Guaranteed safe & Secure checkout

Description
Shipping & Return

Specifications

CPU	Support for 7th/6th Generation IntelÆ Coreô i7 processors/IntelÆ Coreô i5 processors/IntelÆ Coreô i3 processors/IntelÆ PentiumÆ processors/IntelÆ CeleronÆ processors in the LGA1151 package
	* For 7th Generation IntelÆ Coreô processors support need to update the latest BIOS.
	L3 cache varies with CPU
Chipset	1. IntelÆ H110 Express Chipset
Memory	1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
	* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
	2. Dual channel memory architecture
	3. Support for DDR4 2400/2133 MHz memory modules
	4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Onboard Graphics	1. Integrated Graphics Processor - IntelÆ HD Graphics support:
	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
	1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
	* Support for HDMI 1.4 version.
	2. Maximum shared memory of 1024 MB
Audio	1. RealtekÆ Audio CODEC
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
	4. Support for S/PDIF Out
LAN	1. RealtekÆ GbE LAN chip (1 Gbit/100 Mbit)
Expansion Slots	1. 1 x PCI Express x16 slot, running at x16
	(The PCI Express x16 slot conform to PCI Express 3.0 standard.)
	2. 2 x PCI Express x1 slots
	(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface	Chipset:
	1. 4 x SATA 6Gb/s connectors
USB	Chipset:
	1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 4-pin ATX 12V power connector
	3. 4 x SATA 6Gb/s connectors
	4. 1 x CPU fan header
	5. 1 x system fan header
	6. 1 x front panel header
	7. 1 x front panel audio header
	8. 1 x S/PDIF Out header
	9. 1 x USB 3.0/2.0 header
	10. 2 x USB 2.0/1.1 headers
	11. 1 x Trusted Platform Module (TPM) header
	12. 1 x Clear CMOS jumper

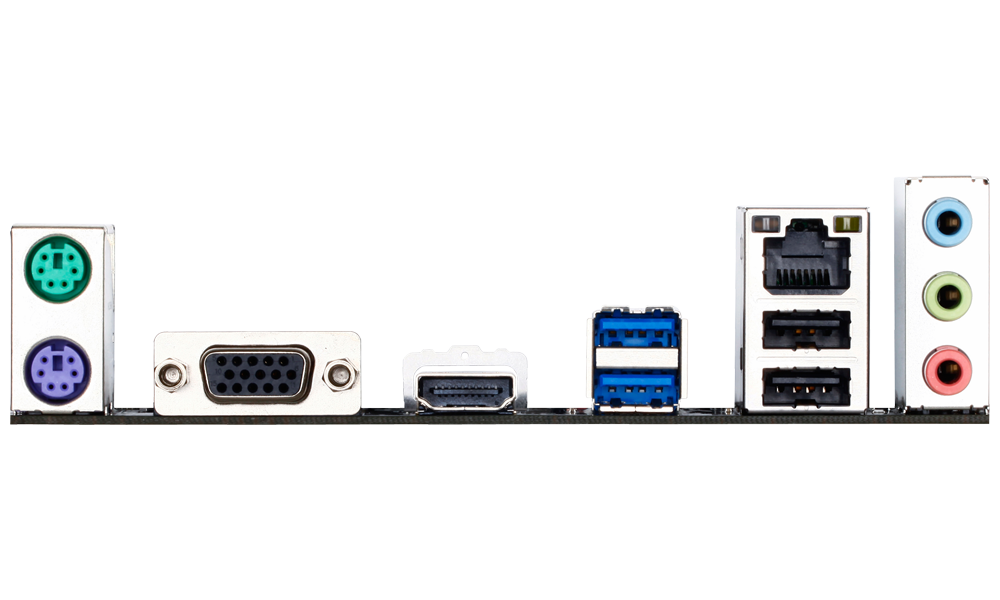

Back Panel Connectors	1. x PS/2 mouse port
	2. 1 x PS/2 Keyboard port
	3. 1 x D-Sub port
	4. 1 x HDMI port
	5. 2 x USB 3.0/2.0 ports
	6. 2 x USB 2.0/1.1 ports
	7. 1 x RJ-45 port
	8. 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller	1. iTEÆ I/O Controller Chip
H/W Monitoring	1. System voltage detection
	2. CPU/System temperature detection
	3. CPU/System fan speed detection
	4. CPU/System overheating warning
	5. CPU/System fan fail warning
	6. CPU/System fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1. 1 x 64 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for APP Center
	* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
	3D OSD
	@BIOS
	AutoGreen
	Cloud Station
	EasyTune
	Fast Boot
	Smart TimeLock
	Smart Keyboard
	Smart Backup
	System Information Viewer
	USB Blocker
	2. Support for Q-Flash
	3. Support for Smart Switch
	4. Support for Xpress Install
Bundled Software	1. NortonÆ Internet Security (OEM version)
	2. cFosSpeed
Operating System	1. WindowsÆ 10 64-bit (for 7th Generation IntelÆ Processors)
	2. WindowsÆ 10 64-bit / WindowsÆ 8.1 64-bit / WindowsÆ 7 32-bit / 64-bits (for 6th Generation IntelÆ Processors)
	* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
Form Factor	1. Micro ATX Form Factor; 22.6cm x 17.4cm
