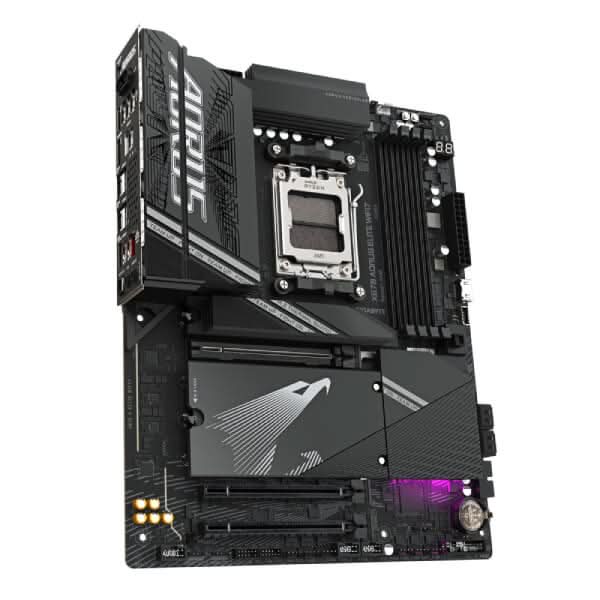

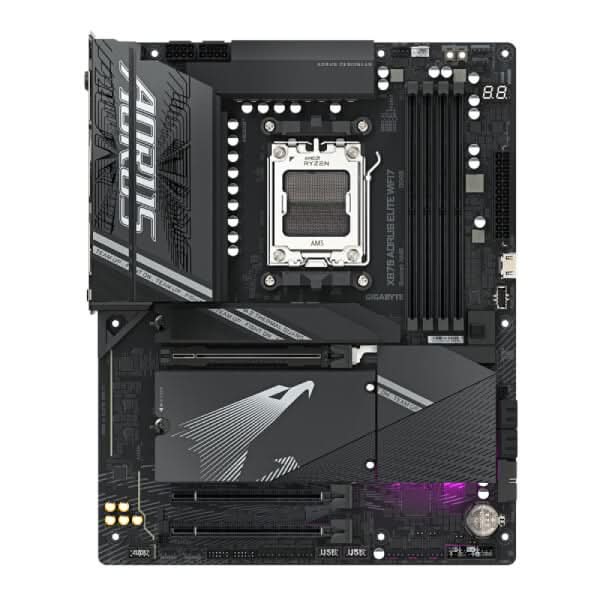

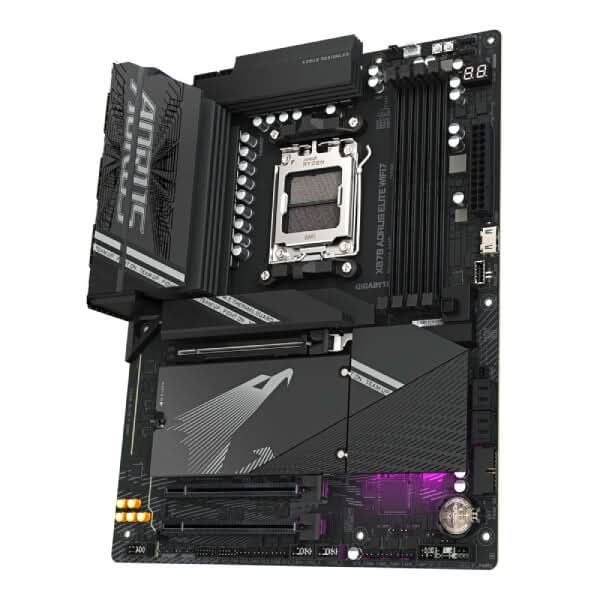

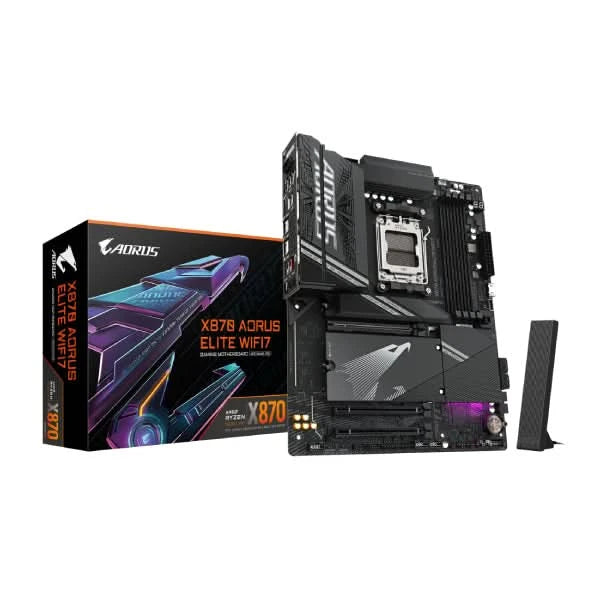

Gigabyte X870 Aorus Elite WIFI7 Motherboard

Features:

• AMD Socket AM5：Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 16+2+2 phases VRM solution
• Dual Channel DDR5：4*DIMMs with AMD EXPO Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M.2 heatsinks with screwless design
• Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
• Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
• Reliable Audio: Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
• PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card

  Motherboard
  Platform	AMD
  Socket	AM5
  CPU Type	Ryzen 9000,Ryzen 8000,Ryzen 7000
  Chipset	X870
  Memory Speed	up to 8200
  Max Memory Support	256 GB
  Supported Memory Type	DDR5
  Channel Supported	Dual Channel
  Memory Feature	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  Graphics Port	2 x USB4,1 x HDMI,1 x front HDMI
  Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
  Wireless Networking	WiFi 7,Bluetooth 5.4

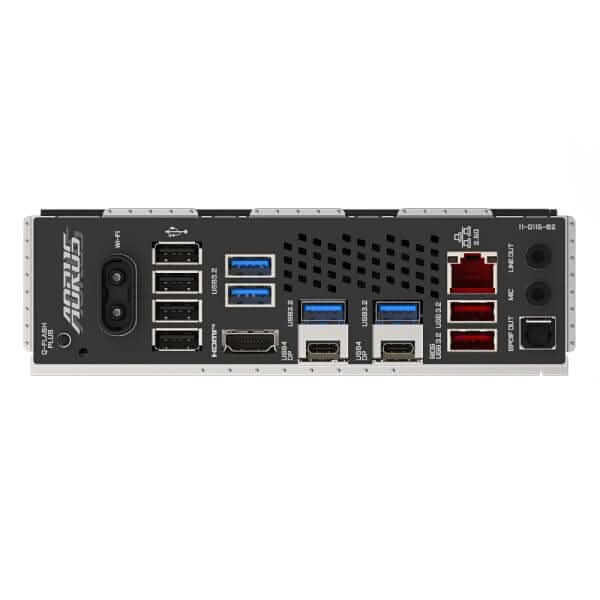

  Back Panel I/O Ports	1 x Q-Flash Plus button 1 x HDMI port (Note) 2 x antenna connectors (2T2R) 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
  Internal I/O Connector	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper
  Form Factor	ATX
  Warranty	3 Years
  Note	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
