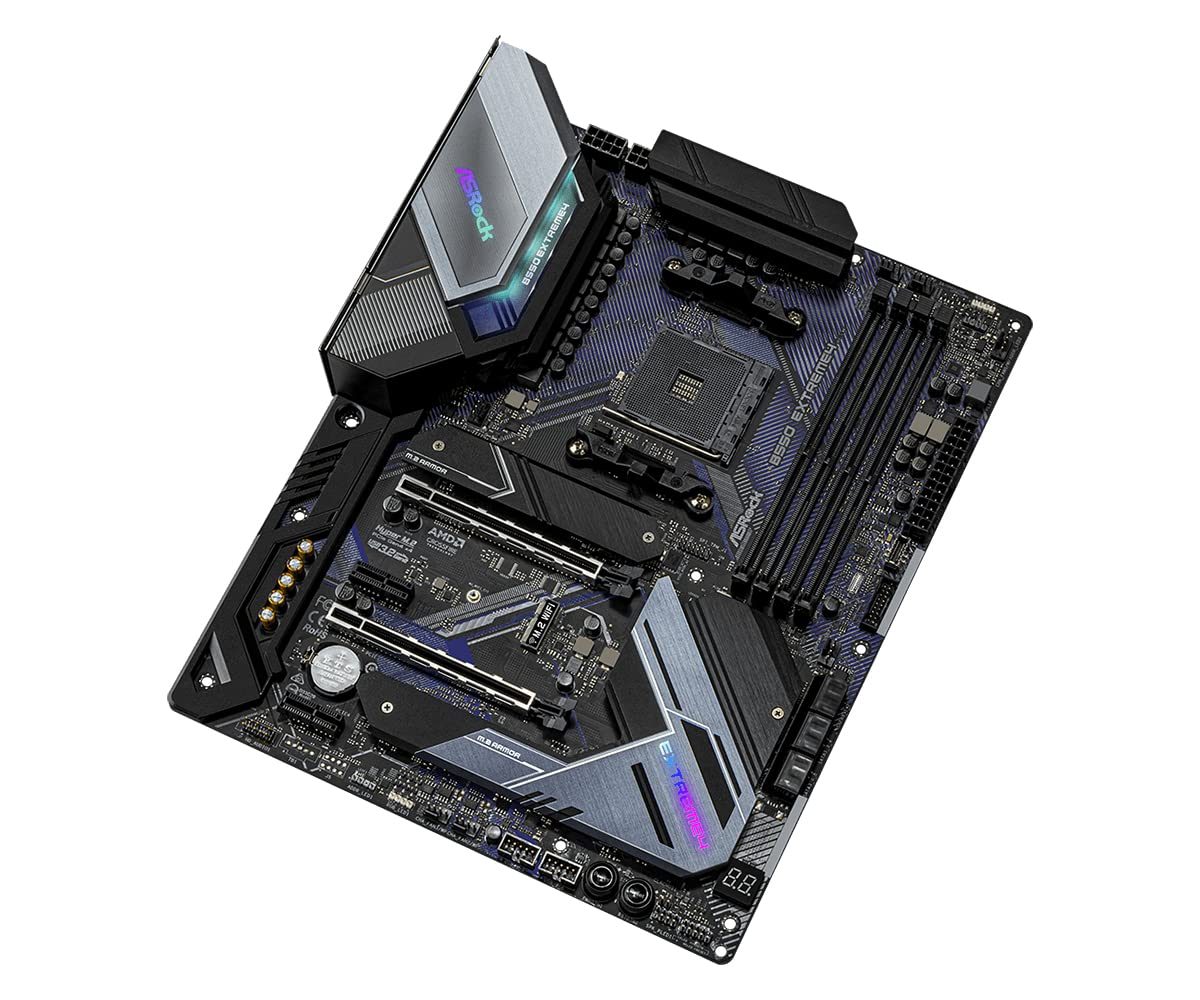

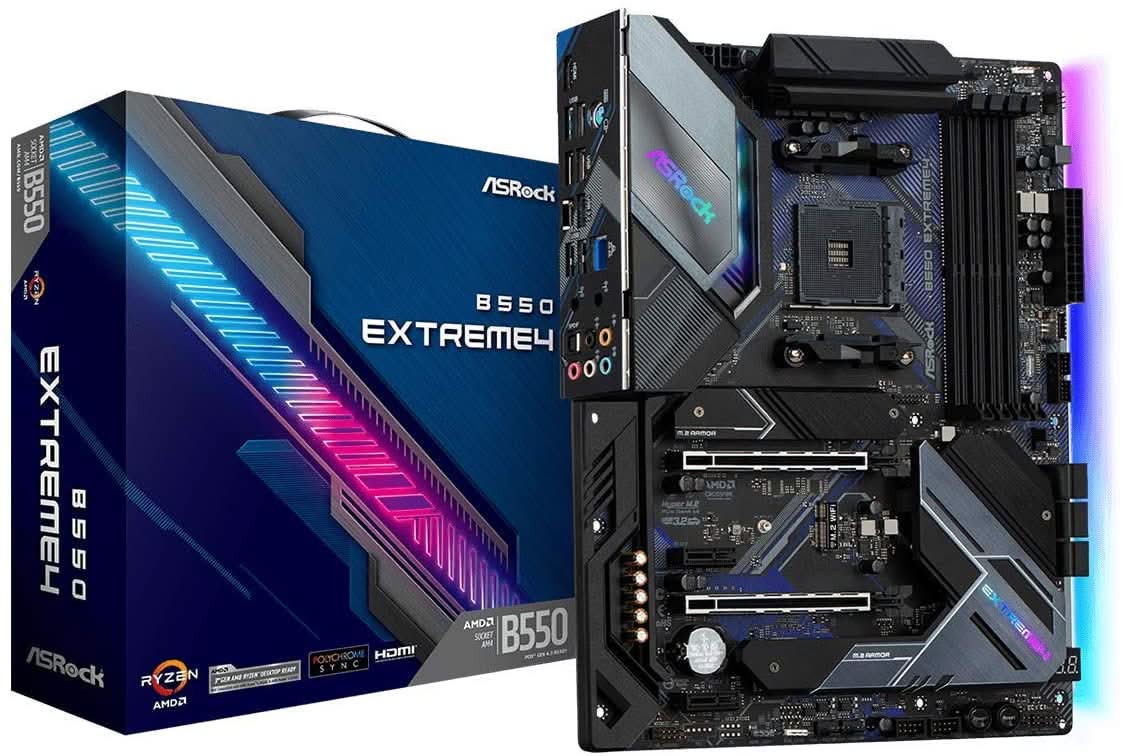

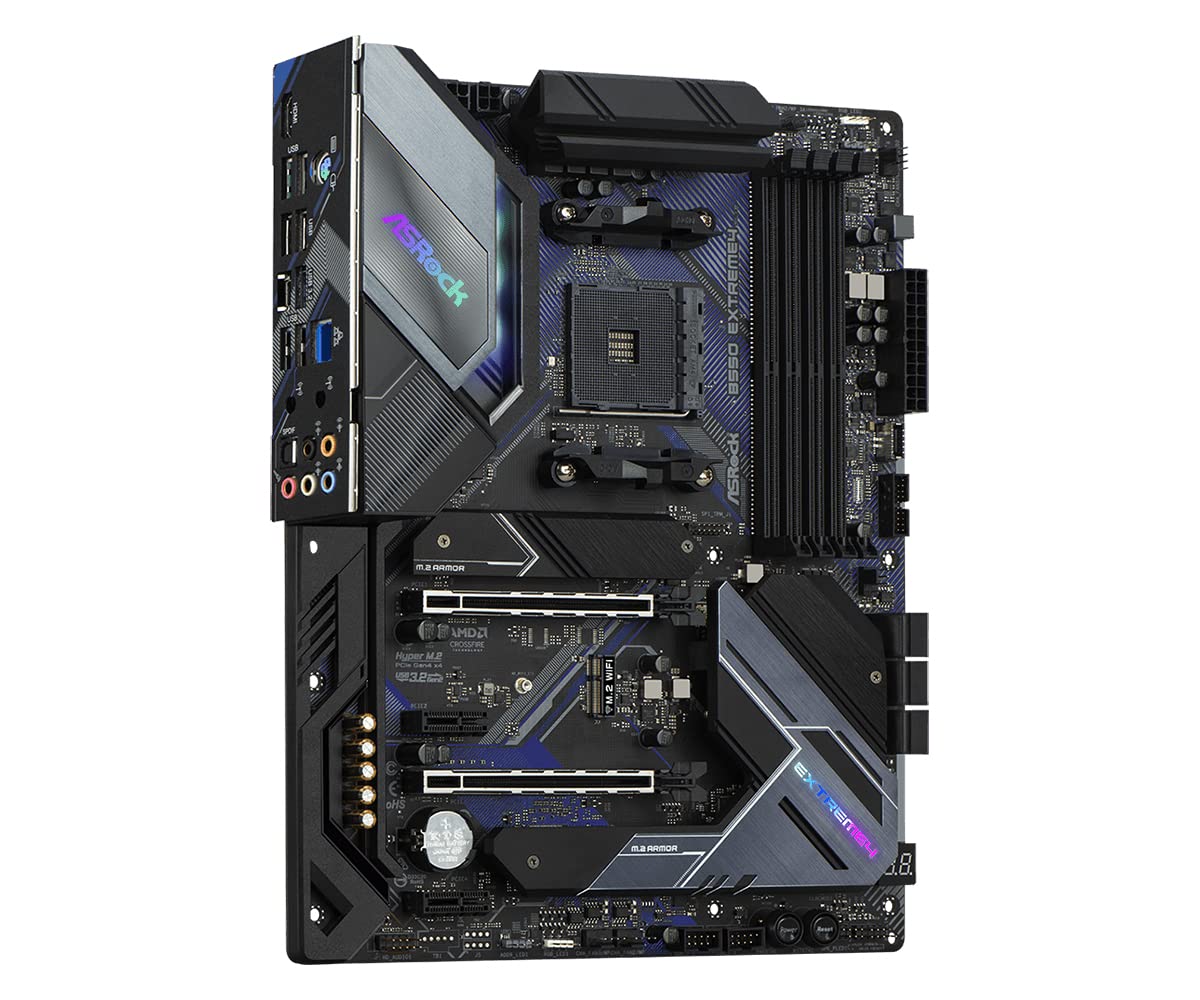

ASROCK B550 EXTREME 4 AMD AM4 MOTHERBOARD

Name: ASROCK B550 EXTREME 4 AMD AM4 MOTHERBOARD
Brand: Asrock
SKU: 101157
Price: 16990.0 INR
Availability: InStock

₹ 16,990 ₹ 24,150

Discount: ₹ 7,160 (30%)

17 people are viewing this right now

Hurry Up! Only 1 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: Jan 24 - Jan 28

Availability: In Stock Unavailable

SKU: 101157

Vendor: Asrock

Model Number: B550 EXTREME 4

Guaranteed safe & Secure checkout

Description
Shipping & Return

Specifications

Unique Feature	ASRock USB 3.2 Gen2
	- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
	- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
	ASRock Super Alloy
	- XXL Aluminum Alloy Heatsink
	- Premium 60A Power Choke
	- 50A Dr.MOS
	- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
	- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
	- I/O Armor
	- Matte Black PCB
	- High Density Glass Fabric PCB
	- 2oz Copper PCB
	2.5G LAN
	ASRock Steel Slot Gen4
	ASRock Full Coverage M.2 Heatsink
	ASRock Hyper M.2 (PCIe Gen4x4)
	ASRock Ultra USB Power
	ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
	ASRock Live Update & APP Shop

CPU	- Supports AMD AM4 Socket Ryzenô 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
	- Digi Power design
	- 14 Power Phase design

Chipset	- AMD B550
Memory	- Dual Channel DDR4 Memory Technology
	- 4 x DDR4 DIMM Slots
	- AMD Ryzen series CPUs (Vermeer) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	- AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	- AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	- AMD Ryzen series APUs (Picasso) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
	- Max. capacity of system memory: 128GB**
	- Supports Extreme Memory Profile (XMP) memory modules
	- 15? Gold Contact in DIMM Slots
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
	- Supports "Plug and Play"
	- ACPI 5.1 compliance wake up events
	- Supports jumperfree
	- SMBIOS 2.3 support
	- CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment
Graphics	- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
	- DirectX 12, Pixel Shader 5.0
	- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
	- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
	- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
	- Supports HDR (High Dynamic Range) with HDMI 2.1
	- Supports HDCP 2.3 with HDMI 2.1 Port***
	- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
	- Supports MicrosoftÆ PlayReady
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
	- Premium Blu-ray Audio support
	- Supports Surge Protection
	- 120dB SNR DAC with Differential Amplifier
	- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
	- Pure Power-In
	- Direct Drive Technology
	- PCB Isolate Shielding
	- Impedance Sensing on Rear Out port
	- Individual PCB Layers for R/L Audio Channel
	- Gold Audio Jacks
	- 15? Gold Audio Connector
	- Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
	- Dragon RTL8125BG
	- Supports Dragon 2.5G LAN Software
	- Smart Auto Adjust Bandwidth Control
	- Visual User Friendly UI
	- Visual Network Usage Statistics
	- Optimized Default Setting for Game, Browser, and Streaming Modes
	- User Customized Priority Control
	- Supports Wake-On-LAN
	- Supports Lightning/ESD Protection
	- Supports Energy Efficient Ethernet 802.3az
	- Supports PXE
Slots	AMD Ryzen series CPUs (Vermeer and Matisse)
	- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
	AMD Ryzen series APUs (Cezanne and Renoir)
	- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*
	AMD Ryzen series APUs (Picasso)
	- 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)*
	- 2 x PCI Express 3.0 x1 Slots
	- Supports AMD Quad CrossFireXô and CrossFireXô
	- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
	- 15? Gold Contact in VGA PCIe Slot (PCIE1)
Storage	- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
	- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)**
	- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
Connector	- 1 x SPI TPM Header
	- 1 x Power LED and Speaker Header
	- 2 x RGB LED Headers*
	- 2 x Addressable LED Headers**
	- 1 x CPU Fan Connector (4-pin)***
	- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
	- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
	- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
	- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
	- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
	- 1 x Front Panel Audio Connector (15? Gold Audio Connector)
	- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
	- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
	- 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
	- 1 x Dr. Debug with LED
	- 1 x Power Button with LED
	- 1 x Reset Button with LED

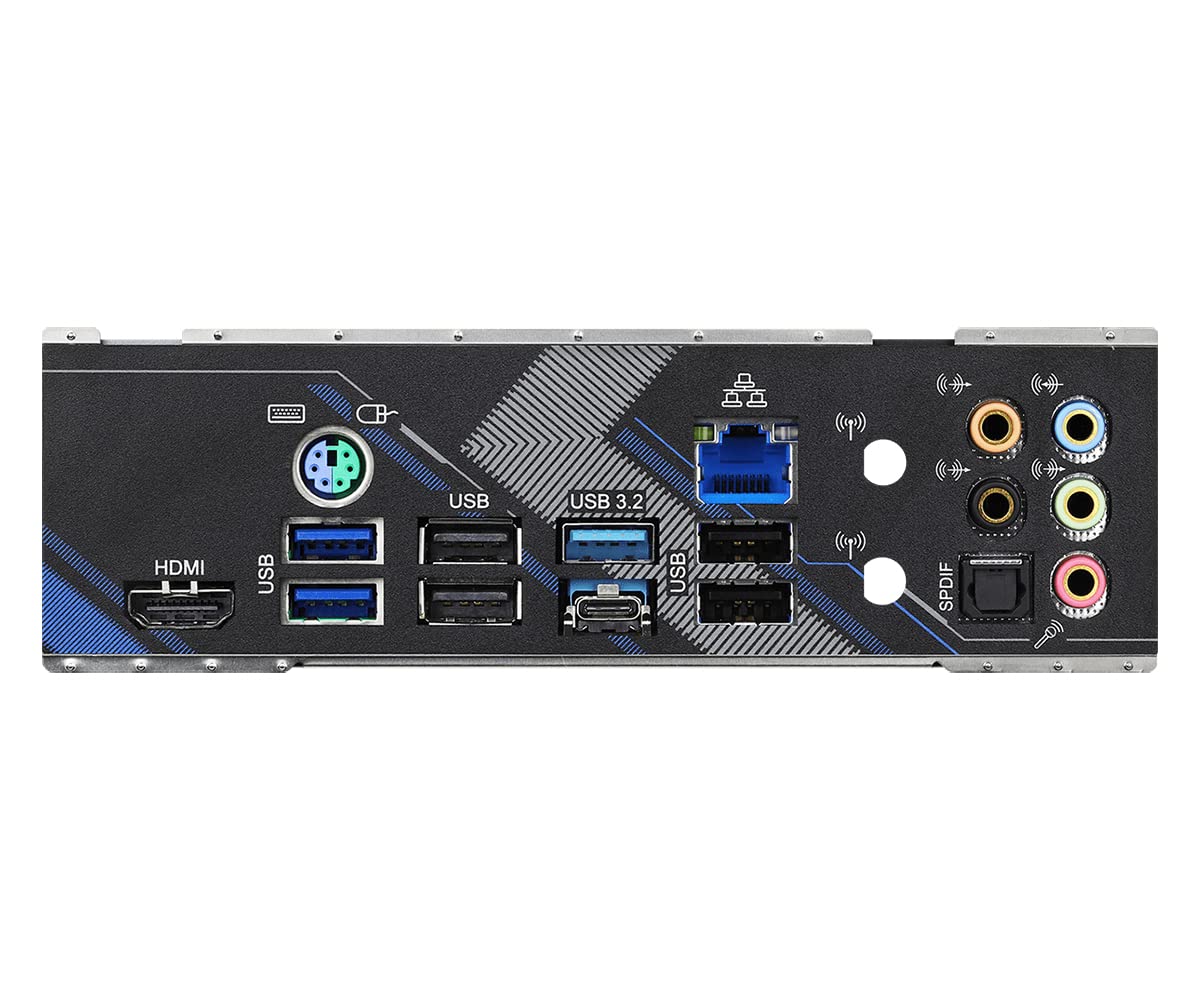

Rear Panel I/O	- 2 x Antenna Mounting Points
	- 1 x PS/2 Mouse/Keyboard Port
	- 1 x HDMI Port
	- 1 x Optical SPDIF Out Port
	- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
	- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
	- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
	- 4 x USB 2.0 Ports (Supports ESD Protection)*
	- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
	- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Software	- ASRock Motherboard Utility (A-Tuning)
	- ASRock Dragon 2.5G LAN Software
	- ASRock Polychrome SYNC*
UEFI	- ASRock Full HD UEFI
	- ASRock Instant Flash
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	- Quick Installation Guide, Support CD
	- 4 x SATA Data Cables
	- 3 x Screws for M.2 Sockets
	- 2 x Standoffs for M.2 Sockets
Hardware Monitor	- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
	- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
	- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
	- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
	- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, CPU VDD 1.8V
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
	- 2oz Copper PCB
OS	- MicrosoftÆ WindowsÆ 10 64-bit / 11 64-bit
Certifications	- FCC, CE
	- ErP/EuP ready (ErP/EuP ready power supply is required)
