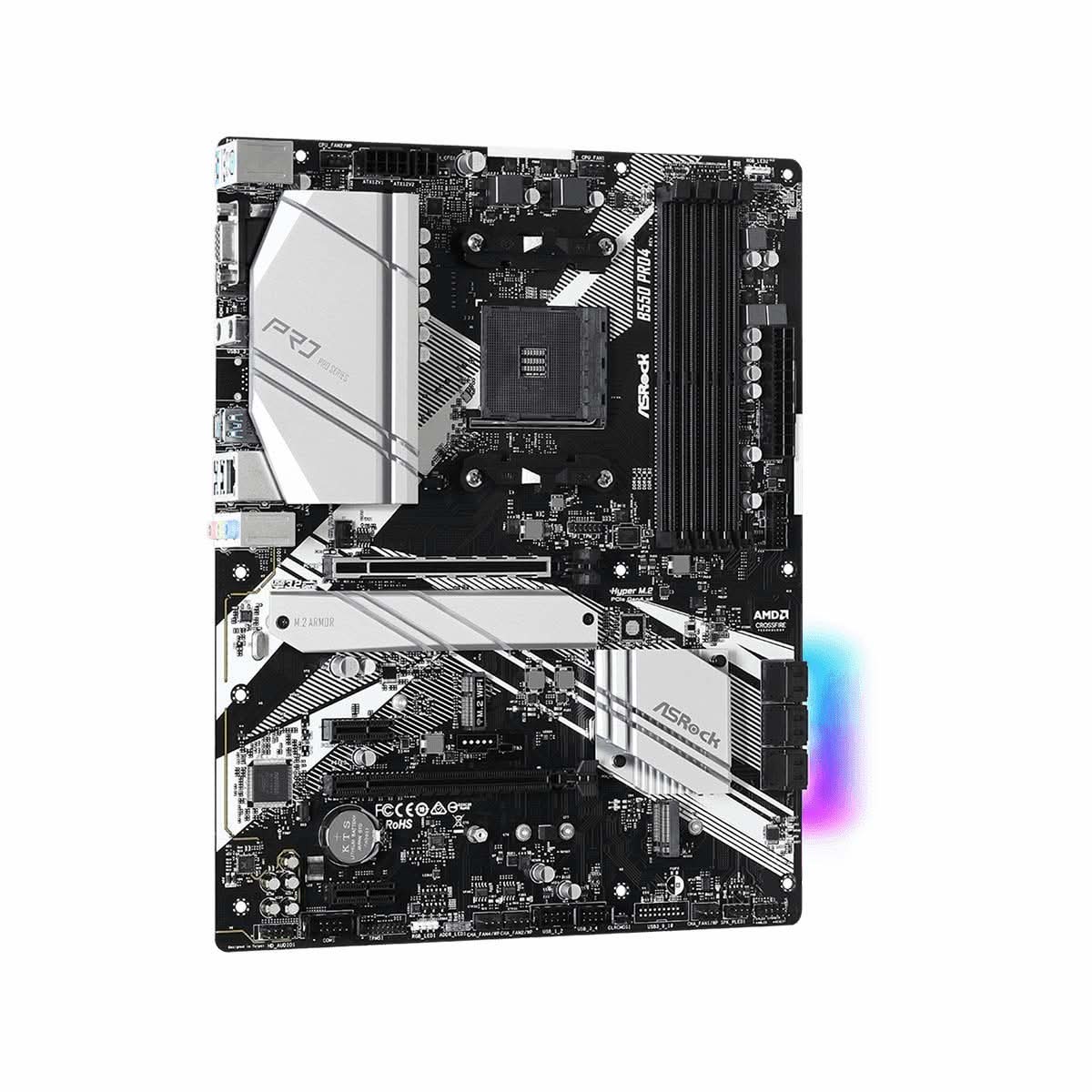

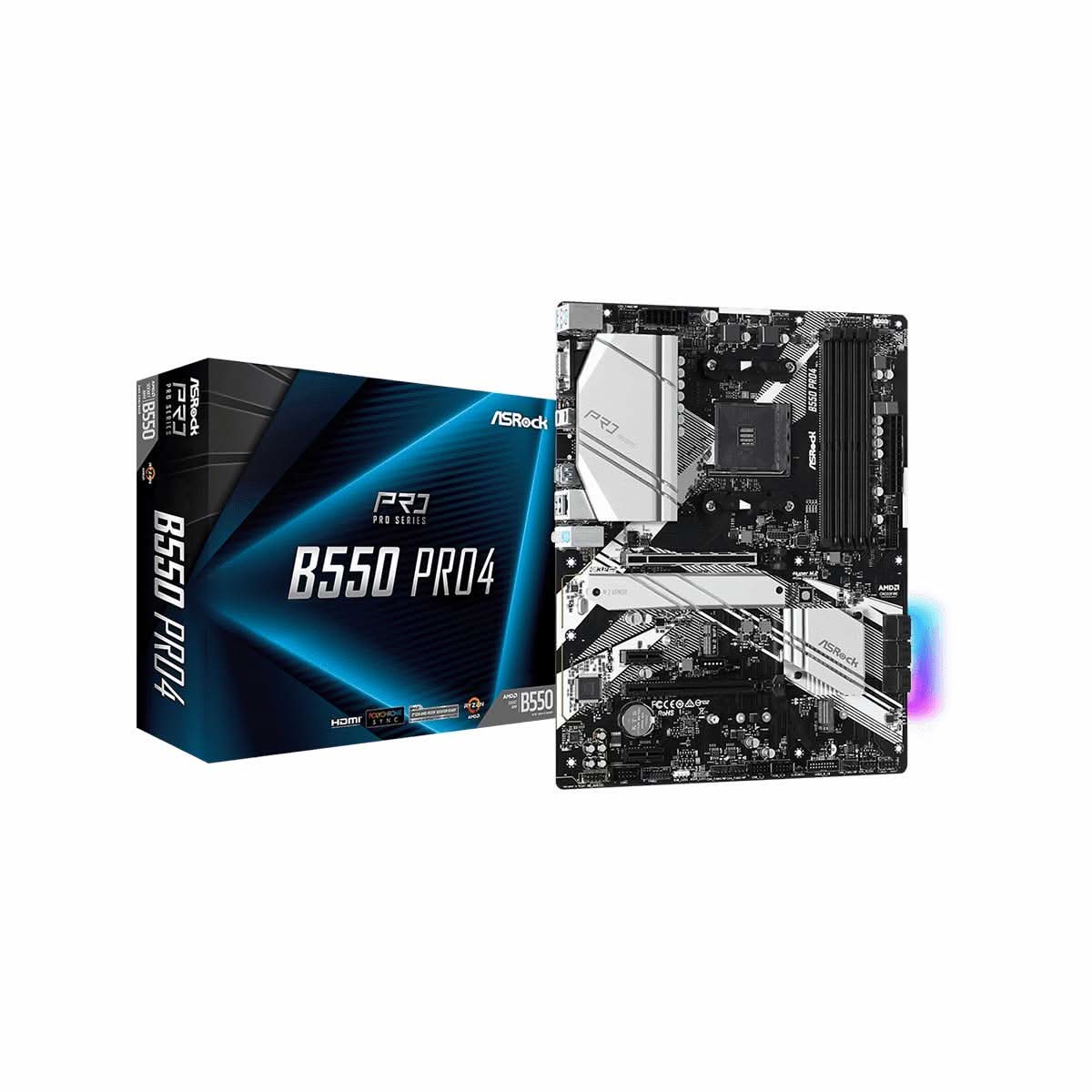

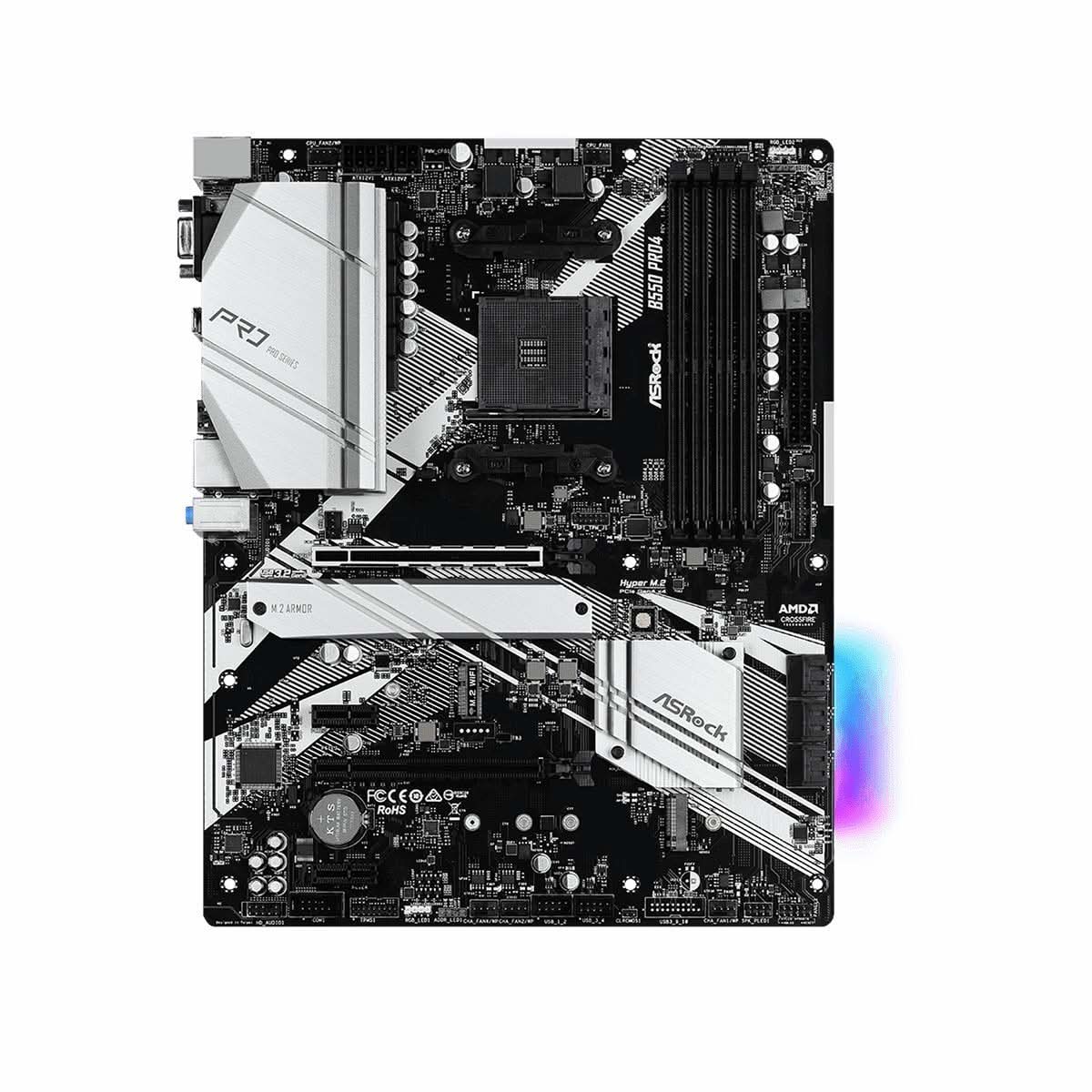

ASROCK B550 PRO 4 AMD AM4 MOTHERBOARD

Name: ASROCK B550 PRO 4 AMD AM4 MOTHERBOARD
Brand: Asrock
SKU: 101159
Price: 12190.0 INR
Availability: InStock

₹ 12,190 ₹ 18,700

Discount: ₹ 6,510 (35%)

24 people are viewing this right now

Hurry Up! Only 1 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: Jan 24 - Jan 28

Availability: In Stock Unavailable

SKU: 101159

Vendor: Asrock

Model Number: ASROCK-B550-PRO4

Guaranteed safe & Secure checkout

Description
Shipping & Return

Specifications

Unique Feature	ASRock USB 3.2 Gen2
	- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
	- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
	ASRock Super Alloy
	- XXL Aluminum Alloy Heatsink
	- Premium 50A Power Choke
	- Sapphire Black PCB
	- High Density Glass Fabric PCB
	- 2oz Copper PCB
	ASRock Steel Slot Gen4
	ASRock Full Coverage M.2 Heatsink
	ASRock Hyper M.2 (PCIe Gen4x4)
	ASRock POST Status Checker (PSC)
	ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
	ASRock Live Update & APP Shop
CPU	- Supports AMD AM4 Socket Ryzenô 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
	- Digi Power design
	- 8 Power Phase design
Chipset	- AMD B550
Memory	- Dual Channel DDR4 Memory Technology
	- 4 x DDR4 DIMM Slots
	- AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	- AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	- AMD Ryzen series APUs (Picasso) support DDR4 3400+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
	- Supports "Plug and Play"
	- ACPI 5.1 compliance wake up events
	- Supports jumperfree
	- SMBIOS 2.3 support
	- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
Graphics	- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
	- DirectX 12, Pixel Shader 5.0
	- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
	- Dual graphics output: support HDMI and D-Sub ports by independent display controllers
	- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
	- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
	- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
	- Supports HDR (High Dynamic Range) with HDMI 2.1
	- Supports HDCP 2.3 with HDMI 2.1 Port***
	- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
	- Supports MicrosoftÆ PlayReady
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
	- Premium Blu-ray Audio support
	- Supports Surge Protection
	- PCB Isolate Shielding
	- Individual PCB Layers for R/L Audio Channel
	- Nahimic Audio
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
	- Realtek RTL8111H
	- Supports Wake-On-LAN
	- Supports Lightning/ESD Protection
	- Supports Energy Efficient Ethernet 802.3az
	- Supports PXE
Slots	AMD Ryzen series CPUs (Vermeer and Matisse)
	- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
	AMD Ryzen series APUs (Cezanne and Renoir)
	- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*
	AMD Ryzen series APUs (Picasso)
	- 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)*

	- 2 x PCI Express 3.0 x1 Slots
	- Supports AMD Quad CrossFireXô and CrossFireXô
	- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage	- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
	- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)**
	- 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
Connector	- 1 x COM Port Header
	- 1 x SPI TPM Header
	- 1 x Power LED and Speaker Header
	- 2 x RGB LED Headers*
	- 2 x Addressable LED Headers**
	- 1 x CPU Fan Connector (4-pin)***
	- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
	- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
	- 1 x 24 pin ATX Power Connector
	- 1 x 8 pin 12V Power Connector
	- 1 x 4 pin 12V Power Connector
	- 1 x Front Panel Audio Connector
	- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
	- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
	CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.

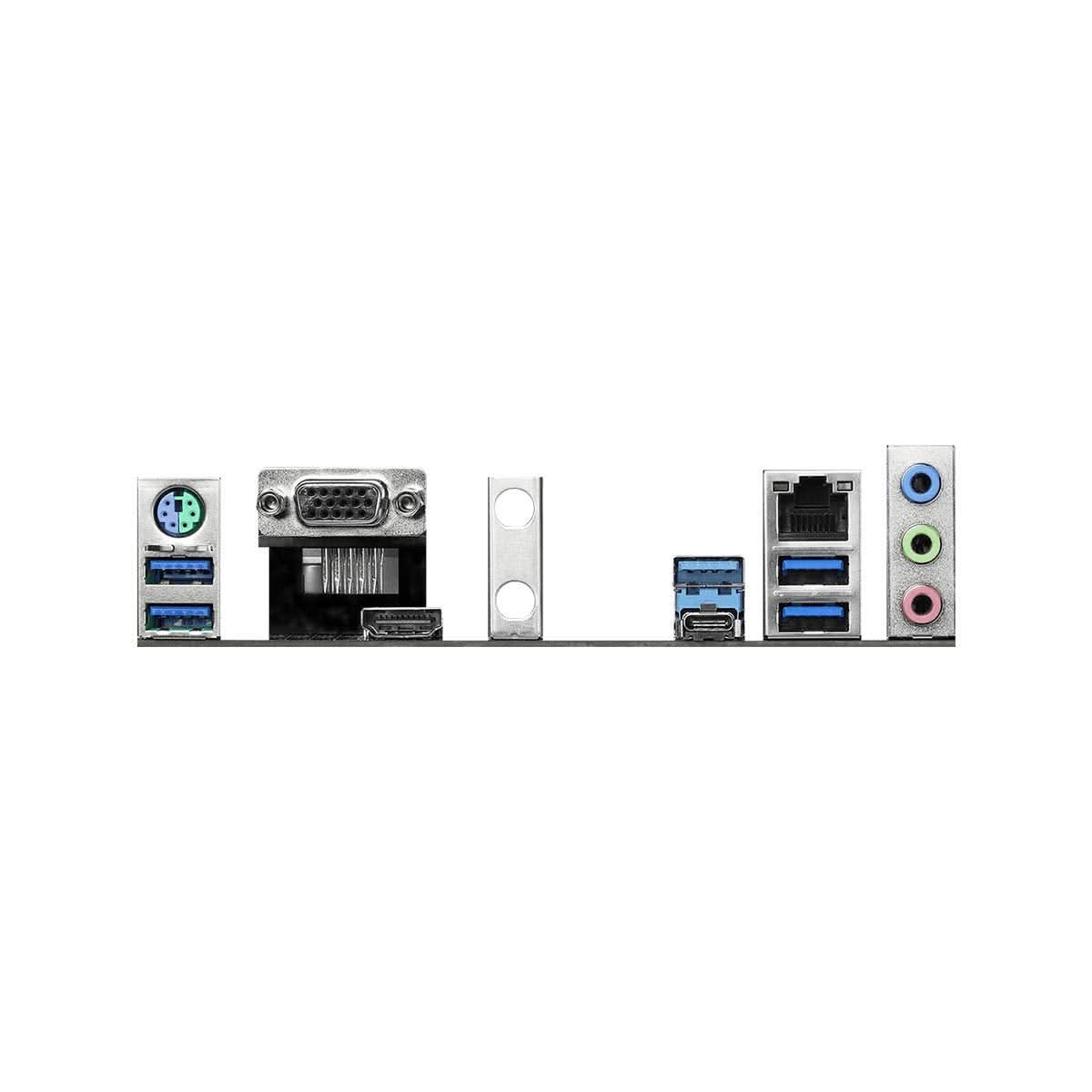

Rear Panel I/O	- Antenna Bracket
	- 1 x PS/2 Mouse/Keyboard Port
	- 1 x D-Sub Port
	- 1 x HDMI Port
	- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
	- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
	- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
	- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
	- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software	- ASRock Motherboard Utility (A-Tuning)
	- ASRock Polychrome SYNC
	- ASRock XFast LAN
UEFI	- ASRock Full HD UEFI
	- ASRock Instant Flash
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	- Quick Installation Guide, Support CD, I/O Shield
	- 2 x SATA Data Cables
	- 3 x Screws for M.2 Sockets
	- 1 x Standoff for M.2 Socket
Hardware Monitor	- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
	- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
	- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
	- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
	- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
	- Solid Capacitor design
	- 2oz Copper PCB
OS	- MicrosoftÆ WindowsÆ 10 64-bit / 11 64-bit
Certifications	- FCC, CE
	- ErP/EuP ready (ErP/EuP ready power supply is required)
