SKU: 107148

Vendor: asus

Model Number: ROG STRIX Z690-F GAMING WIFI

Guaranteed safe & Secure checkout

Checking availability...

Location Restricted This product is only available for orders within Hyderabad.

Description
Shipping & Return

Specifications

CPU	IntelÃ Socket LGA1700 for 12th Gen IntelÃ CoreÃ´, PentiumÃ Gold and CeleronÃ Processors
	Supports IntelÃ Turbo Boost Technology 2.0 and IntelÃ Turbo Boost Max Technology 3.0**
	* Refer to www.asus.com for CPU support list.
	** IntelÃ Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Z690
Memory	4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports IntelÃ Extreme Memory Profile (XMP)
	OptiMem II
	* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics	1 x DisplayPort**
	1 x HDMIÃ***
	* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	** Support 8K@60Hz as specified in DisplayPort 1.4
	*** Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	IntelÃ 12th Gen Processors*
	1 x PCIe 5.0 x16 slot
	- IntelÃ 12th support PCIe 5.0 x16 mode
	IntelÃ Z690 Chipset
	1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode)
	1 x PCIe 3.0 x1 slot
	* Please check PCIe bifurcation table in support site.
Storage	IntelÃ12th Gen Processors*
	M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	IntelÃ Z690 Chipset**
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)***
	6 x SATA 6Gb/s ports****
	* IntelÃ Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
	** IntelÃ Rapid Storage Technology supports IntelÃ Optane Memory H Series on PCH attached M.2 slots.
	*** When M.2_4 is operating in SATA device, SATA6G_2 will be disabled.
	**** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.
Ethernet	1 x IntelÃ 2.5Gb Ethernet
Wireless & Bluetooth	IntelÃ Wi-Fi 6E
	Wi-Fi 6E
	2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
	Supports 2.4/5/6GHz frequency band*
	Bluetooth v5.2 hardware ready**
	* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
	** Bluetooth v5.2 function will be ready in Windows 11 or later.
USB	Rear USB:Total 10 ports
	1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÃ)
	3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-CÃ)
	4 x USB 3.2 Gen 1 ports (4 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	Front USB:Total 7 ports
	Front USB (Total 7 ports)
	1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÃ)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
	- Impedance sense for front and rear headphone outputs
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
	- Supports up to 32-Bit/384 kHz playback"
	Audio Features
	- SupremeFX Shielding Technology
	- ALC4080 + Savitech SV3H712 AMP
	- Gold-plated audio jacks
	- Rear optical S/PDIF out port
	- Premium audio capacitors
	- Audio cover
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	5 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V Power connector
	Storage related
	4 x M.2 slots (Key M)
	6 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 2x2 connector (supports USB Type-CÃ)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x AURA RGB header
	1 x BMC header
	1 x CPU Over Voltage jumper
	1 x Front Panel Audio header (AAFP)
	1 x SPI TPM header (14-1pin)
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thermal Sensor header
	1 x Thunderbolt header
Special Features	Extreme Engine Digi+
	- 5K Black Metallic Capacitors
	ASUS Q-Design
	- M.2 Q-Latch
	- PCIe Slot Q-Release
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink backplate
	- M.2 heatsink
	ASUS EZ DIY
	- BIOS FlashBackÃ´ button
	- BIOS FlashBackÃ´ LED
	- Clear CMOS button
	-CPU Socket lever protector
	- ProCool II
	- Pre-mounted I/O shield
	- SafeSlot
	- SafeDIMM
	AURA Sync
	- AURA RGB header
	- Addressable Gen 2 RGB headers
	ASUS HYDRANODE
	- 1 x Chassis fan support* (CHA_FAN1P)
	* Visit ASUS Website for the latest compatibility list.
	TPM header
Software Features	ROG Exclusive Software
	- ROG CPU-Z
	- GameFirst VI
	- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
	- Sonic Radar III
	- DTSÃ Sound Unbound
	- Anti-virus software
	ASUS Exclusive Software
	Armoury Crate
	- AIDA64 Extreme (60 days free trial)
	- AURA Creator
	- AURA Sync
	- Fan Xpert 4
	- Two-Way AI Noise Cancelation
	AI Suite 3
	- 5-Way Optimization with AI Overclocking
	TPU
	EPU
	DIGI+ VRM
	Turbo app
	MyAsus
	WinRAR
	UEFI BIOS
	AI Overclocking Guide
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	FlexKey
	MemTest86
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

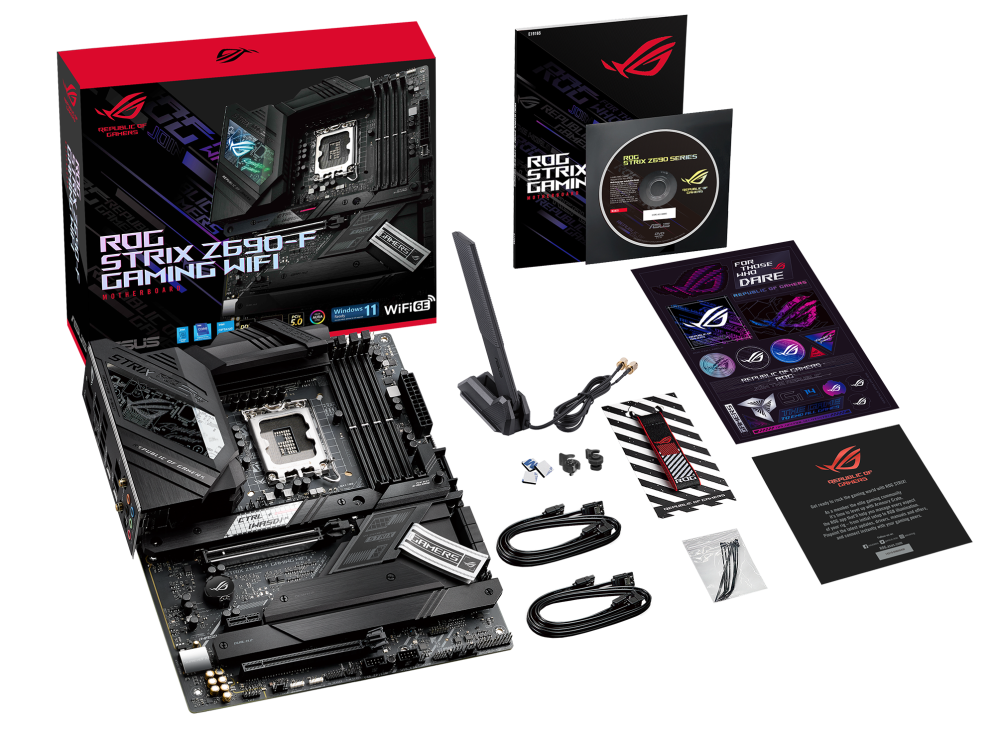

Accessories	Cables
	4 x SATA 6Gb/s cables
	Miscellaneous
	1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
	1 x M.2 Q-Latch package
	1 x M.2 Q-Latch package for M.2 backplate
	2 x M.2 Rubber Packages
	1 x ROG key chain
	1 x cable tie
	1 x ROG STRIX stickers
	1 x ROG STRIX thank you card
	Installation Media
	1 x Support DVD
	Documentation
	1 x User manual
Operating System	WindowsÃ11 64-bit,WindowsÃ1064-bit
Form Factor	ATX
	30.5cm x 24.4cm
