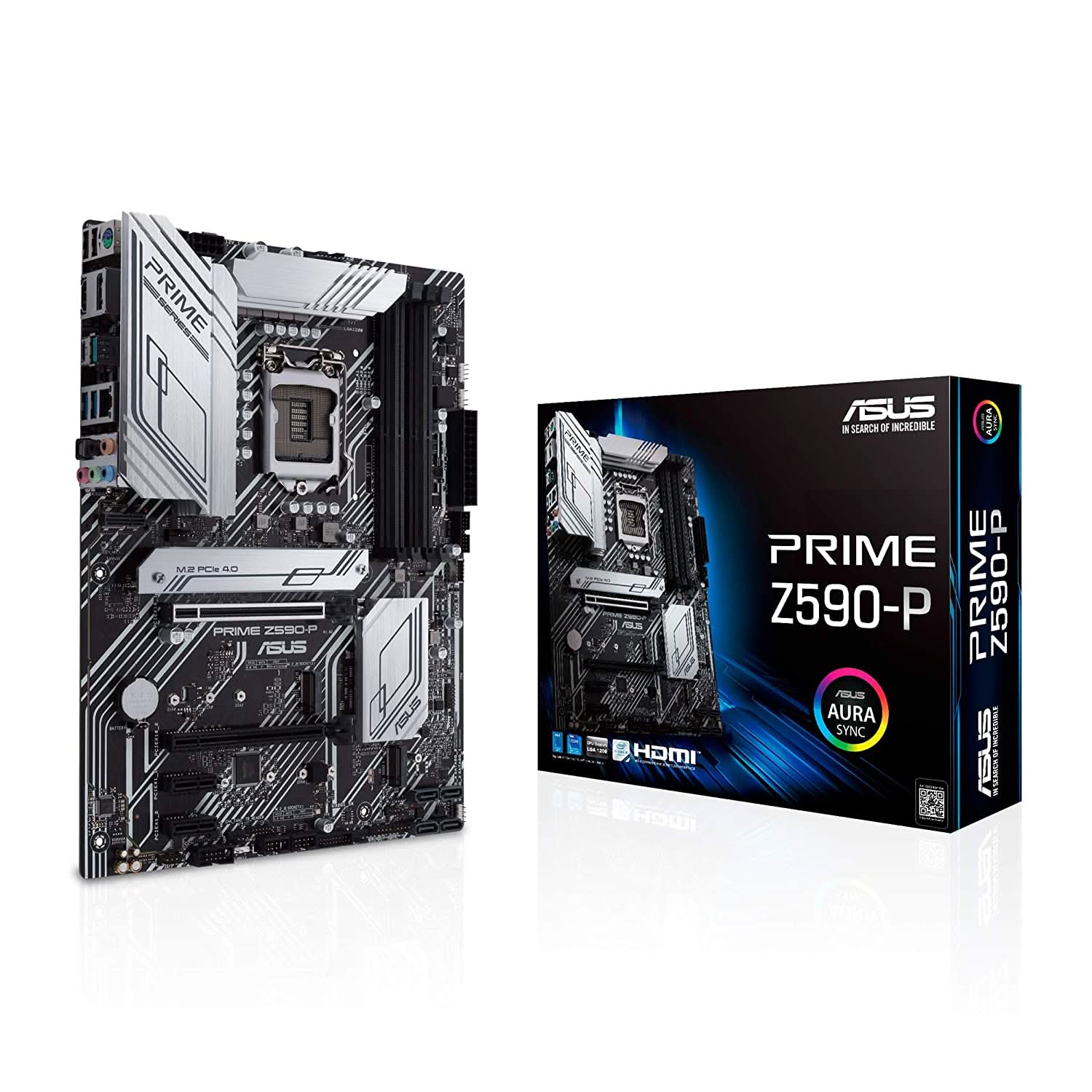

ASUS Z590-P PRIME DDR4 INTEL LGA1200 MOTHERBOARD

Name: ASUS Z590-P PRIME DDR4 INTEL LGA1200 MOTHERBOARD
Price: 20,100 INR
Availability: InStock

₹ 20,100 ₹ 26,000

Discount: ₹ 5,900 (23%)

10 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Dispatch: 24 - 48hrs

Availability: In Stock Unavailable

SKU: 107459

Vendor: Asus

Model Number: PRIME Z590-P

Guaranteed safe & Secure checkout

Description
Shipping & Return

Features

Intel LGA 1200 socket: Ready for 11th and 10th gen Intel Core processors

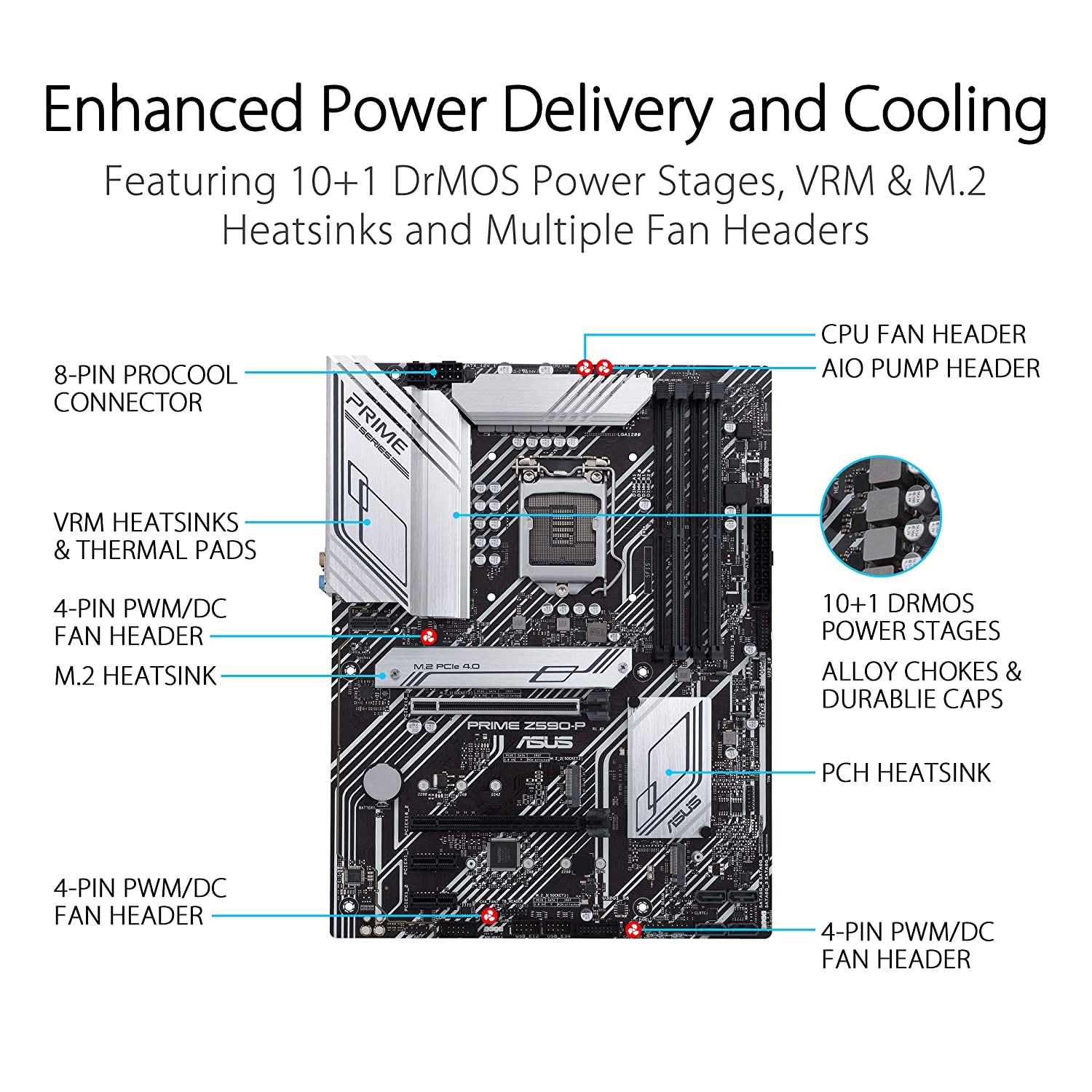

Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Next-gen connectivity: PCIe 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2◊2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support

Specifications

CPU	Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors*
	Supports Intel 14 nm CPU
	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
	* Refer to www.asus.com for CPU support list.
	** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel Z590 Chipset

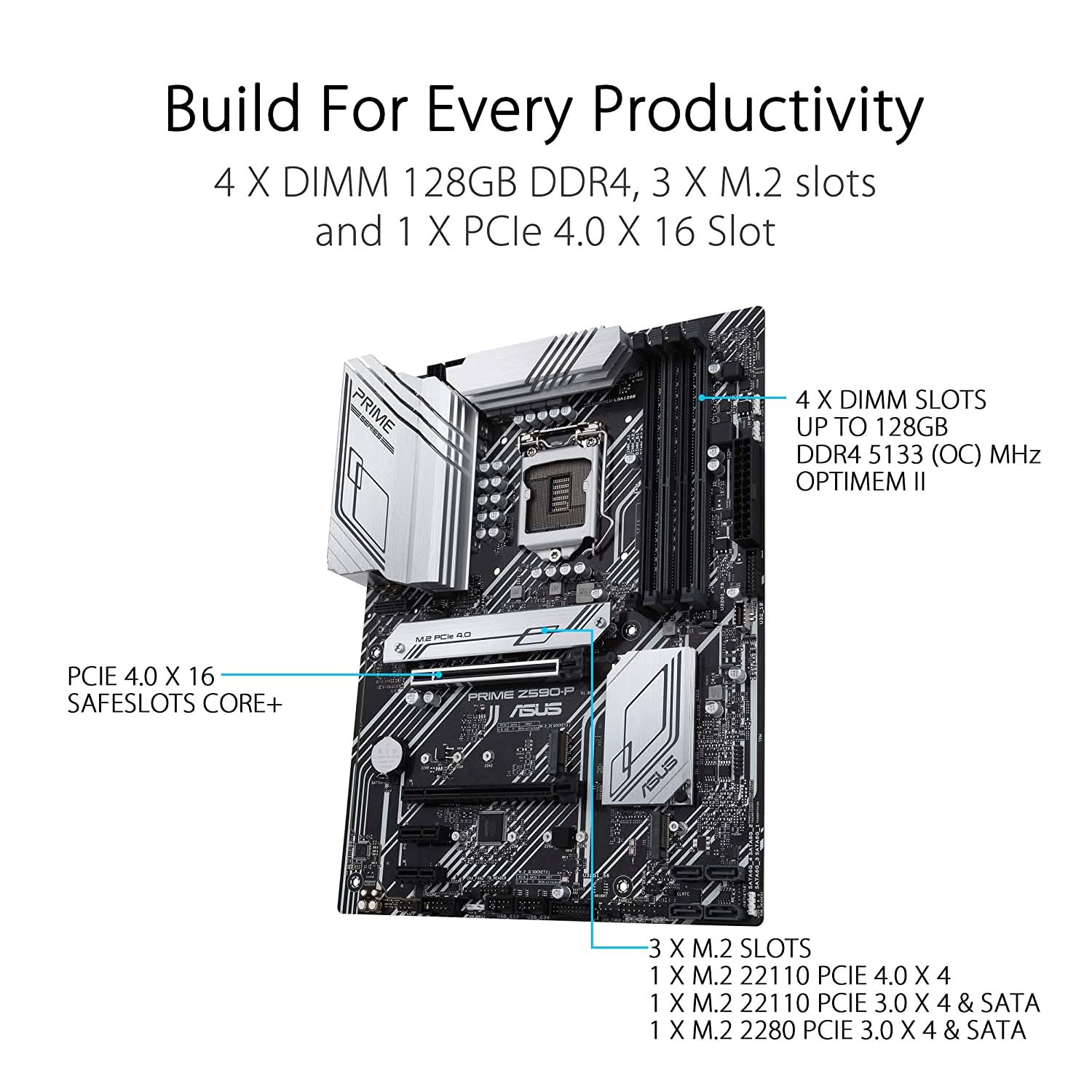

Memory	4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports Intel Extreme Memory Profile (XMP)
	OptiMem II
	* 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
	* 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively.
	* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics	1 x DisplayPort 1.4**
	1 x HDMITM 1.4 / 2.0***
	* Graphics specifications may vary between CPU types.
	** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
	*** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Expansion Slots	Intel 11th & 10th Gen Processors*
	1 x PCIe 4.0/3.0 x16 slot
	ñ Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes
	ñ Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes
	Intel Z590 Chipset
	1 x PCIe 3.0 x16 slot (supports x4 mode)
	2 x PCIe 3.0 x1 slots
	* Supports PCIe bandwidth bifurcation for RAID on CPU function.
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
	Intel 11th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280/22110
	ñ Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
	Intel Z590 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
	4 x SATA 6Gb/s ports
	Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
	To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
	* When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
Ethernet	1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth	ìV-M.2 slot only (Key E, CNVi & PCIe)*
	* Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.î
USB	Rear USB (Total 6 ports)
	1 x USB 3.2 Gen 2◊2 port (1 x USB Type-C)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	Front USB (Total 9 ports)
	1 x USB 3.2 Gen 1 connector (supports USB Type-C)
	2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports*
	* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio	ìRealtek ALC897 7.1 Surround Sound High Definition Audio CODEC
	ñ Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	ñ Supports up to 24-Bit/192 kHz playbackî
	Audio Features
	ñ Audio Shielding
	ñ Rear optical S/PDIF out port
	ñ Premium Japanese audio capacitors
	ñ Dedicated audio PCB layers

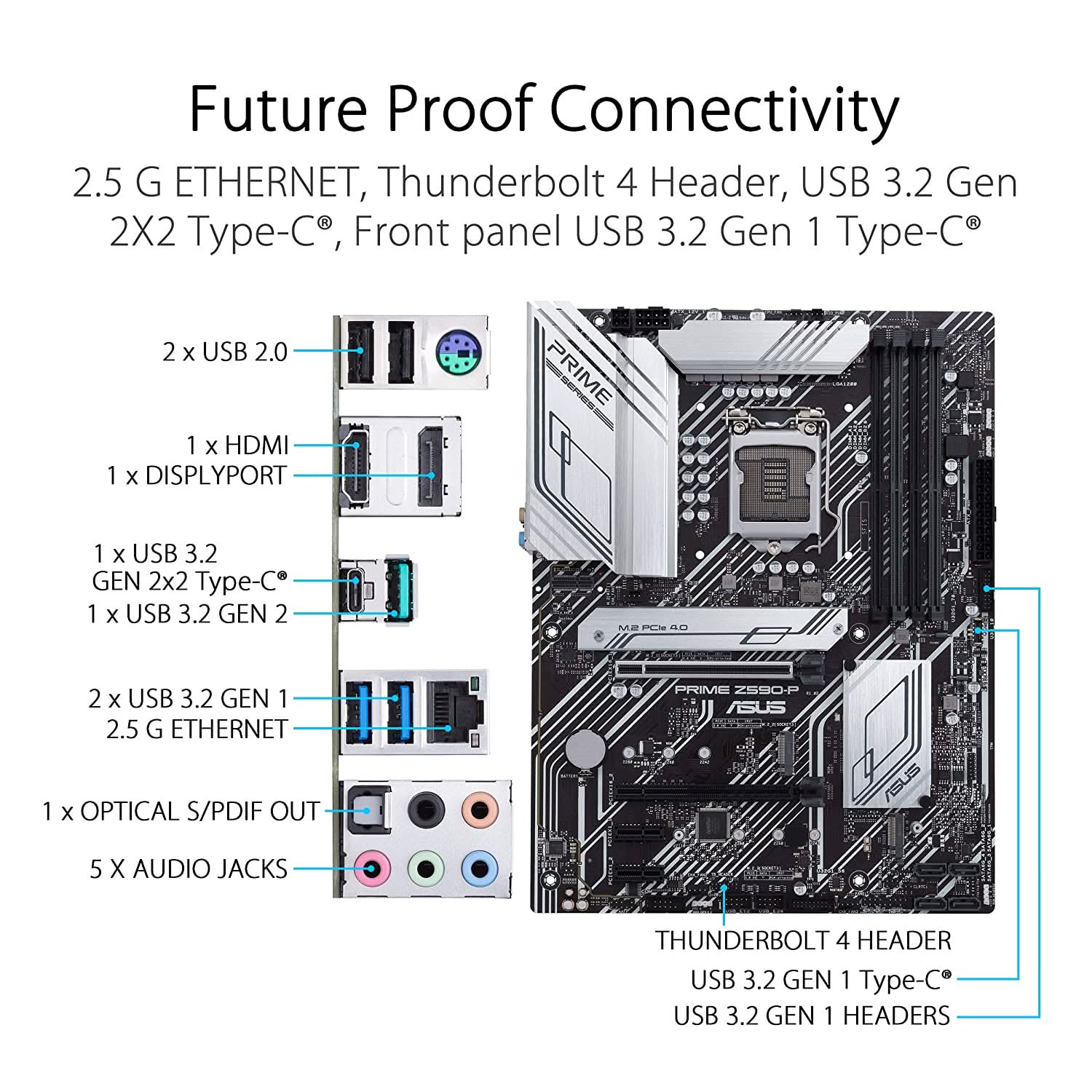

Back Panel I/O Ports	1 x USB 3.2 Gen 2◊2 port (1 x USB Type-C)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x V-M.2 slot (Key E)
	1 x Realtek 2.5Gb Ethernet port
	5 x Audio jacks
	1 x Optical S/PDIF out port
	1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	Storage related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 1 connector (supports USB Type-C)
	2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous

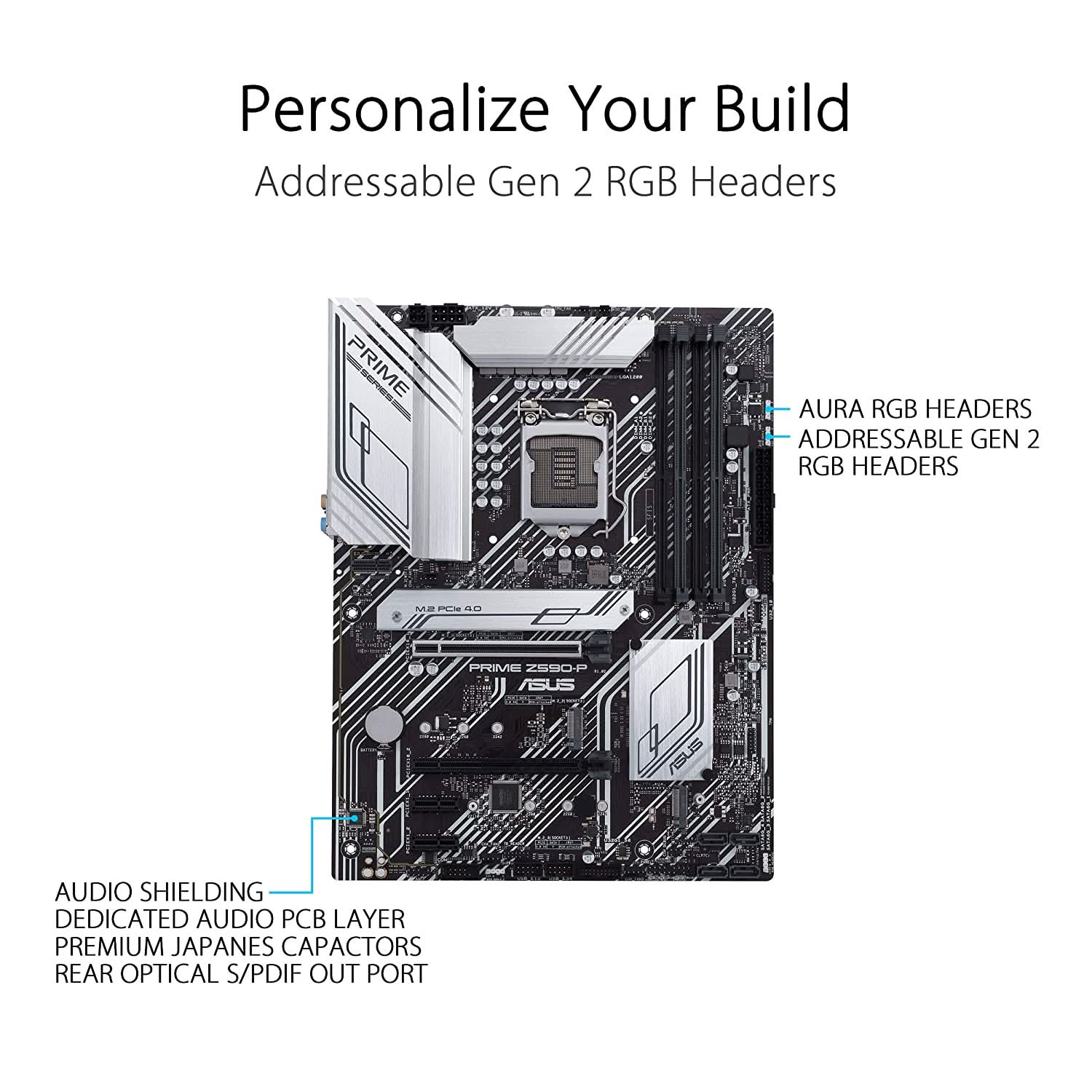

	2 x AURA Addressable Gen 2 headers
	2 x AURA RGB headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x SPI TPM header (14-1pin)
	1 x 20-5pin System Panel header
	1 x Thunderbolt header
Special Features	ASUS 5X PROTECTION III
	ñ DIGI+ VRM (- Digital power design with DrMOS)
	ñ LAN Guard
	ñ Overvoltage Protection
	ñ Safe Slot Core+
	ñ Stainless-Steel Back I/O
	ASUS Q-Design
	ñ Q-DIMM
	ñ Q-Slot
	ASUS Thermal Solution
	ñ Flexible M.2 heatsink
	ñ VRM heatsink design
	ASUS EZ DIY
	ñ ProCool
	AURA Sync
	ñ AURA RGB headers
	ñ Addressable Gen 2 RGB headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	ñ AURA Sync
	AI Suite 3
	ñ Performance And Power Saving Utility
	TurboV EVO
	EPU
	DIGI+ VRM
	Fan Xpert 4
	ñ EZ update
	ASUS CPU-Z
	AI Charger
	DAEMON Tools
	Norton Anti-virus software (Free Trial version)
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	ñ ASUS Crash Free BIOS 3
	ñ ASUS EZ Flash 3
	ñ ASUS UEFI BIOS EZ Mode
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x I/O Shield
	1 x M.2 Rubber Package
	2 x M.2 SSD screw packages
	Installation Media
	1 x Support DVD
	Documentation
	1 x User manual
Operating System	Windows 10 64bit
Product Dimensions	?30.48 x 23.37 x 5.08 cm
Weight	?1 kg 200 g

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
