ASUS Z790-P PRIME CSM DDR5 INTEL LGA1700 MOTHERBOARD

Name: ASUS Z790-P PRIME CSM DDR5 INTEL LGA1700 MOTHERBOARD
Brand: Asus
SKU: 1083175
Price: 21700.0 INR
Availability: InStock

₹ 21,700 ₹ 36,000

Discount: ₹ 14,300 (40%)

15 people are viewing this right now

Hurry Up! Only 79 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: Jan 25 - Jan 29

Availability: In Stock Unavailable

SKU: 1083175

Vendor: Asus

Guaranteed safe & Secure checkout

Description
Shipping & Return

CPU	IntelÆ Socket LGA1700 for 13th Gen IntelÆ Coreô Processors & 12th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors
CPU	Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0
Chipset	IntelÆ Z790 Chipset
Memory	4 x DIMM, Max. 128GB, DDR5 7200+/7000/6800/6600/6400/ 6200/ 6000/ 5800/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports IntelÆ Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration
Graphics	1 x DisplayPort
	1 x HDMIÆ port
	Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	IntelÆ 13th & 12th Gen Processors
	1 x PCIe 5.0 x16 slot
	IntelÆ Z790 Chipset
	3 x PCIe 4.0 x16 slots (support x4 mode)
	1 x PCIe 3.0 x1 slot
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
	* IntelÆ 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	IntelÆ Z790 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
	4 x SATA 6Gb/s ports
Ethernet	1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth	Vertical M.2 slot only (Key E, CNVi & PCIe)
Wireless & Bluetooth	Wi-Fi module is sold separately.
USB	Rear USB (Total 8 ports)
	1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	Front USB (Total 9 ports)
	1 x USB 3.2 Gen 2 connector (supports USB Type-CÆ)
	2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
	USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
	Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	Supports up to 24-Bit/192 kHz playback
	Audio Features
	Audio Shielding
	Premium audio capacitors
	Dedicated audio PCB layers
	A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

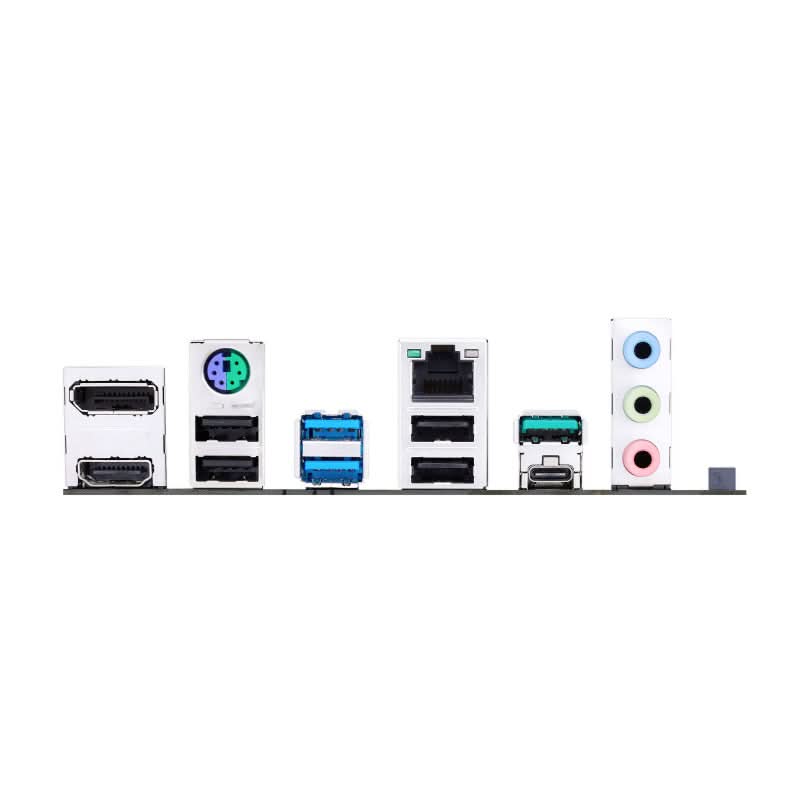

Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ)
	1 x USB 3.2 Gen 2 port (1 x Type-A)
	2 x USB 3.2 Gen 1 ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	1 x DisplayPort
	1 x HDMIÆ port
	1 x Vertical M.2 slot (Key E)
	1 x Realtek 2.5Gb Ethernet port
	3 x Audio jacks
	1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	1 x 4-pin +12V Power connector
	Storage related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 2 connector (supports USB Type-CÆ)
	2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	2 x Aura RGB headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x S/PDIF Out header
	1 x SPI TPM header (14-1pin)
	1 x 20-5pin System Panel header
	1 x Thunderboltô (USB4Æ) Header
Special Features	ASUS 5X PROTECTION III
	DIGI+ VRM (- Digital power design with DrMOS)
	LANGuard
	Overvoltage Protection
	SafeSlot Core+
	Stainless-Steel Back I/O
	ASUS Q-Design
	Q-DIMM
	Q-Slot
	Q-LED Core ASUS Thermal Solution
	Flexible M.2 heatsink
	VRM heatsink design
	ASUS EZ DIY
	ProCool Aura Sync
	Aura RGB headers
	Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	Aura Sync
	Fan Xpert 4 (with AI Cooling II)
	Power Saving AI Suite 3
	TurboV EVO
	PC Cleaner
	DIGI+ VRM
	ASUS CPU-Z
	Norton 360 Deluxe (60 Days Free Trial)
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	ASUS CrashFree BIOS 3
	ASUS EZ Flash 3
	ASUS UEFI BIOS EZ Mode
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x I/O Shield
	1 x M.2 Rubber Package
	2 x Screw packages for M.2 SSD
	Documentation
	1 x ACC Express Activation Key Card
	1 x User guide
Operating System	WindowsÆ 11, WindowsÆ 10 64-bit
Form Factor	ATX Form Factor
Form Factor	12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
