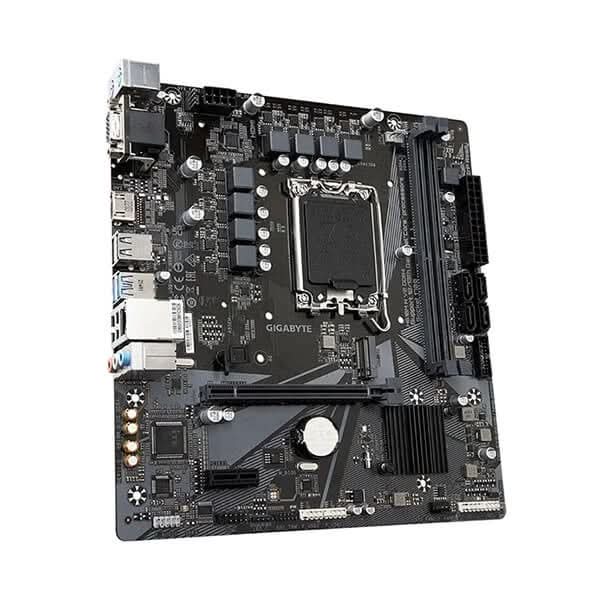

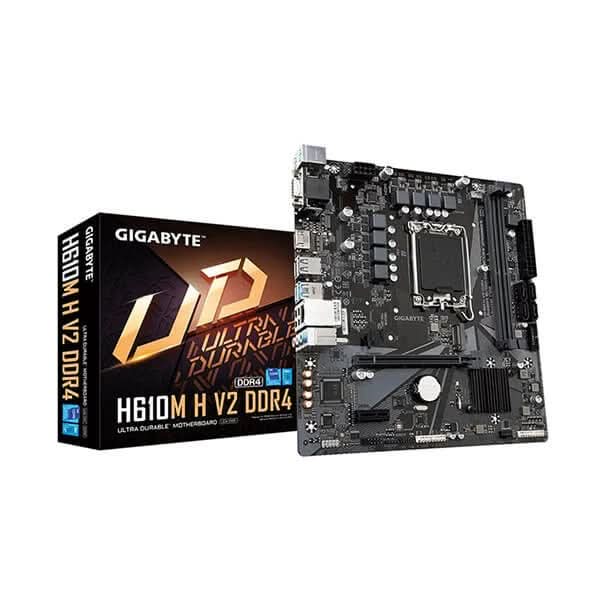

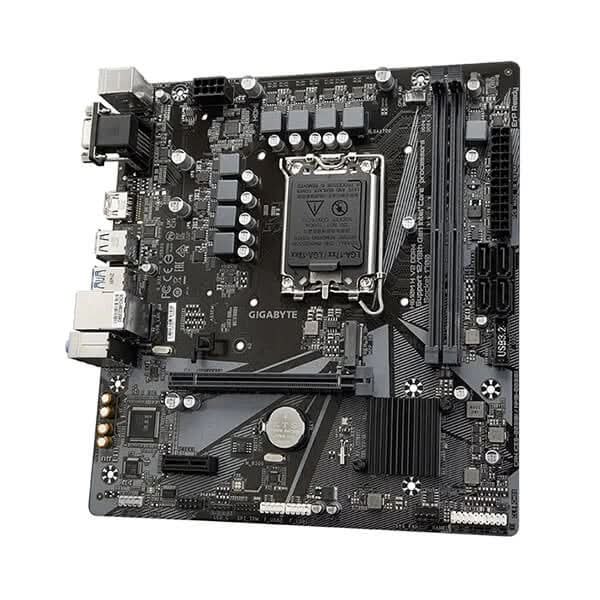

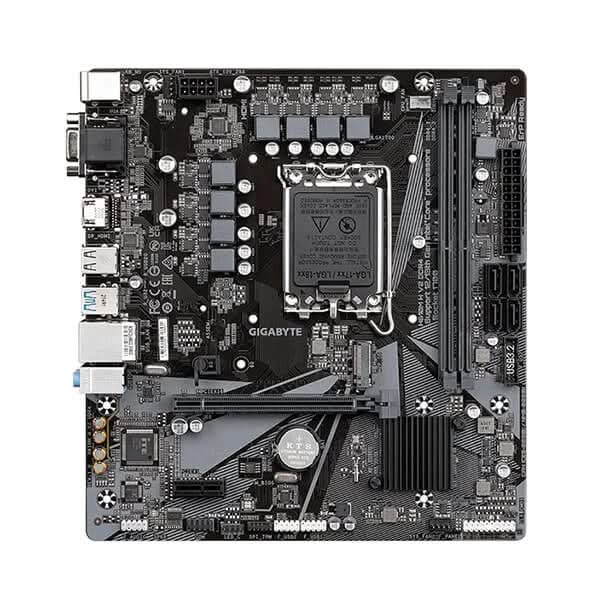

GIGABYTE GA-H610M-H V2 DDR4 INTEL LGA1700 MOTHERBOARD

Name: GIGABYTE GA-H610M-H V2 DDR4 INTEL LGA1700 MOTHERBOARD
Brand: Gigabyte
SKU: 1085543
Price: 6324.0 INR
Availability: InStock

₹ 6,324 ₹ 15,000

Discount: ₹ 8,676 (58%)

14 people are viewing this right now

Hurry Up! Only 10 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: Jan 24 - Jan 28

Availability: In Stock Unavailable

SKU: 1085543

Vendor: Gigabyte

Model Number: H610M H V2 DDR4

Guaranteed safe & Secure checkout

Description
Shipping & Return

Model	H610M H V2 DDR4
CPU	LGA1700 socket: Support for 13th Generation IntelÆ Coreô Processors and 12th Generation IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors
CPU	L3 cache varies with CPU
Chipset	IntelÆ H610 Express Chipset
Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-IntelÆ HD Graphics support:
	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	Support for HDMI 2.1 version and HDCP 2.3.
	Support native HDMI 2.1 TMDS compatible ports
Audio	RealtekÆ Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
LAN	RealtekÆ GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots	CPU:
	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
	Chipset:
	1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	Chipset:
	1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
	4 x SATA 6Gb/s connectors
USB	Chipset:
	4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	4 x USB 2.0/1.1 ports on the back panel
	Chipset+USB 2.0 Hub:
	4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	2 x system fan headers
	1 x M.2 Socket 3 connector
	4 x SATA 6Gb/s connectors
	1 x RGB LED strip header
	1 x front panel header
	1 x front panel audio header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x serial port header
	1 x Clear CMOS jumper

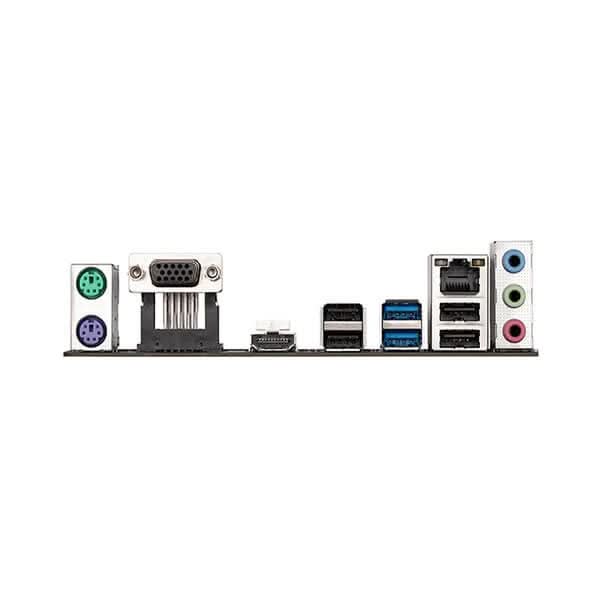

Back Panel Connectors	1 x PS/2 keyboard port
	1 x PS/2 mouse port
	1 x D-Sub port
	1 x HDMI port
	2 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTEÆ I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	Ambient LED
	EasyTune
	Smart Backup
	System Information Viewer
	Support for Q-Flash
	Support for Xpress Install
Bundled Software	NortonÆ Internet Security (OEM version)
Bundled Software	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 23.0cm x 21.5cm
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
