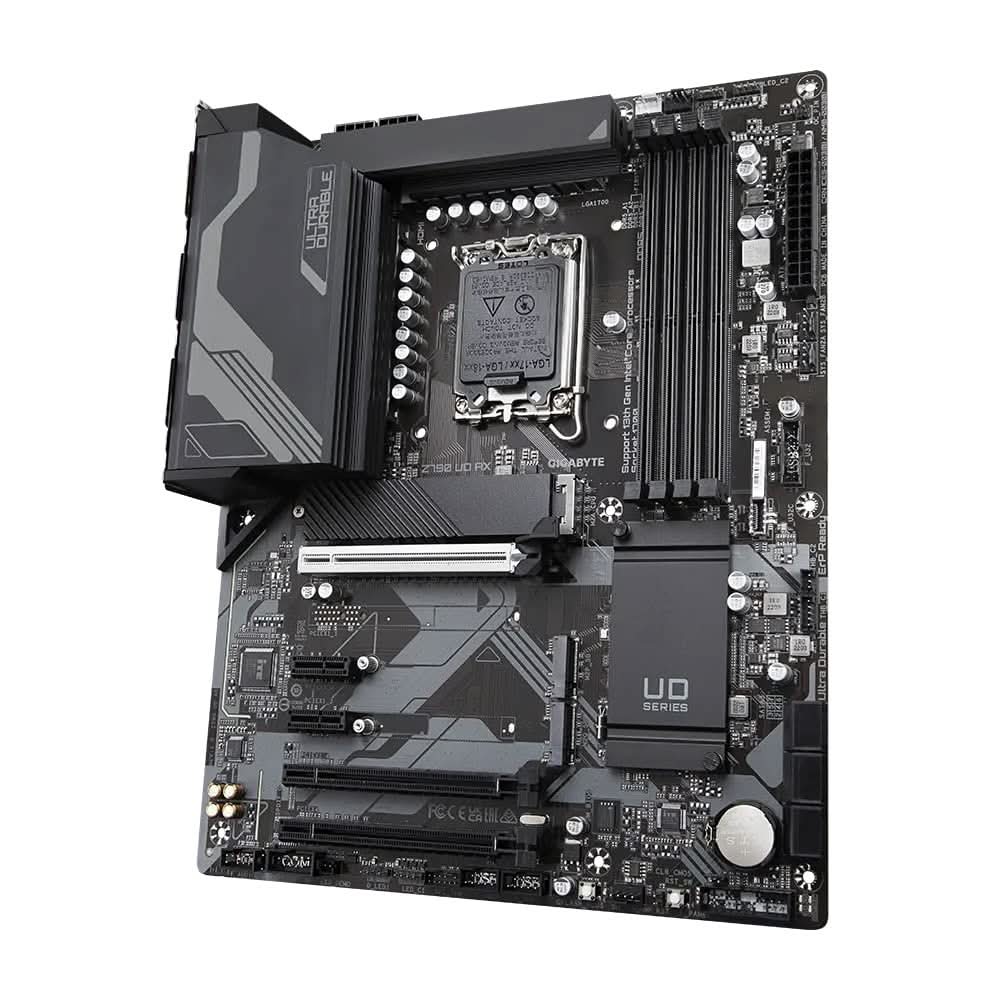

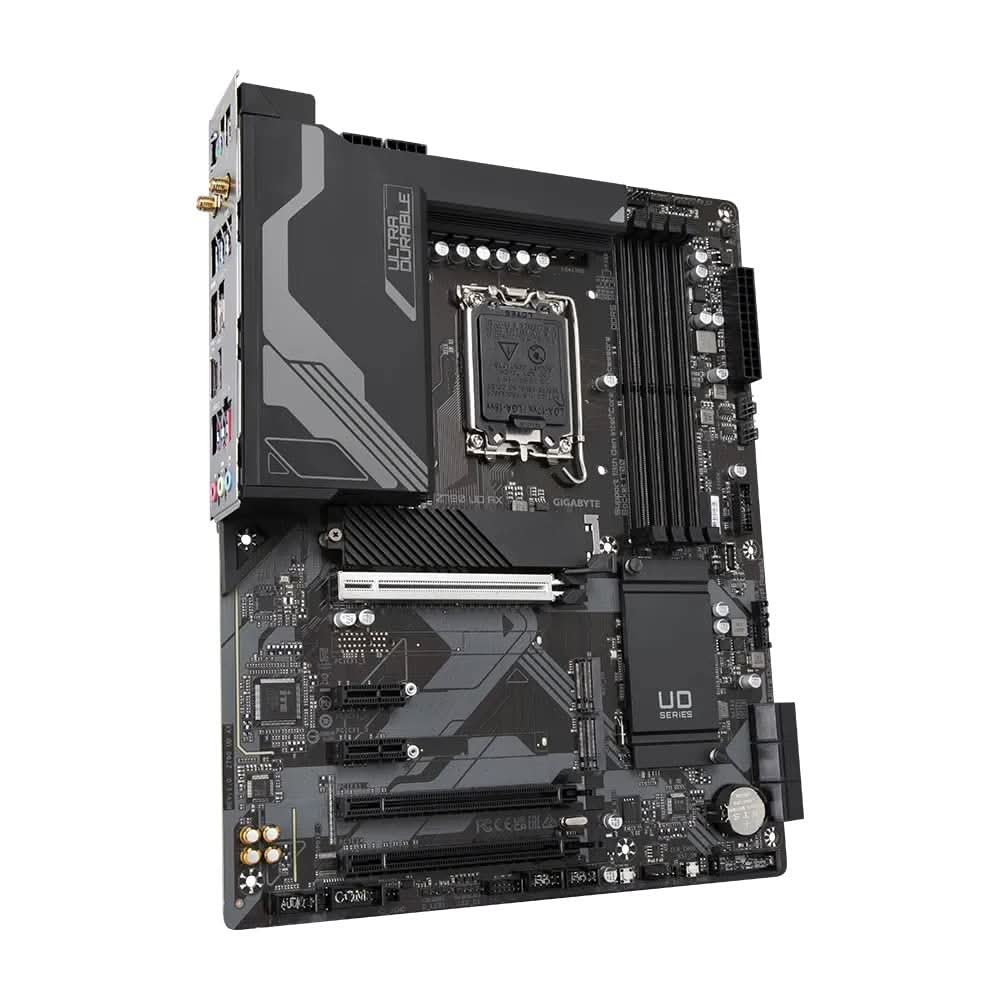

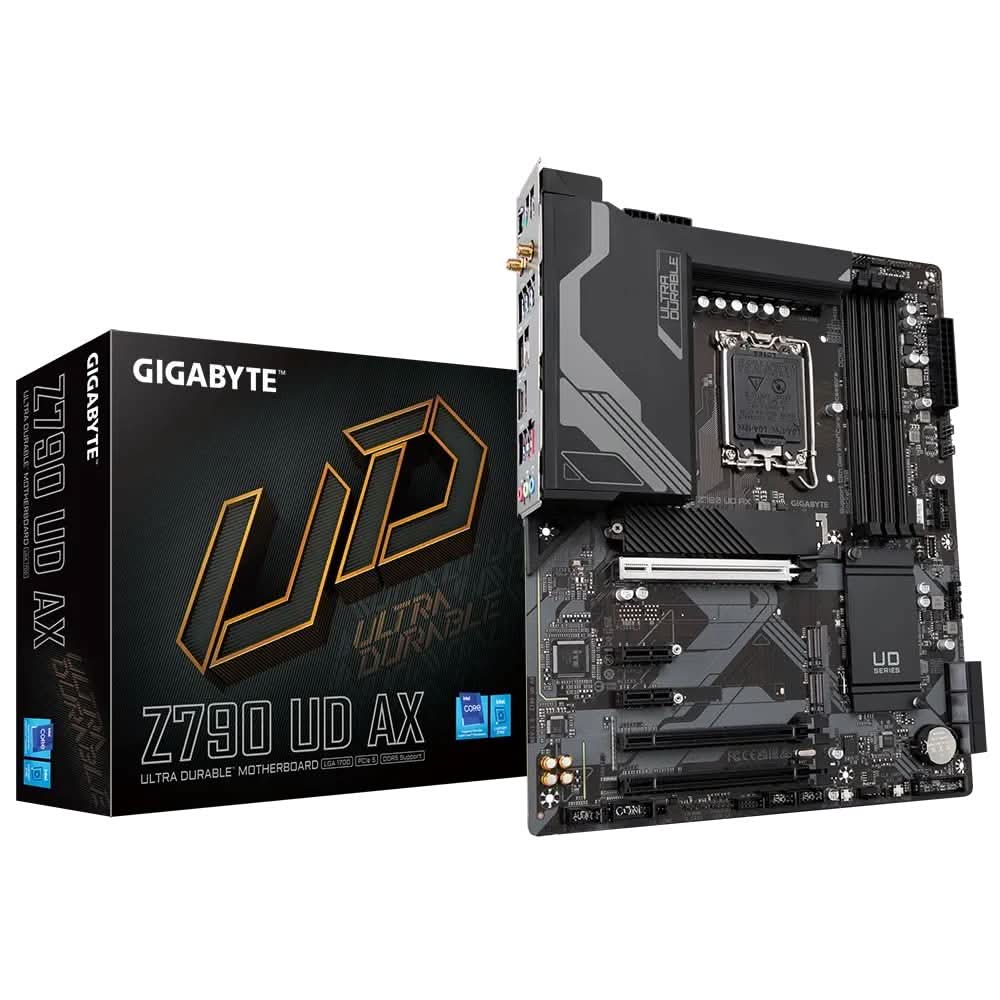

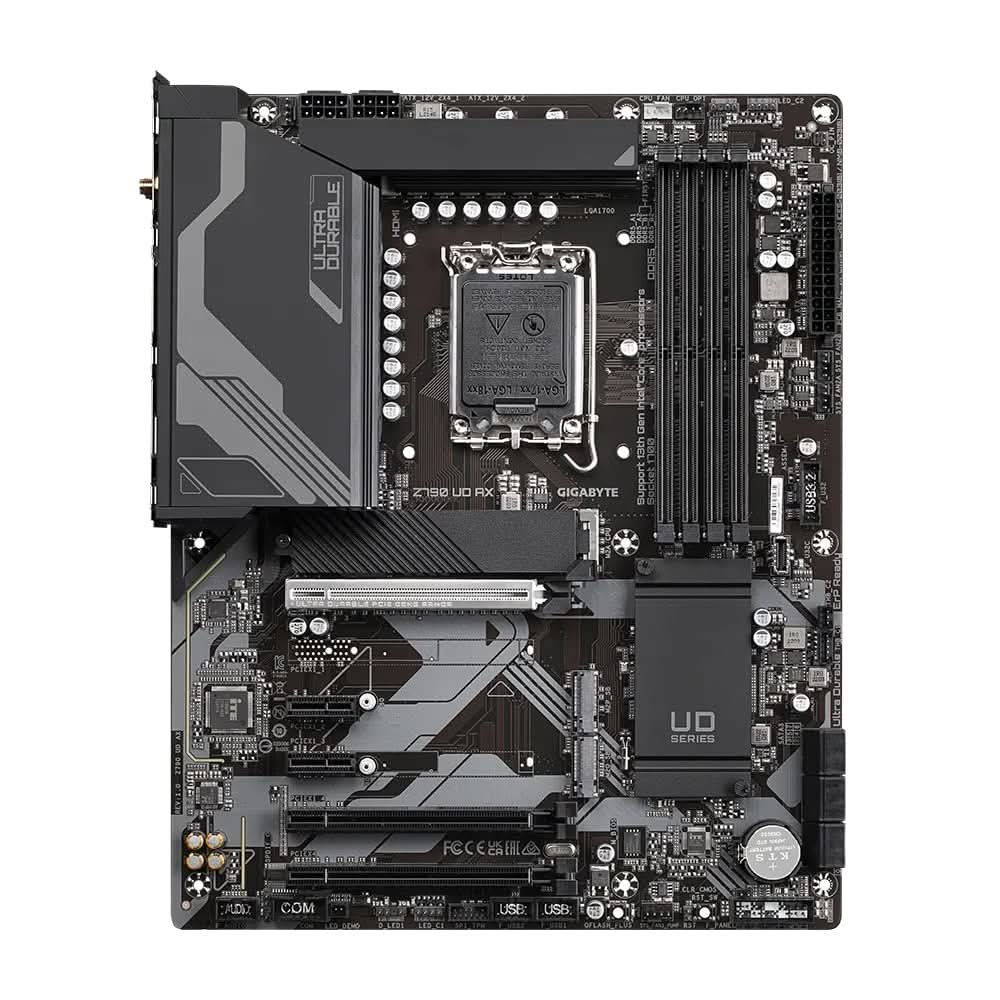

GIGABYTE GA-Z790 UD AX DDR5 INTEL LGA1700 MOTHERBOARD

Name: GIGABYTE GA-Z790 UD AX DDR5 INTEL LGA1700 MOTHERBOARD
Price: 22,250 INR
Availability: InStock

₹ 22,250 ₹ 39,000

Discount: ₹ 16,750 (43%)

16 people are viewing this right now

Hurry Up! Only 47 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: Feb 04 - Feb 08

Availability: In Stock Unavailable

SKU: 1083271

Vendor: Gigabyte

Model Number: Z790 UD AX

Guaranteed safe & Secure checkout

Description
Shipping & Return

CPU	1. LGA1700 socket: Support for the 13th and 12th Generation IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors
CPU	2. L3 cache varies with CPU
Chipset	1. IntelÆ Z790 Express Chipset
Memory	1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
	2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	3. Dual channel memory architecture
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-IntelÆ HD Graphics support:
	1. 1 x HDMI port, supporting a maximum resolution of 4096◊2160@60 Hz
	* Support for HDMI 2.0 version and HDCP 2.3.
	2. 1 x DisplayPort, supporting a maximum resolution of 4096◊2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
Audio	1. RealtekÆ Audio CODEC
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	4. Support for S/PDIF Out
LAN	1. RealtekÆ 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module	AMD Wi-Fi 6E RZ616 (MT7922A22M)
	1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	2. BLUETOOTH 5.2
	3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	(Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU:
	1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
	2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
	3. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
	Support for AMD CrossFireô technology (PCIEX16 and PCIEX4)
Storage Interface	CPU:
	1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	1. 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
	2. 6 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset:
	1. 1 x USB Type-CÆ port on the back panel, with USB 3.2 Gen 2◊2 support
	2. 1 x USB Type-CÆ port with USB 3.2 Gen 1 support, available through the internal USB header
	3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	4. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
	Chipset+2 USB 2.0 Hubs:
	1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 2 x 8-pin ATX 12V power connectors
	3. 1 x CPU fan header
	4. 1 x water cooling CPU fan header
	5. 3 x system fan headers
	6. 1 x system fan/water cooling pump header
	7. 2 x addressable LED strip headers
	8. 2 x RGB LED strip headers
	9. 3 x M.2 Socket 3 connectors
	10. 6 x SATA 6Gb/s connectors
	11. 1 x front panel header
	12. 1 x front panel audio header
	13. 1 x S/PDIF Out header
	14. 1 x USB Type-CÆ header, with USB 3.2 Gen 1 support
	15. 1 x USB 3.2 Gen 1 header
	16. 2 x USB 2.0/1.1 headers
	17. 1 x serial port header
	18. 2 x Thunderboltô add-in card connectors
	19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	20. 1 x reset button
	21. 1 x Q-Flash Plus button
	22. 1 x reset jumper
	23. 1 x Clear CMOS jumper

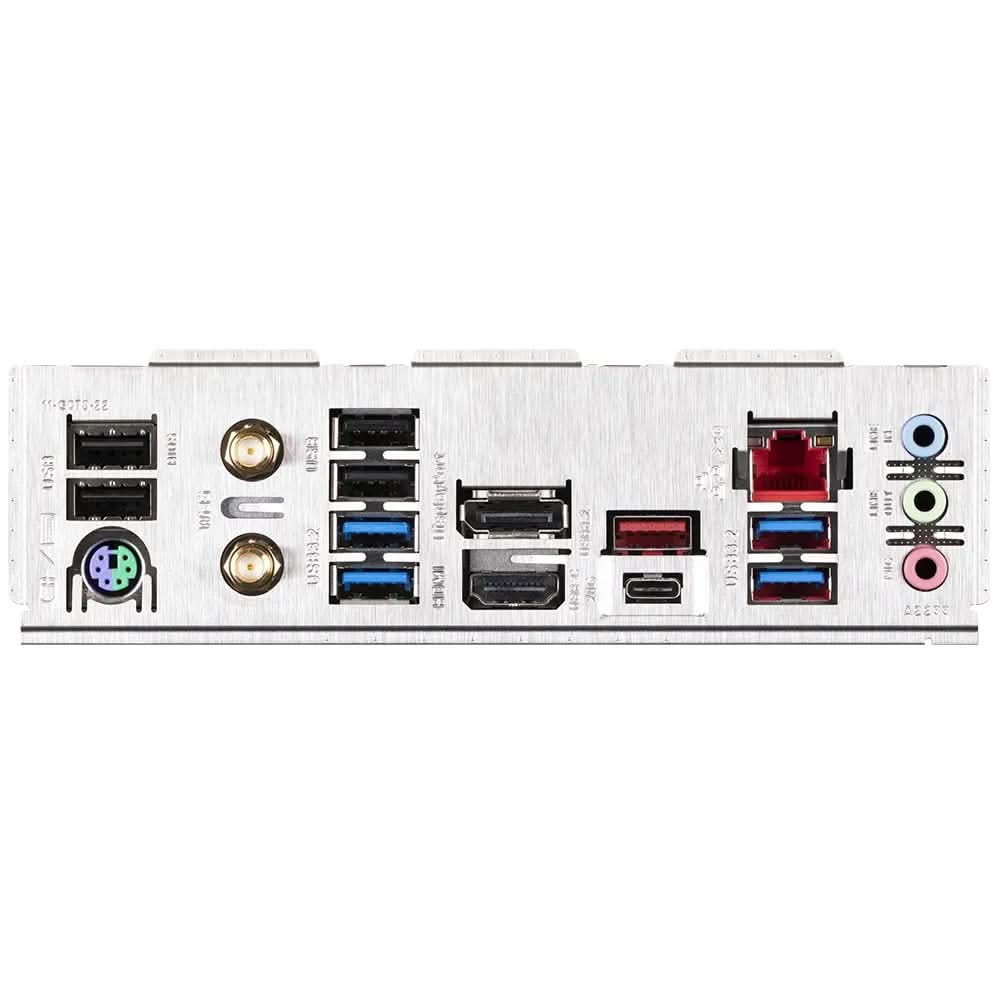

Back Panel Connector	1. 1 x USB Type-CÆ port, with USB 3.2 Gen 2◊2 support
	2. 1 x USB 3.2 Gen 2 Type-A port (red)
	3. 4 x USB 3.2 Gen 1 ports
	4. 4 x USB 2.0/1.1 ports
	5. 2 x SMA antenna connectors (2T2R)
	6. 1 x HDMI 2.0 port
	7. 1 x DisplayPort
	8. 1 x RJ-45 port
	9. 3 x audio jacks
I/O Controller	1. iTEÆ I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Water cooling flow rate detection
	5. Fan fail warning
	6. Fan speed control
BIOS	1. 1 x 256 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	2. Support for Q-Flash
	3. Support for Q-Flash Plus
	4. Support for Smart Backup
Bundled Software	1. NortonÆ Internet Security (OEM version)
Bundled Software	2. LAN bandwidth management software
Operating System	1. Support for Windows 11 64-bit
Operating System	2. Support for Windows 10 64-bit
Form Factor	1. ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
