Description
Shipping & Return

Specifications

Model	B450M-A-PRO-MAX
Processor	Supports 1st, 2nd and 3rd Gen AMD RyzenÃ´ / RyzenÃ´ with RadeonÃ´ Vega Graphics and 2nd Gen AMD RyzenÃ´ with RadeonÃ´ Graphics / AthlonÃ´ with RadeonÃ´ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Chipset	AMDÃB450 Chipset
Memory	2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.
	Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)
	For AMD Ryzen Gen3 (R5/R7/R9)
	2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
	For AMD Other CPU
	2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
	Dual channel memory architecture
	Supports ECC UDIMM memory (non-ECC mode)
	Support non-ECC UDIMM memory
Slots	1 x PCIe 3.0 x16 slot
	Supports x16 speed
	1st, 2nd and 3rd Gen AMD RyzenÃ´
	Supports x8 speed
	RyzenÃ´ with RadeonÃ´ Vega Graphics
	2nd Gen AMD RyzenÃ´ with RadeonÃ´ Graphics
	A-series
	AthlonÃ´ X4
	Supports x4 speed
	AMDÃAthlonÃ´ with RadeonÃ´ Vega Graphics
	PCIe 2.0 x1 slot
Onboard Graphics	1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2
	1 x HDMIÃ´ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2
	1. Only support when using the processor with Graphicss
	2. Maximum shared memory of 2048 MB
Storage	AMDÃ B450 Chipset
	4 x SATA 6Gb/s ports
	Supports RAID 0, RAID1 and RAID 10
	1x M.2 slot (Key M)
	Supports PCIe 3.0 x4 and SATA 6Gb/s
	1st, 2nd and 3rd Gen AMD RyzenÃ´
	RyzenÃ´ with RadeonÃ´ Vega Graphics
	2nd Gen AMD RyzenÃ´ with RadeonÃ´ Graphics
	Supports PCIe 3.0 x2 and SATA 6Gb/s
	AMDÃAthlonÃ´ with RadeonÃ´ Vega Graphics
	A-series
	AthlonÃ´ X4
	Supports 2242/2280/22110 storage devices
USB	AMDÃ B450 Chipset
	6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
	6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
Audio	RealtekÃ ALC892 Codec
Audio	7.1-Channel High Definition Audio
LAN	1 x RealtekÃ8111H Gigabit LAN controller
Internal Connectors	1x 24-pin ATX main power connector
	1x 4-pin ATX 12V power connector
	4x SATA 6Gb/s connectors
	2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
	1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
	1x 4-pin CPU fan connector
	1x 4-pin system fan connector
	1x Front panel audio connector
	2x Front panel connectors
	1x TPM module connector
	1x Chassis Intrusion connector
	1x Serial port connector
	1x Clear CMOS jumper

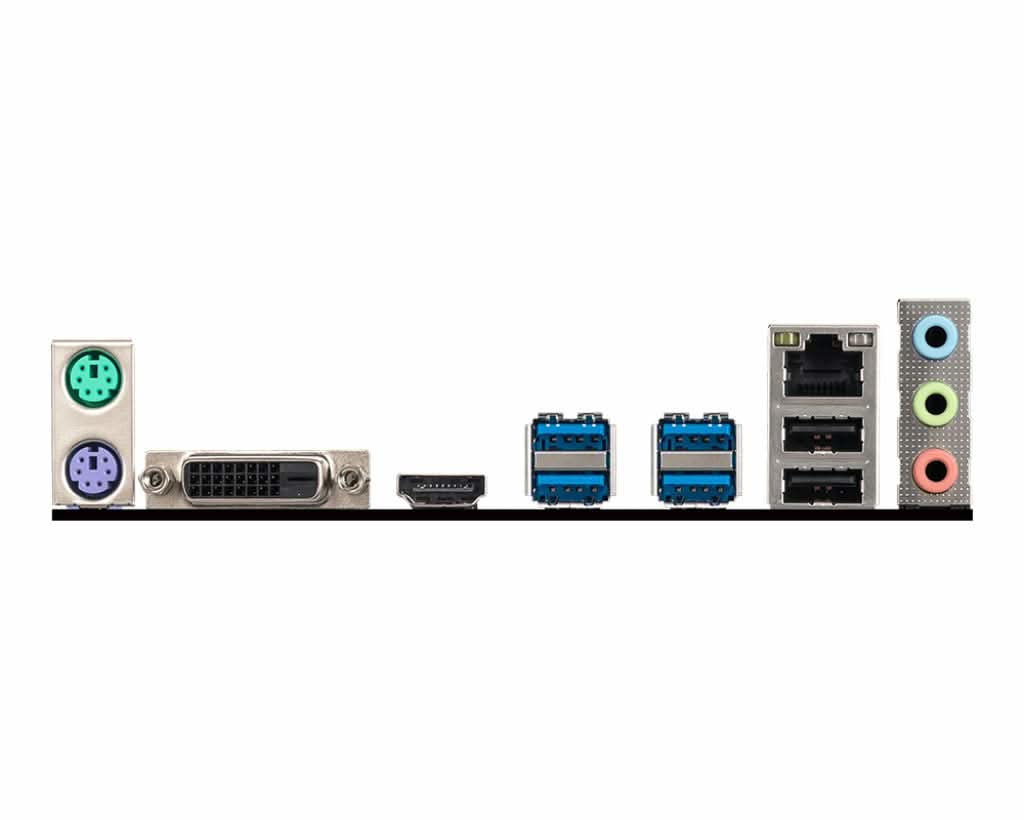

Back Panel Ports	1. Mouse
	2. DVI-D Port
	3. USB 3.2 Gen1
	4. LAN Port
	5. Keyboard
	6. HDMI Port
	7. USB 2.0 Ports
	8. HD Audio Connectors
Dimensions	9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
Dimensions	m-ATX Form Factor
Mounting	6 mounting holes
Operating System	Support for WindowsÃ10 64-bit
	Support for WindowsÃ7 64-bit
	* To support WindowsÃ7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice. Warranty: 3 years

Shipping Policy

1. General Information

All orders are processed within 1-3 business days. Orders are not shipped or delivered on weekends or holidays. If we are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of your order, we will contact you via email or telephone.

2. Shipping Rates & Delivery Estimates

Shipping charges for your order will be calculated and displayed at checkout. Delivery delays can occasionally occur.

Standard Shipping: Delivery typically takes *3–15 business days*, depending on the delivery location.

Delays may occur due to incorrect or incomplete addresses provided by the customer or circumstances beyond our control. Any additional charges or penalties arising from such issues will be borne by the customer.

3. Shipment Confirmation & Order Tracking

You will receive a Shipment Confirmation email once your order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.

4. Damages

Vishal Peripherals is liable for any products damaged or lost during shipping. If you received your order damaged, please take the video of unboxing and share through mail at helpdesk@vishalperipherals.com.

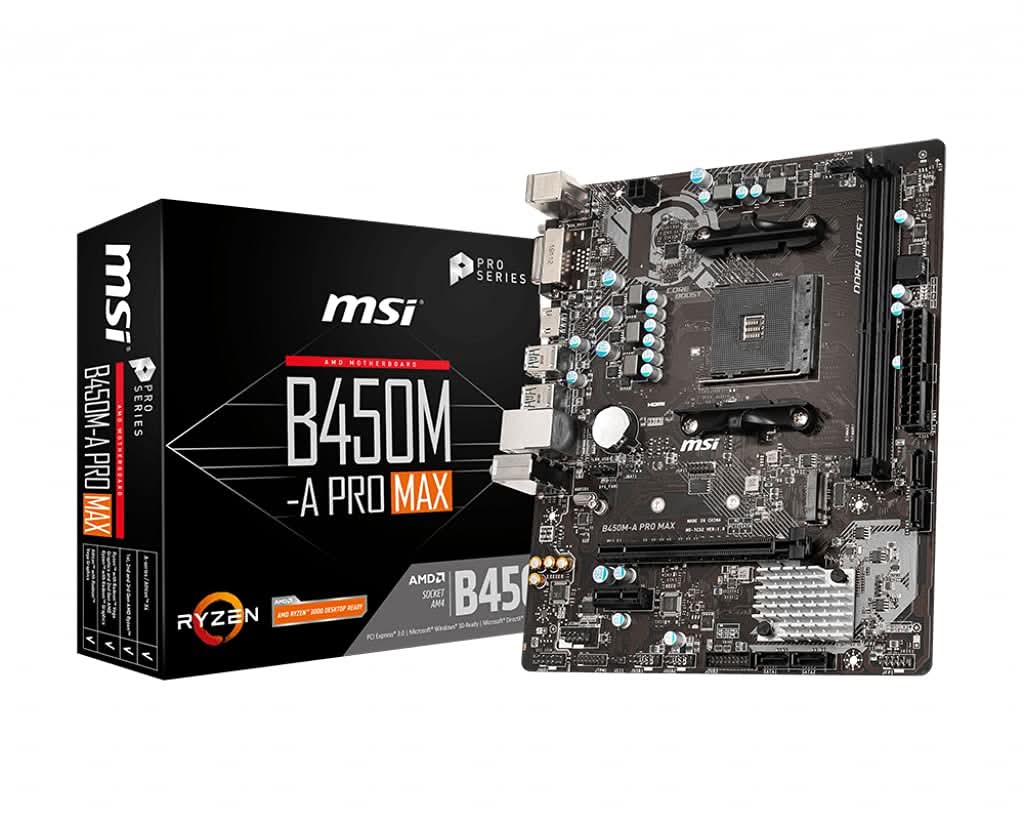

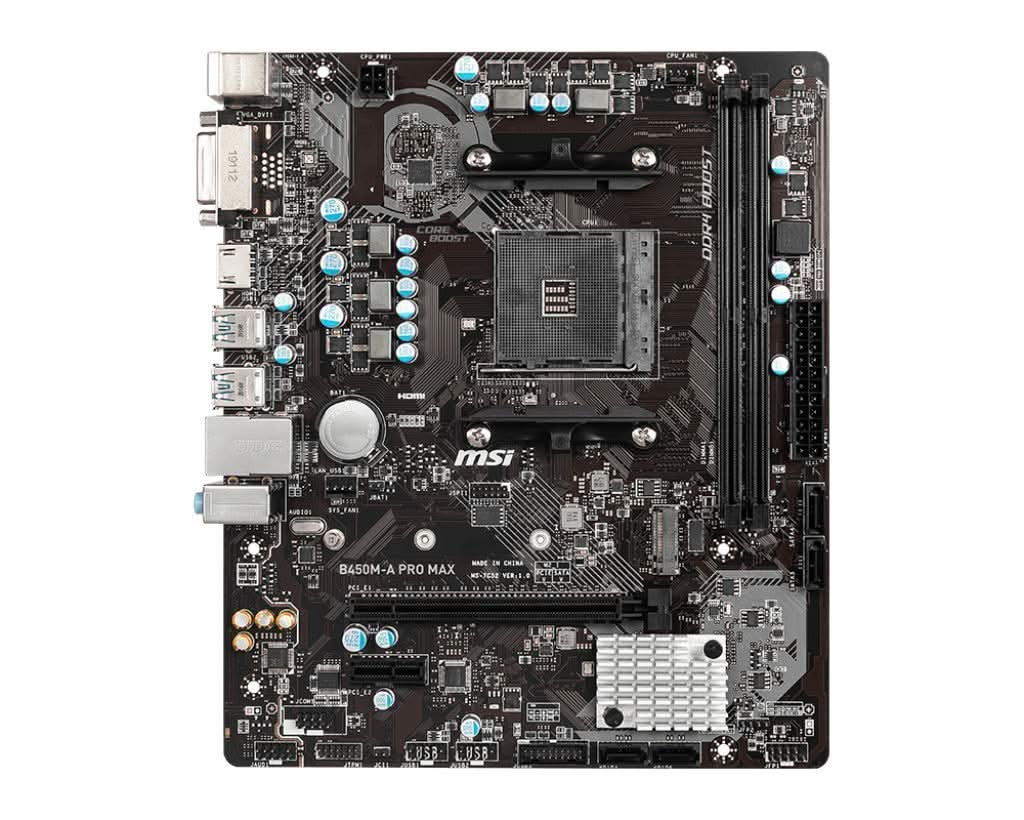

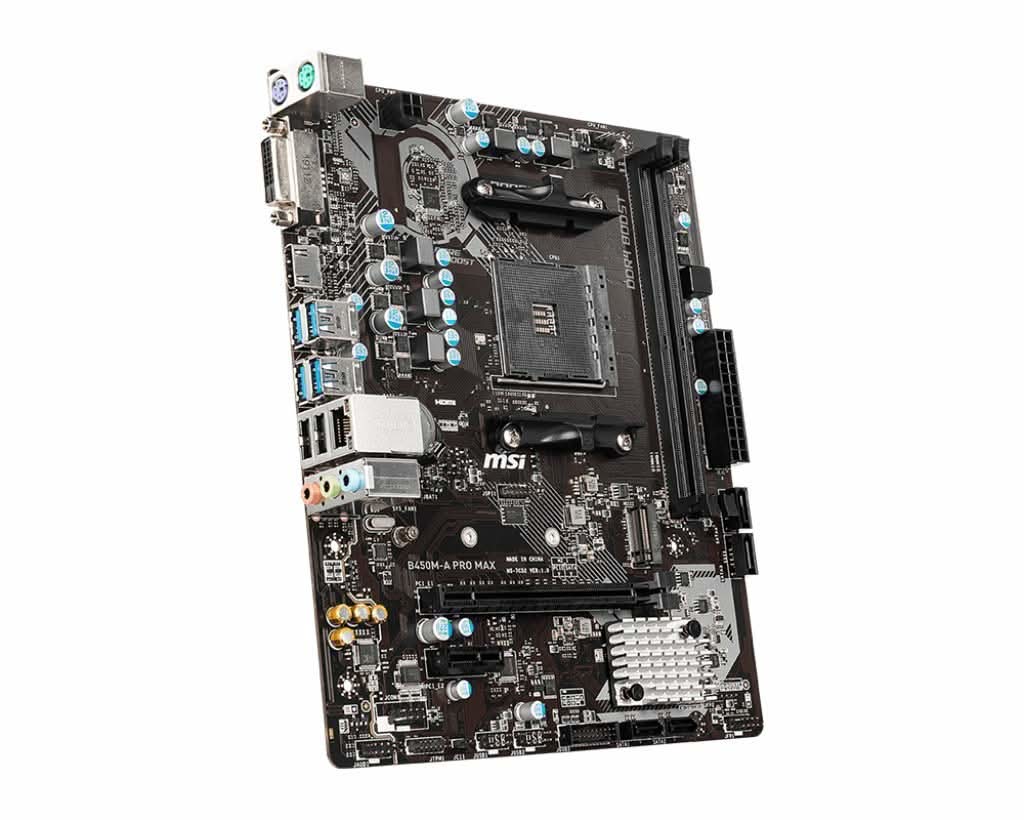

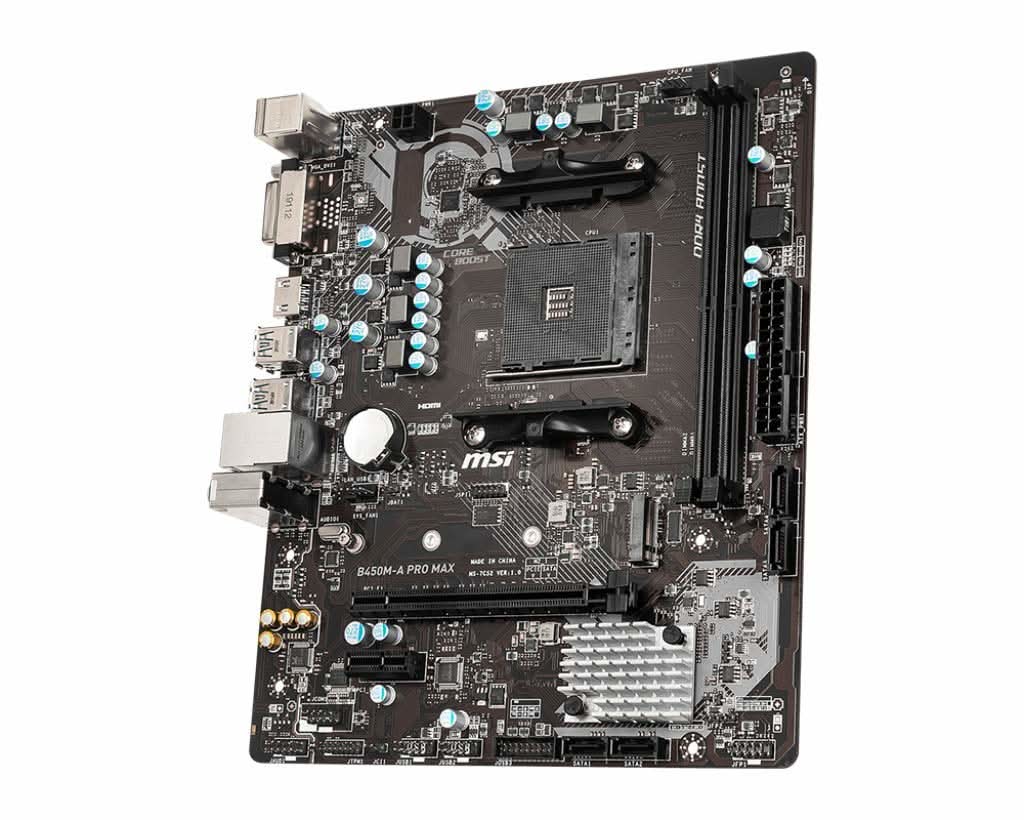

MSI B450M-A PRO MAX AMD AM4 MOTHERBOARD
