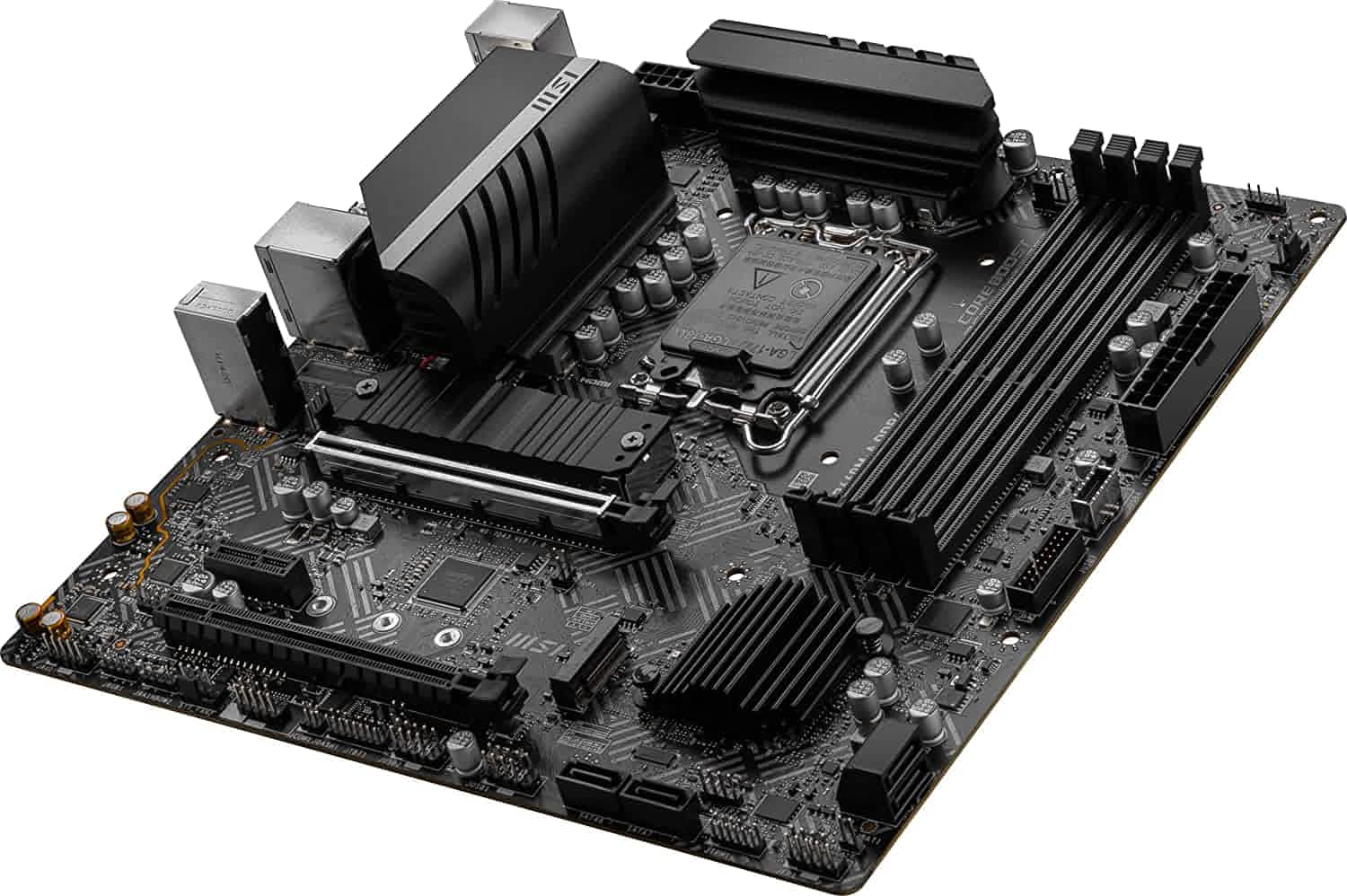

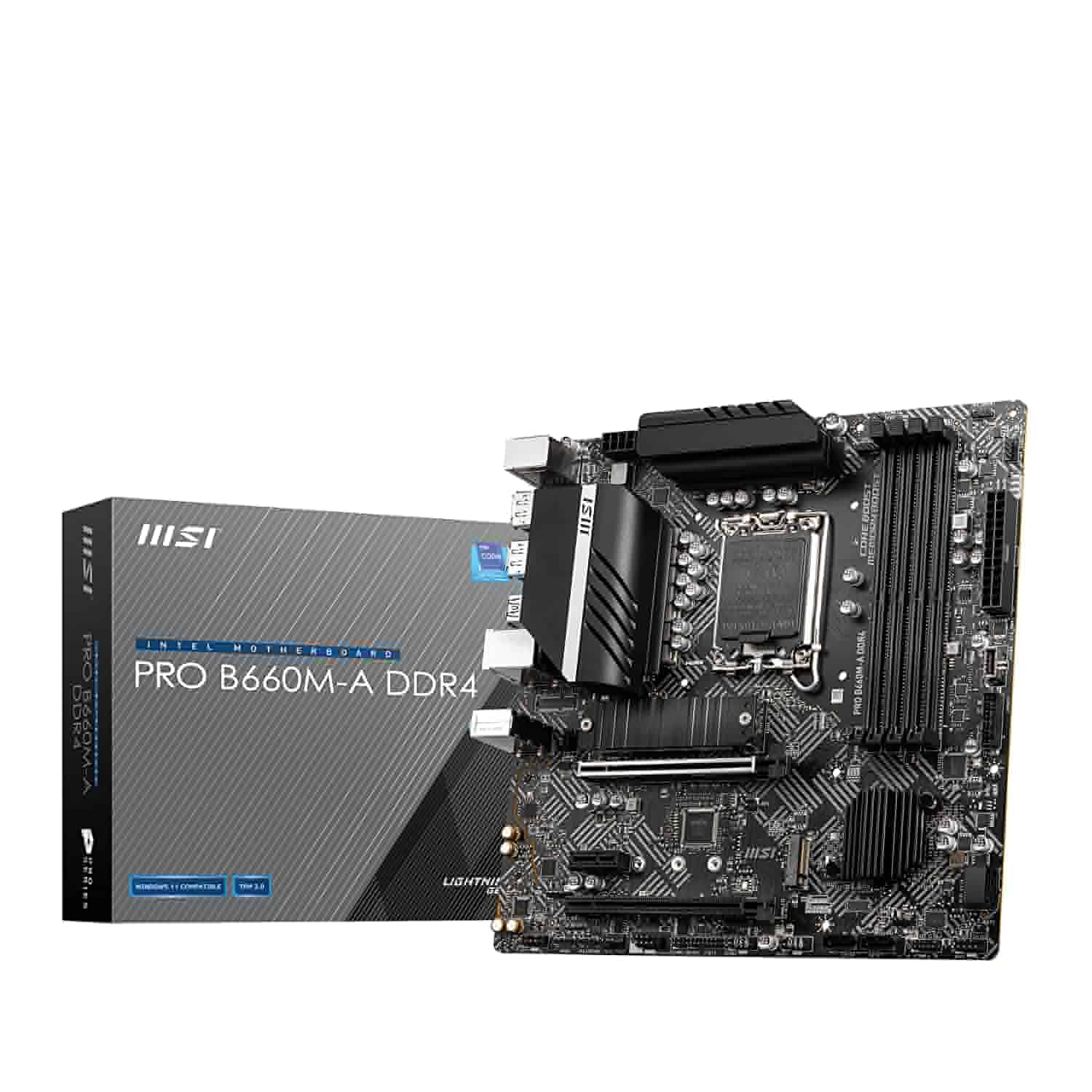

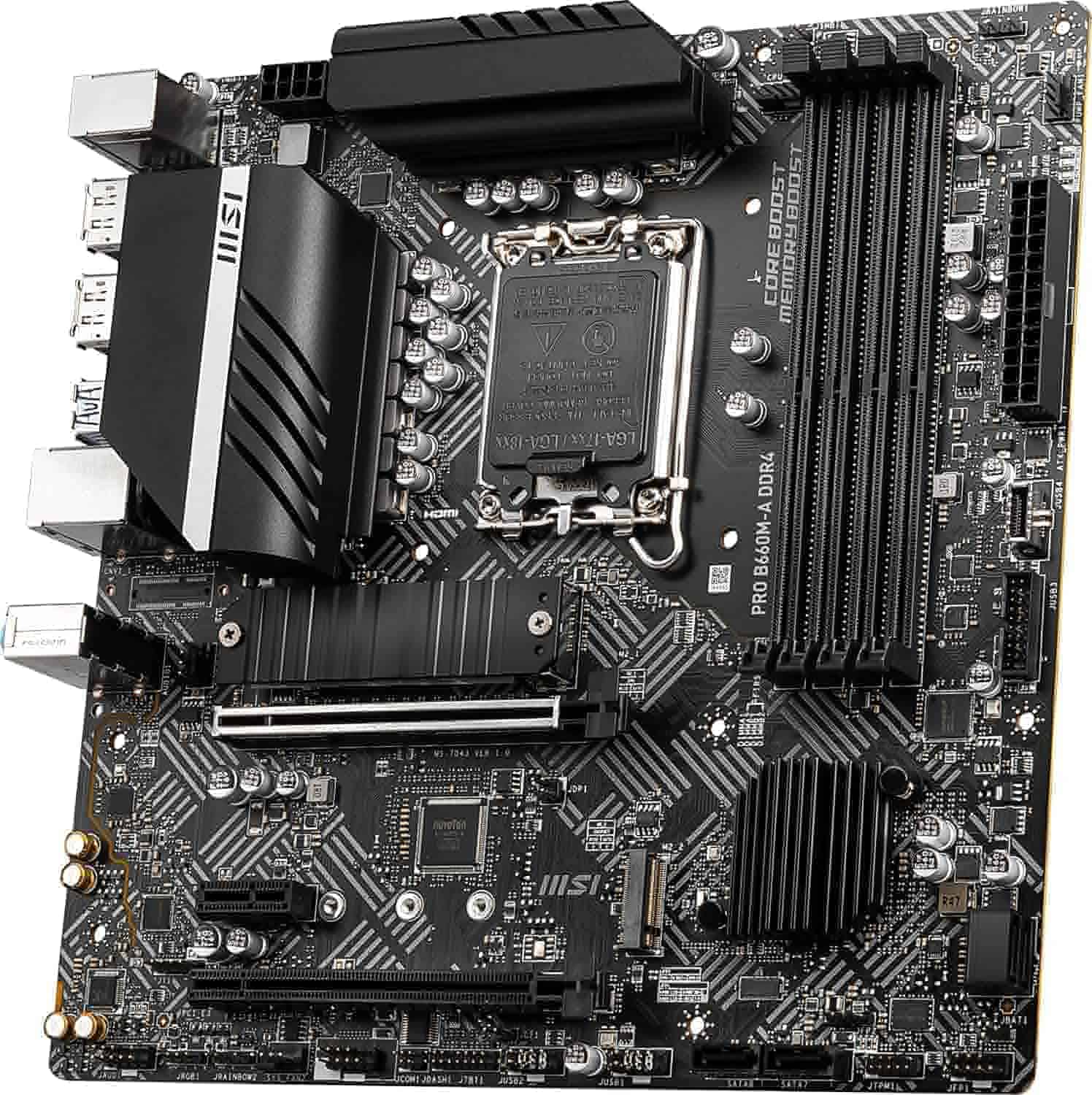

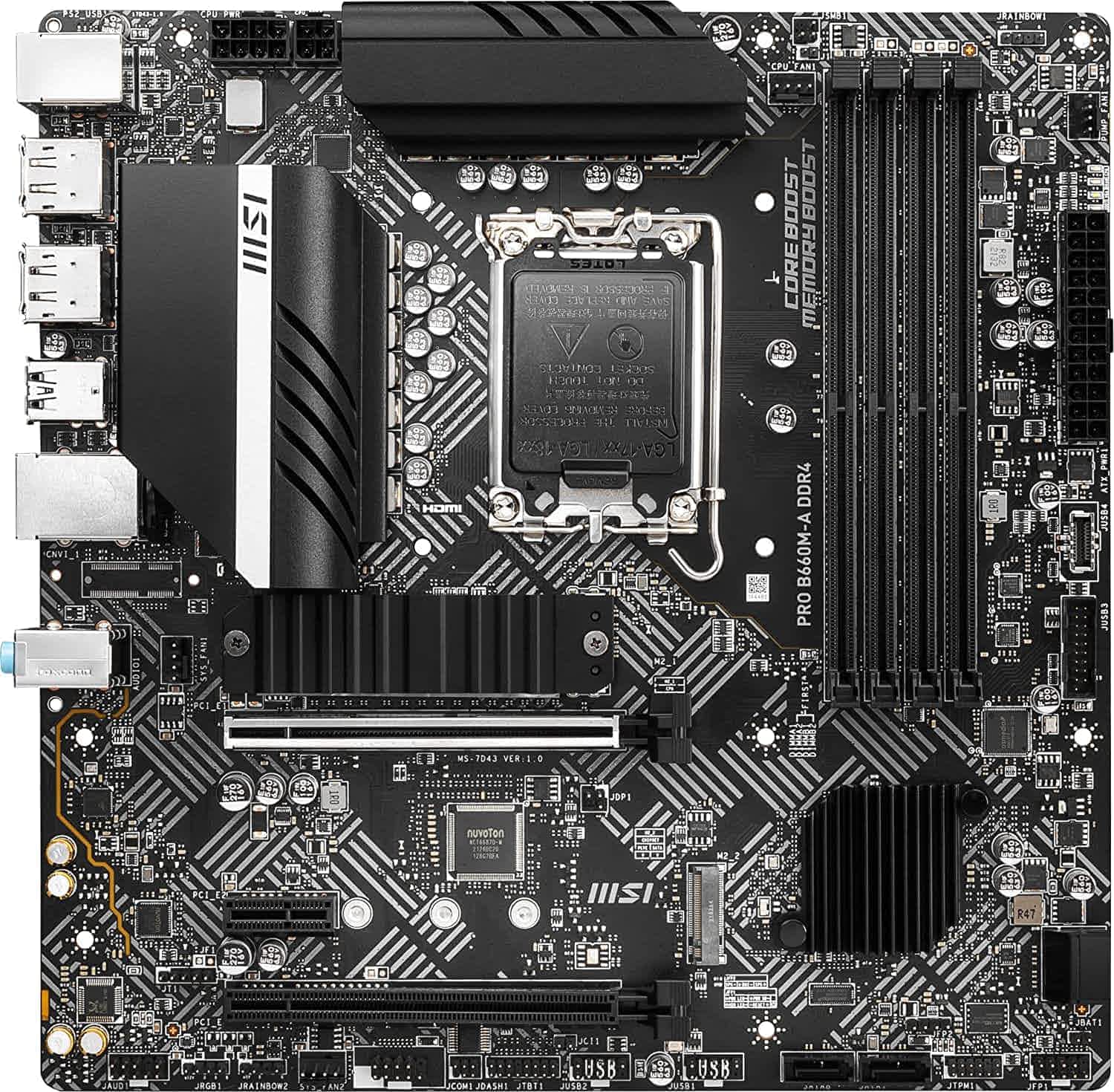

MSI B660M-A PRO DDR4 INTEL LGA1700 MOTHERBOARD

Name: MSI B660M-A PRO DDR4 INTEL LGA1700 MOTHERBOARD
Price: 12,490 INR
Availability: InStock

₹ 12,490 ₹ 18,650

Discount: ₹ 6,160 (34%)

16 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Shipping: 24 - 48hrs

Availability: In Stock Unavailable

SKU: 107162

Vendor: MSI

Model Number: B660M-A PRO DDR4

Guaranteed safe & Secure checkout

Description
Shipping & Return

Features

Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR4 Memory, up to 4800+(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality

Specifications

CPU	Supports 12th Gen Intel Core Processors
	Processor socket LGA1700
Chipset	Intel B660 Chipset
Memory	4x DDR4 memory slots, support up to 128GB 1
	Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
	Max overclocking frequency:
	1DPC 1R Max speed up to 4800+ MHz
	1DPC 2R Max speed up to 4000+ MHz
	2DPC 1R Max speed up to 4000+ MHz
	2DPC 2R Max speed up to 3600+ MHz
	Supports Dual-Channel mode
	Supports non-ECC, un-buffered memory
	Supports Intel Extreme Memory Profile (XMP)
Expansion Slot	2x PCIe x16 slots
	PCI_E1 (From CPU)
	Support PCIe 4.0 x16
	PCI_E3 (From B660 chipset)
	Support PCIe 3.0 x4
	1x PCIe 3.0 x1 slot (Fom B660 chipset)
Onboard Graphics	2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 1 / 2
	2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60 1 / 2
Audio	Realtek ALC897 Codec
	7.1-Channel High Definition Audio
Storage	4x SATA 6Gb/s ports (From B660 chipset)
	2x M.2 slots (Key M)
	M2_1 slot (From CPU)
	Supports up to PCIe 4.0 x4
	Supports 2242/ 2260/ 2280 storage devices
	M2_2 slot (From B660 chipset)
	Supports up to PCIe 4.0 x4
	Supports up to SATA 6Gb/s
	Supports 2242/ 2260/ 2280 storage devices
	Supports Intel Optane Memory
	Support Intel Smart Response Technology for Intel Core processors
	SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
LAN	1x Realtek RTL8125BG 2.5Gbps LAN controller
USB	Intel B660 Chipset
	2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
	3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector)
	6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)
	Asmedia ASM1074
	2X USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector
Internal connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x 4-pin ATX 12V power connector
	4x SATA 6Gb/s connectors
	2x M.2 slots (M-Key)
	1x USB 3.2 Gen 1 5Gbps Type-C port
	1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
	2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
	1x 4-pin CPU fan connector
	1x 4-pin water-pump fan connector
	2x 4-pin system fan connectors
	1x Front panel audio connector
	2x System panel connectors
	1x Chassis Intrusion connector
	1x TPM module connector
	1x Clear CMOS jumper
	1x TBT connector (supports RTD3)
	1x Serial port
	1x Tuning Controller connector
LED Features	1x 4-pin RGB LED connector
	2x 3-pin RAINBOW LED connectors
	4x EZ Debug LED

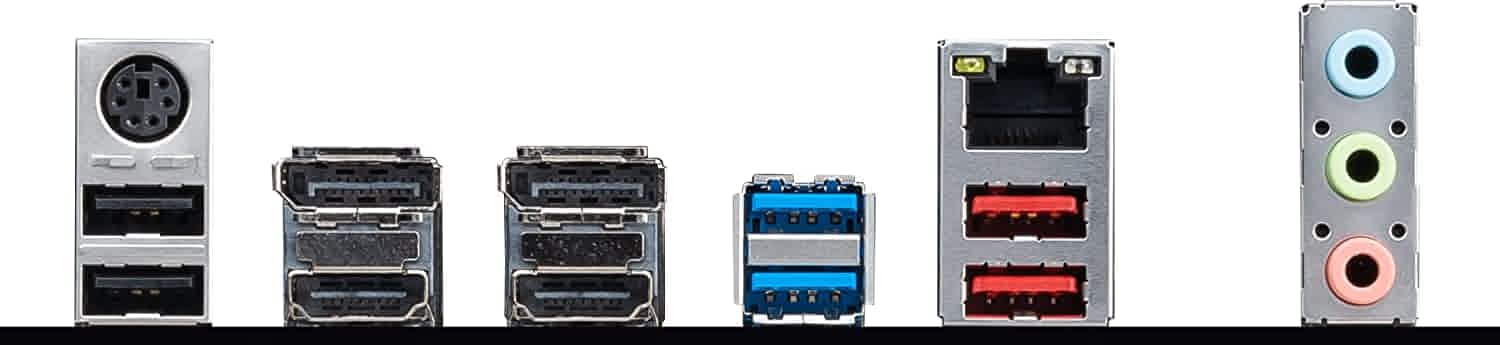

Back panel ports	Keyboard / Mouse
	DisplayPort
	USB 3.2 Gen 1 5Gbps Type-A
	LAN port
	Audio connector
	USB 2.0
	HDMI
	USB 3.2 Gen 2 10Gbps Type-A
Product Dimensions	?24.38 x 24.38 x 6.35 cm
Weight	?1 kg
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
