MSI B760M-P PRO DDR4 INTEL LGA1700 MOTHERBOARD

Name: MSI B760M-P PRO DDR4 INTEL LGA1700 MOTHERBOARD
Price: 11,301 INR
Availability: InStock

₹ 11,301 ₹ 22,099

Discount: ₹ 10,798 (49%)

24 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Dispatch: 24 - 48hrs

Availability: In Stock Unavailable

SKU: 1084283

Vendor: MSI

Model Number: PRO B760M-P DDR4

Guaranteed safe & Secure checkout

Description
Shipping & Return

Processor	Supports 12th/13th Gen IntelÆ Coreô Processors, PentiumÆ Gold and CeleronÆ Processors
Processor	LGA 1700
Chipset	INTEL B760
Memory	4x DDR4, Maximum Memory Capacity 128GB
	Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
	Max. overclocking frequency:
	ï 1DPC 1R Max speed up to 4800+ MHz
	ï 1DPC 2R Max speed up to 4600+ MHz
	ï 2DPC 1R Max speed up to 4400+ MHz
	ï 2DPC 2R Max speed up to 4000+ MHz
	Supports Dual-Channel mode
	Supports non-ECC, un-buffered memory
	Supports IntelÆ Extreme Memory Profile (XMP)
Expansion Slot	1x PCI-E x16 slot
	2x PCI-E x1 slot
	PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
	PCI_E2 PCIe 4.0 supports up to x1 (From Chipset)
	PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
Onboard Graphics	Support HDMIô 1.4, maximum resolution of 4K 30Hz*
	Support DP 1.4, maximum resolution of 4K 60Hz*
	Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
	1x HDMIô
	1x DisplayPort
	1x VGA
Audio	RealtekÆ ALC897 Codec
Audio	7.1-Channel High Definition Audio
Storage	2x M.2 slot
	M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
	M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G port
	* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
LAN	RealtekÆ RTL8111H Gigabit LAN
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	1x USB 3.2 Gen1 Type A (Rear)
	2x USB 3.2 Gen1 Type A (Front)
	1x USB 3.2 Gen2 Type C (Rear)
Internal Connectors	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Printer Port (JLPT)
	1x Com Port (JCOM)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0
	2x USB 3.2 Gen1 Type A
LED Feature	4x EZ Debug LED

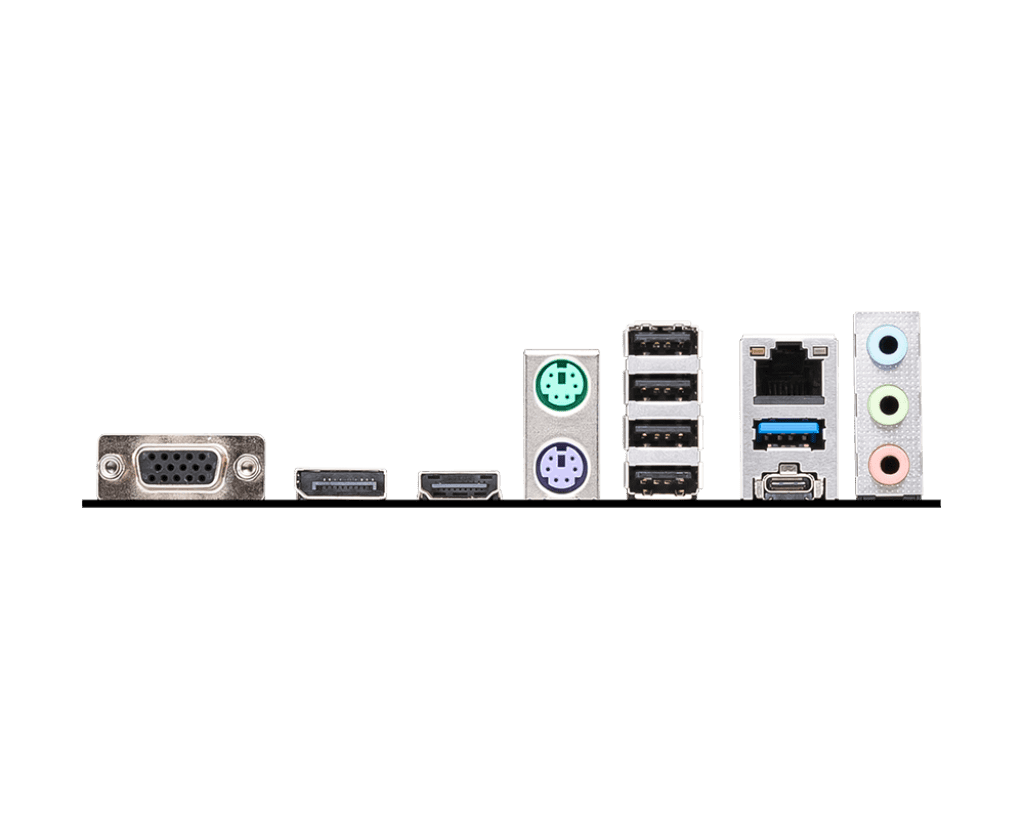

Back Panel Ports	VGA
	DisplayPort
	HDMIô
	Keyboard / Mouse
	USB 2.0
	LAN port
	Audio Connectors
	USB 3.2 Gen 1 5Gbps (Type-A)
	USB 3.2 Gen 2 10Gbps (Type-C)
Operating System	Support for WindowsÆ 11 64-bit, WindowsÆ 10 64-bit
Dimensions	mATX
Dimensions	243.84mmx243.84mm
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice. Warranty: 3 years
