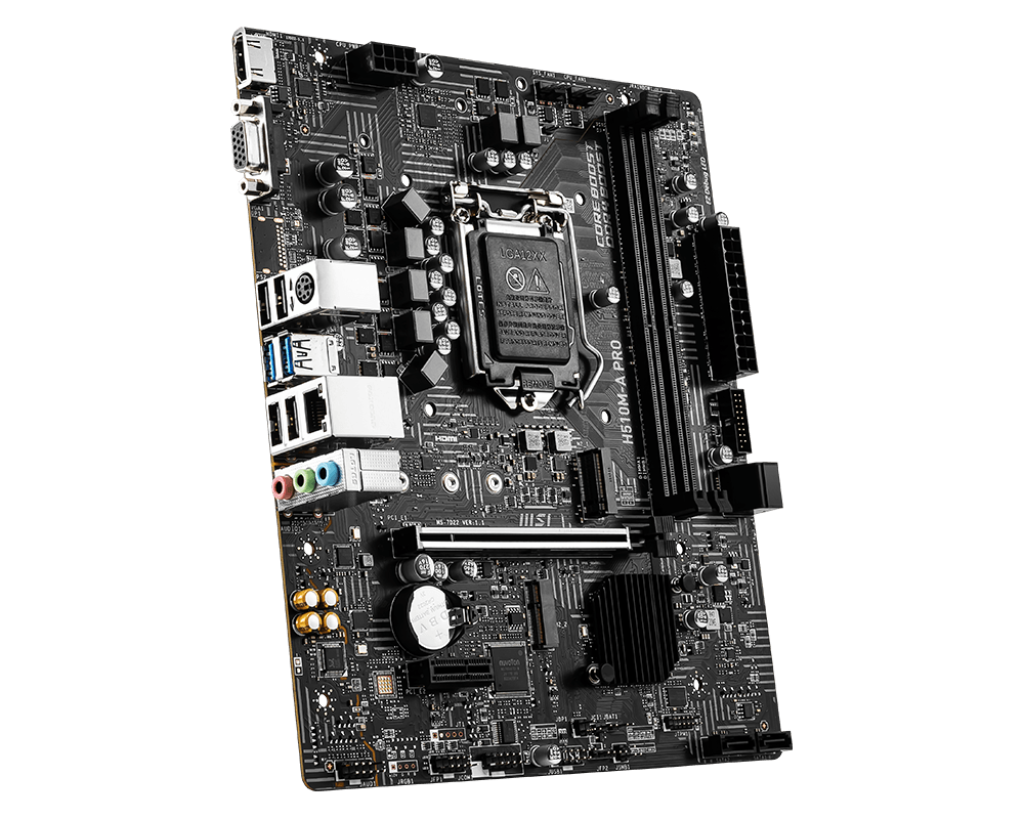

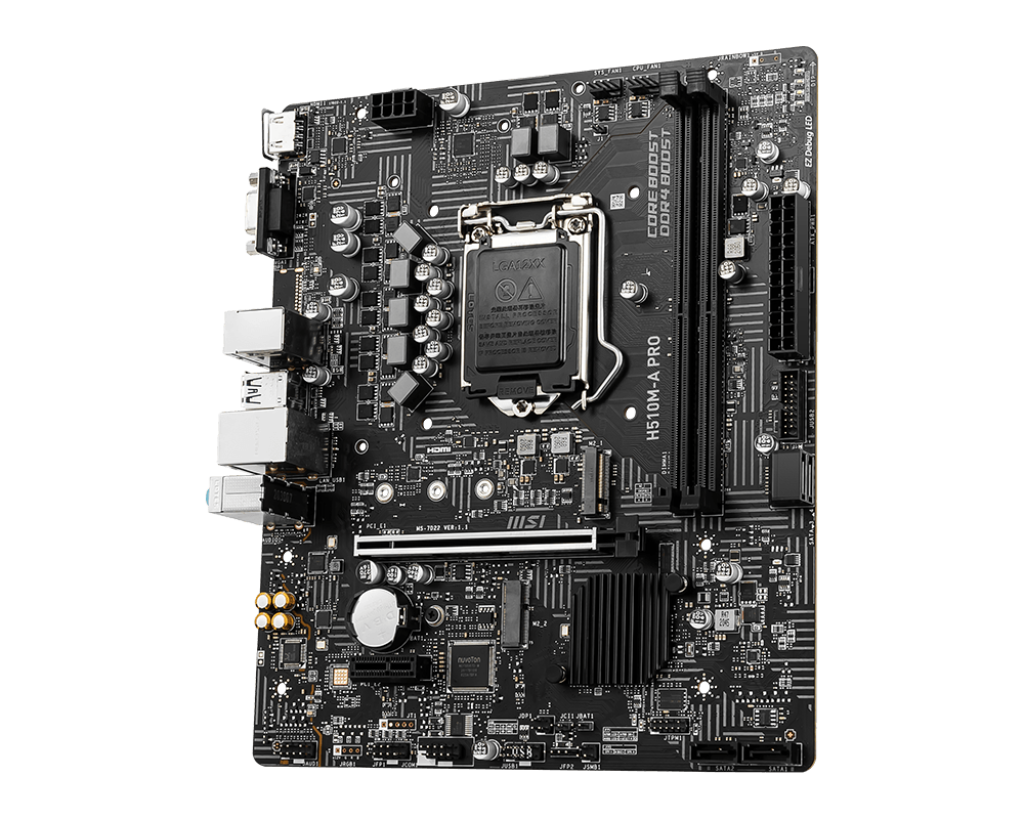

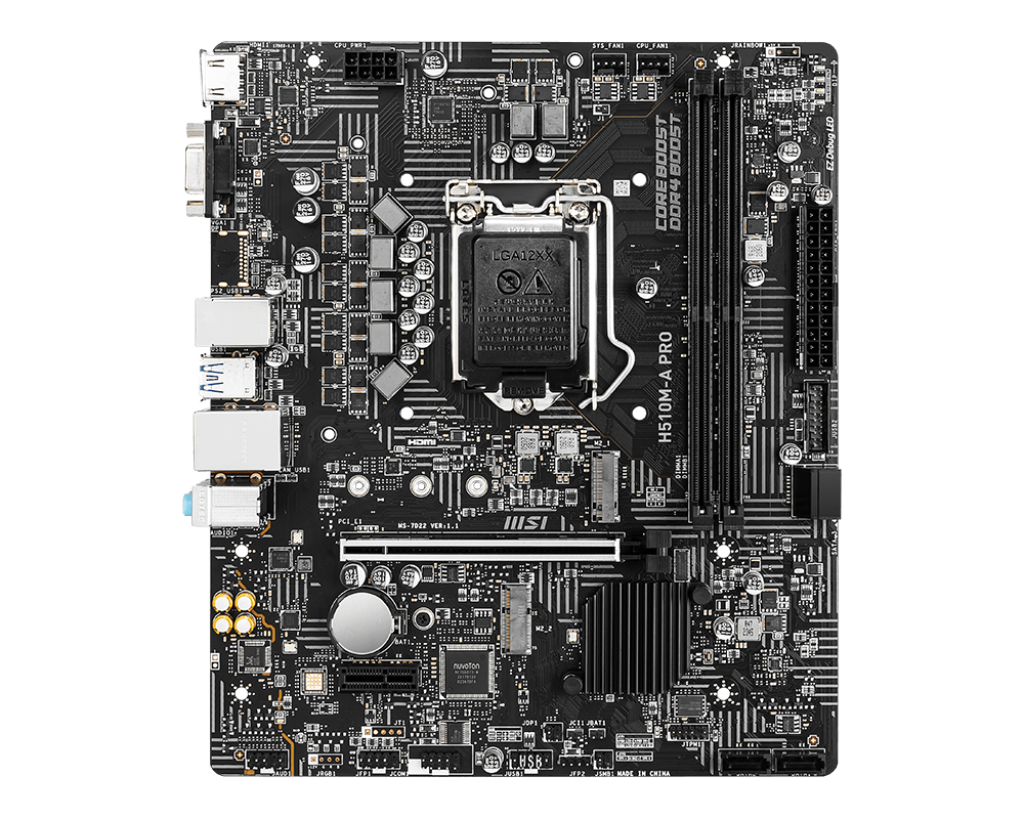

MSI H510M-A PRO MOTHERBOARD, MICRO-ATX

PROCESSOR

Supports 10th Gen Intel^® Core™ Processors, 11th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors¹

1.  Please go to www.intel.com for more compatibility information.

CHIPSET

Intel^® H510 Chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB¹
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1.  Please refer to www.msi.com for more information on compatible memory.

EXPANSION SLOT

• 1x PCIe x16 slot (From CPU)
  • Support up to PCIe 4.0 for 11th Gen Intel^® CPU
  • Support up to PCIe 3.0 for 10th Gen Intel^® CPU
• 1x PCIe 3.0 x1 slot (From PCH)
• 1x M.2 slot with E key for WiFi (PCIe) module only(M2_2)

ONBOARD GRAPHICS

• 1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz ^1 2
• 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz¹

1.  Available only on processors featuring integrated graphics.
2.  Graphics specifications may vary depending on the CPU installed.

STORAGE

• 4x SATA 6Gb/s ports (From H510 Chipset)
• 1x M.2 slot (Key M)
  • M2_1 slot (From H510 Chipset)
    • Supports up to PCIe 3.0 x4
    • Supports SATA 6Gb/s¹
    • Supports 2242/ 2260/ 2280 storage devices

1.  SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB

AUDIO

Realtek^® ALC892/ ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Intel^® I219V 1Gbps LAN controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector

BACK PANEL PORTS

DIMENSIONS

• mATX Form Factor
• 9.29 x 7.95 in. (23.6 cm x 20.2 cm)

MOUNTING

6 mounting holes

OPERATING SYSTEM

Support for Windows^® 10 64-bit

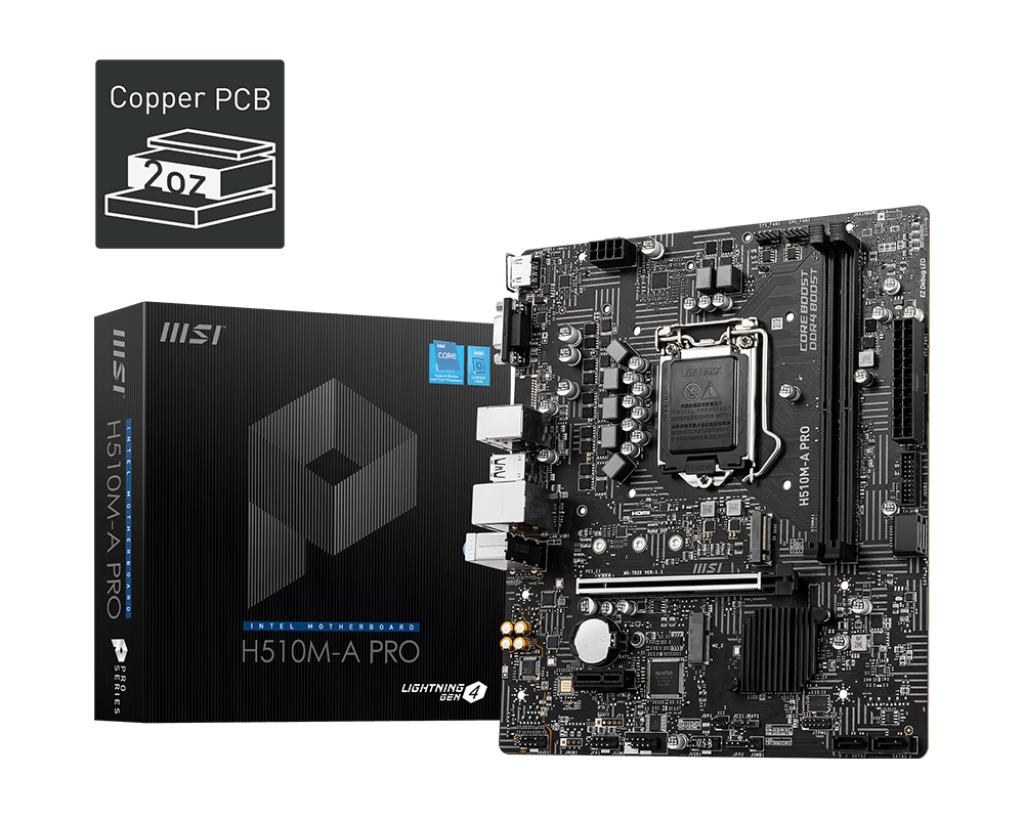

BOX CONTENT

1.  MSI^® does not guarantee the risks or damages caused by changing the cover.
2.  These pictures are for reference only and may vary without notice.

   Platform	INTEL
   Socket	LGA1200
   Chipset	H510
   Max Memory Support	64 GB
   Supported Memory Type	DDR4
   Form Factor	Micro-ATX
   Warranty	3 Years
