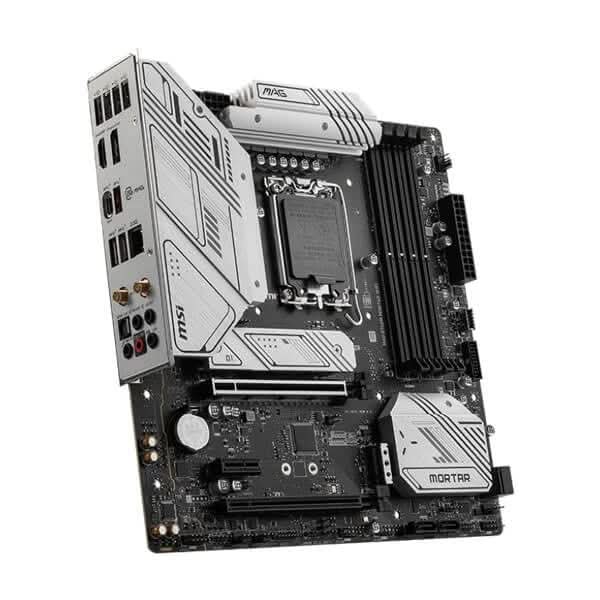

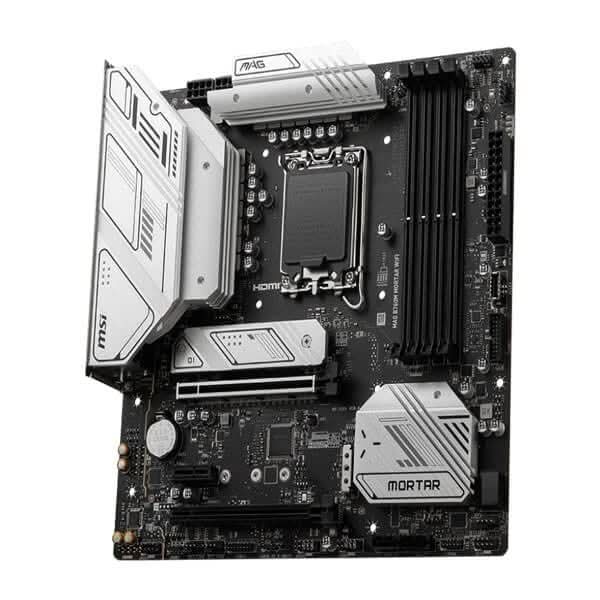

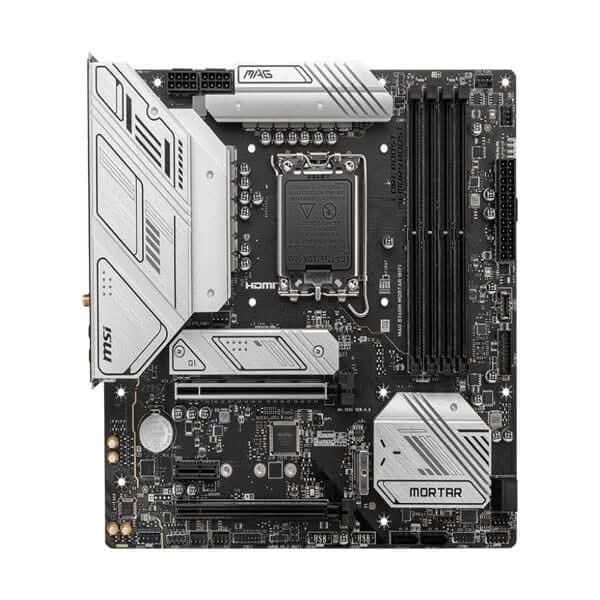

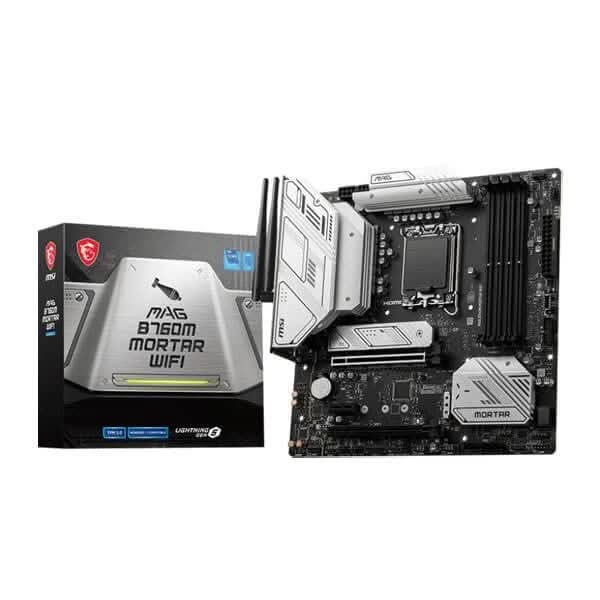

MSI MAG B760M MORTAR WIFI DDR5 LGA1700 MOTHERBOARD

Name: MSI MAG B760M MORTAR WIFI DDR5 LGA1700 MOTHERBOARD
Price: 18,794 INR
Availability: InStock

₹ 18,794 ₹ 38,599

Discount: ₹ 19,805 (52%)

21 people are viewing this right now

Hurry Up! Only Few Left in Stock!

Notify Me

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Dispatch: 24 - 48hrs

Availability: In Stock Unavailable

SKU: 1083967

Vendor: MSI

Model Number: MAG B760M MORTAR WIFI

Guaranteed safe & Secure checkout

Description
Shipping & Return

Model	MAG B760M MORTAR WIFI
Chipset	INTEL B760
CPU SUPPORT	Supports 12th/13th Gen IntelÆ Coreô Processors, PentiumÆ Gold and CeleronÆ Processors
CPU SUPPORT	LGA1700
Memory	4x DDR5, Maximum Memory Capacity 128GB
	Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	ï 1DPC 1R Max speed up to 7000+ MHz
	ï 1DPC 2R Max speed up to 6600+ MHz
	ï 2DPC 1R Max speed up to 6400+ MHz
	ï 2DPC 2R Max speed up to 5600+ MHz
Onboard Graphics	1x HDMIô
	1x DisplayPort
	Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
	Support DP 1.4, maximum resolution of 4K 60Hz*
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	2x PCI-E x16 slot
	Supports x16/x4
	1x PCI-E x1 slot
	PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage	2x M.2 slot
	M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
	M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G port
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	2x USB 3.2 Gen1 Type A (Front)
	3x USB 3.2 Gen2 Type A (Rear)
	1x USB 3.2 Gen2 Type C (Front)
	1x USB 3.2 Gen2x2 Type C (Rear)
LAN	RealtekÆ 2.5Gbps LAN
WIRELESS / BLUETOOTH	IntelÆ Wi-Fi 6E
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax
	Supports BluetoothÆ 5.3, FIPS, FISMA
	* Wi-Fi 6E 6GHz may depend on every countryís regulations and will be ready in Windows 10 build 21H1 and Windows 11
Audio	RealtekÆ ALC897 Codec
	7.1-Channel USB High Performance Audio
	Supports S/PDIF output
Internal I/O	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Pump Fan
	4x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x TBT connector (JTBT, supports RTD3)
	1x Tuning Controller connector(JDASH)
	2x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0
	2x USB 3.2 Gen1 Type A
	1x USB 3.2 Gen2 Type C
LED FEATURE	4x EZ Debug LED

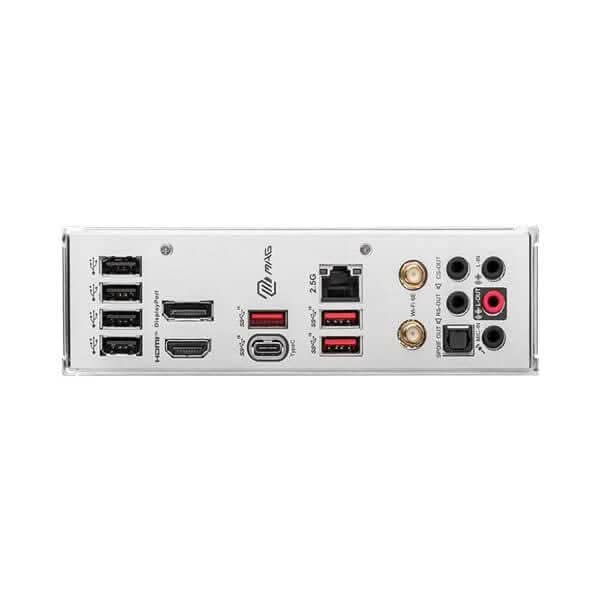

BACK PANEL PORTS	USB 2.0
	DisplayPort 1.4
	USB 3.2 Gen 2 10Gbps Type-A
	2.5G LAN Port
	Wi-Fi / Bluetooth Antenna
	HD Audio Connectors
	HDMIô 2.1 Port
	USB 3.2 Gen 2x2 20Gbps Type-C
	Optical S/PDIF OUT
OPERATING SYSTEM	Support for WindowsÆ 11 64-bit, WindowsÆ 10 64-bit
PCB Dimension	mATX
PCB Dimension	243.84mmx243.84mm
Warranty	3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice. Warranty: 3 years
